EVERLIGHT ELECTRONICS CO.,LTD
Technical Data Sheet

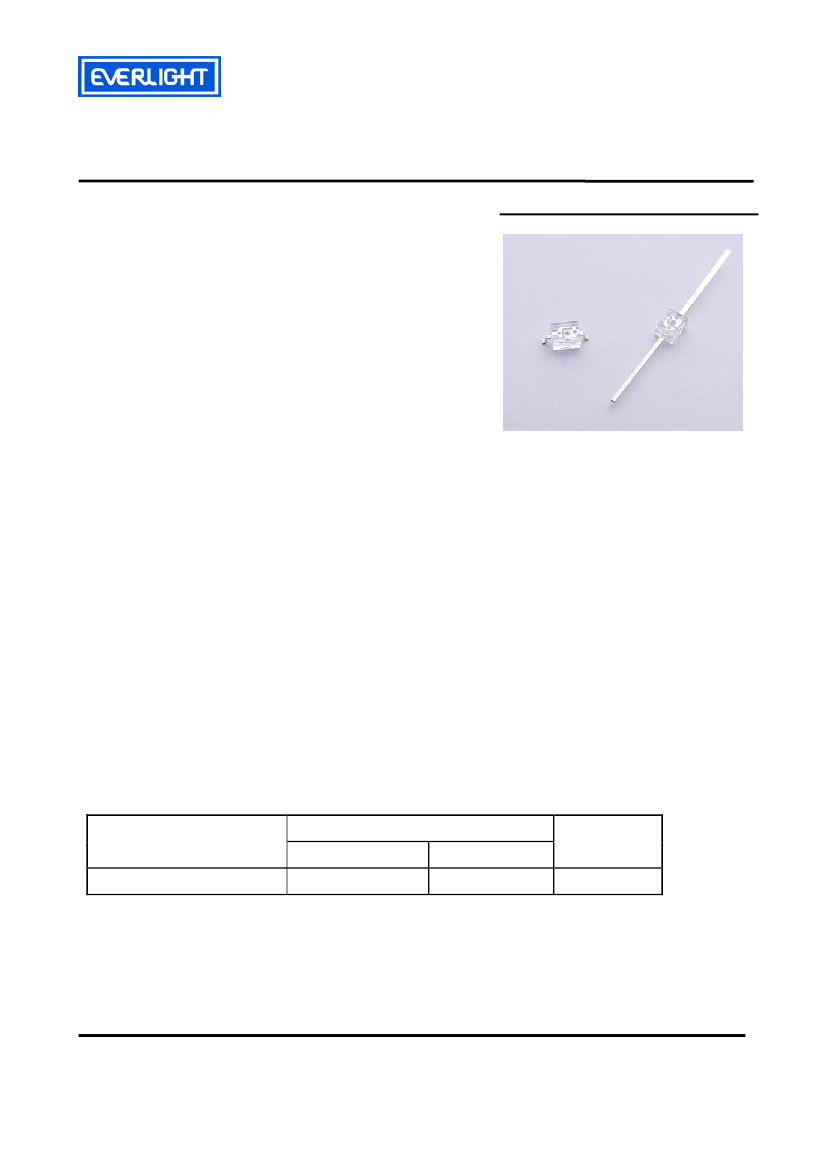

1.4 mm Height Subminiature , Axial Flat Top View LED
28-21SDRC/S530-XX/XXX
Features
․Package
in 12mm tape on 7" diameter reels.
․Compatible
with automatic placement equipment.
․EIA
Std. package.
․Mono-color
type.
․Pb-free.
․RoHS
refer to SMD A type SGS report.
Descriptions
․The28-21
SMD taping is much smaller than leaded
components .Thus enable smaller board size.
Higher packing density. Reduced storage
space and finally smaller equipment to be
obtained.
․Besides,
light weight makes them
ideal for miniature applications.
․Furthermore
by automation assembly
machines the accuracy is anticipated.
F8/TR8
28-21
Applications
․Small
indicator for indoor applications.
․Flat
backlight for LCD, switches and symbols.
․Indicator
and backlight in office equipment.
․Indicator
and backlight for battery driven equipment.
․Indicator
and backlight for audio and video equipment.
․Automotive
: backlighting in dashboards and switches
․Telecommunication：indicator
and backlighting in telephone and fax.
Device Selection Guide
Part No.
28-21SDRC/S530-XX/XXX
Chip
Material
AlGaInP
Emitted Color
Deep-Red
Lens Color
Water Clear
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-006
http://www.everlight.com
repared date:29-Jun-2005
Rev. 1
Prepared by:
Page: 1 of 10
Zhang huali
EVERLIGHT ELECTRONICS CO.,LTD
28-21SDRC/S530-XX/XXX

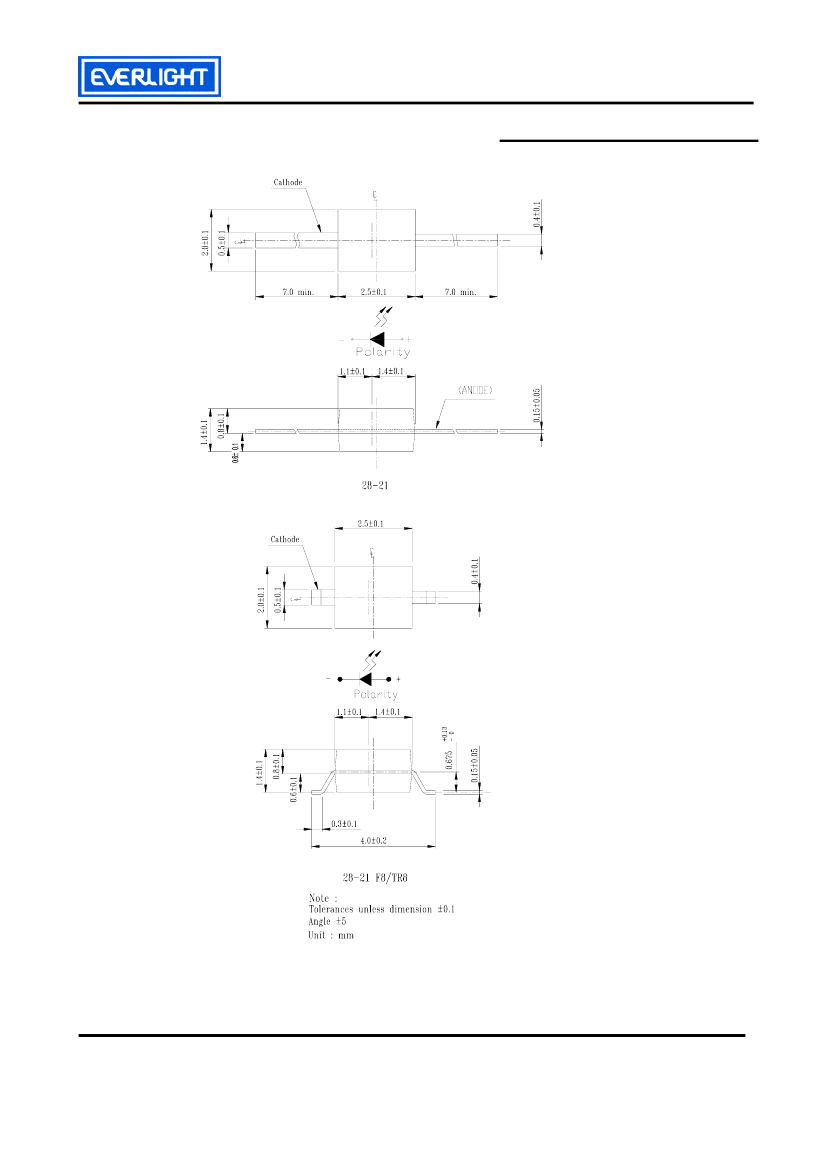

Package Outline Dimensions
Note:
Tolerances Unless Dimension is
±0.1mm
, Unit = mm
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-006
http://www.everlight.com
repared date:29-Jun-2005
Rev. 1
Prepared by:
Page: 2 of 10
Zhang huali
EVERLIGHT ELECTRONICS CO.,LTD
28-21SDRC/S530-XX/XXX
Absolute Maximum Ratings (Ta=25℃)
Parameter
Reverse Voltage
Forward Current
Operating Temperature
Storage Temperature
Electrostatic Discharge
Power Dissipation
Peak Forward Current(Duty 1/10
@ 1KHz)
Soldering Temperature
Symbol
V
R
I
F
Topr
Tstg
ESD
P
d
I
FP
Rating
5
25
-40 ~ +85
-40 ~ +100
2000
60
60
Unit
V
mA
℃
℃
V
mW
mA
Reflow Soldering : 260
℃
for 10 sec.
Tsol
Hand Soldering : 350
℃
for 3 sec.
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-006
http://www.everlight.com
repared date:29-Jun-2005
Rev. 1
Prepared by:
Page: 3 of 10
Zhang huali
EVERLIGHT ELECTRONICS CO.,LTD
28-21SDRC/S530-XX/XXX
Electro-Optical Characteristics (Ta=25℃)
Parameter
Symbol Chip Rank
A2
A3
Luminous Intensity
I
V
A4
A5
A6
Viewing Angle
Peak Wavelength
Dominant Wavelength
Spectrum Radiation
Bandwidth
Forward Voltage
Reverse Current
2θ1/2
λ
p
λ
d
△λ
V
F
I
R
----
----
----
----
----
----
MIN.
----
12.0
----
20.0
----
24.0
----
32.0
----
40.0
----
----
----
----
1.7
----
TYP.
2.00
21.0
2.00
27.0
2.00
34.0
2.50
43.0
3.00
54.0
150
650
639
20
2.0
----
MAX.
----
----
----
----
----
----
----
----
----
----
----
----
----
----
2.4
10
deg
nm
nm
nm
V
μA
V
R
=5V
I
F
=20mA
mcd
Unit Condition
I
F
=2mA
I
F
=20mA
I
F
=2mA
I
F
=20mA
I
F
=2mA
I
F
=20mA
I
F
=2mA
I
F
=20mA
I
F
=2mA
I
F
=20mA
*
28-21SDRC/S530-XX / XXX
1
1:Chip
Rank
2:Packing Method:
(1) None,F8：Bulk
(2) TR8：Taping
2
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-006
http://www.everlight.com
repared date:29-Jun-2005
Rev. 1
Prepared by:
Page: 4 of 10
Zhang huali
EVERLIGHT ELECTRONICS CO.,LTD
28-21SDRC/S530-XX/XXX

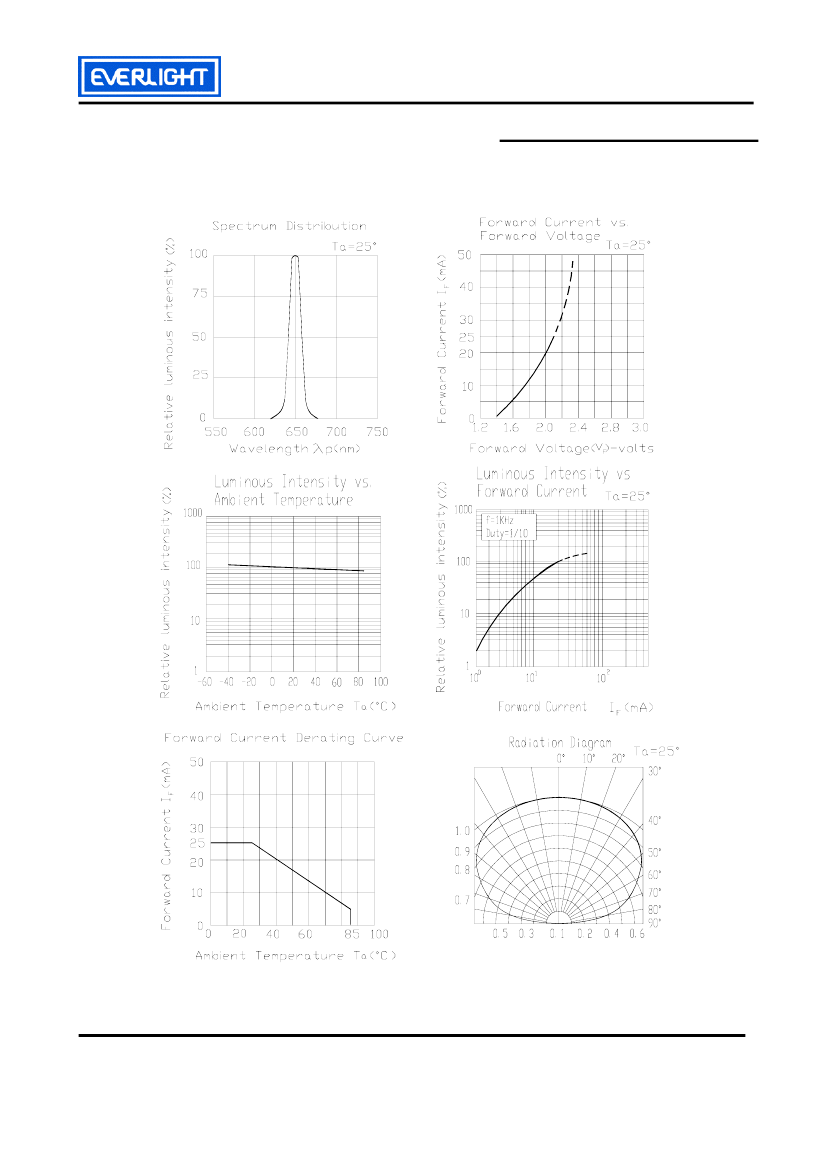

Typical Electro-Optical Characteristics Curves
Everlight Electronics Co., Ltd.
Device No. : SZDLE-281-006
http://www.everlight.com
repared date:29-Jun-2005
Rev. 1
Prepared by:
Page: 5 of 10
Zhang huali
