LCGDL9P00LC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> LCGDL9P00LC

LCGDL9P00LC: DescriptionSNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1.01mm, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT; CategoryMechanical and electronic products switch; File Size203KB，4 Pages; ManufacturerC&K; Environmental Compliance

Download Datasheet Parametric Compare View All

LCGDL9P00LC Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	LCGDL9P00LC	-	-	View	Buy Now

LCGDL9P00LC Overview

SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1.01mm, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT

LCGDL9P00LC Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	C&K
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator stroke	1.01 mm
Actuator type	PIN PLUNGER
body width	9.32 mm
body height	6.1 mm
Body length or diameter	19.84 mm
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
contact time	SNAP ACTION
Maximum contact voltage (AC)	250 V
Dielectric withstand voltage	1000VRMS V
Electrical life	6000 Cycle(s)
End contact material	COPPER ALLOY
End contact plating	SILVER
Insulation resistance	1000000000 Ω
Installation features	THROUGH HOLE-RIGHT ANGLE
Maximum operating force	0.93 N
Maximum operating temperature	85 °C
Minimum operating temperature	-25 °C
Maximum pre-travel	0.76 mm
surface mount	NO
Switch action	MOMENTARY
switch function	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH
Terminal material	COPPER ALLOY
Termination type	SOLDER

Preview

Download Datasheet

View All

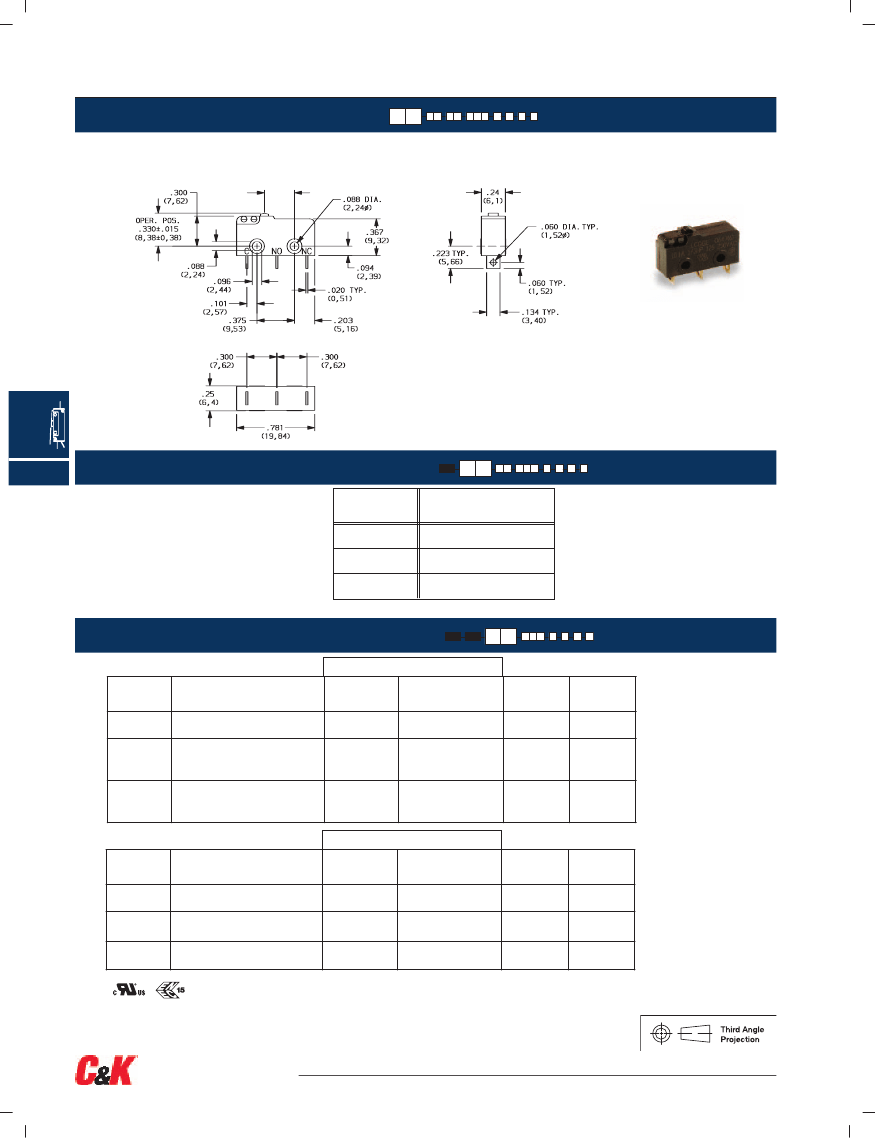

LC Series

Subminiature Precision Snap-acting Switches

Features/Benefits

•

Compact design

•

Long life and high electrical capacity

•

Quick connect, wire lead or PC mounting

•

Wide variety of actuator styles

Typical Applications

•

Motorized equipment

•

Sump pump

•

Thermostatic controls

Specifications

CONTACT RATING: From low level* to 10.1 AMPS @ 250 V AC.

ELECTRICAL LIFE: 100,000 cycles

INSULATION RESISTANCE: 1,000 M

οηµ

min.

DIELECTRIC STRENGTH: 1,000 Vrms min. @ sea level.

OPERATING TEMPERATURE: –17ºF to 185ºF (–25ºC to 85ºC).

OPERATING FORCE: From 142 to 170 grams at actuator button.

Forces are less at free end of lever actuators; (see OPERATING

FORCE and ACTUATOR option sections).

MOUNTING: 2-56 screws, torque 2.3 in/lbs max.

* Low Level=conditions where no arcing occurs during switching, i.e., 0.4 VA max. @

20 V AC or DC max.

NOTE:

Specifications and materials listed above are for switches with standard options.

For information on specific and custom switches, consult Customer Service center.

Materials

SWITCH HOUSING: Thermoplastic polyester or high temperature

thermoplastic (PTS) (UL 94V-0).

ACTUATOR BUTTON: Thermoplastic polyester (UL 94V-0).

SPRING: Copper alloy.

PIVOT: Copper alloy.

MOVABLE CONTACTS: Fine silver for ratings greater than 1 AMP

@ 125 V AC. Fine silver with 24K gold plate for 1 AMP @

125 V AC or less.

STATIONARY CONTACTS: Fine silver welded on copper alloy for

ratings greater than 1 AMP @ 125 V AC. Gold alloy welded

on copper alloy for ratings less than 1 AMP @ 125 V AC.

TERMINALS: Copper alloy.

TERMINAL SEAL: Epoxy.

Snap-acting

Build-A-Switch

To order, simply select desired option from each category and place in the appropriate box. Available options are shown and

described on pages J-18 through J-20. For additional options not shown in catalog, consult Customer Service Center.

Series

SP, Mom.

Operating Force

5 oz./142 grams

3.3 oz./94 grams

6 oz./170 grams

Electrical Rating

UL 61058-1 (see chart)

UL 1054 (see chart)

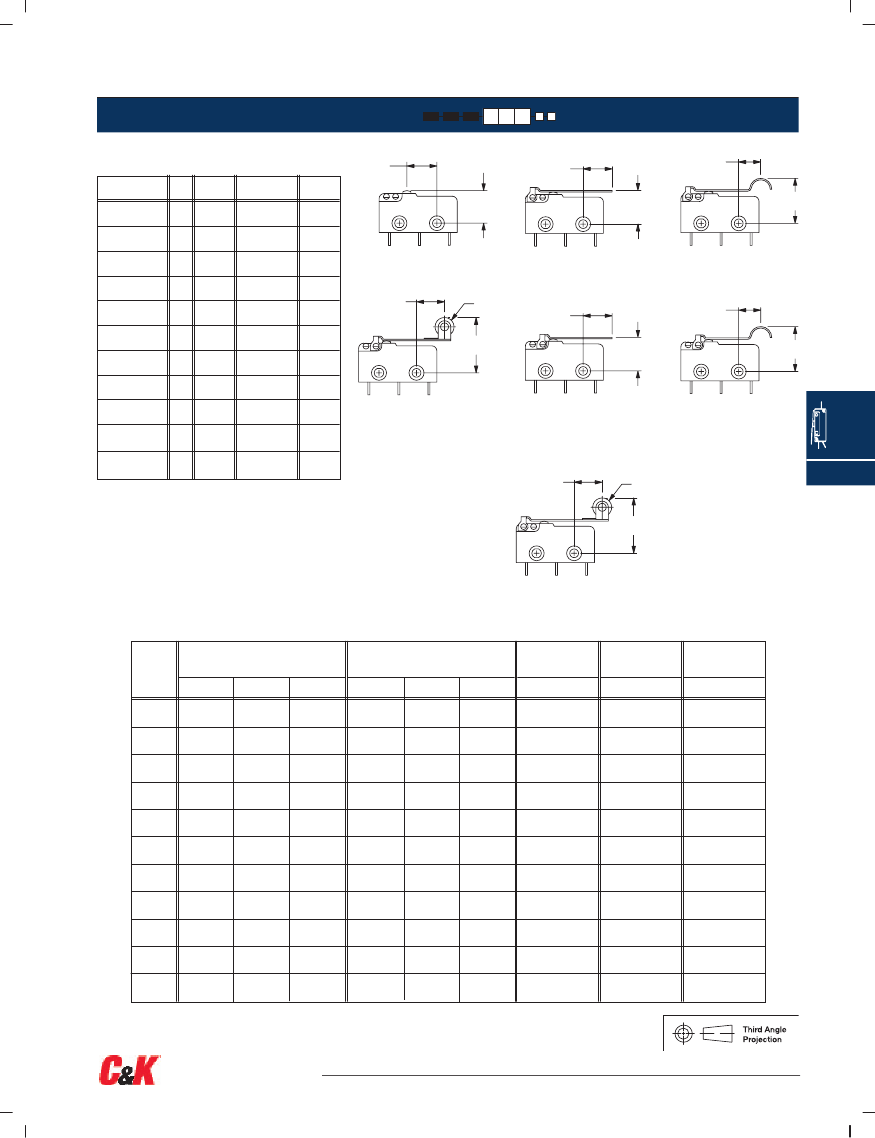

Actuator

P00

Pin plunger

A10

.28" lever roller, high force

A15

.51" lever roller, high force

A20

.39" lever roller, low force

A25

.61" lever roller, low force

T10

.29" lever, high force

T13

.22" simulated roller, high force

T15

.57" lever, high force

T20

.38" lever, low force

T23

.32" simulated roller, low force

T25

.67" lever, low force

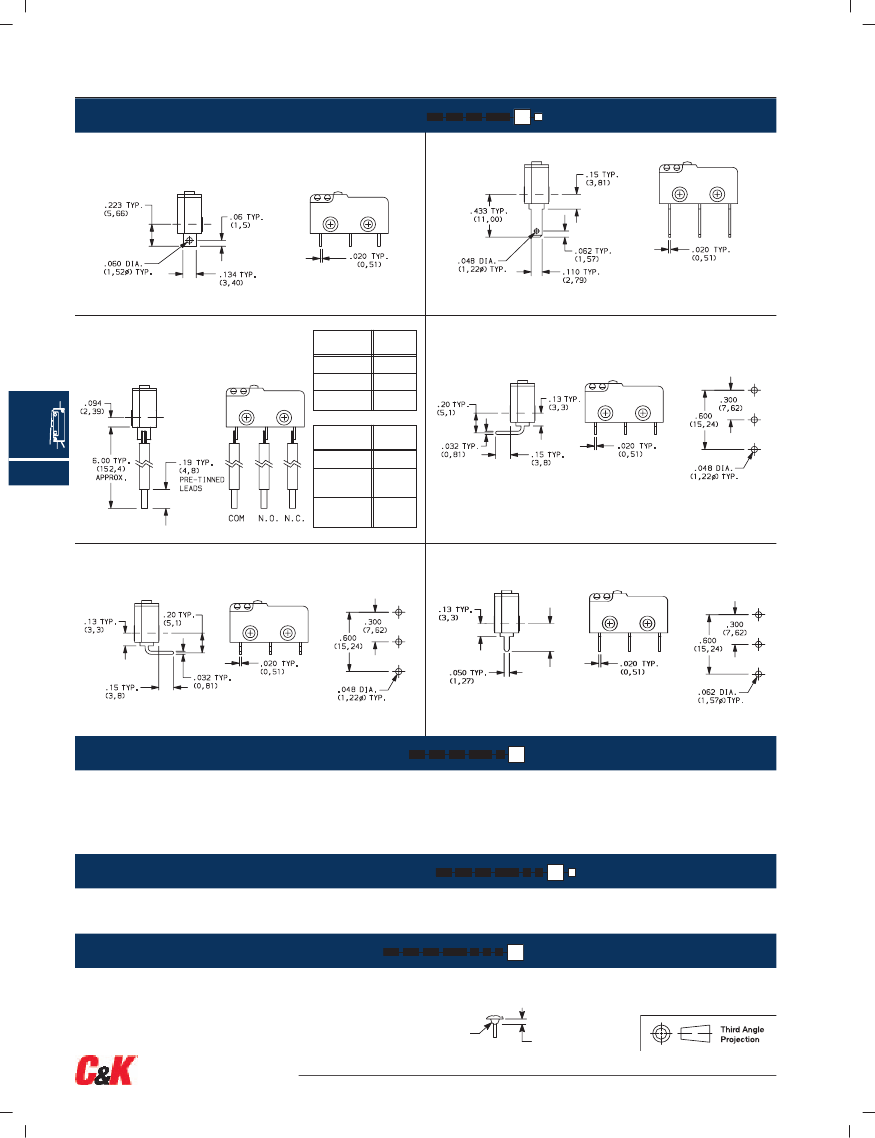

Terminations

Solder

.110" quick connect

Wire lead

Left formed PC thru-hole

Right formed PC thru-hole

PC Thru-hole

Circuitry

SPDT

SPST N.C.

SPST N.O.

Electrical Life

NONE

6,000 operations

Extended 100,000 operations

Seal

NONE

(STD.) No seal

Epoxy seal

Dimensions are shown: Inches (mm)

Specifications and dimensions subject to change

* Extended operations only available on Electrical Rating options F5, L9 and M1

J–17

www.ck-components.com

LCGDL9P00LC Related Products

	LCGDL9P00LC	LCGDL9P00JW	LCGDL9P00HY	LCGGL9A10HC	LCGDL9P00HC	LCGDF5P00HC	LCGGX1A10JCE	LCGDL9P00SC	LCGGX1A10EW	LCGGL9T10HC
Description	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1.01mm, THROUGH HOLE-RIGHT ANGLE, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 1.01mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 1.01mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 4.3mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1.01mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 1.01mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1A, 30VDC, 4.3mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 1.01mm, THROUGH HOLE-STRAIGHT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPST, MOMENTARY, 1A, 30VDC, 4.3mm, PANEL MOUNT, ROHS COMPLIANT	SNAP ACTING/LIMIT SWITCH, SPDT, MOMENTARY, 4.3mm, PANEL MOUNT, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K	C&K
package instruction	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT	ROHS COMPLIANT
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Actuator stroke	1.01 mm	1.01 mm	1.01 mm	4.3 mm	1.01 mm	1.01 mm	4.3 mm	1.01 mm	4.3 mm	4.3 mm
Actuator type	PIN PLUNGER	PIN PLUNGER	PIN PLUNGER	LEVER ROLLER HIGH FORCE	PIN PLUNGER	PIN PLUNGER	LEVER ROLLER HIGH FORCE	PIN PLUNGER	LEVER ROLLER HIGH FORCE	LEVER, HIGH FORCE
body width	9.32 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm	6.1 mm
body height	6.1 mm	9.32 mm	9.32 mm	9.32 mm	9.32 mm	9.32 mm	9.32 mm	9.32 mm	9.32 mm	9.32 mm
Body length or diameter	19.84 mm	19.84 mm	19.84 mm	19.84 mm	19.84 mm	19.84 mm	19.84 mm	19.84 mm	19.84 mm	19.84 mm
Contact (AC) maximum rated R load	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC	1A@125VAC	1A@125VAC	5A@250VAC	1A@125VAC	5A@250VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A	5 A	1 A	1 A	5 A	1 A	5 A
contact time	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION	SNAP ACTION
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V	250 V	125 V	125 V	250 V	125 V	250 V
Dielectric withstand voltage	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V	1000VRMS V
Electrical life	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)	6000 Cycle(s)
Insulation resistance	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω	1000000000 Ω
Installation features	THROUGH HOLE-RIGHT ANGLE	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	PANEL MOUNT	THROUGH HOLE-STRAIGHT	PANEL MOUNT	PANEL MOUNT
Maximum operating force	0.93 N	0.93 N	0.93 N	0.47 N	0.93 N	0.93 N	0.47 N	0.93 N	0.47 N	0.47 N
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C	-25 °C
Maximum pre-travel	0.76 mm	0.76 mm	0.76 mm	3.56 mm	0.76 mm	0.76 mm	3.56 mm	0.76 mm	3.56 mm	3.56 mm
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
switch function	SPDT	SPST	SPST	SPDT	SPDT	SPDT	SPDT	SPDT	SPST	SPDT
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Terminal material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
Termination type	SOLDER	WIRE	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	QUICK CONNECT	WIRE	SOLDER	SOLDER	QUICK CONNECT
End contact material	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	-	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY	COPPER ALLOY
End contact plating	SILVER	SILVER	SILVER	SILVER	SILVER	-	SILVER	SILVER	SILVER	SILVER
