VPE1-E1D-FREQ datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> oscillator> VPE1-E1D-FREQ

VPE1-E1D-FREQ: DescriptionHCMOS/TTL Output Clock Oscillator, 1MHz Min, 125MHz Max; CategoryPassive components oscillator; File Size113KB，2 Pages; ManufacturerVectron International, Inc.; Websitehttp://www.vectron.com/

Download Datasheet Parametric View All

VPE1-E1D-FREQ Overview

HCMOS/TTL Output Clock Oscillator, 1MHz Min, 125MHz Max

VPE1-E1D-FREQ Parametric

Parameter Name	Attribute value
Maker	Vectron International, Inc.
Reach Compliance Code	compliant
Other features	TRISTATE; BULK
Frequency Adjustment - Mechanical	NO
frequency stability	50%
Manufacturer's serial number	VPE1
Installation features	SURFACE MOUNT
Maximum operating frequency	125 MHz
Minimum operating frequency	1 MHz
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Oscillator type	HCMOS/TTL
Output load	50 pF
physical size	14.0mm x 9.8mm x 4.7mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
maximum symmetry	60/40 %

Preview

Download Datasheet

View All

VPE1 14 x 9.8 mm Crystal Oscillators

Featuring

•

Quick delivery

Wide output frequency range up to 125 MHz

Stabilities of ±50, ±100 PPM

3.3 or 5.0 Vdc Option

HCMOS/TTL Compatible

Frequency Range

Package Options

Voltage Options/

Load Drive

1 MHz to 125 MHz

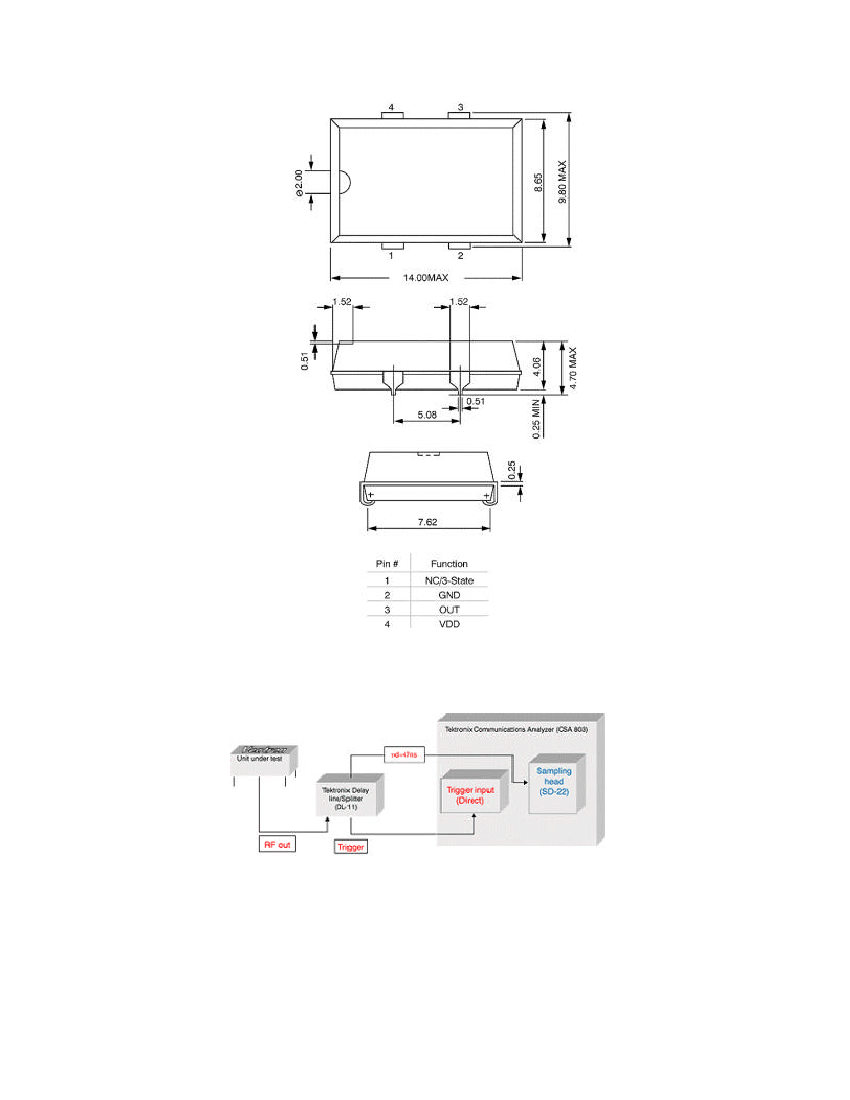

= 14 x 9.8 x 4.7 mm tall 4 pads

= +5.0 Vdc

±10%

15pF

= +3.3 Vdc

±10%

15pF

= +5.0 Vdc

±10%

50pF (Non Standard)

= Tristate 60/40 Symmetry

= Tristate 55/45 Symmetry (Non Standard)

N/C = OUTPUT

Logic 1 = OUTPUT

Logic 0 = High Impedance

±100

±50

±100

±50

PPM

0°C to +70°C

-40°C to +85°C

Electrical Options

Tristate

Stability Options

Start-Up

Standard Load

Total Jitter

Standard Packaging

Typical P/N

10 ms Maximum

HCMOS/TTL

300 ps peak to peak

Bulk

VPE1-B1B-40M000

= 14 x 9.8 x 4.7 mm tall 4 pads

= +3.3 Vdc ±10% 15pF

= Tristate 60/40 Symmetry

= ±50 PPM 0°C to +70°C

1. As measured in a test circuit below.

2. Non Standard items may have limited frequency availability and most likely slightly longer lead times.
