70GRCM32 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > 70GRCM32

Preview

70GRCM32: DescriptionFor Use with MicroDac or PAMUX Controllers; File Size492KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet View All

70GRCM32 Overview

For Use with MicroDac or PAMUX Controllers

Preview

Download Datasheet

View All

System 50

RACKS

32 Channel

FEATURES

• For Use with MicroDac or PAMUX

Controllers

• Available for G5 I/O Modules

• UL, CSA Certified

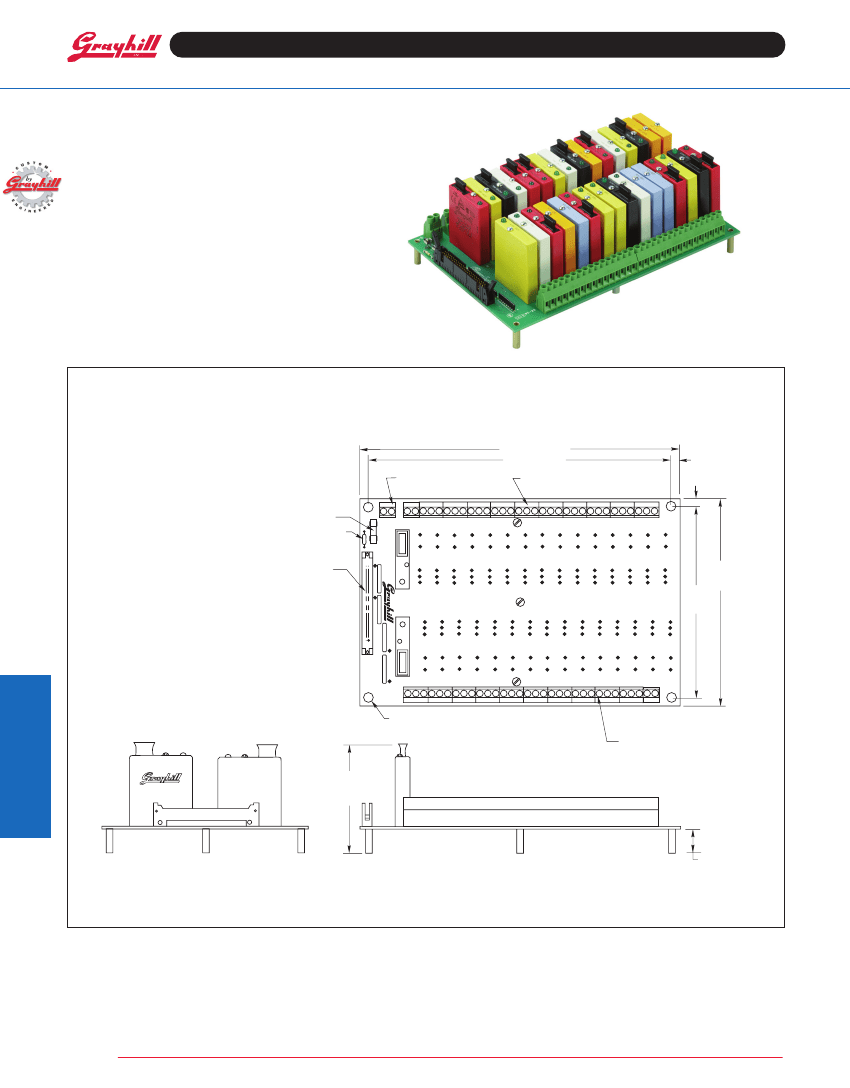

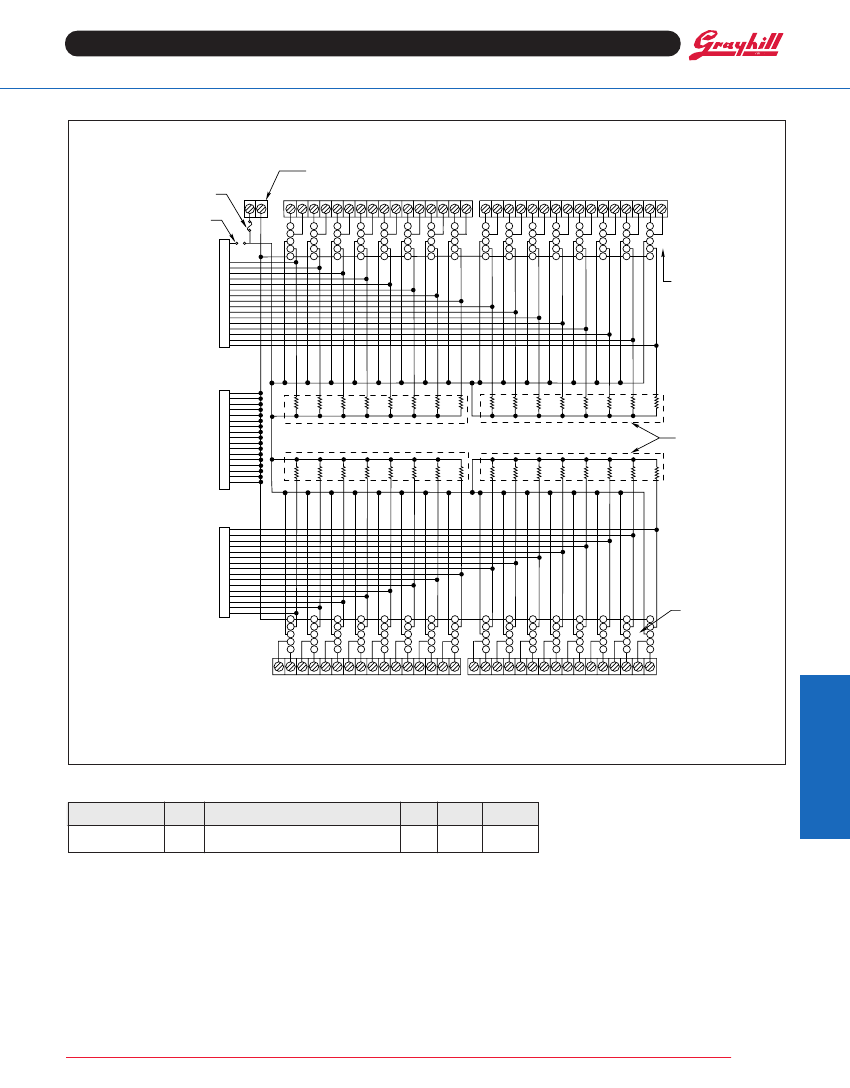

32 CHANNEL RACK: G5

Part No. 70GRCM32

Dimensions are in inches (and millimeters).

All tolerances are ± 0.010 (0,25)

unless indicated otherwise.

10.000 (254,00)

9.500 (241,3)

LOGIC SUPPLY

TERMINAL STRIP

FIELD WIRING

TERMINAL STRIP

.250 (6,35)

FUSE 5A

0Ω JUMPER

50 PIN STRAIGHT

HEADER CONNECTOR

6.500

(165,1)

6.000

(152,4)

STANDOFF I.D. 0.15 (3,81) DIA.

(4 PLACES) CLEARANCE

FOR #6 SCREW

System 50

NOTE: MAXIMUM

TERMINAL SCREW

TORQUE NOT TO

EXCEED 5 IN-LBS.

3.338

(84,79)

REF.

.750 (19,05)

REF.

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois 60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com
