This document was generated on 04/08/2014
PLEASE CHECK WWW.MOLEX.COM FOR LATEST PART INFORMATION
Part Number:
Status:
Description:
94529-4103
Active
5.00mm Pitch RAST, Receptacle, Natural Color, PA Polyamide (Nylon) 6/6, 3 Circuits,
Glow Wire Compatible
Documents:
3D Model
Drawing (PDF)
Product Specification PS-94529-001 (PDF)
Product Specification PS-94529-002 (PDF)
RoHS Certificate of Compliance (PDF)
Series
General
Product Family
Series
Application
Comments
Crimp Housings
94529
Power, Wire-to-Board
This Molex product is manufactured from material
that has the following ratings, tested by independent
agencies :. a) A Glow Wire Ignition Temperature (GWIT)
of at least 775 deg C per IEC 60695-2-13.. b) A Glow
Wire Flammability Index (GWFI) above 850 deg C
per IEC 60695-2-12.and hence complies with the
requirements set out in the International Standard IEC
60335-1 5th edition - household and similar electrical
appliances - safety; section 30 Resistance to heat
and fire.<P><P>The customers using this product
must determine its suitability for use in their particular
application through testing or other acceptable means
as described in end-product glow-wire flammability
test standard IEC 60695-2-11 and any applicable
product end-use standard(s).<P>If it is determined
during the customer’s evaluation of suitability, that
higher performance is required, please contact Molex for
possible product options.
Pitch 5 Edge Card
822350324380

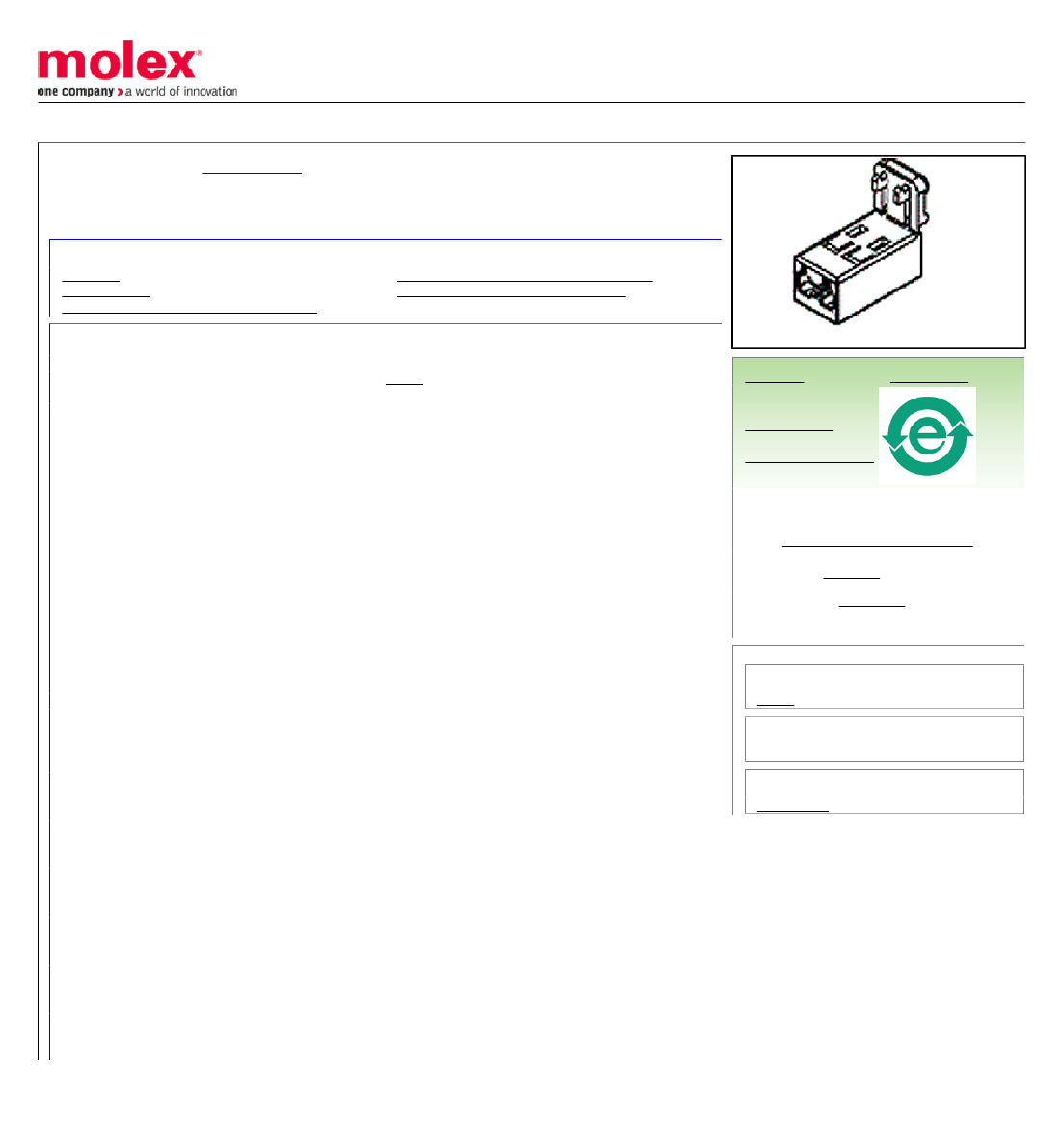

image - Reference only
EU RoHS
ELV and RoHS
Compliant
REACH SVHC
Not Reviewed
Low-Halogen Status
Not Reviewed
China RoHS
Need more information on product
environmental compliance?
Email productcompliance@molex.com
For a multiple part number RoHS Certificate of
Compliance, click here
Please visit the Contact Us section for any
non-product compliance questions.
Product Name
UPC
Search Parts in this Series
94529Series
Mates With
PCB thickness 1.50mm
Use With
94529-1203 Terminal
Physical
Breakaway
Circuits (maximum)
Color - Resin
Gender
Glow-Wire Compliant
Lock to Mating Part
Material - Resin
Number of Rows
Packaging Type
Panel Mount
Pitch - Mating Interface
Pitch - Termination Interface
Polarized to Mating Part
Ports
Stackable
Temperature Range - Operating
No
3
Natural
Female
Yes
Yes
Nylon
1
Bag
No
5.00mm
5.00mm
Yes
1
No
-40°C to +105°C, -40°C to +85°C
Electrical
Current - Maximum per Contact
6A
