SC010M0100A2F-0511 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> SC010M0100A2F-0511

SC010M0100A2F-0511: DescriptionAluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, CAN, RADIAL LEADED; CategoryPassive components capacitor; File Size112KB，3 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/; Environmental Compliance

Download Datasheet Parametric View All

SC010M0100A2F-0511 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 10V, 20% +Tol, 20% -Tol, 100uF, Through Hole Mount, CAN, RADIAL LEADED

SC010M0100A2F-0511 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	YAGEO
package instruction	,
Reach Compliance Code	compliant
ECCN code	EAR99
capacitance	100 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
diameter	5 mm
dielectric materials	ALUMINUM (WET)
ESR	420 mΩ
leakage current	0.01 mA
length	11 mm
Manufacturer's serial number	SC
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	TAPE
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	150 mA
series	SC
surface mount	NO
Delta tangent	0.14
Terminal pitch	2 mm
Terminal shape	WIRE

Preview

Download Datasheet

View All

YAGEO CORPORATION

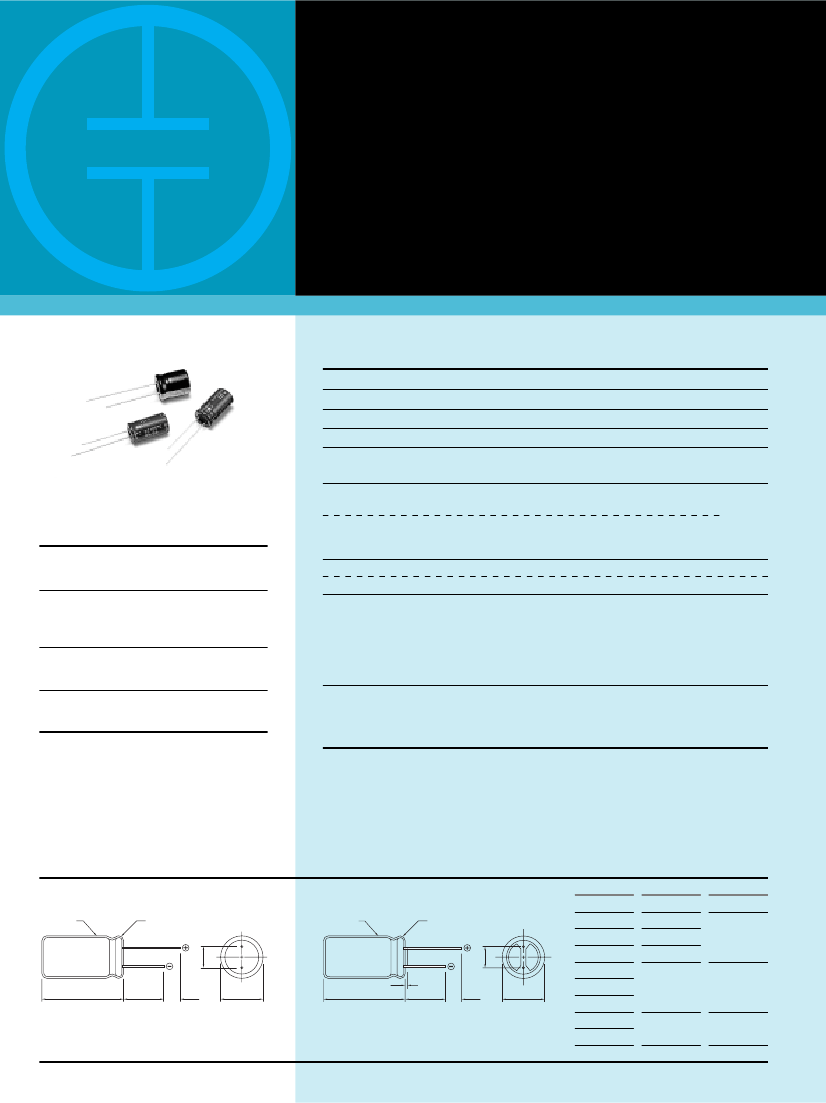

ALUMINUM ELECTROLYTIC CAPACITORS

Miniature Size Aluminum

Electrolytic Capacitors

[ For Low Impedance and Low E.S.R

Suitable for Output of Mother Board ]

105°C Single-Ended Lead Aluminum Electrolytic Capacitors For High Frequency Applications

ELECTRICAL CHARACTERISTICS

Working Voltage : 6.3 ~ 100V

Operating Temperature : -40º ~ +105ºC

Rate Capacitance Range : 4.7 ~ 15000µF

Capacitance Tolerance : -20 ~ +20%

DC Leakage Current (µA) : I = 0.01 CV(µA) or 3µA Whichever is greater.

( Measurements shall be Made After a 2 Minute Charge at Rated Working Voltage )

Dissipation Factor : at 120 Hz, 25ºC

WV (V) : 6.3

100

D.F (%) : 15

For capacitor whose capacitance exceeds 1000µF. The value of D.F(%) is increased by 2% for every

addition of 1000µF.

WV (V)

Impedance : Z - 40°C / Z + 20°C

6.3

100

DESCRIPTION

Used in switching regulator applications in

computers. Especially for high frequency.

Low impedance and E.S.R., high permissible

ripple current at high frequency and higher

operating temperature (-40ºC to +105ºC).

High Temperature Load Life at 105ºC for

3000 Hours

For Detail Specifications, Please Refer to

Engineering Bulletin No. 2063

Load Life : 3000 Hours at 105ºC Assured with Full Rated Maximum Ripple Current Applied

5 x 11 ~ 10 x 12 : Life = 2000 Hours

10 x 15 or Higher : Life = 3000 Hours

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200% of Initial Requirement

Shelf Life : 1000 Hours, No Voltage Applied, at 105ºC

(a) Capacitance Change : Within 20% of Initial Value

(b) Dissipation Factor : Not Exceed 200 % of Initial Requirement

DIAGRAM OF DIMENSIONS

Dimensions : mm

Rubber Stand-off

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Vinyl Sleeve

(P.V.C)

Rubber End Seal

Dø

4.0

5.0

6.0

F±0.5

1.5

2.0

2.5

3.5

5.0

dø

0.45

0.5

F±0.5

15Min.

5Min.

D±0.5

0.4Max.

15Min.

5Min.

D±0.5

8.0

10.0

12.0

13.0

16.0

18.0

22.0

0.6

≤

13≤ L

≤

≥

L + 1.5Max.

+1.0

-0.5

L + 2.0Max.

7.5

10.0

0.8
