PE-65459T: DescriptionPulse Transformer, GENERAL PURPOSE Application(s), 1CT:2CT; CategoryPower management transformer; File Size111KB，2 Pages; ManufacturerPulse Electronics

Download Datasheet Parametric Compare View All

PE-65459T Overview

Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:2CT

PE-65459T Parametric

Parameter Name	Attribute value
Maker	Pulse Electronics
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	BREADTH DIMENSION INCLUDES TERMINAL ALSO
application	GENERAL PURPOSE
ET product minimum value	2 V-us
high	2.5 mm
length	6.6 mm
Manufacturer's serial number	PE-65459
Installation features	SURFACE MOUNT
Number of functions	1
Maximum operating temperature	70 °C
Minimum operating temperature
method of packing	TUBE
physical size	L6.6XB7.24XH2.5 (mm)
Primary inductance	40 µH
surface mount	YES
Transformer type	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:2CT
width	7.24 mm

Preview

Download Datasheet

View All

GENERAL PURPOSE

TRANSFORMERS

RF Pulse

Designed for use in 50

Ω

Wideband

IC applications

Characterized for Pulse and wide

band use at 50

Ω

impedance

Standard 6-pin DIP package or

ThinSet

surface mount package

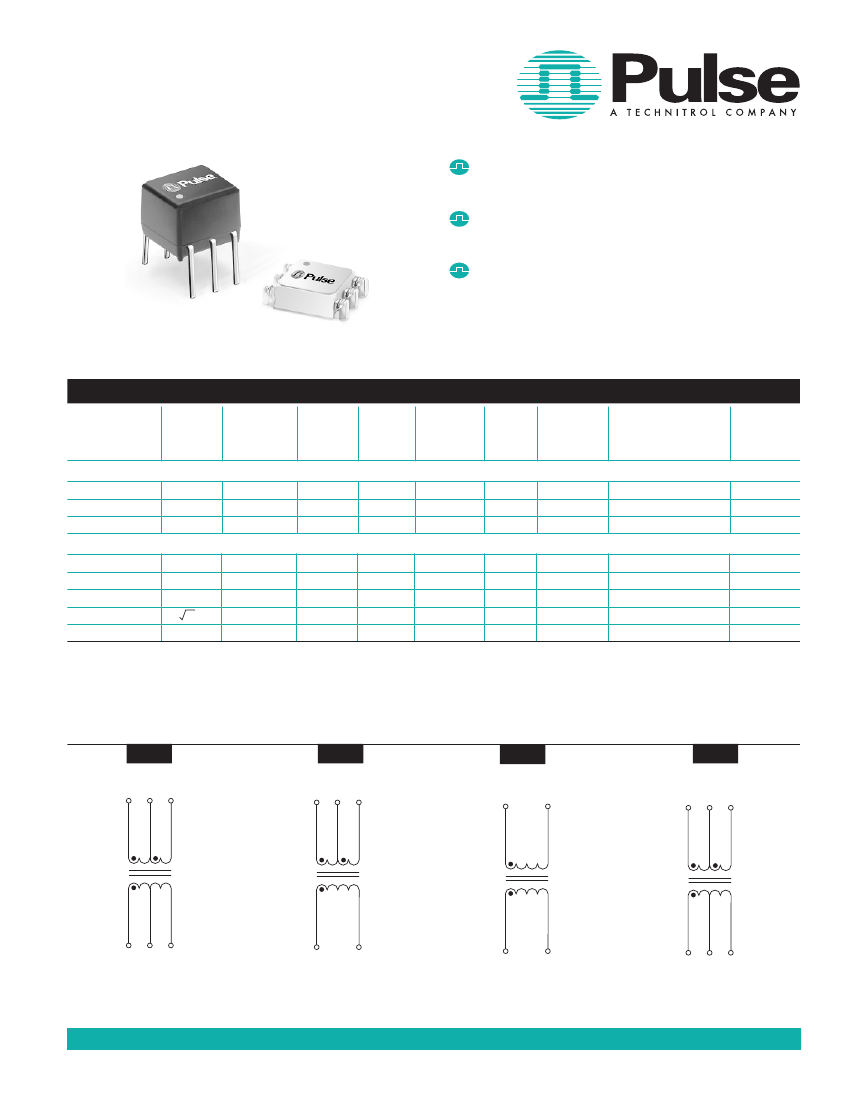

Electrical Specifications @ 25°C — Operating Temperature 0°C to 70°C

Part

Number

Turns

Ratio

(±5%)

Primary

PRI/SEC

Pulse

ET-

Leakage

Cww

Inductance Constant

Inductance

(pF MAX)

(µH MAX)

(µH MIN) (v-µS MIN)

Primary Secondary

DCR

(Ω MAX) (Ω MAX)

Bandwidth

Schematic/

for -3 dB Loss

Package

Low Freq High Freq

Style

(MHz)

S

URFACE

M

OUNT

*

PE-65457

PE-65459

23Z247SMD

1CT:1CT

1CT:2CT

1:1CT

1:1

1CT:1CT

1:2CT

1: 2CT

1:4CT

80

40

80

40

25

40

10

2.5

2.0

2.5

2.0

2.5

1.25

15

12

15

18

10

0.18

0.14

0.18

0.15

0.18

0.14

0.20

0.10

0.20

0.30

0.20

0.30

0.60

0.05

0.10

0.05

0.20

90

110

90

110

90

110

80

60

A / SMT1

B / SMT2

C / TH10

D / TH10

B / TH10

T

HROUGH

H

OLE

PE-62245A

PE-62246A

PE-62250A

PE-62252A

PE-62254A

*NOTE:

To order Tape & Reel packaging for surface mount parts, add the suffix

“T”

to the part number. (Example: PE-65457T). The

“T”

will appear on all

paper work, but will not be marked on parts.

Schematics

A

B

C

D

1 2 3

6 5 4

6

4

6 5 4

6

5

4

1

3

1

3

1

2

3

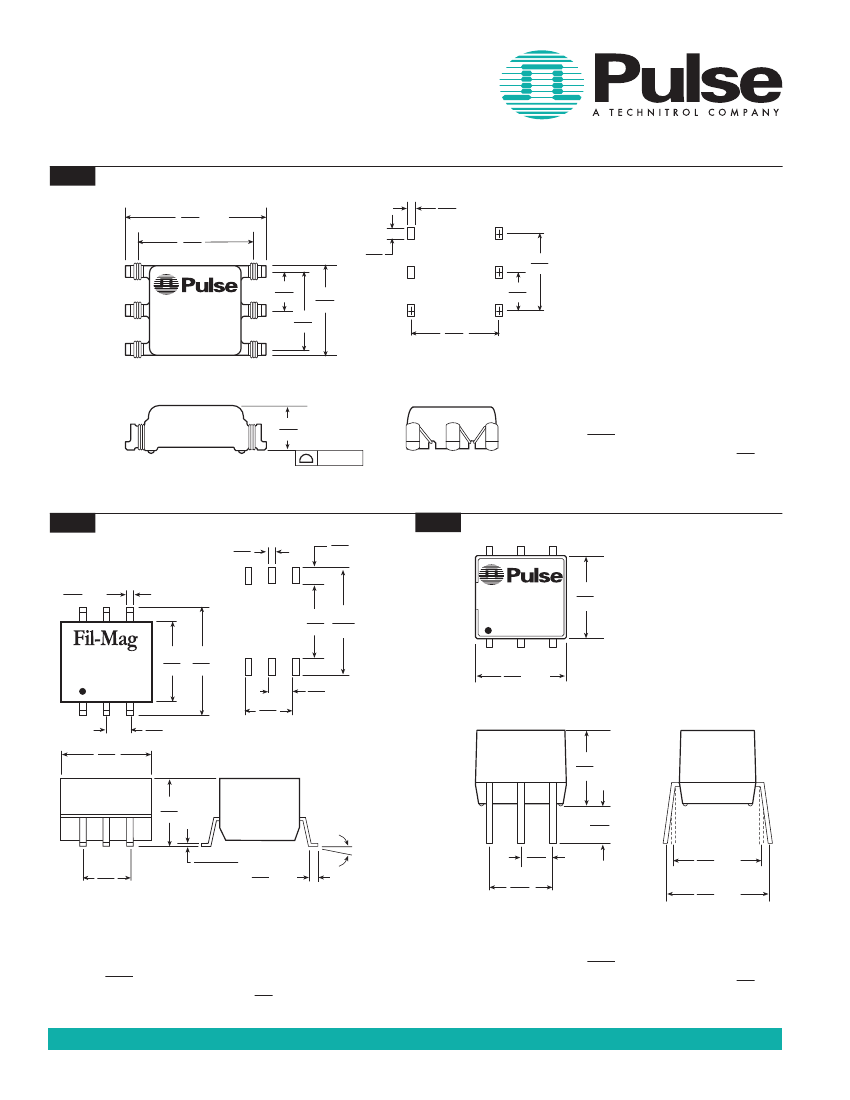

U.S: 858 674 8100

•

U.K: 44 1483 401 700

•

France: 33 3 84 35 04 04

•

Singapore: 65 287 8998

•

Taiwan: 886 2 2698 0228

•

http://www.pulseeng.com

5

G008.B (2/01)

PE-65459T Related Products

	PE-65459T	23Z247SMD	23Z247SMDT	PE-65457T
Description	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:2CT	Pulse Transformer, GENERAL PURPOSE Application(s), 1:1CT	Pulse Transformer, GENERAL PURPOSE Application(s), 1:1CT	Pulse Transformer, GENERAL PURPOSE Application(s), 1CT:1CT
Reach Compliance Code	compliant	compli	compli	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	BREADTH DIMENSION INCLUDES TERMINAL ALSO	HEIGHT DIMENSION INCLUDES TERMINAL ALSO	HEIGHT DIMENSION INCLUDES TERMINAL ALSO	BREADTH DIMENSION INCLUDES TERMINAL ALSO
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
ET product minimum value	2 V-us	2.5 V-us	2.5 V-us	2.5 V-us
high	2.5 mm	5.33 mm	5.33 mm	2.5 mm
length	6.6 mm	7.62 mm	7.62 mm	6.6 mm
Manufacturer's serial number	PE-65459	23Z247SMD	23Z247SMD	PE-65457
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C
method of packing	TUBE	TUBE	TUBE	TUBE
physical size	L6.6XB7.24XH2.5 (mm)	L7.62XB6.73XH5.33 (mm)	L7.62XB6.73XH5.33 (mm)	L6.6XB7.24XH2.5 (mm)
Primary inductance	40 µH	80 µH	80 µH	80 µH
surface mount	YES	YES	YES	YES
Transformer type	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER	PULSE TRANSFORMER
Turns ratio (Np:Ns)	1CT:2CT	1:1CT	1:1CT	1CT:1CT
width	7.24 mm	6.73 mm	6.73 mm	7.24 mm

Recommended Resources

Summary of basic knowledge of analog and digital circuits

Automatic winding machine circuit

Memory interface circuit example

Excitation circuit and synchronous transformer circuit of KZS10 series

DMAl2 input circuit diagram

Muscle stretch detector circuit
