28-21UYC/S530-A7/F8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 28-21UYC/S530-A7/F8

28-21UYC/S530-A7/F8: DescriptionSingle Color LED, Super Yellow, Water Clear, 2.5mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size172KB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric View All

28-21UYC/S530-A7/F8 Overview

Single Color LED, Super Yellow, Water Clear, 2.5mm, ROHS COMPLIANT, SMD, 2 PIN

28-21UYC/S530-A7/F8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli
color	SUPER YELLOW
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	91.0 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.4 mm
method of packing	BULK
peak wavelength	591 nm
shape	RECTANGULAR
size	2.5 mm
surface mount	YES
perspective	150 deg
Base Number Matches	1

Preview

Download Datasheet

View All

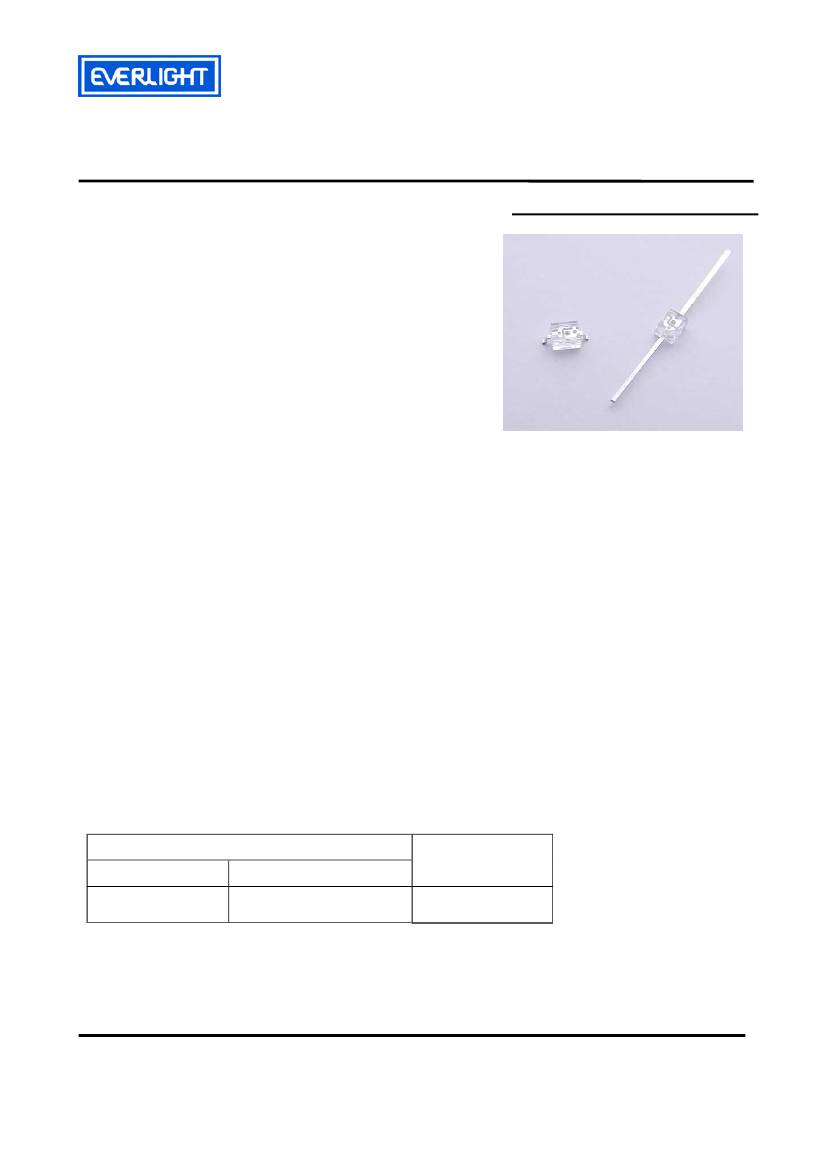

EVERLIGHT ELECTRONICS CO.,LTD

Technical Data Sheet

1.4 mm Height Subminiature , Axial Flat Top View LED

28-21UYC/S530-XX/XXX

Features

․Package

in 12mm tape on 7" diameter reels.

․Compatible

with automatic placement equipment.

․EIA

Std. package.

․Mono-color

type.

․Pb-free

․The

product itself will remain within RoHS

compliant version.

Descriptions

․The28-21

SMD taping is much smaller than

leaded components .Thus enable smaller

board size. Higher packing density.

Reduced storage space and finally smaller

equipment to be obtained.

․Besides,

light weight makes them

ideal for miniature applications.

․Furthermore

by automation assembly

machines the accuracy is anticipated.

F8/TR8

28-21

Applications

․Small

indicator for indoor applications.

․Flat

backlight for LCD, switches and symbols.

․Indicator

and backlight in office equipment.

․Indicator

and backlight for battery driven equipment.

․Indicator

and backlight for audio and video equipment.

․Automotive

: backlighting in dashboards and switches

․Telecommunication：indicator

and backlighting in telephone and fax.

Device Selection Guide

Chip

Material

AlGaInP

Emitted Color

Super Yellow

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No. : SZDLE-281-001

http://www.everlight.com

repared date:07-26-2005

Rev. 2

Prepared by:

Page: 1 of 9

Aihua hong
