DS90LV017ATM

Description
LINE DRIVER, PDSO8, SOIC-8
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size1MB，9 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric View All

DS90LV017ATM Online Shopping

Suppliers Part Number Price MOQ In stock
DS90LV017ATM - - View Buy Now

DS90LV017ATM Overview

LINE DRIVER, PDSO8, SOIC-8

DS90LV017ATM Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerRochester Electronics
Parts packaging codeSOIC
package instructionSOIC-8
Contacts8
Reach Compliance Codeunknown
Differential outputYES
Number of drives1
Input propertiesSTANDARD
Interface integrated circuit typeLINE DRIVER
Interface standardsEIA-644
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
Humidity sensitivity level1
Number of functions1
Number of terminals8
Maximum operating temperature85 °C
Minimum operating temperature-40 °C
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
Maximum seat height1.75 mm
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
Temperature levelINDUSTRIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
maximum transmission delay1.5 ns
width3.9 mm

DS90LV017ATM Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
DS90LV017A LVDS Single High Speed Differential Driver
August 2005
DS90LV017A
LVDS Single High Speed Differential Driver
General Description
The DS90LV017A is a single LVDS driver device optimized
for high data rate and low power applications. The
DS90LV017A is a current mode driver allowing power dissi-
pation to remain low even at high frequency. In addition, the
short circuit fault current is also minimized. The device is
designed to support data rates in excess of 600Mbps
(300MHz) utilizing Low Voltage Differential Signaling (LVDS)
technology.
The device is in a 8-lead small outline package. The
DS90LV017A has a flow-through design for easy PCB lay-
out. The differential driver outputs provides low EMI with its
typical low output swing of 355 mV. The DS90LV017A can be
paired with its companion single line receiver, the
DS90LV018A, or with any of National"s LVDS receivers, to
provide a high-speed point-to-point LVDS interface.
Features
n
n
n
n
n
n
n
n
n
n
n
n
n
>
600 Mbps (300 MHz) switching rates
0.3 ns typical differential skew
0.7 ns maximum differential skew
1.5 ns maximum propagation delay
3.3V power supply design
±
355 mV differential signaling
Low power dissipation (23 mW
@
3.3V static)
Flow-through design simplifies PCB layout
Interoperable with existing 5V LVDS devices
Power Off Protection (outputs in high impedance)
Conforms to TIA/EIA-644 Standard
8-Lead SOIC package saves space
Industrial temperature operating range
(−40˚C to +85˚C)
Connection Diagram
Dual-In-Line
10010101
Order Number DS90LV017ATM
See NS Package Number M08A
Functional Diagram
10010102
TRI-STATE
®
is a registered trademark of National Semiconductor Corporation.
© 2005 National Semiconductor Corporation
DS100101
www.national.com
DS90LV017A
Absolute Maximum Ratings
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
)
Input Voltage (DI)
Output Voltage (DO
±
)
M Package
Derate M Package
Storage Temperature Range
Lead Temperature Range Soldering
(4 sec.)
+260˚C
−0.3V to +4V
−0.3V to +3.6V
−0.3V to +3.9V
1190 mW
9.5 mW/˚C above +25˚C
−65˚C to +150˚C
ESD Ratings
(HBM 1.5 kΩ, 100 pF)
(EIAJ 0
Ω,
200 pF)
(CDM)
(IEC direct 330
Ω,
150 pF)
≥
8kV
≥
1000V
≥
1000V
≥
4kV
Maximum Package Power Dissipation
@
+25˚C
Recommended Operating
Conditions
Min
Supply Voltage (V
CC
)
Temperature (T
A
)
3.0
−40
Typ
3.3
25
Max
3.6
+85
Units
V
˚C
Electrical Characteristics
Over Supply Voltage and Operating Temperature ranges, unless otherwise specified. (Notes 2, 3, 7)
Symbol
V
OD
∆V
OD
V
OH
V
OL
V
OS
∆V
OS
I
OXD
I
OSD
V
IH
V
IL
I
IH
I
IL
V
CL
I
CC
Parameter
Output Differential Voltage
V
OD
Magnitude Change
Output High Voltage
Output Low Voltage
Offset Voltage
Offset Magnitude Change
Power-off Leakage
Output Short Circuit Current
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
Input Clamp Voltage
Power Supply Current
V
IN
= 3.3V or 2.4V
V
IN
= GND or 0.5V
I
CL
= −18 mA
No Load
R
L
= 100Ω
V
IN
= V
CC
or GND
V
CC
−1.5
DI
2.0
GND
V
OUT
= V
CC
or GND, V
CC
= 0V
0.9
1.125
0
R
L
= 100Ω
(Figure
1)
Conditions
Pin
DO+,
DO−
Min
250
Typ
355
1
1.4
1.1
1.2
3
1.375
25
Max
450
35
1.6
Units
mV
mV
V
V
V
mV
µA
mA
V
V
µA
µA
V
8
10
mA
mA
DIFFERENTIAL DRIVER CHARACTERISTICS
±
1
−5.7
±
10
−8
V
CC
0.8
±
2
±
1
−0.6
5
7
±
10
±
10
Switching Characteristics
Over Supply Voltage and Operating Temperature Ranges, unless otherwise specified. (Notes 3, 4, 5, 6)
Symbol
t
PHLD
t
PLHD
t
SKD1
t
SKD3
t
SKD4
t
TLH
t
THL
f
MAX
Parameter
Differential Propagation Delay High to Low
Differential Propagation Delay Low to High
Differential Pulse Skew |t
PHLD
− t
PLHD
| (Note 8)
Differential Part to Part Skew (Note 9)
Differential Part to Part Skew (Note 10)
Transition Low to High Time
Transition High to Low Time
Maximum Operating Frequency (Note 11)
Conditions
R
L
= 100Ω, C
L
= 15 pF
(Figure
2
and
Figure 3)
Min
0.3
0.3
0
0
0
0.2
0.2
0.5
0.5
350
Typ
0.8
1.1
0.3
Max
1.5
1.5
0.7
1.0
1.2
1.0
1.0
Units
ns
ns
ns
ns
ns
ns
ns
MHz
DIFFERENTIAL DRIVER CHARACTERISTICS
Note 1:
“Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The table of “Electrical Characteristics” specifies conditions of device operation.
Note 2:
Current into device pins is defined as positive. Current out of device pins is defined as negative. All voltages are referenced to ground except V
OD
.
Note 3:
All typicals are given for: V
CC
= +3.3V and T
A
= +25˚C.
Note 4:
These parameters are guaranteed by design. The limits are based on statistical analysis of the device performance over PVT (process, voltage,
temperature) ranges.
Note 5:
C
L
includes probe and fixture capacitance.
www.national.com
2
DS90LV017A
Switching Characteristics
(Continued)
Note 6:
Generator waveform for all tests unless otherwise specified: f = 1 MHz, Z
O
= 50Ω, t
r
≤
1 ns, t
f
≤
1 ns (10%-90%).
Note 7:
The DS90LV017A is a current mode device and only function with datasheet specification when a resistive load is applied to the drivers outputs.
Note 8:
t
SKD1
, |t
PHLD
− t
PLHD
|, is the magnitude difference in differential propagation delay time between the positive going edge and the negative going edge of
the same channel.
Note 9:
t
SKD3
, Differential Part to Part Skew, is defined as the difference between the minimum and maximum specified differential propagation delays. This
specification applies to devices at the same V
CC
and within 5˚C of each other within the operating temperature range.
Note 10:
t
SKD4
, part to part skew, is the differential channel to channel skew of any event between devices. This specification applies to devices over recommended
operating temperature and voltage ranges, and across process distribution. t
SKD4
is defined as |Max − Min| differential propagation delay.
Note 11:
f
MAX
generator input conditions: t
r
= t
f
<
1 ns (0% to 100%), 50% duty cycle, 0V to 3V. Output criteria: duty cycle = 45%/55%, V
OD
>
250mV.
Parameter Measurement Information
10010103

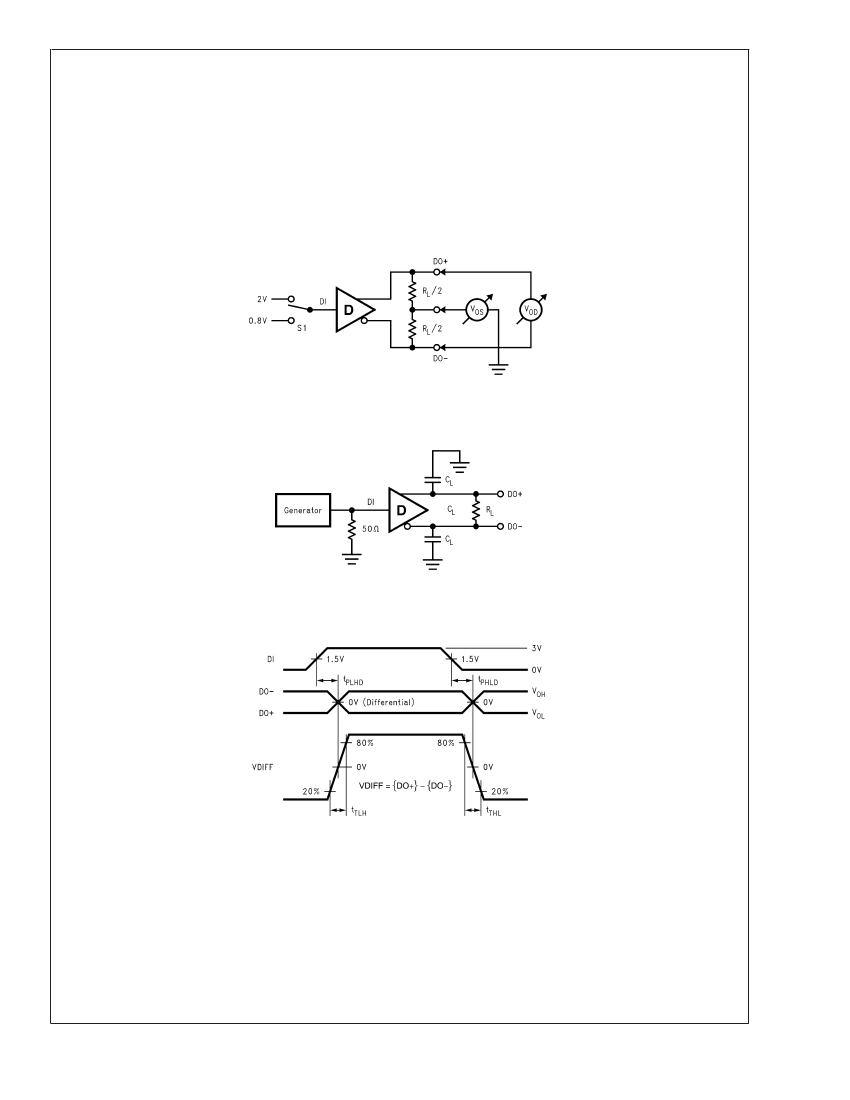

FIGURE 1. Differential Driver DC Test Circuit
10010104
FIGURE 2. Differential Driver Propagation Delay and Transition Time Test Circuit
10010105
FIGURE 3. Differential Driver Propagation Delay and Transition Time Waveforms
3
www.national.com
DS90LV017A
Application Information
TABLE 1. Device Pin Descriptions
Pin #
2
7
8
4
1
3, 5, 6
Name
DI1
DO1+
DO1−
GND
V
CC
NC
Description
TTL/CMOS driver input pins
Non-inverting driver output pin
Inverting driver output pin
Ground pin
Positive power supply pin, +3.3V
±
0.3V
No connect

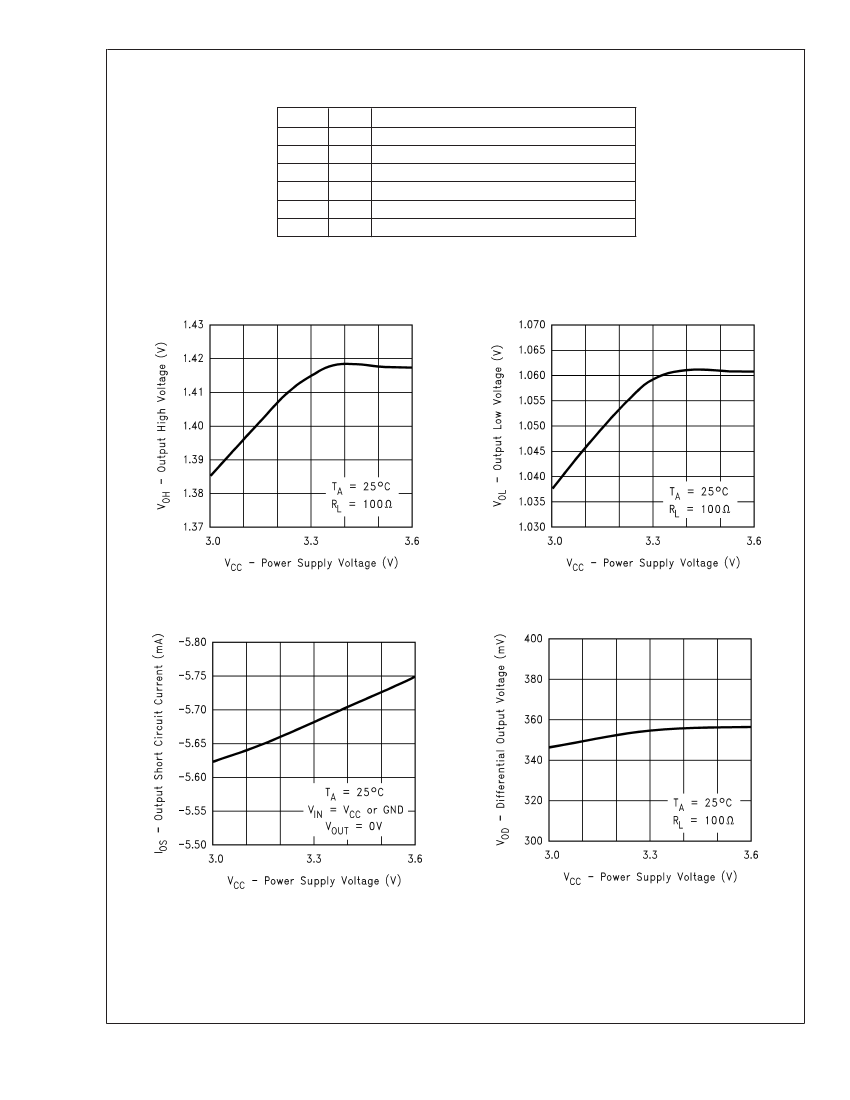

Typical Performance Curves
Output High Voltage vs
Power Supply Voltage
Output Low Voltage vs
Power Supply Voltage
10010107
10010108
Output Short Circuit Current vs
Power Supply Voltage
Differential Output Voltage
vs Power Supply Voltage
10010109
10010110
www.national.com
4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

Add anti-interference capacitor to control cable

Water full alarm circuit three

and light detection circuit

Pressure sensor two-wire output circuit

Gas control alarm

555 bus stop indicator circuit

Is it possible to connect directly?
Many chips have different power supply voltages, some are 3.3v and some are 5.0v. I need to connect the different ports of several ICs together. Is it OK to just connect them directly?...
amountain stm32/stm8
Help urgently!!! Motherboard embedded development
I need to add a card swiping system to the coin-operated coffee machine. If any expert can give me some advice or help, I will definitely reward you handsomely....
laker28 Embedded System
Is the intelligent express delivery pickup system based on LabVIEW not too complicated?
Do you have any examples or functional suggestions about the LabView express system? It is too complicated and there are too many functions to implement....
盐星星 Embedded System
How to implement ship mode in Li-ion battery designs
Author: Texas Instruments Gautham Do you remember that many battery-powered electronic toys have a small plastic pull tab on the battery (see Figure 1) that you pull to make the toy start moving? This...
alan000345 TI Technology Forum
Great! TI power management general tools and software are quite complete,,,
[table=98%] [td][tr][td][size=2]Name[/size][/td][td][size=2]Tool/Software Part Number[/size][/td][td][size=2]Tool/Software Type[/size][/td][td][size=2]Company[/size][/td][td][size=2]Country/Region[/si...
qwqwqw2088 Analogue and Mixed Signal
In November 2013, the top 100 most popular resources in the download center, check it out quickly
In April, I posted a list of the top 100 most popular resources in the download center at that time (see post: [url=https://bbs.eeworld.com.cn/thread-370554-1-1.html]https://bbs.eeworld.com.cn/thread-...
tiankai001 Download Centre
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. FFC-AFS12B1
  2. 68418-426HLF
  3. 070-1136-200
  4. EMRA23Y2H-25.000M
  5. 820-22-062-30-001101
  6. TKJB7C25N29LSB
  7. BLU0402P-8161-BB101Q
  8. R0202GA-01-1261-D
  9. AME8501CEETBA22
  10. PG106R
  11. BAS40-AU_L2_10001
  12. ECLR1016151M080P00

Popular Articles

  1. Karl Fischer Titrator (Trace Moisture Analyzer) FAQs
  2. Google may launch a special version of Pixel 6a in India
  3. Xiaomi's first 4K monitor launched, PANTONE certified, priced at 2,999 yuan
  4. The first 18-bit ISP: Snapdragon 8 raises the ceiling of mobile photography to a new high
  5. Why are foldable screen phones so popular? Are they worth buying?
  6. Electromagnetic flowmeter self-diagnosis information and troubleshooting
  7. The hydrogen energy automobile industry may gradually release huge potential
  8. Analysis of software or hardware causes of PLC crash
  9. Realizing the value of the data center--incubating core data analysis capabilities
  10. Analysis of CAN bus characteristics of vehicle control network system

Technical ResourceMore

  1. xlinx xpe calculation tool
  2. Circuits 5th Edition Courseware Chapter 3
  3. Principle and Application of Supercapacitor
  4. LLC parameter design
  5. Anti-interference technology of switching power supply
  6. uC-FS V3.10 source code, not the real source code of LIB.
  7. Verilog IEEE 13642005 IEEE Standard
  8. Introduction to Integrated Circuit Technology
  9. Verilog HDL Getting Started Tutorial - Huawei Internal Documentation
  10. Dead time and excitation inductance design based on LLC DC transformer - LLC-DCT - efficiency optimization

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2790  599  497  97  229  57  13  10  2  5
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
