DS90LV017MX

Description
LINE DRIVER, PDSO8, SOIC-8
CategoryAnalog mixed-signal IC    Drivers and interfaces
File Size1MB，5 Pages
ManufacturerRochester Electronics
Websitehttps://www.rocelec.com/
Download Datasheet Parametric Compare View All

DS90LV017MX Overview

LINE DRIVER, PDSO8, SOIC-8

DS90LV017MX Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
MakerRochester Electronics
Parts packaging codeSOIC
package instructionSOIC-8
Contacts8
Reach Compliance Codeunknown
Differential outputYES
Number of drives1
Input propertiesSTANDARD
Interface integrated circuit typeLINE DRIVER
Interface standardsEIA-644; TIA-644
JESD-30 codeR-PDSO-G8
JESD-609 codee0
length4.9 mm
Humidity sensitivity level1
Number of functions1
Number of terminals8
Maximum operating temperature70 °C
Minimum operating temperature
Package body materialPLASTIC/EPOXY
encapsulated codeSOP
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
Maximum seat height1.75 mm
Maximum supply voltage3.6 V
Minimum supply voltage3 V
Nominal supply voltage3.3 V
surface mountYES
technologyCMOS
Temperature levelCOMMERCIAL
Terminal surfaceTIN LEAD
Terminal formGULL WING
Terminal pitch1.27 mm
Terminal locationDUAL
Maximum time at peak reflow temperature30
maximum transmission delay6 ns
width3.9 mm

DS90LV017MX Preview

D ts e t
aa h e
R c e t r lc r nc
o h se Ee to is
Ma u a t r dCo o e t
n fc u e
mp n n s
R c e tr b a d d c mp n ns ae
o h se rn e
o oet r
ma ua trd u ig ete dewaes
n fcue sn i r i/ fr
h
p rh s d f m te oiia s p l r
uc a e r
o h r n l u pi s
g
e
o R c e tr waes rce td f m
r o h se
fr e rae r
o
te oiia I. Al rce t n ae
h
r nl P
g
l e rai s r
o
d n wi tea p o a o teOC
o e t h p rv l f h
h
M.
P r aetse u igoiia fcoy
at r e td sn r n la tr
s
g
ts p o rmso R c e tr e eo e
e t rga
r o h se d v lp d
ts s lt n t g aa te p o u t
e t oui s o u rne
o
rd c
me t o e c e teOC d t s e t
es r x e d h
M aa h e.
Qu l yOv riw
ai
t
e ve
• IO- 0 1
S 90
•A 92 cr ct n
S 1 0 et ai
i
o
• Qu l e Ma ua trr Ls (
ai d
n fcues it QML MI- R -
) LP F
385
53
•C a sQ Mitr
ls
lay
i
•C a sVS a eL v l
ls
p c ee
• Qu l e S p l r Ls o D sr uos( L )
ai d u pi s it f it b tr QS D
e
i
•R c e trsacic l u pir oD A a d
o h se i
r ia s p l t L n
t
e
me t aln u t a dD A sa d r s
es lid sr n L tn ad .
y
R c e tr lcrnc , L i c mmi e t
o h se Ee t is L C s o
o
tdo
t
s p ligp o u t ta s t f c so r x e t-
u pyn rd cs h t ai y u tme e p ca
s
t n fr u lya daee u loto eoiial
i s o q ai n r q a t h s r n l
o
t
g
y
s p l db id sr ma ua trr.
u pi
e yn ut
y n fcues
T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e
h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c
g
s
o
a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n
n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -
o
o
isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -
c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a
o
s
g
t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g
i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu
o
a
r xmu ai s
n
ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig
y e a e n rd c c aa tr t , e in smuai , r a l e t .
z o
o
n
© 2 1 R cetr l t n s LC Al i t R sre 0 1 2 1
0 3 ohs E cr i , L . lRg s eevd 7 1 0 3
e e oc
h
T l r m r, l s v iw wrcl . m
o e n oe p ae it w . e c o
a
e
s
o ec
DS90LV017 LVDS Single High Speed Differential Driver
August 2005
DS90LV017
LVDS Single High Speed Differential Driver
General Description
The DS90LV017 is a single LVDS driver device optimized for
high data rate and low power applications. The DS90LV017
is a current mode driver allowing power dissipation to remain
low even at high frequency. In addition, the short circuit fault
current is also minimized. The device is in a 8-lead small
Outline Package. The DS90LV017 has a flow-through de-
sign for easy PCB layout. The differential driver outputs
provides low EMI with its low output swings typically 340 mV.
Features
n
n
n
n
n
n
n
n
Ultra Low Power Dissipation
Operating Range above 155 Mbps
Flow-through pinout simplifies PCB layout
Conforms to TIA/EIA-644 Standard
8-Lead SOIC Package Saves Space
V
CM
±
1V center around 1.2V
Low Differential Output Swing Typical 340 mV
Power Off Protection (outputs in high impedance)
Connection Diagram
Dual-In-Line
01290001
Order Number DS90LV017M
See NS Package Number M08A
Functional Diagram
01290002
TRI-STATE
®
is a registered trademark of National Semiconductor Corporation.
© 2005 National Semiconductor Corporation
DS012900
www.national.com
DS90LV017
Absolute Maximum Ratings
(Note 1)
If Military/Aerospace specified devices are required,
please contact the National Semiconductor Sales Office/
Distributors for availability and specifications.
Supply Voltage (V
CC
)
Input Voltage (DI)
Output Voltage (DO
±
)
M Package
Derate M Package
Storage Temperature Range
−0.3V to +6V
−0.3V to (V
CC
+ 0.3V)
−0.3V to +3.9V
1190 mW
9.5 mW/˚C above +25˚C
−65˚C to +150˚C
Lead Temperature Range
Soldering (4 sec.)
ESD Rating (Note 4)
(HBM 1.5 kΩ, 100 pF)
≥
4.5 kV
+260˚C
Maximum Package Power Dissipation
@
+25˚C
Recommended Operating
Conditions
Min
Supply Voltage (V
CC
)
Temperature (T
A
)
3.0
0
Typ
3.3
25
Max
3.6
70
Units
V
˚C
Electrical Characteristics
Over Supply Voltage and Operating Temperature ranges, unless otherwise specified. (Notes 2, 3, 7)
Symbol
V
OD
∆V
OD
V
OH
V
OL
V
OS
∆V
OS
I
OZD
I
OXD
I
OSD
V
IH
V
IL
I
IH
I
IL
V
CL
I
CC
Parameter
Output Differential Voltage
V
OD
Magnitude Change
Output High Voltage
Output Low Voltage
Offset Voltage
Offset Magnitude Change
TRI-STATE
®
Leakage
Power-off Leakage
Output Short Circuit Current
Input High Voltage
Input Low Voltage
Input High Current
Input Low Current
Input Clamp Voltage
Power Supply Current
V
IN
= 3.6V or 2.4V
V
IN
= GND or 0.5V
I
CL
= −18 mA
No Load
R
L
= 100Ω
V
IN
= V
CC
or GND
V
CC
−1.5
DI
2.0
GND
V
OUT
= V
CC
or GND
V
OUT
= 3.6V or GND, V
CC
= 0V
0.9
0.9
0
0
0
Conditions
R
L
= 100Ω
(Figure 1 )
Pin
DO+,
DO−
Min
250
0
Typ
340
10
1.43
1.09
1.25
5
1.6
25
Max
450
35
1.6
Units
mV
mV
V
V
V
mV
µA
µA
mA
V
V
µA
µA
V
4
7
mA
mA
DIFFERENTIAL DRIVER CHARACTERISTICS
±
1
±
1
−4
±
10
±
10
−6
V
CC
0.8
±
1
±
1
−0.8
1
4.5
±
10
±
10
Switching Characteristics
Over Supply Voltage and Operating Temperature Ranges, unless otherwise specified. (Notes 5, 6)
Symbol
t
PHLD
t
PLHD
t
SKD
t
TLH
t
THL
Parameter
Differential Propagation Delay High to Low
Differential Propagation Delay Low to High
Differential Skew |t
PHLD
− t
PLHD
|
Transition Low to High Time
Transition High to Low Time
Conditions
R
L
= 100Ω, C
L
= 5 pF
(Figure
2
and
Figure 3)
Min
1.5
1.5
0
0
0
Typ
3.4
3.5
0.1
1
1
Max
6
6
1.9
3
3
Units
ns
ns
ns
ns
ns
DIFFERENTIAL DRIVER CHARACTERISTICS
Note 1:
“Absolute Maximum Ratings” are those values beyond which the safety of the device cannot be guaranteed. They are not meant to imply that the devices
should be operated at these limits. The table of “Electrical Characteristics” specifies conditions of device operation.
Note 2:
Current into device pins is defined as positive. Current out of device pins is defined as negative. All voltages are referenced to ground except V
OD
.
Note 3:
All typicals are given for: V
CC
= +3.3V and T
A
= +25˚C.
Note 4:
ESD Rating: HBM (1.5 kΩ, 100 pF)
≥
4.5 kV
Note 5:
C
L
includes probe and fixture capacitance.
Note 6:
Generator waveform for all tests unless otherwise specified: f = 1 MHz, Z
O
= 50Ω, t
r
≤
6 ns, t
f
≤
6 ns (10%-90%).
Note 7:
The DS90LV017 is a current mode device and only function with datasheet specification when a resistive load is applied to the drivers outputs.
www.national.com
2
DS90LV017
Parameter Measurement Information
01290003

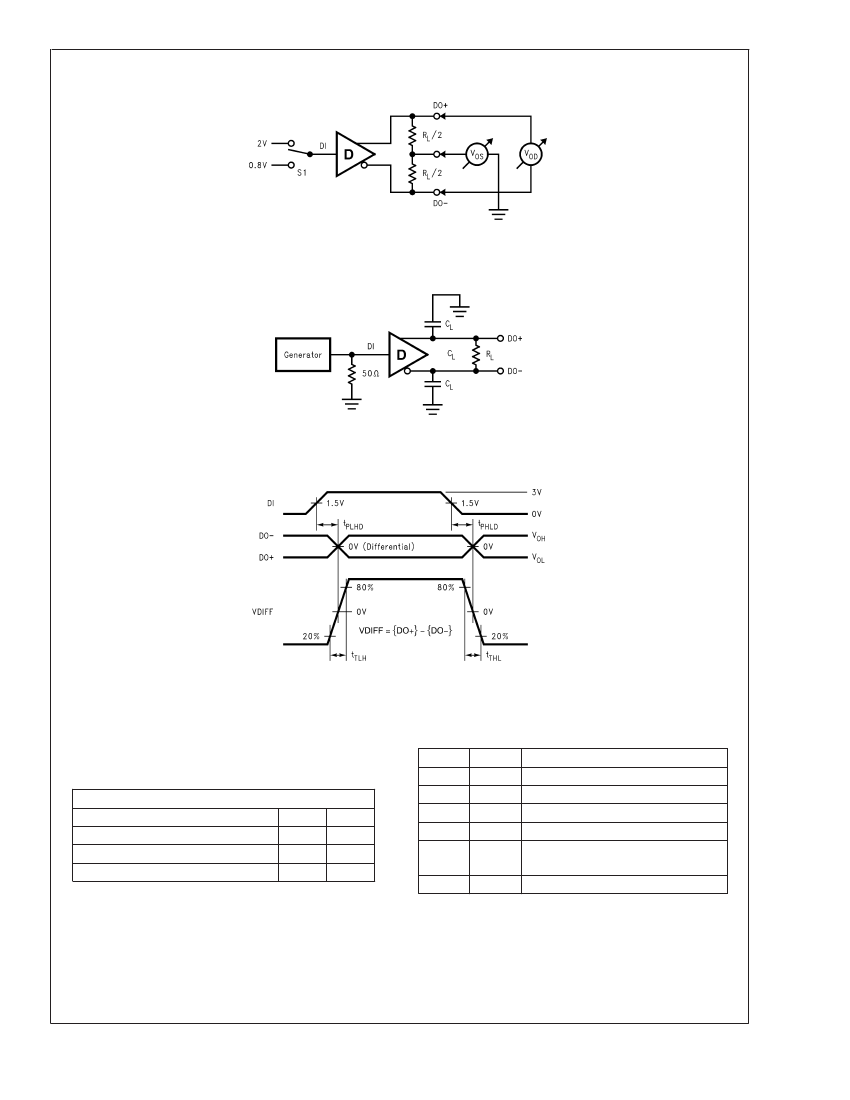

FIGURE 1. Differential Driver DC Test Circuit
01290004
FIGURE 2. Differential Driver Propagation Delay and Transition Time Test Circuit
01290005
FIGURE 3. Differential Driver Propagation Delay and Transition Time Waveforms
Application Information
Pin #
TABLE 1. Device Pin Descriptions
Name
DI
DO+
DO−
GND
V
CC
NC
Description
TTL/CMOS driver input pins
Non-inverting driver output pin
Inverting driver output pin
Ground pin
Positive power supply pin,
+3.3V
±
0.3V
No connect
Truth Table
Input/Output
DI
L
H
DI
>
0.8V and DI
<
2.0V
H = Logic high level
L = Logic low level
X = indeterminant
2
7
DO+
L
H
X
DO−
H
L
X
3, 5, 6
8
4
1
3
www.national.com
DS90LV017 LVDS Single High Speed Differential Driver

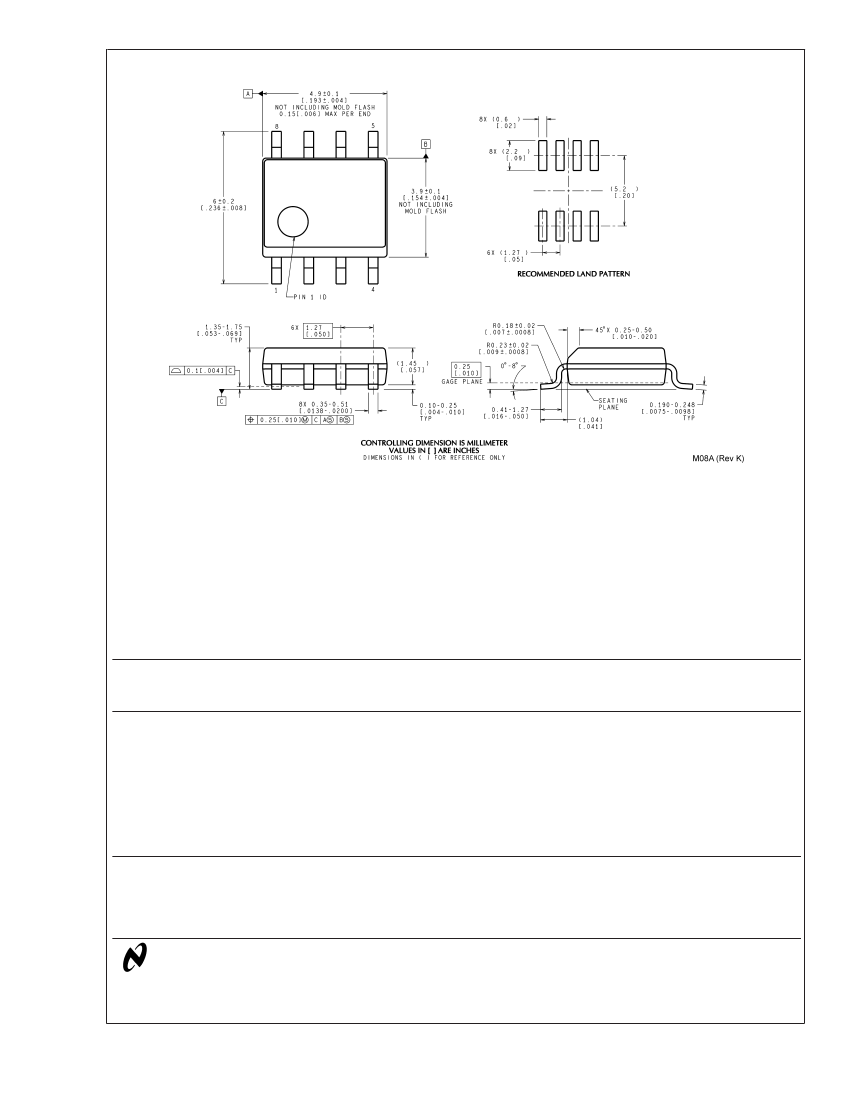

Physical Dimensions
inches (millimeters) unless otherwise noted
Order Number DS90LV017M
NS Package Number M08A
National does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and National reserves
the right at any time without notice to change said circuitry and specifications.
For the most current product information visit us at www.national.com.
LIFE SUPPORT POLICY
NATIONAL’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT DEVICES OR SYSTEMS
WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT AND GENERAL COUNSEL OF NATIONAL SEMICONDUCTOR
CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the body, or
(b) support or sustain life, and whose failure to perform when
properly used in accordance with instructions for use
provided in the labeling, can be reasonably expected to result
in a significant injury to the user.
BANNED SUBSTANCE COMPLIANCE
National Semiconductor manufactures products and uses packing materials that meet the provisions of the Customer Products
Stewardship Specification (CSP-9-111C2) and the Banned Substances and Materials of Interest Specification (CSP-9-111S2) and contain
no ‘‘Banned Substances’’ as defined in CSP-9-111S2.
Leadfree products are RoHS compliant.
National Semiconductor
Americas Customer
Support Center
Email: new.feedback@nsc.com
Tel: 1-800-272-9959
www.national.com
National Semiconductor
Europe Customer Support Center
Fax: +49 (0) 180-530 85 86
Email: europe.support@nsc.com
Deutsch Tel: +49 (0) 69 9508 6208
English Tel: +44 (0) 870 24 0 2171
Français Tel: +33 (0) 1 41 91 8790
National Semiconductor
Asia Pacific Customer
Support Center
Email: ap.support@nsc.com
National Semiconductor
Japan Customer Support Center
Fax: 81-3-5639-7507
Email: jpn.feedback@nsc.com
Tel: 81-3-5639-7560
2. A critical component is any component of a life support
device or system whose failure to perform can be reasonably
expected to cause the failure of the life support device or
system, or to affect its safety or effectiveness.
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

DS90LV017MX Related Products

DS90LV017MX DS90LV017M DS90LV017M/NOPB
Description LINE DRIVER, PDSO8, SOIC-8 LINE DRIVER, PDSO8, SOIC-8 LINE DRIVER, PDSO8, SOIC-8
Is it lead-free? Contains lead Contains lead Lead free
Is it Rohs certified? incompatible incompatible conform to
Maker Rochester Electronics Rochester Electronics Rochester Electronics
Parts packaging code SOIC SOIC SOIC
package instruction SOIC-8 SOIC-8 SOP,
Contacts 8 8 8
Reach Compliance Code unknown unknown unknown
Differential output YES YES YES
Number of drives 1 1 1
Input properties STANDARD STANDARD STANDARD
Interface integrated circuit type LINE DRIVER LINE DRIVER LINE DRIVER
Interface standards EIA-644; TIA-644 EIA-644; TIA-644 EIA-644; TIA-644
JESD-30 code R-PDSO-G8 R-PDSO-G8 R-PDSO-G8
JESD-609 code e0 e0 e3
length 4.9 mm 4.9 mm 4.9 mm
Humidity sensitivity level 1 1 1
Number of functions 1 1 1
Number of terminals 8 8 8
Maximum operating temperature 70 °C 70 °C 70 °C
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
encapsulated code SOP SOP SOP
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 235 235 260
Maximum seat height 1.75 mm 1.75 mm 1.75 mm
Maximum supply voltage 3.6 V 3.6 V 3.6 V
Minimum supply voltage 3 V 3 V 3 V
Nominal supply voltage 3.3 V 3.3 V 3.3 V
surface mount YES YES YES
technology CMOS CMOS CMOS
Temperature level COMMERCIAL COMMERCIAL COMMERCIAL
Terminal surface TIN LEAD TIN LEAD TIN
Terminal form GULL WING GULL WING GULL WING
Terminal pitch 1.27 mm 1.27 mm 1.27 mm
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature 30 30 40
maximum transmission delay 6 ns 6 ns 6 ns
width 3.9 mm 3.9 mm 3.9 mm

Recommended Resources

Op Amp Stabilized Power Supply Circuit Part 5

Electronic "Miss Manners" infrared receiving and voice circuit

DC converter circuit for servo instrument

Laser diode signal source circuit

820e computer motherboard circuit diagram_38

820e computer motherboard circuit diagram_66

DDK6001 cannot be installed, always prompts Remove: EULA
DDK6001 cannot be installed. It always prompts Remove: EULA. It seems that an unnecessary component has been installed and it must be uninstalled first. However, I have followed the prompts countless ...
chifeng0823 Embedded System
Problems with stream interface drivers
I have recently encountered some problems when debugging the stream interface driver. I would like to ask the experts in the forum for advice. The problem description is as follows: Samsung 2440 platf...
zhaohangtao Embedded System
Has anyone made an ultrasonic transmitter circuit using a boosted intermediate frequency circuit? . Help me with the circuit
I don't know how it works (I don't understand it in my weekdays). I tried to weld it, but it didn't work. I was so anxious....
省与思 Analogue and Mixed Signal
Dear experts, those who are good at electronic game control and rolling ball control can come in and discuss
Dear experts, those who are good at electronic game control and rolling ball control can come in and discuss...
我是吴大傻 Electronics Design Contest
SensorTile IoT Development Kit (6) - DIY High Temperature Alarm
[i=s]This post was last edited by lb8820265 on 2016-10-29 10:40[/i] [align=left][font=微软雅黑][size=3]First, here is the effect picture:[/size][/font][/align][align=center][font=微软雅黑][size=3][/size][/fon...
lb8820265 MEMS sensors
How to use the IPv6 protocol in arm Linux?
There are two boards, one is a MCU board and the other is an ARM9 board. There is no operating system on the MCU board, but the Linux operating system is loaded on the ARM9 board. On the one hand, the...
fjj252630 Linux and Android
Shortcut:   E0 E1 E2 E3 E4 E5 E6 E7 E8 E9 EA EB EC ED EE EF EG EH EI EJ EK EL EM EN EO EP EQ ER ES ET EU EV EW EX EY EZ F0 F1 F2 F3 F4 F5 F6 F7 F8 F9 FA FB FC FD FE FF FG FH FI FJ FK FL FM FN FO FP FQ FR FS FT FU FV FW FX FY FZ G0 G1 G2 G3 G4 G5 G6 G7 G8 G9 GA GB GC GD GE GF GG GH GI GJ GK GL GM GN GO GP GQ GR GS GT GU GV GW GX GZ H0 H1 H2 H3 H4 H5 H6 H7 H8 HA HB HC HD HE HF HG HH HI HJ HK HL HM HN HO HP HQ HR HS HT HU HV HW HX HY HZ I1 I2 I3 I4 I5 I6 I7 IA IB IC ID IE IF IG IH II IK IL IM IN IO IP IQ IR IS IT IU IV IW IX J0 J1 J2 J6 J7 JA JB JC JD JE JF JG JH JJ JK JL JM JN JP JQ JR JS JT JV JW JX JZ K0 K1 K2 K3 K4 K5 K6 K7 K8 K9 KA KB KC KD KE KF KG KH KI KJ KK KL KM KN KO KP KQ KR KS KT KU KV KW KX KY KZ

Popular Components

  1. MC0.063W06031%430RFR
  2. 56W-NWO28HD-S9
  3. 74F138SPCQR
  4. TW-43-09-G-6-500-100
  5. HLMP-K150-OPTION-104
  6. AUNTPJ24A6
  7. H25D-F2-SS-192-ABZC-28V/OC-SC-EX-S
  8. VJ0805A6R8DXBAT
  9. 1.5SMCJ130AT/R7
  10. SKBPC5006
  11. QR0603D1K26P100.125W
  12. 0603WAD7681T5E

Popular Articles

  1. STM8 MCU reads DHT11 temperature and humidity sensor
  2. Using 7-nanometer technology, China's general-purpose high-end chip research and development has achieved a major breakthrough
  3. Mouser and ON Semiconductor Launch New Resource Platform to Share Insights on New BLDC Motor Control Products
  4. Effective in Q4! TSMC's logic IC foundry prices may increase by 10%
  5. A breakthrough in the third-generation semiconductor production tool will alleviate the chip shortage of automakers
  6. Mobileye and Zeekr partner to develop consumer self-driving cars
  7. ATmega168 crystal oscillator
  8. Shenglu Communication is a strategic priority supplier of Huawei
  9. Ethernet AVB real-time transmission technology for network audio and video
  10. How to test an inductor with a multimeter

Technical ResourceMore

  1. Hardware Design and Implementation of CPCI-based MVB Communication Card
  2. A new method for deriving integrated magnetic converters and a general model of magnetic equivalent circuits
  3. A general multi-level SVM algorithm based on reference voltage decomposition and zero-sequence voltage equivalence
  4. Research on Current Mode PWM Switching Power Supply Chip
  5. Chapter 7 Application of AVR Microcontroller
  6. RC Differential Circuit and Integral Circuit.pdf
  7. Automotive Electronic Control Technology
  8. Protues simulation example (8051) -8x8 dot matrix.rar
  9. Protues simulation example (8051) - 4x4 row and column keyboard.rar
  10. Introduction to Kalman Filter

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 2848  1422  801  2489  1502  58  29  17  51  31
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
