BAV19WS-7

Description
Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon, PLASTIC PACKAGE-2
CategoryDiscrete semiconductor    diode
File Size396KB,5 Pages
ManufacturerDiodes Incorporated
Download Datasheet Parametric Compare View All

BAV19WS-7 Online Shopping

Suppliers Part Number Price MOQ In stock
BAV19WS-7 - - View Buy Now

BAV19WS-7 Overview

Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon, PLASTIC PACKAGE-2

BAV19WS-7 Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerDiodes Incorporated
package instructionPLASTIC PACKAGE-2
Contacts2
Reach Compliance Codenot_compliant
ECCN codeEAR99
Other featuresHIGH RELIABILITY
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
Maximum forward voltage (VF)1 V
JESD-30 codeR-PDSO-G2
JESD-609 codee0
Humidity sensitivity level1
Maximum non-repetitive peak forward current2.5 A
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)235
Maximum power dissipation0.2 W
Certification statusNot Qualified
Maximum repetitive peak reverse voltage120 V
Maximum reverse recovery time0.05 µs
surface mountYES
Terminal surfaceTin/Lead (Sn85Pb15)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperature10

BAV19WS-7 Preview

BAV19WS - BAV21WS
SURFACE MOUNT HIGH VOLTAGE FAST SWITCHING DIODE
Features
Fast Switching Speed
Surface Mount Package Ideally Suited for Automated Insertion
For General Purpose Switching Applications
High Reverse Breakdown Voltage
Totally Lead-Free & Fully RoHS Compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
Qualified to AEC-Q101 Standards for High Reliability
PPAP Capable (Note 4)
Mechanical Data
Case: SOD323
Case Material: Molded Plastic, “Green” Molding Compound.
UL Flammability Classification Rating 94V-0
Moisture Sensitivity: Level 1 per J-STD-020
Terminal Connections: Cathode Band, See Page 2
Terminals: Matte Tin Finish Annealed over Alloy 42 Leadframe.
Solderable per MIL-STD-202, Method 208
Weight: 0.004 grams (Approximate)
SOD323
Top View
Device Schematic
Ordering Information
(Note 5)
Part Number
BAV19WS-7-F
BAV20WS-7-F
BAV21WS-7-F
BAV21WS-13-F
BAV21WSQ-7-F
Notes:
Qualification
AEC-Q101
AEC-Q101
AEC-Q101
AEC-Q101
Automotive
Case
SOD323
SOD323
SOD323
SOD323
SOD323
Packaging
3,000/Tape & Reel
3,000/Tape & Reel
3,000/Tape & Reel
10,000/Tape & Reel
3,000/Tape & Reel
1. No purposely added lead. Fully EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant.
2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"
and Lead-free.
3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and
<1000ppm antimony compounds.
4. Automotive products are AEC-Q101 qualified and are PPAP capable. Automotive, AEC-Q101 and standard products are electrically and thermally the
same, except where specified. For more information, please refer to http://www.diodes.com/quality/product_compliance_definitions/.
5. For packaging details, go to our website at http://www.diodes.com/products/packages.html.
Marking Information
XX = Product Type Marking Code
BAV19WS Marking: T2 or T3
BAV20WS Marking: T2 or T3
BAV21WS Marking: T3
BAV19WS - BAV21WS
Document number: DS30119 Rev. 20 - 2
1 of 5
www.diodes.com
November 2015
© Diodes Incorporated
BAV19WS - BAV21WS
Maximum Ratings
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Repetitive Peak Reverse Voltage
Working Peak Reverse Voltage
DC Blocking Voltage
RMS Reverse Voltage
Forward Continuous Current (Note 6)
Average Rectified Output Current (Note 6)
Non-Repetitive Peak Forward Surge Current
@t = 1.0µs
@t = 100µs
@t = 10ms
Symbol
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
I
FRM
BAV19WS
120
100
71
BAV20WS
200
150
106
250
200
9.0
3.0
1.7
BAV21WS
250
200
141
Unit
V
V
V
mA
mA
A
mA
Repetitive Peak Forward Surge Current
625
Thermal Characteristics
Characteristic
Power Dissipation
Thermal Resistance Junction to Ambient Air (Note 6)
Operating and Storage Temperature Range
Symbol
P
D
R
θJA
T
J
, T
STG
Value
200
625
-65 to +150
Unit
mW
°C/W
°C
Electrical Characteristics
(@T
A
= +25°C, unless otherwise specified.)
Characteristic
Reverse Breakdown Voltage (Note 7)
Symbol
BAV19WS
BAV20WS
BAV21WS
V
(BR)R
V
F
I
R
C
T
t
RR
Min
120
200
250
Max
1.0
1.25
100
15
5.0
50
Unit
V
V
nA
µA
pF
ns
Test Condition
I
R
= 100µA
I
F
= 100mA
I
F
= 200mA
T
J
= +25°C
T
J
= +100°C
V
R
= 0, f = 1.0MHz
I
F
= I
R
= 30mA,
I
RR
= 0.1 x I
R
, R
L
= 100Ω
Forward Voltage
Peak Reverse Current
@ Rated DC Blocking Voltage (Note 7)
Total Capacitance
Reverse Recovery Time
Notes:
6. Part mounted on FR-4 PC board with recommended pad layout, which can be found on our website at http://www.diodes.com/datasheets/ap02001.pdf.
7. Short duration pulse test used to minimize self-heating effect.
BAV19WS - BAV21WS
Document number: DS30119 Rev. 20 - 2
2 of 5
www.diodes.com
November 2015
© Diodes Incorporated

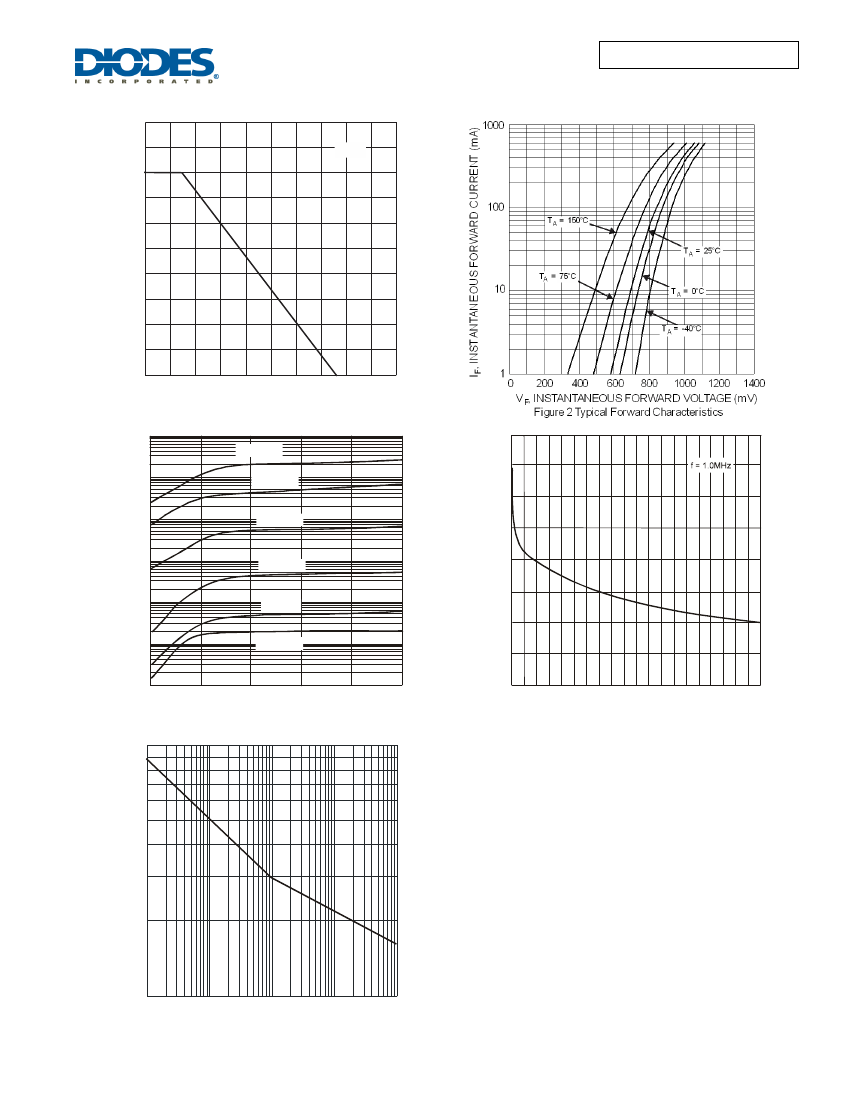

BAV19WS - BAV21WS
250
Note 6
P
D
, POWER DISSIPATION (mW)
200
150
100
50
0
0
80
40
120
160
T
A
, AMBIENT TEMPERATURE (
°
C)
Fig. 1 Power Derating Curve
200
I
R
, INSTANTANEOUS REVERSE CURRENT (
A)
100
T
A
= 150ºC
4.0
3.5
C
T
, TOTAL CAPACITANCE (pF)
10
T
A
= 125ºC
3.0
2.5
2.0
1.5
1.0
0.5
0.0
1
T
A
= 75ºC
0.1
T
A
= 25ºC
0.01
T
A
= 0ºC
0.001
T
A
= -40ºC
0.0001
0
150
200
250
50
100
V
R
, INSTANTANEOUS REVERSE VOLTAGE (V)
Fig. 3 Typical Reverse Characteristics
0
30
40
10
20
V
R
, DC REVERSE VOLTAGE (V)
Fig. 4 Total Capacitance vs. Reverse Voltage
10
I
FSM
, FORWARD SURGE CURRENT (A)
1
0.001
0.1
1
10
PULSE WIDTH (ms)
Fig. 5 Maximum Non-Repetitive Surge Current
0.01
BAV19WS - BAV21WS
Document number: DS30119 Rev. 20 - 2
3 of 5
www.diodes.com
November 2015
© Diodes Incorporated
BAV19WS - BAV21WS
Package Outline Dimensions
Please see AP02002 at http://www.diodes.com/datasheets/ap02002.pdf for the latest version.
SOD323
A2
A1
a
c
He
E
L
SOD323
Dim Min Max Typ
A1
--
0.10 0.05
A2
1.00 1.10 1.05
b
0.25 0.35 0.30
c
0.10 0.15 0.11
D
1.20 1.40 1.30
E
1.60 1.80 1.70
He
2.30 2.70 2.50
L
0.20 0.40 0.30
a
All Dimensions in mm
b
D
Suggested Pad Layout
Please see AP02001 at http://www.diodes.com/datasheets/ap02001.pdf for the latest version.
SOD323
X1
Y
X
Dimensions Value (in mm)
X
0.590
X1
2.700
Y
0.450
BAV19WS - BAV21WS
Document number: DS30119 Rev. 20 - 2
4 of 5
www.diodes.com
November 2015
© Diodes Incorporated
BAV19WS - BAV21WS
IMPORTANT NOTICE
DIODES INCORPORATED MAKES NO WARRANTY OF ANY KIND, EXPRESS OR IMPLIED, WITH REGARDS TO THIS DOCUMENT,
INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE
(AND THEIR EQUIVALENTS UNDER THE LAWS OF ANY JURISDICTION).
Diodes Incorporated and its subsidiaries reserve the right to make modifications, enhancements, improvements, corrections or other changes
without further notice to this document and any product described herein. Diodes Incorporated does not assume any liability arising out of the
application or use of this document or any product described herein; neither does Diodes Incorporated convey any license under its patent or
trademark rights, nor the rights of others. Any Customer or user of this document or products described herein in such applications shall assume
all risks of such use and will agree to hold Diodes Incorporated and all the companies whose products are represented on Diodes Incorporated
website, harmless against all damages.
Diodes Incorporated does not warrant or accept any liability whatsoever in respect of any products purchased through unauthorized sales channel.
Should Customers purchase or use Diodes Incorporated products for any unintended or unauthorized application, Customers shall indemnify and
hold Diodes Incorporated and its representatives harmless against all claims, damages, expenses, and attorney fees arising out of, directly or
indirectly, any claim of personal injury or death associated with such unintended or unauthorized application.
Products described herein may be covered by one or more United States, international or foreign patents pending. Product names and markings
noted herein may also be covered by one or more United States, international or foreign trademarks.
This document is written in English but may be translated into multiple languages for reference. Only the English version of this document is the
final and determinative format released by Diodes Incorporated.
LIFE SUPPORT
Diodes Incorporated products are specifically not authorized for use as critical components in life support devices or systems without the express
written approval of the Chief Executive Officer of Diodes Incorporated. As used herein:
A. Life support devices or systems are devices or systems which:
1. are intended to implant into the body, or
2. support or sustain life and whose failure to perform when properly used in accordance with instructions for use provided in the
labeling can be reasonably expected to result in significant injury to the user.
B. A critical component is any component in a life support device or system whose failure to perform can be reasonably expected to cause the
failure of the life support device or to affect its safety or effectiveness.
Customers represent that they have all necessary expertise in the safety and regulatory ramifications of their life support devices or systems, and
acknowledge and agree that they are solely responsible for all legal, regulatory and safety-related requirements concerning their products and any
use of Diodes Incorporated products in such safety-critical, life support devices or systems, notwithstanding any devices- or systems-related
information or support that may be provided by Diodes Incorporated. Further, Customers must fully indemnify Diodes Incorporated and its
representatives against any damages arising out of the use of Diodes Incorporated products in such safety-critical, life support devices or systems.
Copyright © 2015, Diodes Incorporated
www.diodes.com
BAV19WS - BAV21WS
Document number: DS30119 Rev. 20 - 2
5 of 5
www.diodes.com
November 2015
© Diodes Incorporated

BAV19WS-7 Related Products

BAV19WS-7 BAV19WS-7-F BAV21WS-7
Description Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon, PLASTIC PACKAGE-2 Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon, GREEN, PLASTIC PACKAGE-2 Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, PLASTIC PACKAGE-2
Is it Rohs certified? incompatible conform to incompatible
Maker Diodes Incorporated Diodes Incorporated Diodes Incorporated
package instruction PLASTIC PACKAGE-2 GREEN, PLASTIC PACKAGE-2 PLASTIC PACKAGE-2
Contacts 2 2 2
Reach Compliance Code not_compliant compliant not_compliant
ECCN code EAR99 EAR99 EAR99
Other features HIGH RELIABILITY HIGH RELIABILITY HIGH RELIABILITY
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
Maximum forward voltage (VF) 1 V 1 V 1 V
JESD-30 code R-PDSO-G2 R-PDSO-G2 R-PDSO-G2
JESD-609 code e0 e3 e0
Humidity sensitivity level 1 1 1
Maximum non-repetitive peak forward current 2.5 A 2.5 A 2.5 A
Number of components 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C
Maximum output current 0.2 A 0.2 A 0.2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Peak Reflow Temperature (Celsius) 235 260 235
Maximum power dissipation 0.2 W 0.2 W 0.2 W
Certification status Not Qualified Not Qualified Not Qualified
Maximum repetitive peak reverse voltage 120 V 120 V 250 V
Maximum reverse recovery time 0.05 µs 0.05 µs 0.05 µs
surface mount YES YES YES
Terminal surface Tin/Lead (Sn85Pb15) Matte Tin (Sn) Tin/Lead (Sn85Pb15)
Terminal form GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL
Maximum time at peak reflow temperature 10 40 10
Is it lead-free? - Lead free Contains lead

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 327  1830  2482  1875  450  7  37  50  38  10
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
