BAV19WS-H

Description
Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon,
CategoryDiscrete semiconductor    diode
File Size52KB，7 Pages
ManufacturerFORMOSA
Websitehttp://www.formosams.com/
Download Datasheet Parametric Compare View All

BAV19WS-H Overview

Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon,

BAV19WS-H Parametric

Parameter NameAttribute value
MakerFORMOSA
Reach Compliance Codeunknown
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeRECTIFIER DIODE
JESD-30 codeR-PDSO-G2
Number of components1
Number of terminals2
Maximum operating temperature150 °C
Minimum operating temperature-55 °C
Maximum output current0.2 A
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Maximum power dissipation0.2 W
Maximum repetitive peak reverse voltage120 V
Maximum reverse recovery time0.05 µs
surface mountYES
Terminal formGULL WING
Terminal locationDUAL

BAV19WS-H Preview

SMD Switching Diode
BAV19WS THRU BAV21WS
List
Formosa MS
List................................................................................................. 1
Package outline............................................................................... 2
Features.......................................................................................... 2
Mechanical data............................................................................... 2
Maximum ratings ............................................................................. 2
Rating and characteristic curves........................................................ 3
Pinning information........................................................................... 4
Marking........................................................................................... 4
Suggested solder pad layout............................................................. 4
Packing information.......................................................................... 5
Reel packing.................................................................................... 6
Suggested thermal profiles for soldering processes............................. 6
High reliability test capabilities........................................................... 7
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/04/09
Revision
C
Page.
7
Page 1
DS-221917
SMD Switching Diode
BAV19WS THRU BAV21WS
200mA Surface Mount
Switching Diode -120V-250V
Package outline
Features
•
Fast speed switching.
•
For general purpose switching application.
•
High conductance.
•
Silicon epitaxial planar chip
•
Lead-free parts meet RoHS requirments
•
Suffix "-H" indicates Halogen-free parts, ex. BAV19WS-H .
Formosa MS
SOD-323F
0.053(1.35)
0.045(1.15)
0.071(1.80)
0.063(1.60)
0.016(0.40)
0.010(0.25)
0.039(1.00)
0.031(0.80)
Mechanical data
•
Epoxy:UL94-V0 rated flame retardant
•
Case : Molded plastic, SOD-323F
•
Terminals : Solder plated, solderable per
MIL-STD-750, Method 2026
0.106(2.70)
0.091(2.30)
•
Polarity : Indicated by cathode band
•
Mounting Position : Any
•
Weight : Approximated 0.005 gram
Dimensions in inches and (millimeters)
Maximum ratings and Electrical Characteristics
(AT
PARAMETER
Non-repetitive peak reverse voltage
Working peak reverse voltage
DC blocking voltage
RMS Reverse Voltage
Forward Continous Current (1)
Average rectified output current(1)
Non-repetitive peak forward surge current
Repetitive Peak Forward Surge Current
Power dissipation
Typical Thermal resistance
Operating temperature range
Storage temperature range
Maximum Forward voltage
Maximum Reverse leakage
Maximum Total capacitance
Maximum Reverse recovery time
I
F
= 100 mA
I
F
= 200 mA
@rated DC blocking voltage
V
R
= 1.0 V , f = 1.0MHz
Junction to ambient air(1)
@t = 1.0 μs
@t = 1.0 s
CONDITIONS
T
A
=25 C unless otherwise noted)
Symbol
BAV19WS BAV20WS BAV21WS
V
RRM
V
RWM
V
R
V
R(RMS)
I
FM
I
O
I
FSM
I
FRM
P
D
R
θJA
T
J
T
STG
V
F
I
R
C
J
t
rr
120
100
71
200
150
106
400
200
2.5
0.5
625
200
625
-55 ~ +150
-55 ~ +150
1.0
1.25
100
5.0
50
250
200
140
UNIT
V
V
V
mA
mA
A
mA
mW
°C/W
o
o
0.003(0.08)
0.016(0.40)
C
C
o
V
nA
pF
ns
I
F
= I
R
= 30mA , I
RR
= 0.1 X I
R
, R
L
= 100
OHM
Note 1. Valid provided that electrodes are kept at ambient temperature.
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/04/09
Revision
C
Page.
7
Page 2
DS-221917
Rating and characteristic curves(BAV19WS THRU BAV21WS)
FIG.1-TYPICAL FORWARD CHARACTERISTICS
1000
I
F
, INSTANTANEOUS FORWARD CURRENT ,(mA)
FIG.2 - TYPICAL LEAKAGE CURRENT VS.
JUNCTION TEMPERATURE
100
100
T
J
= 25
O
C
10
I
R
, REVERSE CURRENT, (uA)
10
1
1.0
0.1
0.1
0.01
0
1
VF, INSTANTANEOUS FORWARD VOLTAGE (V)
2
0.01
0
100
T
J
, JUNCTION TEMPERATURE ( C)
O
200
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/04/09
Revision
C
Page.
7
Page 3
DS-221917
SMD Switching Diode
BAV19WS THRU BAV21WS
Pinning information
Pin
Pin1
Pin2
cathode
anode
Simplified outline
Formosa MS
Symbol
1
2
1
2
Marking
Type number
BAV19WS
BAV20WS
BAV21WS
Marking code
JP, A8
JR, T2
JS, T3
Suggested solder pad layout
C
A
B
Dimensions in inches and (millimeters)
PACKAGE
SOD-323F
A
0.033 (0.83)
B
0.025 (0.63)
C
0.063 (1.60)
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/04/09
Revision
C
Page.
7
Page 4
DS-221917
SMD Switching Diode
BAV19WS THRU BAV21WS

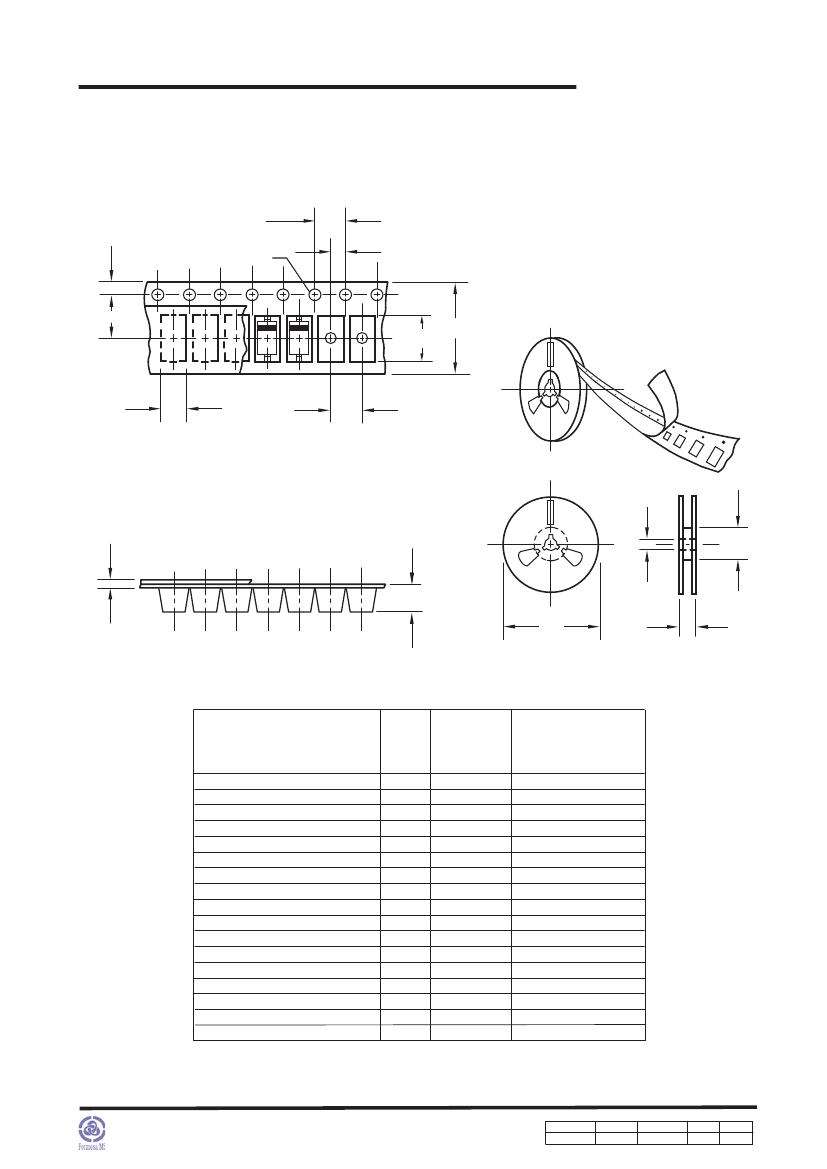

Packing information
P
0
P
1
d
E
F
B
W
Formosa MS
A
P
D
2
T
C
D
W
1
D
1
unit:mm
Item
Symbol
Tolerance
SOD-323F
Carrier width
Carrier length
Carrier depth
Sprocket hole
13" Reel outside diameter
13" Reel inner diameter
7" Reel outside diameter
7" Reel inner diameter
Feed hole diameter
Sprocket hole position
Punch hole position
Punch hole pitch
Sprocket hole pitch
Embossment center
Overall tape thickness
Tape width
Reel width
A
B
C
d
D
D
1
D
D
1
D
2
E
F
P
P
0
P
1
T
W
W
1
0.1
0.1
0.1
0.1
2.0
min
2.0
min
0.5
0.1
0.1
0.1
0.1
0.1
0.1
0.3
1.0
1.46
2.95
1.25
1.50
-
-
178.00
62.00
13.00
1.75
3.50
4.00
4.00
2.00
0.23
8.00
11.40
Note:Devices are packed in accor dance with EIA standar RS-481-A and specifications listed above.
http://www.formosams.com/
TEL:886-2-22696661
FAX:886-2-22696141
Document ID
Issued Date
2008/02/10
Revised Date
2012/04/09
Revision
C
Page.
7
Page 5
DS-221917
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

BAV19WS-H Related Products

BAV19WS-H BAV21WS-H BAV20WS-H
Description Rectifier Diode, 1 Element, 0.2A, 120V V(RRM), Silicon, Rectifier Diode, 1 Element, 0.2A, 250V V(RRM), Silicon, Rectifier Diode, 1 Element, 0.2A, 200V V(RRM), Silicon,
Maker FORMOSA FORMOSA FORMOSA
Reach Compliance Code unknown unknown unknow
ECCN code EAR99 EAR99 EAR99
Configuration SINGLE SINGLE SINGLE
Diode component materials SILICON SILICON SILICON
Diode type RECTIFIER DIODE RECTIFIER DIODE RECTIFIER DIODE
JESD-30 code R-PDSO-G2 R-PDSO-G2 R-PDSO-G2
Number of components 1 1 1
Number of terminals 2 2 2
Maximum operating temperature 150 °C 150 °C 150 °C
Minimum operating temperature -55 °C -55 °C -55 °C
Maximum output current 0.2 A 0.2 A 0.2 A
Package body material PLASTIC/EPOXY PLASTIC/EPOXY PLASTIC/EPOXY
Package shape RECTANGULAR RECTANGULAR RECTANGULAR
Package form SMALL OUTLINE SMALL OUTLINE SMALL OUTLINE
Maximum power dissipation 0.2 W 0.2 W 0.2 W
Maximum repetitive peak reverse voltage 120 V 250 V 200 V
Maximum reverse recovery time 0.05 µs 0.05 µs 0.05 µs
surface mount YES YES YES
Terminal form GULL WING GULL WING GULL WING
Terminal location DUAL DUAL DUAL

Recommended Resources

PT2262-IR internal schematic and pin diagram

Novel solar LED light controller circuit diagram

One of the electric contact mercury thermometer constant temperature control circuits

FET FM wireless microphone circuit

Square circuit composed of multiplier MPY600

Carbon monoxide detection circuit

BB Black Basics: Eclipse C++ Control LED Lights (Part 1)
[i=s]This post was last edited by lonerzf on 2014-1-12 16:56[/i] Because the proposal report is not finished yet, I have to delay it for a few days. Today I will make an additional post and continue w...
lonerzf DSP and ARM Processors
DJI Drone Phantom 3 remote control transmits frequency hopping signal
I want to ask what mode the frequency hopping signal transmitted by the remote control is....
btty038 RF/Wirelessly
How can I use the WAVEINOPEN API functions to record audio data as a raw PCM file (uncompressed, unprocessed)? I can't find any on the Internet, only examples of recording as a WAV file
How can I record audio data into a raw PCM file (uncompressed, unprocessed) through the API functions of WAVEINOPEN? I couldn't find any on the Internet, only examples of recording into WAV files! //-...
liwei5613 Embedded System
How to send dual audio in single chip microcomputer
Hello everyone, how to send dual audio in a single chip microcomputer? What is the difference and connection between sending dual audio and sending single audio? I am making an alarm now, a host recei...
wangdong_wind Embedded System
Thoughts on making infrared sensor modules
Since it was my first time to make an infrared sensor, I searched for several circuits on the Internet and found many problems. I would like to share them with you. The first problem is whether the de...
wulei19880906 Test/Measurement
How do you test the performance of wince drivers?
I used to only know how to write some small programs for MCUs, but now I find that I don't know how to test the performance of drivers. I think wince drivers are similar to win32 drivers. How should t...
farmerhou Embedded System
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. C44-R6K60HD-S9
  2. FSWG-TTL-14T
  3. MS3106E16S-5S
  4. 303143U-680RDBL
  5. MMA0204501582C7
  6. LBHP-11712113
  7. 7105P1CWV3BE2
  8. TBWE476K016CWSD0900
  9. GDZJ24A
  10. MMSZ5260A_R2_00001
  11. A2541WV-13P-D1016-G50
  12. 1SMA4764A

Popular Articles

  1. Wang Yu, Radar Perception Manager of FAW (Nanjing) Technology Development Co., Ltd.: Application and Challenges of Radar Perception in Intelligent Driving
  2. Light intensity detection system based on 51 single chip microcomputer
  3. Chen Chunzhang: Intel Architecture Day reveals that innovation cannot be achieved overnight
  4. Four wonderful ways to use a digital multimeter
  5. Oscilloscope frequency domain analysis of power supply noise
  6. Talk about the working principle of single-phase capacitor motor
  7. [Primary Tutorial] Building an arm-linux bare metal development environment
  8. Analysis of application cases of NV040C voice chip
  9. i9/i7/i5 disappeared, Intel Core processor naming changed
  10. ITECH IT9121 power meter performs harmonic measurement and power consumption measurement on home appliances

Technical ResourceMore

  1. Signal Analysis and Processing Based on MATLAB
  2. Hardware Design and Implementation of CPCI-based MVB Communication Card
  3. HCSL Application Introduction
  4. RC Differential Circuit and Integral Circuit.pdf
  5. Protues simulation example (8051) -8x8 dot matrix.rar
  6. MATLAB Case 23 Time Series Prediction of Wavelet Neural Network - Short-term Traffic Flow Prediction.rar
  7. Protues simulation example (8051) - 4x4 row and column keyboard.rar
  8. Chip Integration Design Flow Advanced Full Custom Design Methodology Cadence
  9. Altium-Common 3D Package Library (Step) [Common Patch] TAJ-R.rar
  10. LED drive circuit design example

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1017  2615  2235  473  2740  21  53  46  10  56
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
