5962-9169601MYX datasheet, PDF

5962-9169601MYX: DescriptionPipeline Register, 8-Bit, CMOS, 1.485 X 0.410 INCH, 0.230 INCH HEIGHT, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size228KB，6 Pages; ManufacturerLOGIC Devices; Websitehttp://www.logicdevices.com/

Download Datasheet Parametric View All

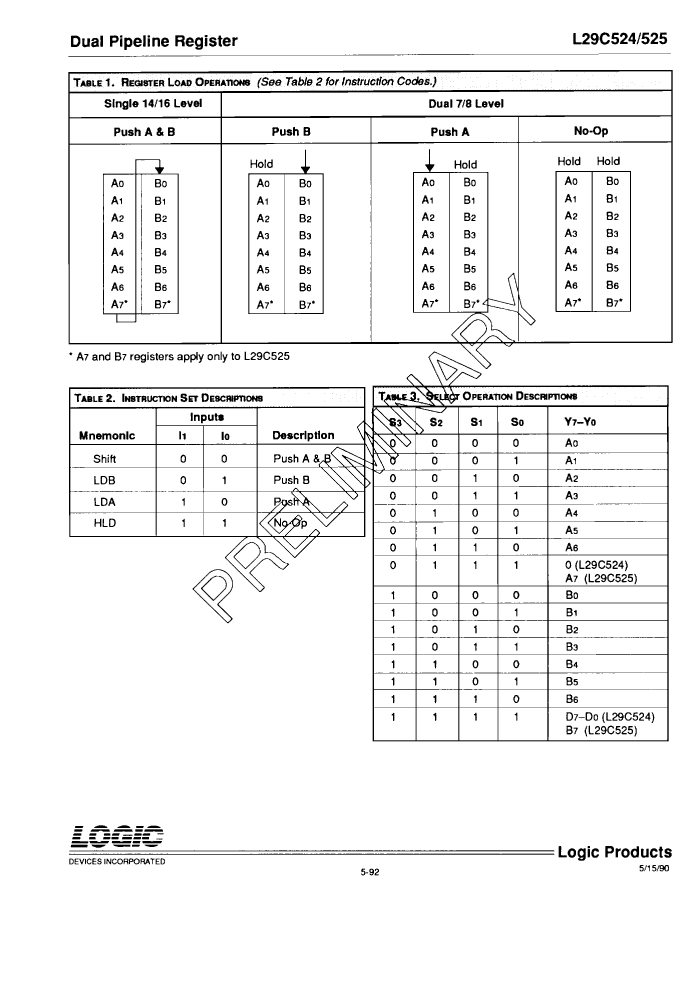

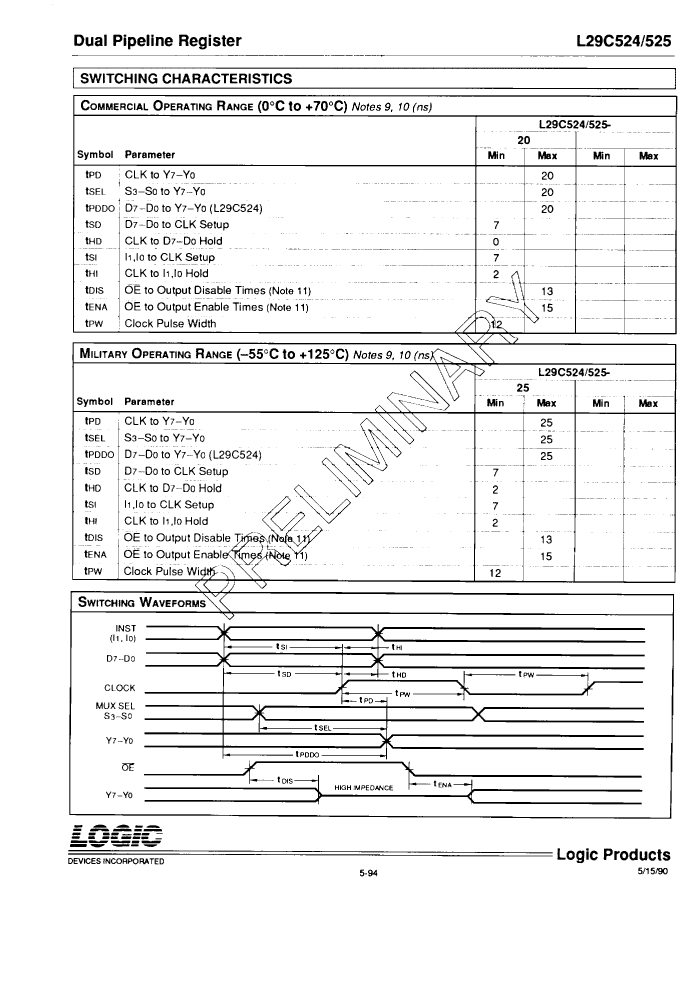

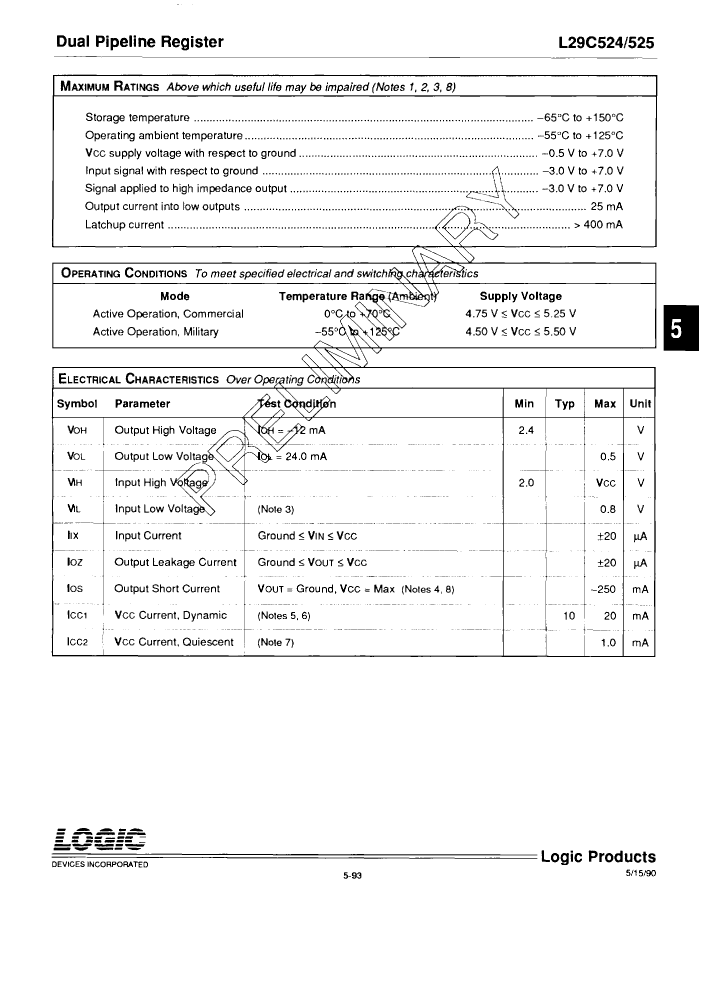

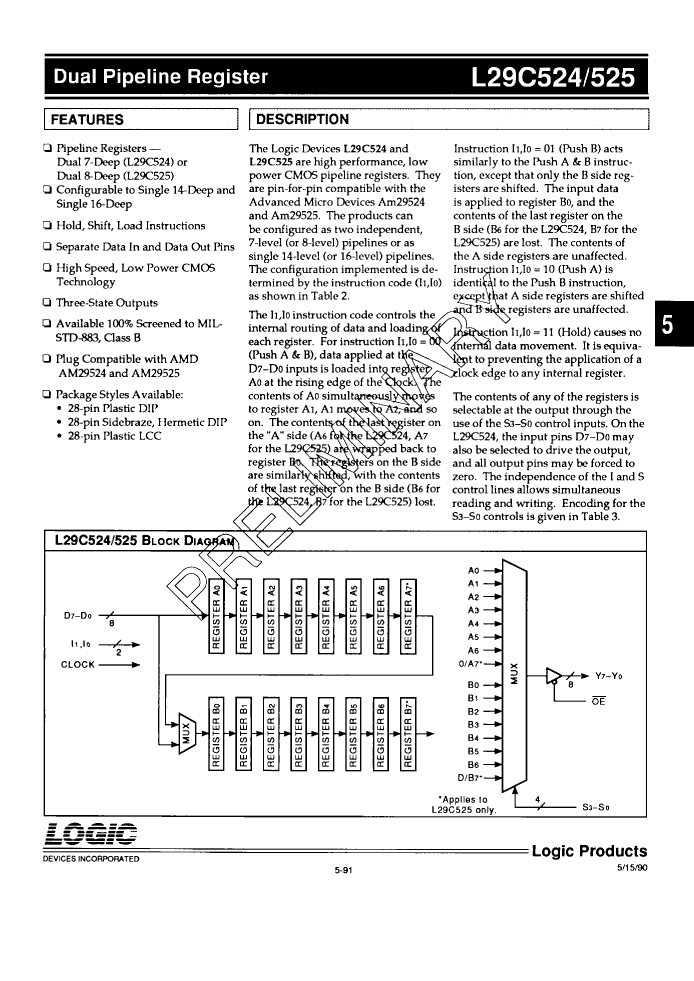

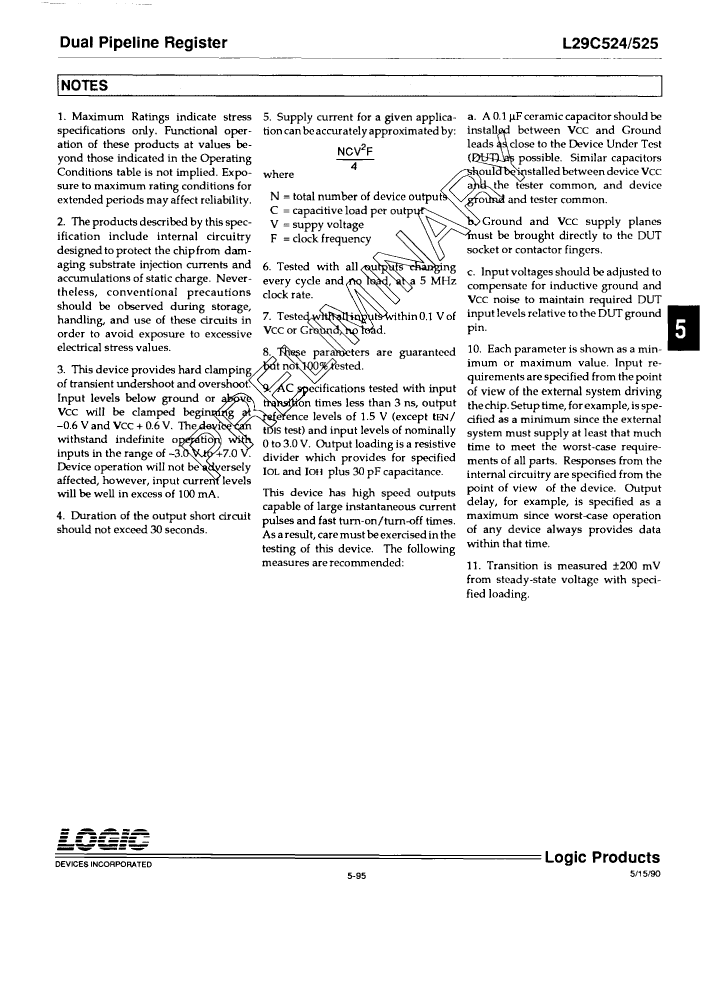

5962-9169601MYX Overview

Pipeline Register, 8-Bit, CMOS, 1.485 X 0.410 INCH, 0.230 INCH HEIGHT, DIP-28

Parameter Name	Attribute value
Maker	LOGIC Devices
Parts packaging code	DIP
package instruction	1.485 X 0.410 INCH, 0.230 INCH HEIGHT, DIP-28
Contacts	28
Reach Compliance Code	compliant
ECCN code	3A001.A.2.C
boundary scan	NO
External data bus width	8
JESD-30 code	R-XDIP-T28
length	35.56 mm
low power mode	NO
Number of terminals	28
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
Output data bus width	8
Package body material	UNSPECIFIED
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Certification status	Not Qualified
Filter level	MIL-STD-883
Maximum seat height	4.953 mm
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	MILITARY
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
width	10.16 mm
uPs/uCs/peripheral integrated circuit type	DSP PERIPHERAL, PIPELINE REGISTER
