QS74FCT2240CTL datasheet, PDF - EEWORLD Datasheet

QS74FCT2240CTL: DescriptionBus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CQCC20,; Categorylogic logic; File Size556KB，10 Pages; ManufacturerQuality Semiconductor Inc

Download Datasheet Parametric View All

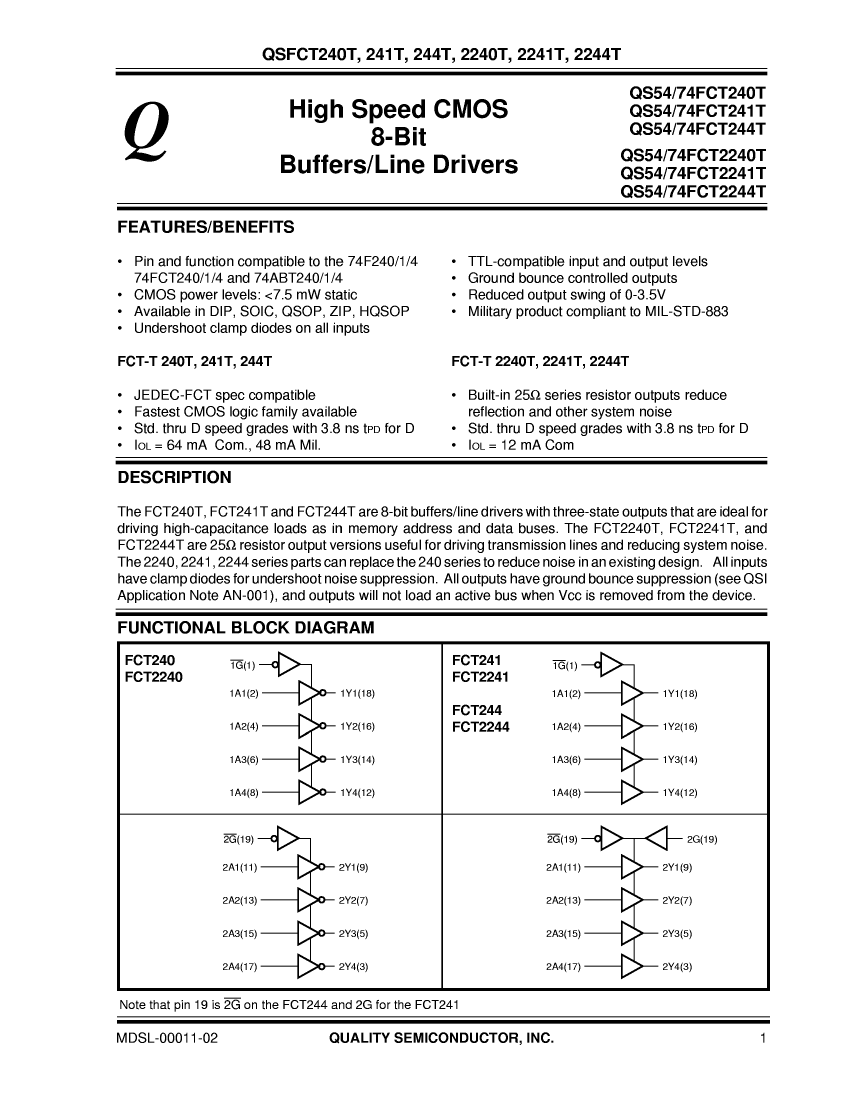

QS74FCT2240CTL Overview

Bus Driver, FCT Series, 2-Func, 4-Bit, Inverted Output, CMOS, CQCC20,

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Quality Semiconductor Inc
package instruction	QCCN, LCC20,.35SQ
Reach Compliance Code	unknown
Other features	25 OHM OUTPUT SERIES RESISTOR
Control type	ENABLE LOW
series	FCT
JESD-30 code	S-CQCC-N20
JESD-609 code	e0
Load capacitance (CL)	50 pF
Logic integrated circuit type	BUS DRIVER
MaximumI(ol)	0.012 A
Number of digits	4
Number of functions	2
Number of ports	2

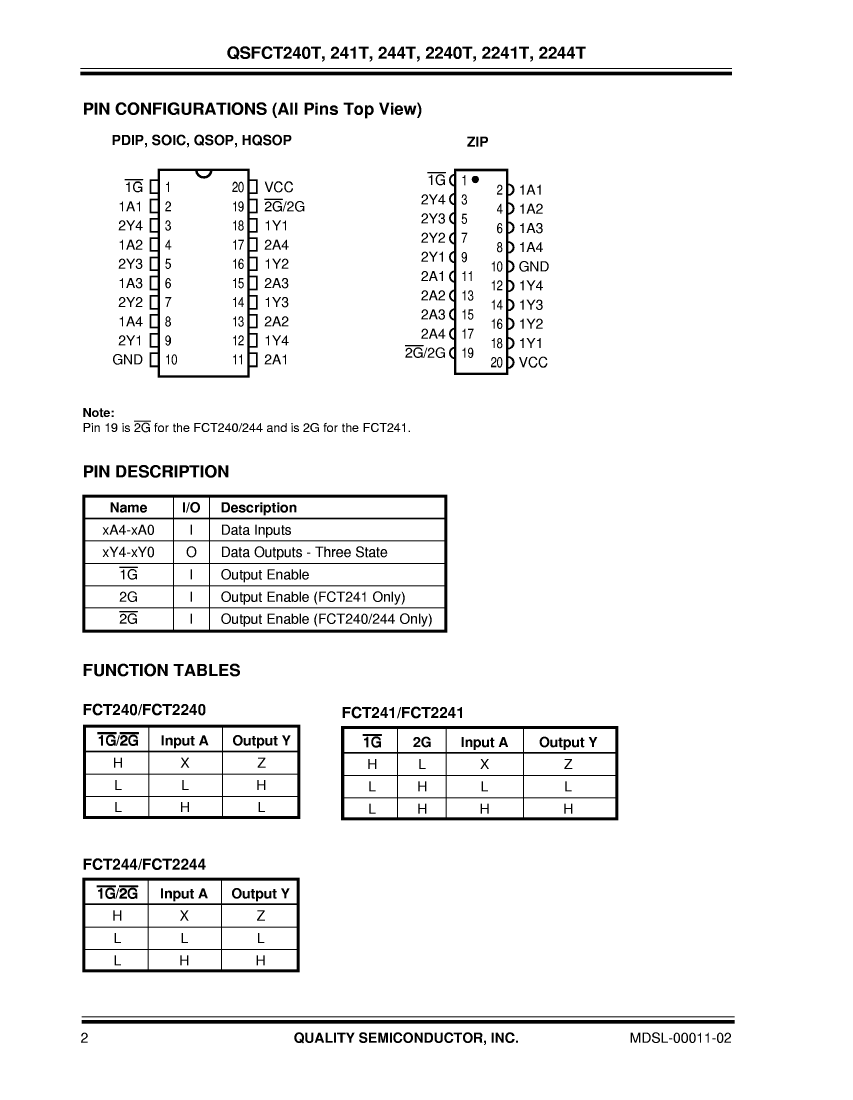

Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature
Output characteristics	3-STATE WITH SERIES RESISTOR
Output polarity	INVERTED
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	QCCN
Encapsulate equivalent code	LCC20,.35SQ
Package shape	SQUARE
Package form	CHIP CARRIER
Peak Reflow Temperature (Celsius)	NOT SPECIFIED

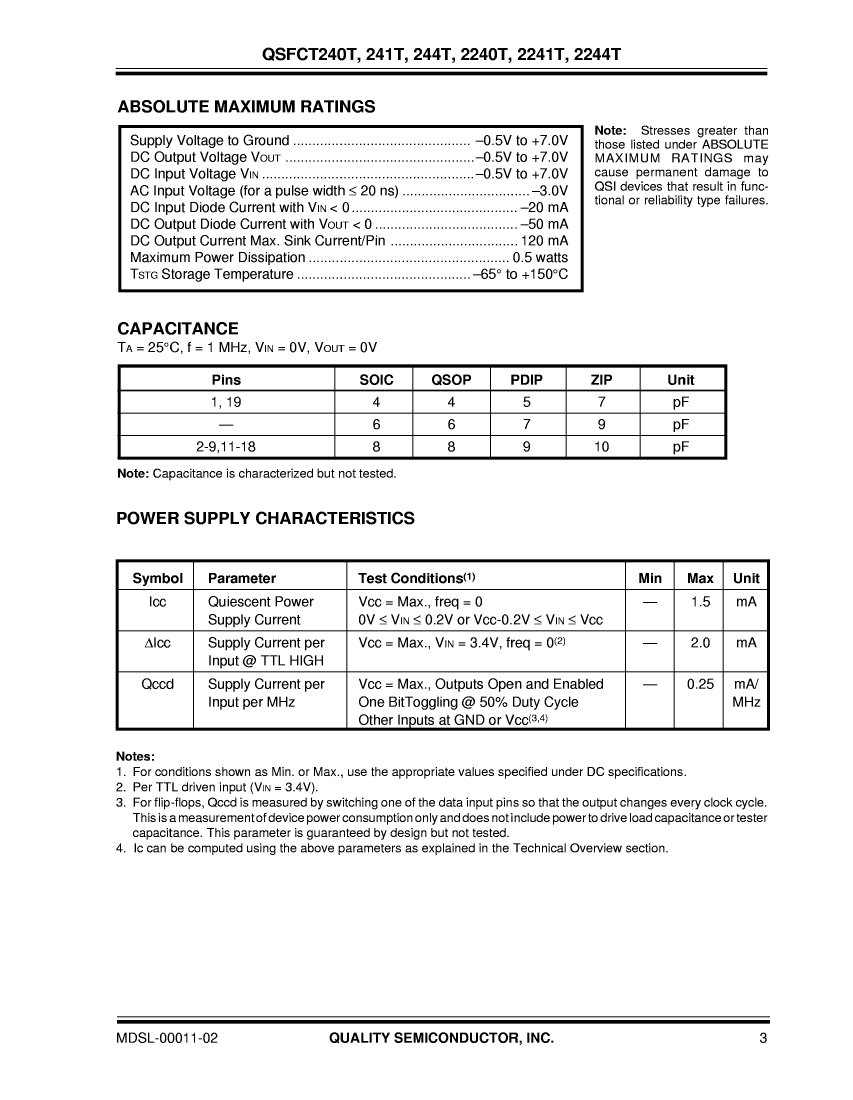

power supply	5 V

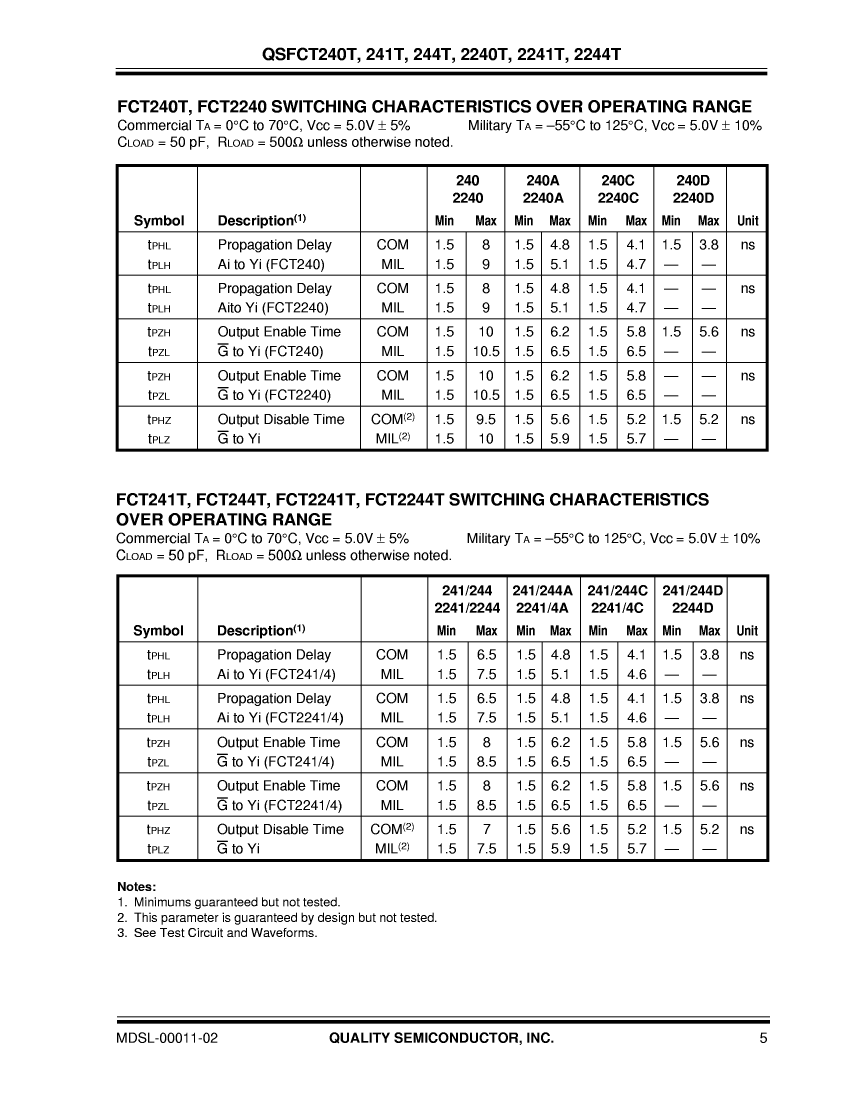

Prop。Delay @ Nom-Sup	4.1 ns
propagation delay (tpd)	4.1 ns
Certification status	Not Qualified

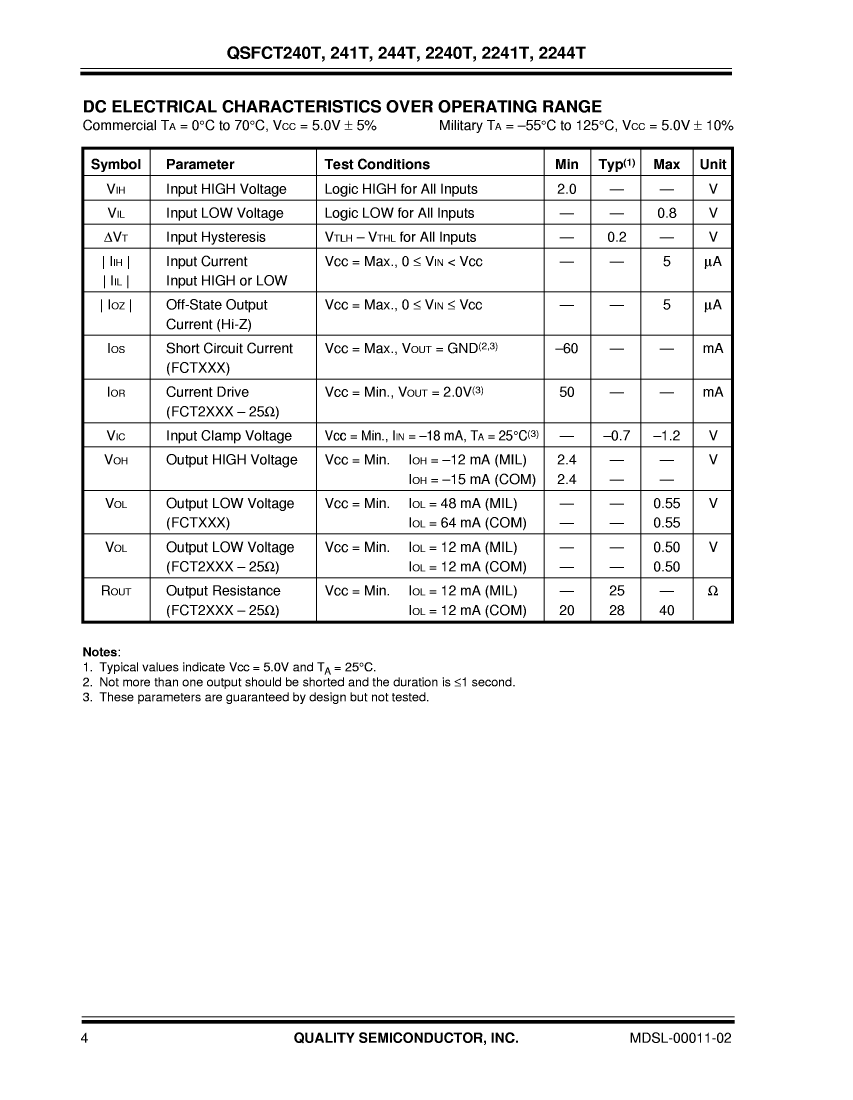

Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	NO LEAD
Terminal pitch	1.27 mm
Terminal location	QUAD
Maximum time at peak reflow temperature	NOT SPECIFIED
