FST3384 10-Bit Low Power Bus Switch
September 1997
Revised November 2000
FST3384
10-Bit Low Power Bus Switch
General Description
The Fairchild Switch FST3384 provides 10 bits of high-
speed CMOS TTL-compatible bus switches. The low on
resistance of the switch allows inputs to be connected to
outputs without adding propagation delay or generating
additional ground bounce noise. The device is organized
as two 5-bit switches with separate bus enable (OE) sig-
nals. When OE is LOW, the switch is ON and Port A is con-
nected to Port B. When OE is HIGH, the switch is OPEN
and a high-impedance state exists between the two ports.
Features
s
4
Ω
switch connection between two ports
s
Minimal propagation delay through the switch
s
Ultra low power with
<
0.1
µ
A typical I
CC
s
Zero ground bounce in flow-through mode
s
Control inputs compatible with TTL level
Ordering Code:
Order Number
FST3384WM
FST3384QSC
FST3384MTC
Package Number
M24B
MQA24
MTC24
Package Description
24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
24-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide
24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Devices also available in Tape and Reel. Specify by appending the suffix letter “X” to the ordering code.
Logic Diagram
Connection Diagram
Pin Descriptions
Pin Names
OE
1
, OE
2
A
0
–A
9
B
0
–B
9
Description
Bus Switch Enable
Bus A
Bus B
Truth Table
OE
1
L
L
H
H
OE
2
L
H
L
H
B
0
–B
4
A
0
–A
4
A
0
–A
4
B
5
–B
9
A
5
–A
9
HIGH-Z State
Function
Connect
Connect
Connect
Disconnect
HIGH-Z State A
5
–A
9
HIGH-Z State HIGH-Z State
© 2000 Fairchild Semiconductor Corporation
DS500046
www.fairchildsemi.com
FST3384
Absolute Maximum Ratings
(Note 1)
Supply Voltage (V
CC
)
DC Switch Voltage (V
S
)
DC Input Voltage (V
IN
) (Note 2)
DC Input Diode Current (I
IK
) V
IN
<
0V
DC Output (I
OUT
) Sink Current
DC V
CC
/GND Current (I
CC
/I
GND
)
Storage Temperature Range (T
STG
)
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
0.5V to
+
7.0V
−
50 mA
128 mA
Recommended Operating
Conditions
(Note 3)
Power Supply Operating (V
CC
)
Input Voltage (V
IN
)
Output Voltage (V
OUT
)
Input Rise and Fall Time (t
r
, t
f
)
Switch Control Input
Switch I/O
Free Air Operating Temperature (T
A
)
0nS/V to 5nS/V
0nS/V to DC
4.0V to 5.5V
0V to 5.5V
0V to 5.5V
+
/
−
100mA
−
65
°
C to
+
150
°
C
−
40
°
C to
+
85
°
C
Note 1:
The “Absolute Maximum Ratings” are those values beyond which
the safety of the device cannot be guaranteed. The device should not be
operated at these limits. The parametric values defined in the “Electrical
Characteristics” table are not guaranteed at the absolute maximum ratings.
The “Recommended Operating Conditions” table will define the conditions
for actual device operation.
Note 2:
The input and output negative voltage ratings may be exceeded if
the input and output diode current ratings are observed.
Note 3:
Unused control inputs must be held HIGH or LOW. They may not
float.
DC Electrical Characteristics
Symbol
V
IK
V
IH
V
IL
I
I
I
OZ
R
ON
Parameter
Clamp Diode Voltage
HIGH Level Input Voltage
LOW Level Input Voltage
Input Leakage Current
OFF-STATE Leakage Current
Switch On Resistance
(Note 5)
V
CC
(V)
4.5
4.0-5.5
4.0-5.5
5.5
5.5
4.5
4.5
4.5
4.0
I
CC
∆
I
CC
Quiescent Supply Current
Increase in I
CC
per Input
5.5
5.5
4
4
8
11
2.0
0.8
±1.0
±1.0
7
7
15
20
3
2.5
T
A
= −40°C
to
+85°C
Min
Typ
(Note 4)
Units
Max
−1.2
V
V
V
µA
µA
Ω
Ω
Ω
Ω
µA
mA
0
≤
V
IN
≤
5.5V
0
≤
A, B
≤
V
CC
V
IN
=
0V, I
IN
=
64mA
V
IN
=
0V, I
IN
=
30mA
V
IN
=
2.4V, I
IN
=
15mA
V
IN
=
2.4V, I
IN
=
15mA
V
IN
=
V
CC
or GND, I
OUT
=
0
One input at 3.4V
Other inputs at V
CC
or GND
Note 4:
All typical values are at V
CC
=
5.0V, T
A
=
25°C.
Note 5:
Measured by voltage drop between A and B pin at indicated current through the switch. On resistance is determined by the lower of the voltages on
the two (A or B) pins.
Condition
I
IN
= −
18mA
www.fairchildsemi.com
2
FST3384
AC Electrical Characteristics
T
A
= −40°C
to
+85°C
Symbol
Parameter
C
L
=
50 pF, RU
=
RD
=
500Ω
V
CC
=
4.5
−
5.5V
Min
t
PHL
, t
PLH
t
PZH
, t
PZL
t
PHZ
, t
PLZ
Prop Delay Bus to Bus (Note 6)
Output Enable Time
OE
1
, OE
2
to A
n
, B
n
Output Disable Time
OE
1
, OE
2
to A
n
, B
n
Max
0.25
1.0
1.5
5.7
5.2
V
CC
=
4.0V
Min
Max
0.25
6.2
5.5
ns
ns
ns
V
I
=
OPEN
V
I
=
7V for t
PZL
V
I
=
OPEN for t
PZH
I
I
=
7V for t
PLZ
V
I
=
OPEN for t
PHZ
Figures
1, 2
Figures
1, 2
Figures
1, 2
Units
Conditions
Figure
No.
Note 6:
This parameter is guaranteed by design but not tested. The bus switch contributes no propagation delay other than the RC delay of the typical On
resistance of the switch and the 50pF load capacitance, when driven by an ideal voltage the source (zero output impedance).
Capacitance
Symbol
C
IN
C
I/O
(OFF)
(Note 7)
Parameter
Typ
3
5
Max
6
13
Units
pF
pF
Conditions
V
CC
=
5.0V
V
CC
, OE
=
5.0V
Control Input Capacitance
Input/Output Capacitance
Note 7:
Capacitance is characterized but not tested.
AC Loading and Waveforms
FST3384 V
IN
vs. R
ON
(Typ)
Note:
Input driven by 50
Ω
source terminated in 50
Ω
Note:
C
L
includes load and stray capacitance
Note:
Input PRR
=
1.0 MHz, t
W
=
500 nS
FIGURE 1. AC Test Circuit
FIGURE 2. AC Waveforms
3
www.fairchildsemi.com
FST3384
Physical Dimensions
inches (millimeters) unless otherwise noted

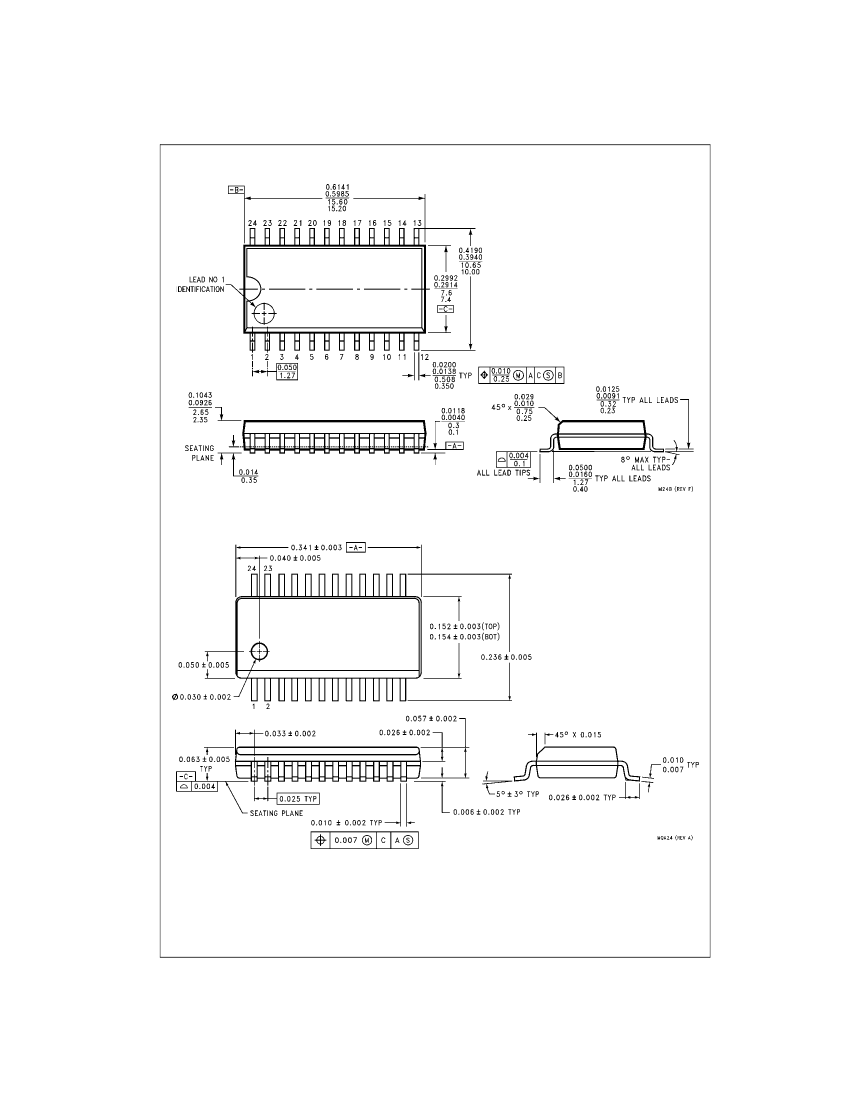

24-Lead Small Outline Integrated Circuit (SOIC), JEDEC MS-013, 0.300 Wide
Package Number M24B
24-Lead Quarter Size Outline Package (QSOP), JEDEC MO-137, 0.150 Wide
Package Number MQA24
www.fairchildsemi.com
4
FST3384 10-Bit Low Power Bus Switch
Physical Dimensions
inches (millimeters) unless otherwise noted (Continued)
24-Lead Thin Shrink Small Outline Package (TSSOP), JEDEC MO-153, 4.4mm Wide
Package Number MTC24
Technology Description
The Fairchild Switch family derives from and embodies Fairchild’s proven switch technology used for several years in its
74LVX3L384 (FST3384) bus switch product.
Fairchild does not assume any responsibility for use of any circuitry described, no circuit patent licenses are implied and
Fairchild reserves the right at any time without notice to change said circuitry and specifications.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF THE PRESIDENT OF FAIRCHILD
SEMICONDUCTOR CORPORATION. As used herein:
1. Life support devices or systems are devices or systems
which, (a) are intended for surgical implant into the
body, or (b) support or sustain life, and (c) whose failure
to perform when properly used in accordance with
instructions for use provided in the labeling, can be rea-
sonably expected to result in a significant injury to the
user.
5
2. A critical component in any component of a life support
device or system whose failure to perform can be rea-
sonably expected to cause the failure of the life support
device or system, or to affect its safety or effectiveness.
www.fairchildsemi.com
www.fairchildsemi.com
