F10165DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> F10165DC

F10165DC: DescriptionEncoder, 10K Series, 8-Bit, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16; Categorylogic logic; File Size61KB，2 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F10165DC Overview

Encoder, 10K Series, 8-Bit, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16

F10165DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	8 TO 4 LINE PRIORITY ENCODER
series	10K
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.558 mm
Logic integrated circuit type	ENCODER
Number of digits	8
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-5.2 V
Maximum supply current (ICC)	131 mA
propagation delay (tpd)	9 ns
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
technology	ECL
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	7.62 mm

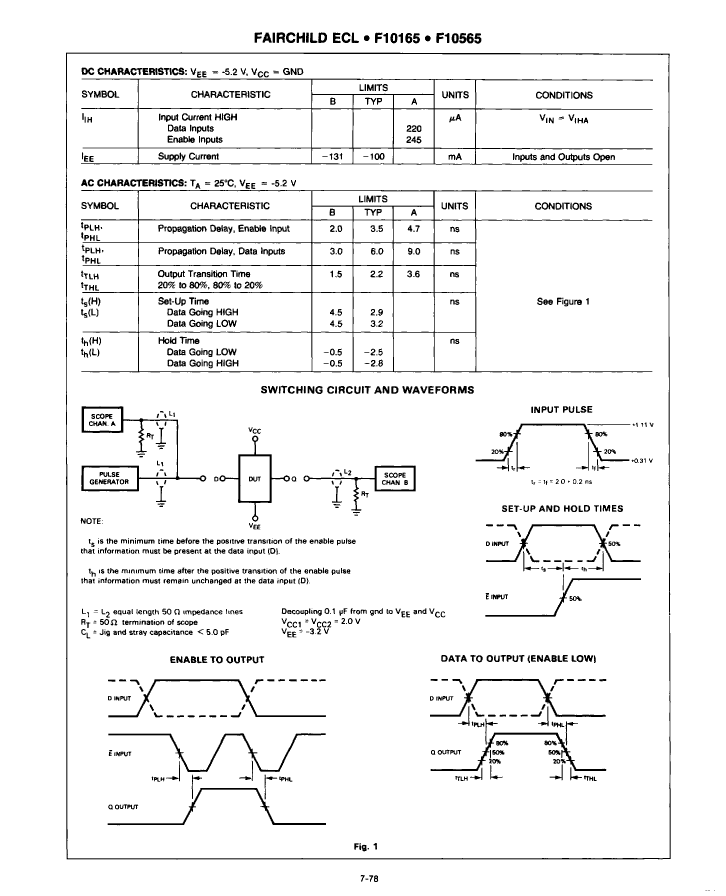

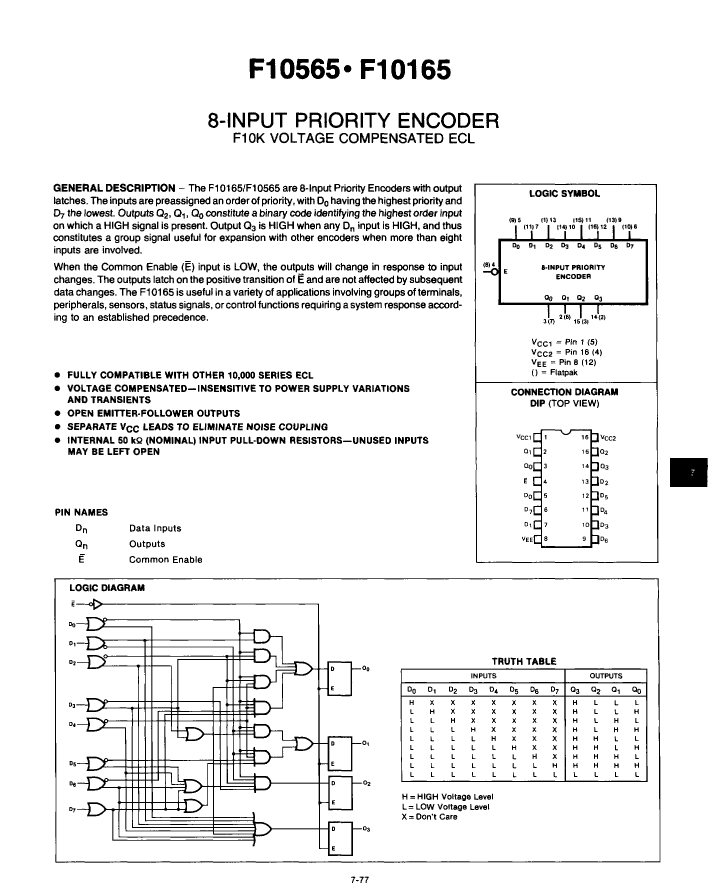

Preview

Download Datasheet

View All

F10165DC Related Products

	F10165DC	F10165FC	F10165PC	F10565DM	F10565FM
Description	Encoder, 10K Series, 8-Bit, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16	Encoder, 10K Series, 8-Bit, ECL, CDFP16, CERPACK-16	Encoder, 10K Series, 8-Bit, ECL, PDIP16, PLASTIC, DIP-16	Encoder, 10K Series, 8-Bit, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16	Encoder, 10K Series, 8-Bit, ECL, CDFP16, CERPACK-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Maker	Fairchild	Fairchild	Fairchild	Fairchild	Fairchild
Parts packaging code	DIP	DFP	DIP	DIP	DFP
package instruction	DIP, DIP16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3	DFP, FL16,.3
Contacts	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	8 TO 4 LINE PRIORITY ENCODER	8 TO 4 LINE PRIORITY ENCODER	8 TO 4 LINE PRIORITY ENCODER	8 TO 4 LINE PRIORITY ENCODER	8 TO 4 LINE PRIORITY ENCODER
series	10K	10K	10K	10K	10K
JESD-30 code	R-GDIP-T16	R-CDFP-F16	R-PDIP-T16	R-GDIP-T16	R-CDFP-F16
JESD-609 code	e0	e0	e0	e0	e0
length	19.558 mm	9.906 mm	19.05 mm	19.558 mm	9.906 mm
Logic integrated circuit type	ENCODER	ENCODER	ENCODER	ENCODER	ENCODER
Number of digits	8	8	8	8	8
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	75 °C	75 °C	75 °C	125 °C	125 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED
encapsulated code	DIP	DFP	DIP	DIP	DFP
Encapsulate equivalent code	DIP16,.3	FL16,.3	DIP16,.3	DIP16,.3	FL16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	IN-LINE	IN-LINE	FLATPACK
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	131 mA	131 mA	131 mA	131 mA	131 mA
propagation delay (tpd)	9 ns	9 ns	9 ns	9 ns	9 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.905 mm	5.08 mm	5.08 mm	1.905 mm
surface mount	NO	YES	NO	NO	YES
technology	ECL	ECL	ECL	ECL	ECL
Temperature level	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT
Terminal pitch	2.54 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
width	7.62 mm	6.731 mm	7.62 mm	7.62 mm	6.731 mm
