DV74LS640D datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> DV74LS640D

DV74LS640D: DescriptionBus Transceiver, LS Series, 1-Func, 8-Bit, Inverted Output, TTL, PDSO20, PLASTIC, SOP-20; Categorylogic logic; File Size381KB，2 Pages; ManufacturerAVG [AVG Semiconductors(HITEK)]

Download Datasheet Parametric Compare View All

DV74LS640D Overview

Bus Transceiver, LS Series, 1-Func, 8-Bit, Inverted Output, TTL, PDSO20, PLASTIC, SOP-20

DV74LS640D Parametric

Parameter Name	Attribute value
Maker	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC
package instruction	SOP,
Contacts	20
Reach Compliance Code	unknown
Other features	WITH DIRECTION CONTROL
series	LS
JESD-30 code	R-PDSO-G20
length	12.8 mm
Load capacitance (CL)	45 pF
Logic integrated circuit type	BUS TRANSCEIVER
Number of digits	8
Number of functions	1
Number of ports	2
Number of terminals	20
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Output characteristics	3-STATE
Output polarity	INVERTED
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
propagation delay (tpd)	15 ns
Certification status	Not Qualified
Maximum seat height	2.65 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm

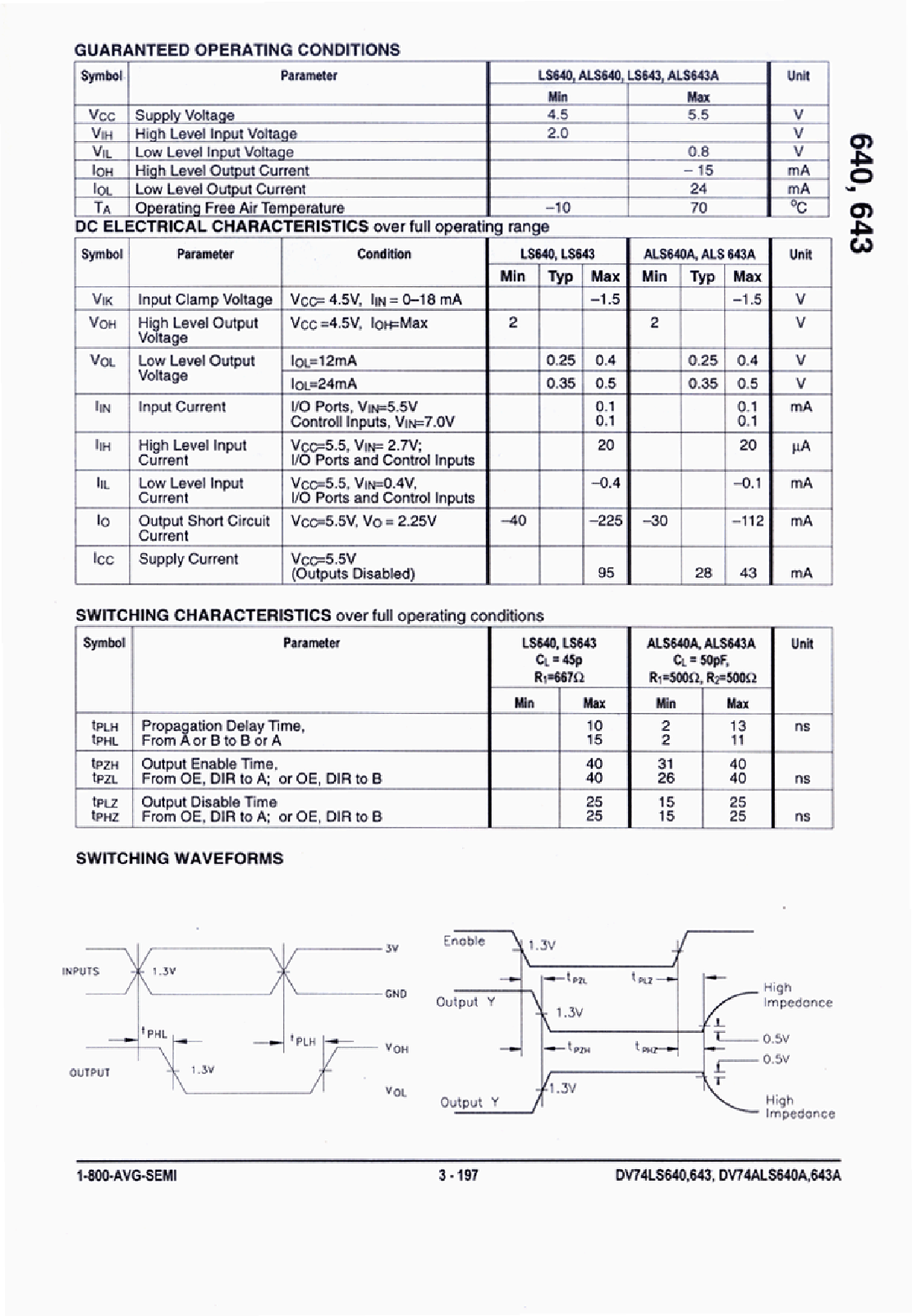

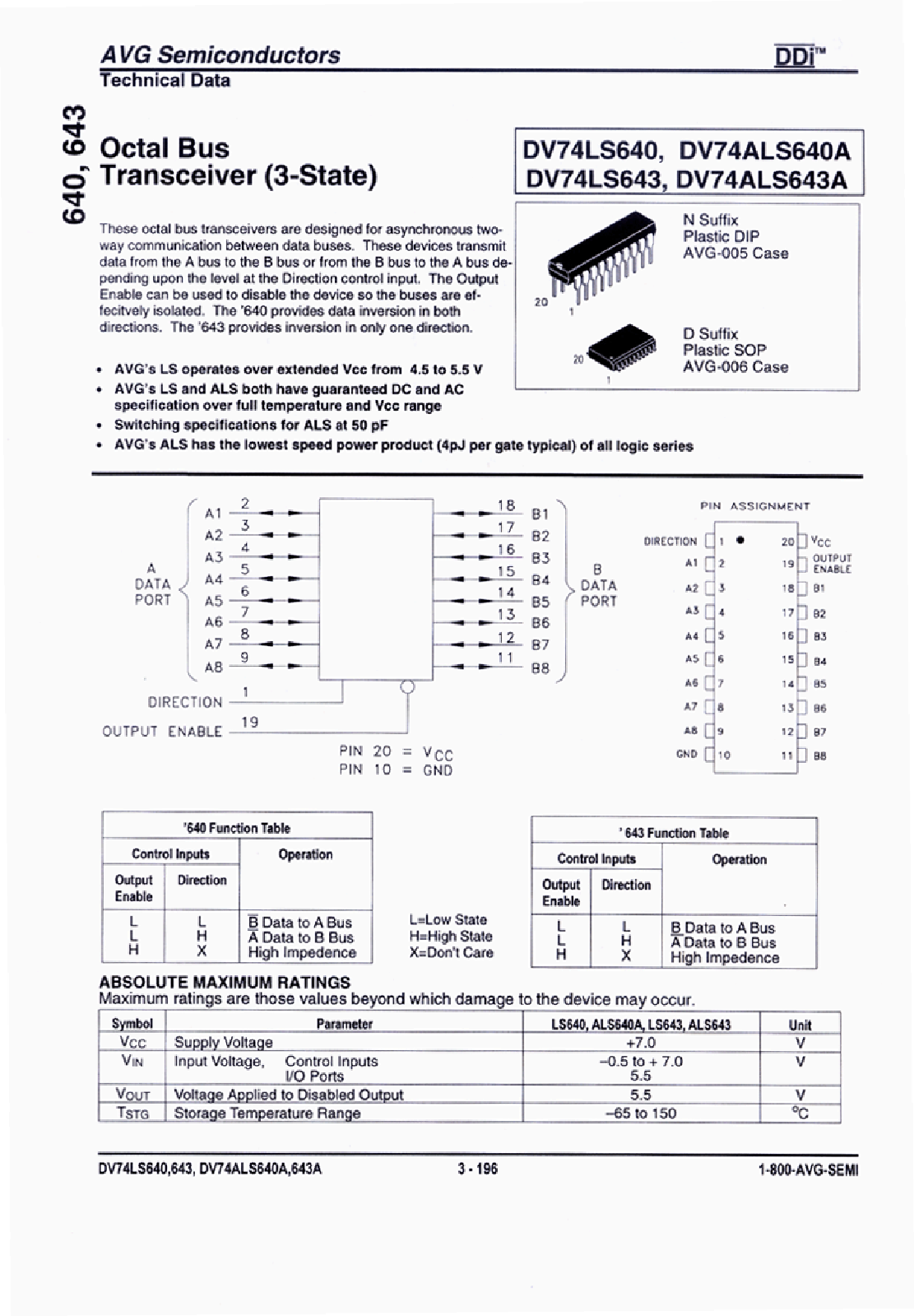

Preview

Download Datasheet

View All

DV74LS640D Related Products

	DV74LS640D	DV74LS643N	DV74LS643D	DV74ALS640AN	DV74ALS640AD	320920236	DV74ALS643AN
Description	Bus Transceiver, LS Series, 1-Func, 8-Bit, Inverted Output, TTL, PDSO20, PLASTIC, SOP-20	Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20	Bus Transceiver, LS Series, 1-Func, 8-Bit, True Output, TTL, PDSO20, PLASTIC, SOP-20	Bus Transceiver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, PDIP20, PLASTIC, DIP-20	Bus Transceiver, ALS Series, 1-Func, 8-Bit, Inverted Output, TTL, PDSO20, PLASTIC, SOP-20	Induktive Sensoren	Bus Transceiver, ALS Series, 1-Func, 8-Bit, True Output, TTL, PDIP20, PLASTIC, DIP-20
Maker	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	AVG [AVG Semiconductors(HITEK)]	-	AVG [AVG Semiconductors(HITEK)]
Parts packaging code	SOIC	DIP	SOIC	DIP	SOIC	-	DIP
package instruction	SOP,	DIP,	SOP,	DIP,	SOP,	-	DIP,
Contacts	20	20	20	20	20	-	20
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	-	unknown
Other features	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL; INVERTED OUTPUTS PORT A TO B	WITH DIRECTION CONTROL; INVERTED OUTPUTS PORT A TO B	WITH DIRECTION CONTROL	WITH DIRECTION CONTROL	-	WITH DIRECTION CONTROL; INVERTED OUTPUTS PORT A TO B
series	LS	LS	LS	ALS	ALS	-	ALS
JESD-30 code	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	R-PDIP-T20	R-PDSO-G20	-	R-PDIP-T20
length	12.8 mm	26.415 mm	12.8 mm	26.415 mm	12.8 mm	-	26.415 mm
Load capacitance (CL)	45 pF	45 pF	45 pF	50 pF	50 pF	-	50 pF
Logic integrated circuit type	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	BUS TRANSCEIVER	-	BUS TRANSCEIVER
Number of digits	8	8	8	8	8	-	8
Number of functions	1	1	1	1	1	-	1
Number of ports	2	2	2	2	2	-	2
Number of terminals	20	20	20	20	20	-	20
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	-	70 °C
Minimum operating temperature	-10 °C	-10 °C	-10 °C	-10 °C	-10 °C	-	-10 °C
Output characteristics	3-STATE	3-STATE	3-STATE	3-STATE	3-STATE	-	3-STATE
Output polarity	INVERTED	TRUE	TRUE	INVERTED	INVERTED	-	TRUE
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	-	PLASTIC/EPOXY
encapsulated code	SOP	DIP	SOP	DIP	SOP	-	DIP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	-	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	IN-LINE	SMALL OUTLINE	-	IN-LINE
propagation delay (tpd)	15 ns	15 ns	15 ns	13 ns	13 ns	-	13 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	-	Not Qualified
Maximum seat height	2.65 mm	4.57 mm	2.65 mm	4.57 mm	2.65 mm	-	4.57 mm
Maximum supply voltage (Vsup)	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	-	5.5 V
Minimum supply voltage (Vsup)	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	-	4.5 V
Nominal supply voltage (Vsup)	5 V	5 V	5 V	5 V	5 V	-	5 V
surface mount	YES	NO	YES	NO	YES	-	NO
technology	TTL	TTL	TTL	TTL	TTL	-	TTL
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	COMMERCIAL	-	COMMERCIAL
Terminal form	GULL WING	THROUGH-HOLE	GULL WING	THROUGH-HOLE	GULL WING	-	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm	1.27 mm	2.54 mm	1.27 mm	-	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	-	DUAL
width	7.5 mm	7.62 mm	7.5 mm	7.62 mm	7.5 mm	-	7.62 mm
