DTA013ZMT2L

Description
Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, ROHS COMPLIANT, VMT3, SC-105AA, 3 PIN
CategoryDiscrete semiconductor    The transistor
File Size1MB,8 Pages
ManufacturerROHM Semiconductor
Websitehttps://www.rohm.com/
Environmental Compliance
Download Datasheet Parametric View All

DTA013ZMT2L Online Shopping

Suppliers Part Number Price MOQ In stock
DTA013ZMT2L - - View Buy Now

DTA013ZMT2L Overview

Small Signal Bipolar Transistor, 0.1A I(C), 50V V(BR)CEO, 1-Element, PNP, Silicon, ROHS COMPLIANT, VMT3, SC-105AA, 3 PIN

DTA013ZMT2L Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerROHM Semiconductor
package instructionSMALL OUTLINE, R-PDSO-F3
Reach Compliance Codecompliant
ECCN codeEAR99
Factory Lead Time13 weeks
Samacsys DescriptionBipolar Transistors - Pre-Biased PNP DIGITAL TRANSISTOR
Other featuresBUILT IN BIAS RESISTANCE RATIO IS 10
Maximum collector current (IC)0.1 A
Collector-emitter maximum voltage50 V
ConfigurationSINGLE WITH BUILT-IN RESISTOR
Minimum DC current gain (hFE)30
JESD-30 codeR-PDSO-F3
Humidity sensitivity level1
Number of components1
Number of terminals3
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
Polarity/channel typePNP
surface mountYES
Terminal formFLAT
Terminal locationDUAL
Maximum time at peak reflow temperature10
transistor applicationsSWITCHING
Transistor component materialsSILICON
Nominal transition frequency (fT)250 MHz

DTA013ZMT2L Preview

DTA013Z series
PNP -100mA -50V Digital Transistors (Bias Resistor Built-in Transistors)
Datasheet
l
Outline
Parameter
V
CC
I
C(MAX.)
R
1
R
2
Value
-50V
-100mA
1.0kΩ
10kΩ
VMT3
EMT3F

DTA013ZM
(SC-105AA)
UMT3F

DTA013ZEB
(SC-89)


l
Features
1) Built-In Biasing Resistors, R
1
= 1kΩ,

R
2
= 10kΩ
2) Built-in bias resistors enable the configuration of

an inverter circuit without connecting external

input resistors (see inner circuit) .
3) The bias resistors consist of thin-film resistors

with complete isolation to allow negative biasing

of the input. They also have the advantage of

completely eliminating parasitic effects.
4) Only the on/off conditions need to be set

for operation, making the circuit design easy.
5) Complementary NPN Types: DTC013Z series
6) Lead Free/RoHS Compliant.

DTA013ZUB
(SC-85)







l
Inner circuit
l
Application
Switching circuit, Inverter circuit, Interface circuit,
Driver circuit
l
Packaging specifications

Part No.
DTA013ZM
DTA013ZEB
DTA013ZUB
Package
Package
size
VMT3
EMT3F
UMT3F
1212
1616
2021
Taping
code
T2L
TL
TL
Reel size Tape width
(mm)
(mm)
180
180
180
8
8
8
Basic
ordering
unit.(pcs)
8000
3000
3000
Marking
57
57
57

www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
1/7
20130828 - Rev.002
DTA013Z series


Datasheet
l
Absolute maximum ratings
(T
a
= 25°C)
Parameter
Supply voltage
Input voltage
Output current
Collector current
DTA013ZM
Power dissipation
DTA013ZEB
DTA013ZUB
Junction temperature
Range of storage temperature
Symbol
V
CC
V
IN
I
O
I
C(MAX)*1
Values
-50
-10 to 5
-100
-100
150
Unit
V
V
mA
mA
P
D*2
150
200
mW
T
j
T
stg
150
-55 to +150
l
Electrical characteristics
(T
a
= 25°C)
Values
Parameter
Symbol
V
I(off)
Input voltage
V
I(on)
Output voltage
Input current
Output current
DC current gain
Input resistance
Resistance ratio
Transition frequency
V
O(on)
I
I
I
O(off)
G
I
R
1
R
2
/R
1
f
T*1
Conditions
Min.
V
CC
= -5V, I
O
= -100μA
V
O
= -0.3V, I
O
= -5mA
I
O
/ I
I
= -5mA / -0.5mA
V
I
= -5V
V
CC
= -50V, V
I
= 0V
V
O
= -10V, I
O
= -5mA
-
-
V
CE
= -10V, I
E
= 5mA,
f = 100MHz
-
-1.0
-
-
-
30
0.7
8
-
Typ.
-
-
-0.07
-
-
-
1.0
10
250
Max.
-0.4
V
-
-0.15
-7.2
-500
-
1.3
12
-
V
mA
nA
-
-
MHz
Unit
*1 Characteristics of built-in transistor
*2 Each terminal mounted on a reference footprint



www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
2/7
20130828 - Rev.002
DTA013Z series


Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

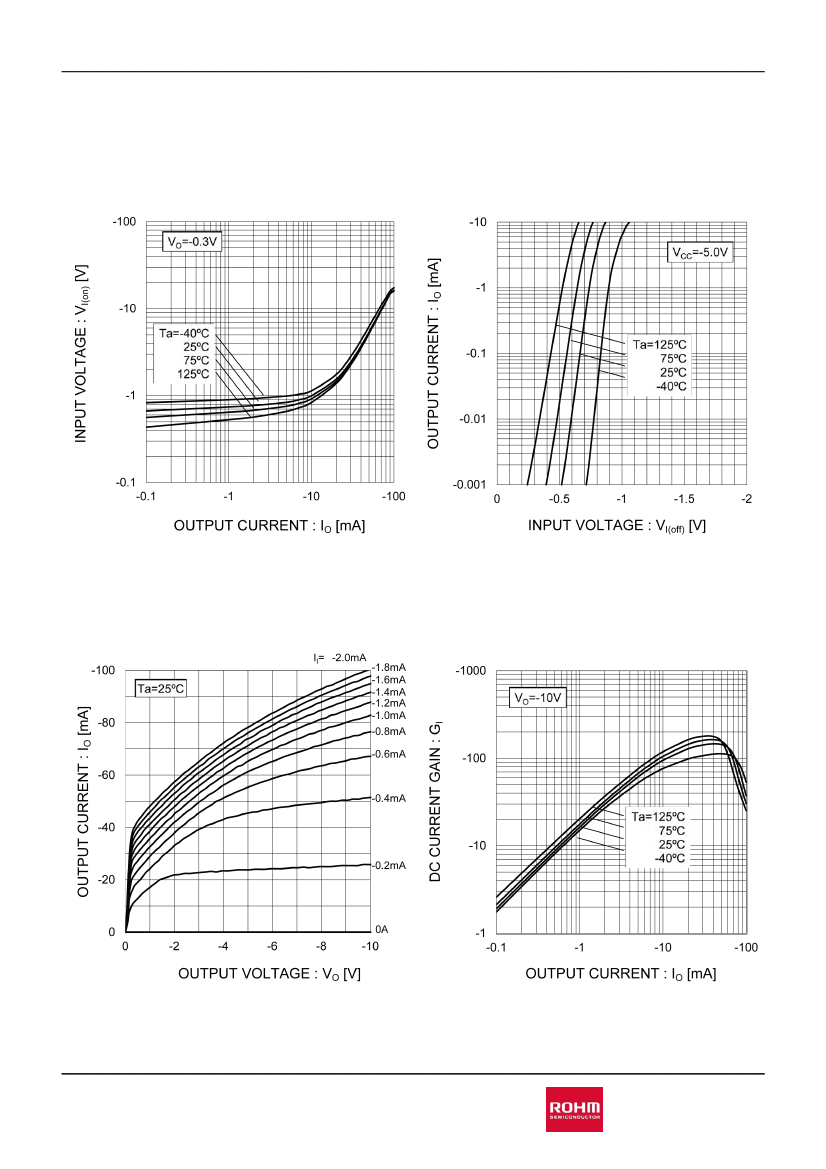

Fig.1 Input voltage vs. output current
(ON characteristics)
Fig.2 Output current vs. input voltage
(OFF characteristics)
Fig.3 Output current vs. output voltage
Fig.4 DC current gain vs. output current

www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
3/7
20130828 - Rev.002
DTA013Z series


Datasheet
l
Electrical characteristic curves
(T
a
=25°C)

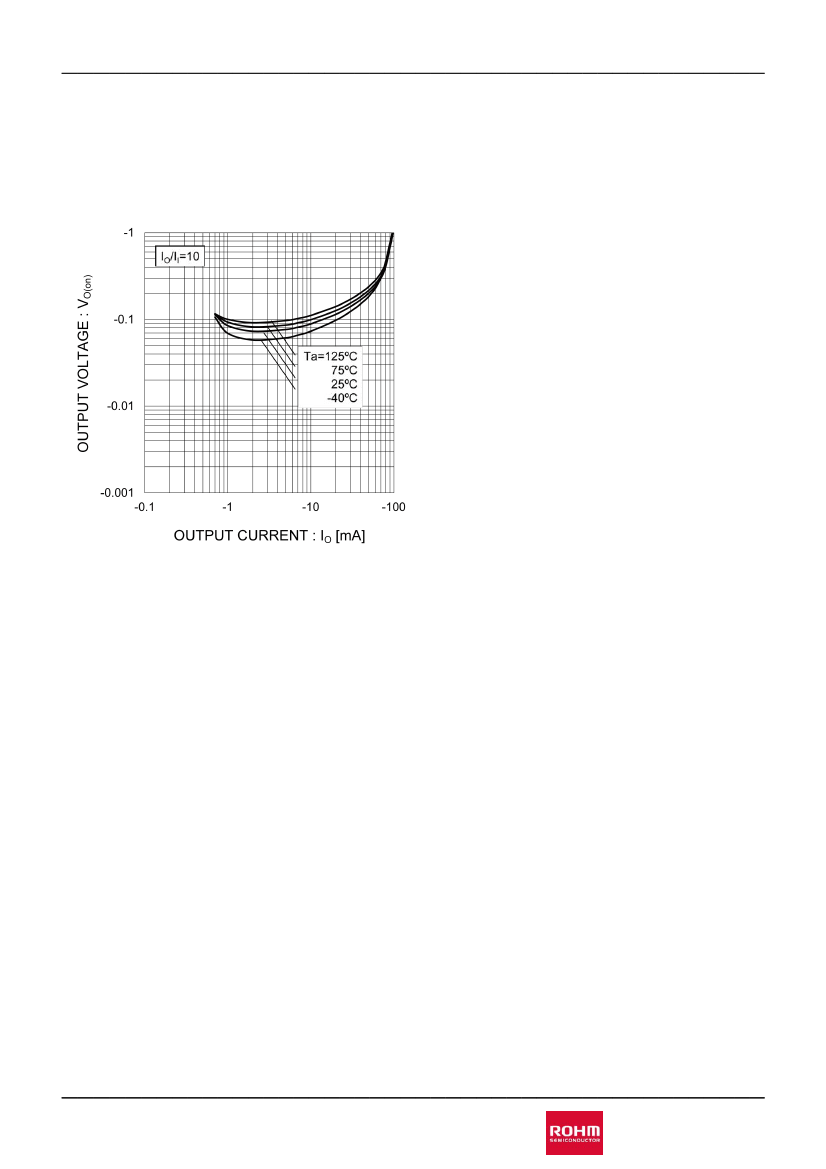

Fig.5 Output voltage vs. output current

www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
4/7
20130828 - Rev.002
DTA013Z series
l
Dimensions


Datasheet

www.rohm.com
© 2013 ROHM Co., Ltd. All rights reserved.
5/7
20130828 - Rev.002
