398RCZ010M1625 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Passive components> capacitor> 398RCZ010M1625

Preview

398RCZ010M1625: DescriptionCAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 3900uF, THROUGH HOLE MOUNT, RADIAL LEADED; CategoryPassive components capacitor; File Size3MB，4 Pages; ManufacturerIllinois Capacitor; Websitehttp://www.illinoiscapacitor.com/

Download Datasheet Parametric Compare View All

398RCZ010M1625 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 3900uF, THROUGH HOLE MOUNT, RADIAL LEADED

398RCZ010M1625 Parametric

Parameter Name	Attribute value
Maker	Illinois Capacitor
package instruction	,
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	3900 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR
Custom functions	Special Tol., Pack, Leads Also Available
diameter	16 mm
dielectric materials	ALUMINUM (WET)
leakage current	0.39 mA
length	25 mm
Manufacturer's serial number	RCZ
Installation features	THROUGH HOLE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	CYLINDRICAL PACKAGE
Package form	Radial
method of packing	Ammo Pack; Tape
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	10 V
ripple current	2070 mA
series	RCZ(10V)
surface mount	NO
Delta tangent	0.25
Terminal pitch	7.5 mm
Terminal shape	WIRE

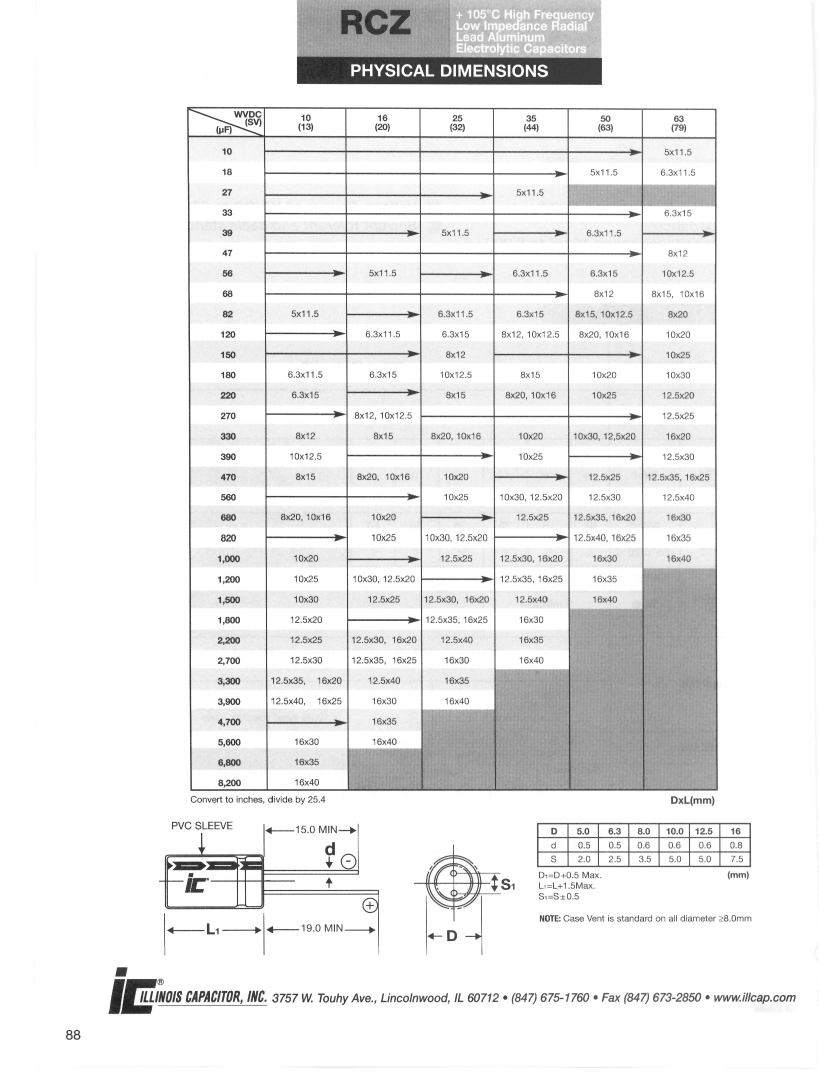

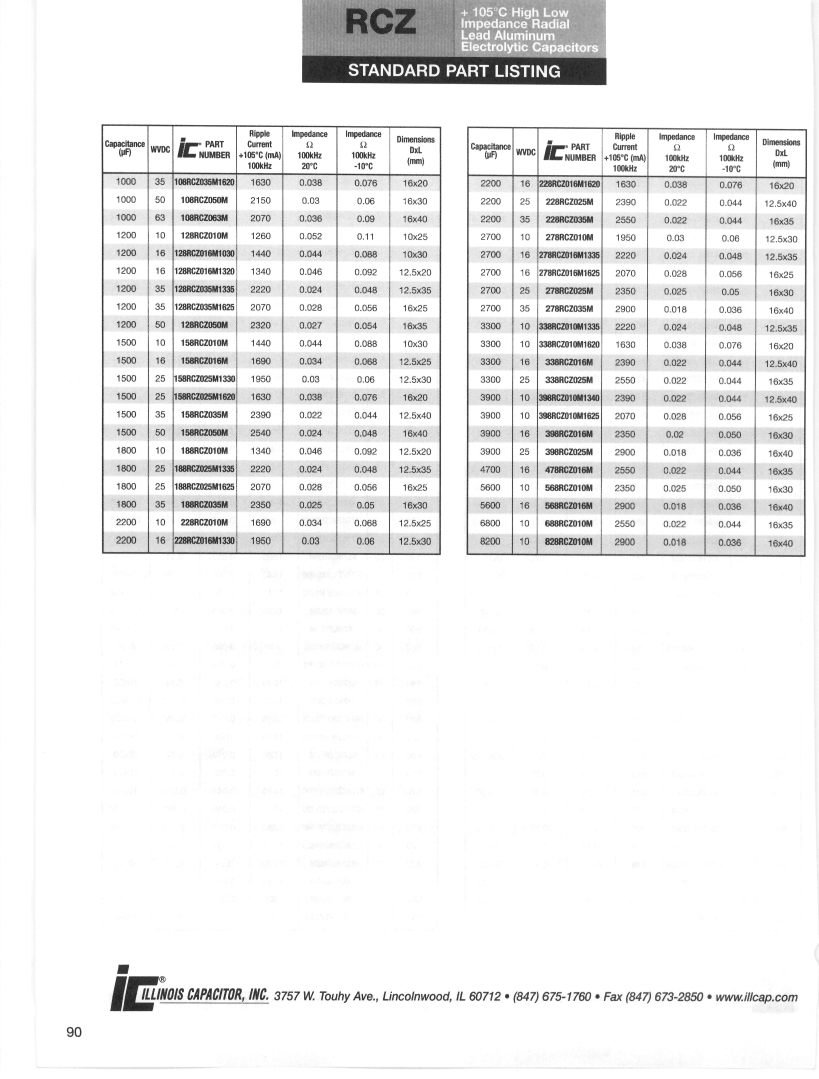

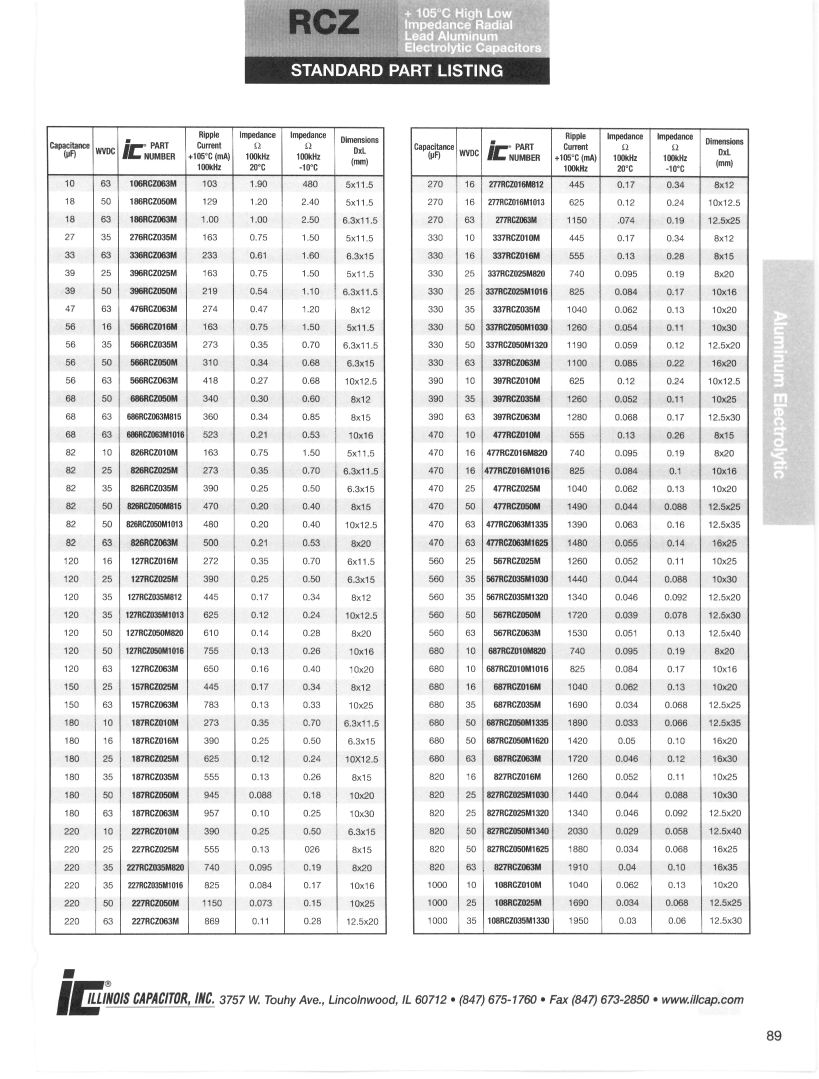

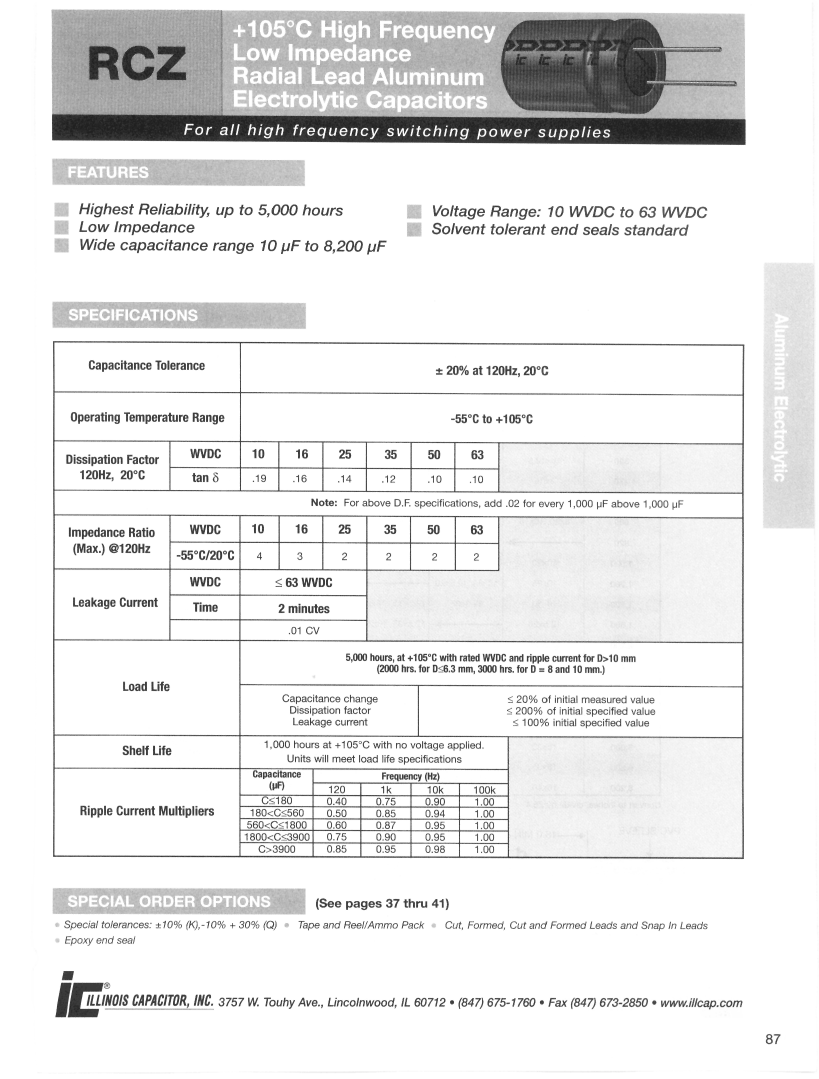

398RCZ010M1625 Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

398RCZ010M1625 Related Products

	398RCZ010M1625	108RCZ050M	477RCZ010M	277RCZ063M	566RCZ063M	337RCZ050M1030	128RCZ035M1625
Description	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 3900uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 1000uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 10V, 470uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 270uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 63V, 56uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 330uF, THROUGH HOLE MOUNT, RADIAL LEADED	CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 35V, 1200uF, THROUGH HOLE MOUNT, RADIAL LEADED
Reach Compliance Code	unknown	unknown	unknown	unknow	unknow	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
capacitance	3900 µF	1000 µF	470 µF	270 µF	56 µF	330 µF	1200 µF
Capacitor type	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR	ALUMINUM ELECTROLYTIC CAPACITOR
dielectric materials	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)	ALUMINUM (WET)
leakage current	0.39 mA	0.5 mA	0.047 mA	0.1701 mA	0.03528 mA	0.165 mA	0.42 mA
Manufacturer's serial number	RCZ	RCZ	RCZ	RCZ	RCZ	RCZ	RCZ
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
negative tolerance	20%	20%	20%	20%	20%	20%	20%
Number of terminals	2	2	2	2	2	2	2
Maximum operating temperature	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C	105 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Package shape	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE	CYLINDRICAL PACKAGE
polarity	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED	POLARIZED
positive tolerance	20%	20%	20%	20%	20%	20%	20%
Rated (DC) voltage (URdc)	10 V	50 V	10 V	63 V	63 V	50 V	35 V
ripple current	2070 mA	2150 mA	555 mA	1150 mA	418 mA	1260 mA	2070 mA
surface mount	NO	NO	NO	NO	NO	NO	NO
Delta tangent	0.25	0.1	0.19	0.1	0.1	0.1	0.14
Terminal shape	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE	WIRE
Maker	Illinois Capacitor	Illinois Capacitor	Illinois Capacitor	Illinois Capacitor	Illinois Capacitor	-	-
diameter	16 mm	16 mm	8 mm	12.5 mm	10 mm	-	-
length	25 mm	30 mm	15 mm	25 mm	12.5 mm	-	-
Package form	Radial	Radial	Radial	Radial	Radial	-	-
method of packing	Ammo Pack; Tape	Ammo Pack; Tape	Ammo Pack; Tape	Ammo Pack; Tape	Ammo Pack; Tape	-	-
series	RCZ(10V)	RCZ(50V)	RCZ(10V)	RCZ(63V)	RCZ(63V)	-	-
Terminal pitch	7.5 mm	7.5 mm	3.5 mm	5 mm	5 mm	-	-
