ERD24-01 datasheet, PDF - EEWORLD Datasheet

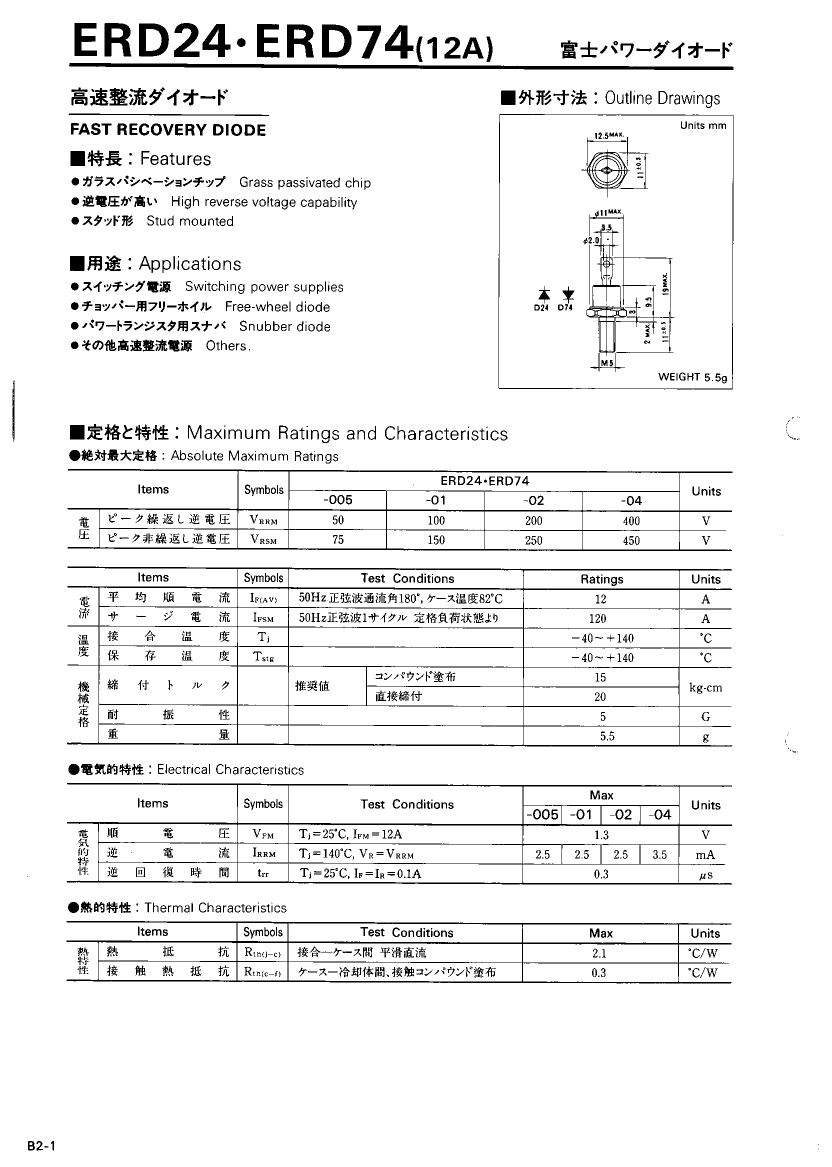

ERD24-01: DescriptionRectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon,; CategoryDiscrete semiconductor diode; File Size99KB，3 Pages; ManufacturerFuji Electric Co., Ltd.

Download Datasheet Parametric Compare View All

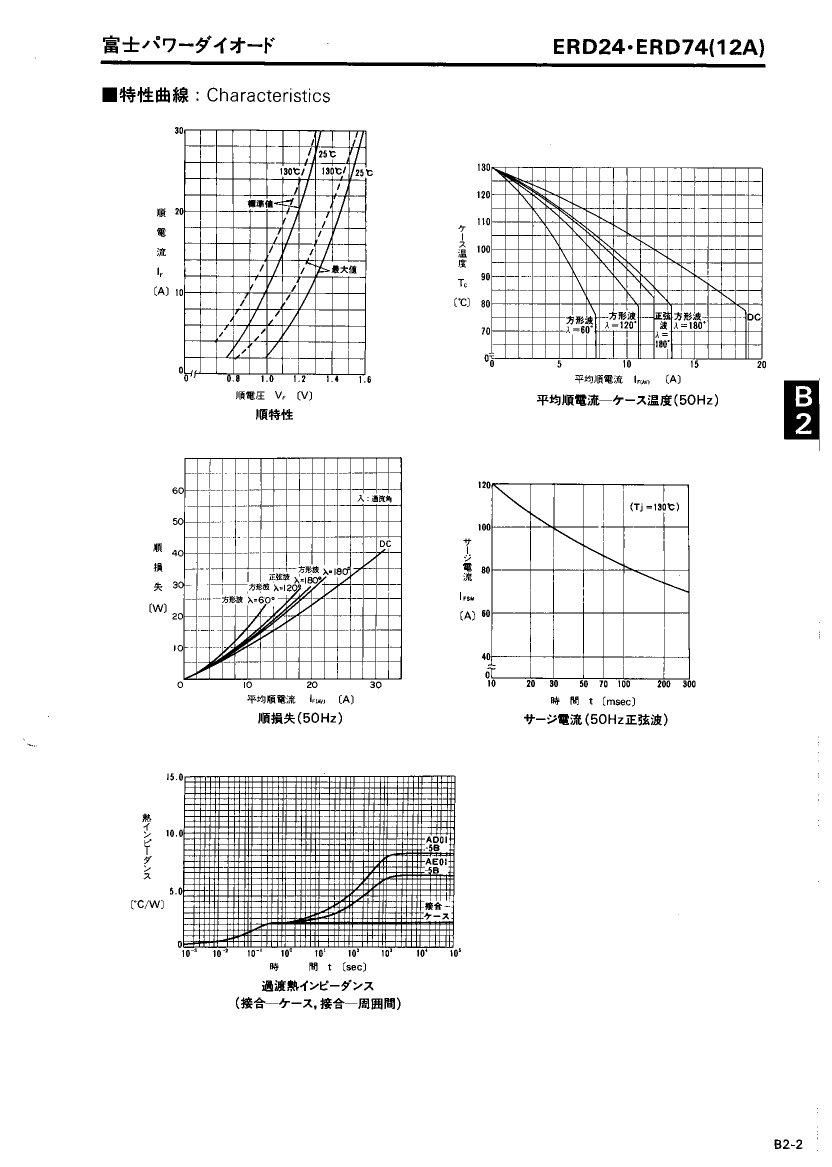

ERD24-01 Overview

Rectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon,

Parameter Name	Attribute value
Maker	Fuji Electric Co., Ltd.
package instruction	O-XUPM-D1
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	FREE WHEELING DIODE, SNUBBER DIODE
application	FAST RECOVERY
Shell connection	ANODE
Configuration	SINGLE
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V
JESD-30 code	O-XUPM-D1
Maximum non-repetitive peak forward current	120 A
Number of components	1
Phase	1
Number of terminals	1
Maximum operating temperature	140 °C
Minimum operating temperature	-40 °C
Maximum output current	12 A
Package body material	UNSPECIFIED
Package shape	ROUND
Package form	POST/STUD MOUNT
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	100 V
Maximum reverse current	5000 µA
Maximum reverse recovery time	0.3 µs
surface mount	NO
Terminal form	SOLDER LUG
Terminal location	UPPER

	ERD24-01	ERD24-04
Description	Rectifier Diode, 1 Phase, 1 Element, 12A, 100V V(RRM), Silicon,	Rectifier Diode, 1 Phase, 1 Element, 12A, 400V V(RRM), Silicon,
Maker	Fuji Electric Co., Ltd.	Fuji Electric Co., Ltd.
package instruction	O-XUPM-D1	O-XUPM-D1
Reach Compliance Code	unknown	unknown
ECCN code	EAR99	EAR99
Other features	FREE WHEELING DIODE, SNUBBER DIODE	FREE WHEELING DIODE, SNUBBER DIODE
application	FAST RECOVERY	FAST RECOVERY
Shell connection	ANODE	ANODE
Configuration	SINGLE	SINGLE
Diode component materials	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	1.3 V	1.3 V
JESD-30 code	O-XUPM-D1	O-XUPM-D1
Maximum non-repetitive peak forward current	120 A	120 A
Number of components	1	1
Phase	1	1
Number of terminals	1	1
Maximum operating temperature	140 °C	140 °C
Minimum operating temperature	-40 °C	-40 °C
Maximum output current	12 A	12 A
Package body material	UNSPECIFIED	UNSPECIFIED
Package shape	ROUND	ROUND
Package form	POST/STUD MOUNT	POST/STUD MOUNT
Certification status	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	100 V	400 V
Maximum reverse current	5000 µA	5000 µA
Maximum reverse recovery time	0.3 µs	0.3 µs
surface mount	NO	NO
Terminal form	SOLDER LUG	SOLDER LUG
Terminal location	UPPER	UPPER
