P87C576EFLKA-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P87C576EFLKA-T

P87C576EFLKA-T: DescriptionIC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，42 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

P87C576EFLKA-T Overview

IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller

P87C576EFLKA-T Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	WQCCJ,
Reach Compliance Code	unknown
Has ADC	YES
Address bus width	16
bit size	8
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
JESD-30 code	S-CQCC-J44
length	16.51 mm
Number of I/O lines	30
Number of terminals	44
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	CERAMIC, METAL-SEALED COFIRED
encapsulated code	WQCCJ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Certification status	Not Qualified
ROM programmability	UVPROM
Maximum seat height	4.83 mm
speed	16 MHz
Maximum slew rate	30 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
surface mount	YES
technology	CMOS
Temperature level	INDUSTRIAL
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.51 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

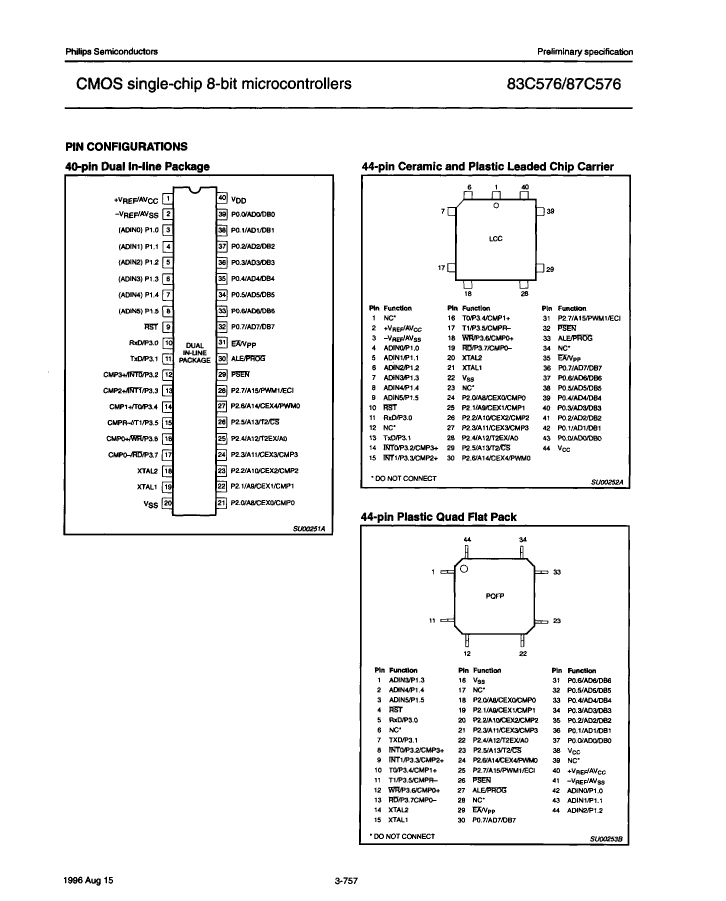

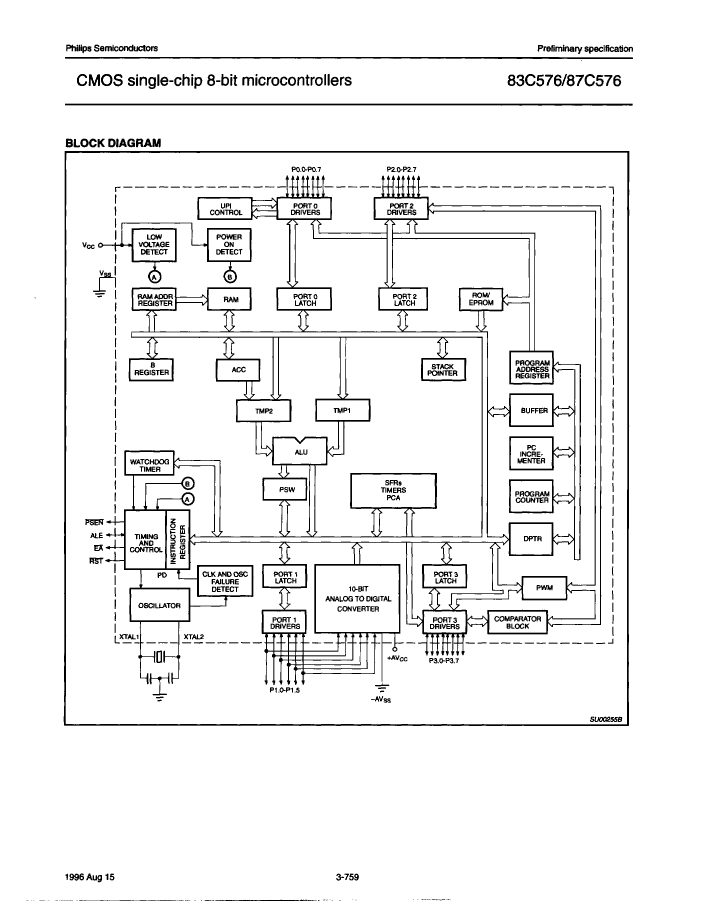

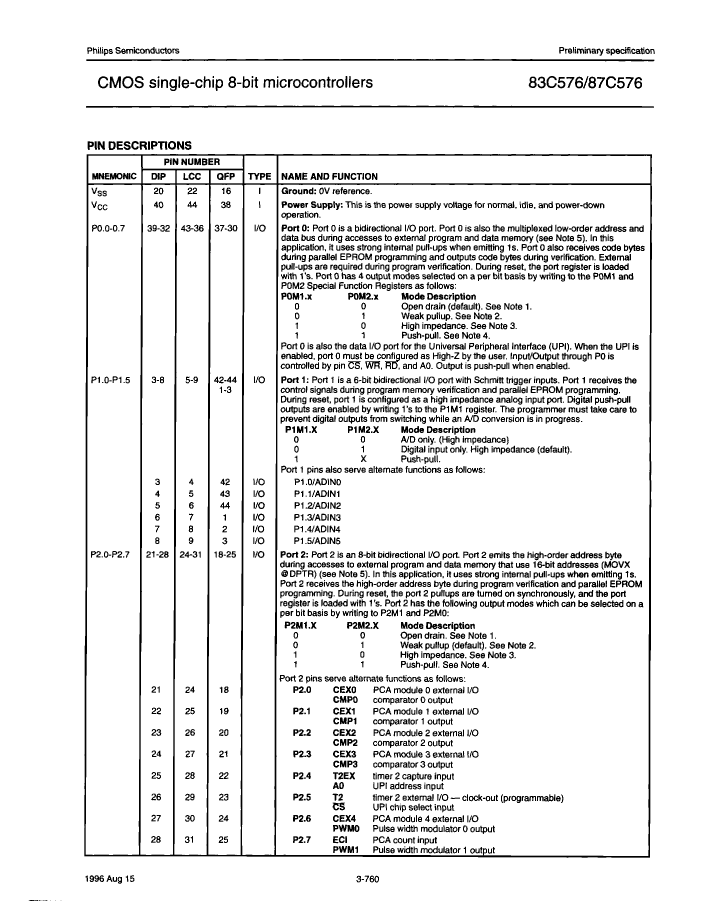

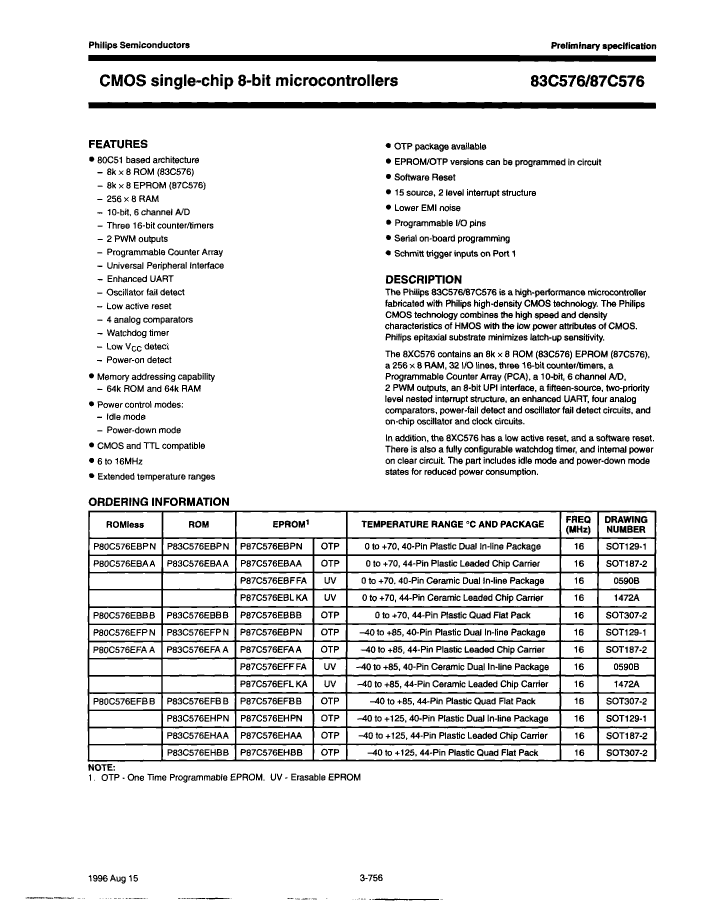

Preview

Download Datasheet

View All

P87C576EFLKA-T Related Products

	P87C576EFLKA-T	P87C576EBLKA-T	P87C576EHBB-S	P80C576EBBB-T	P80C576EFBB-T
Description	IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, OTPROM, 16 MHz, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP44, Microcontroller	IC 8-BIT, 16 MHz, MICROCONTROLLER, PQFP44, Microcontroller
package instruction	WQCCJ,	WQCCJ,	QFP,	QFP,	QFP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Has ADC	YES	YES	YES	YES	YES
Address bus width	16	16	16	16	16
bit size	8	8	8	8	8
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
DAC channel	NO	NO	NO	NO	NO
DMA channel	NO	NO	NO	NO	NO
External data bus width	8	8	8	8	8
JESD-30 code	S-CQCC-J44	S-CQCC-J44	S-PQFP-G44	S-PQFP-G44	S-PQFP-G44
length	16.51 mm	16.51 mm	10 mm	10 mm	10 mm
Number of I/O lines	30	30	32	30	30
Number of terminals	44	44	44	44	44
Maximum operating temperature	85 °C	70 °C	125 °C	70 °C	85 °C
Minimum operating temperature	-40 °C	-	-40 °C	-	-40 °C
PWM channel	YES	YES	YES	YES	YES
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	WQCCJ	WQCCJ	QFP	QFP	QFP
Package shape	SQUARE	SQUARE	SQUARE	SQUARE	SQUARE
Package form	CHIP CARRIER, WINDOW	CHIP CARRIER, WINDOW	FLATPACK	FLATPACK	FLATPACK
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	4.83 mm	4.83 mm	2.1 mm	2.1 mm	2.1 mm
speed	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Maximum slew rate	30 mA	30 mA	30 mA	30 mA	30 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
surface mount	YES	YES	YES	YES	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	INDUSTRIAL	COMMERCIAL	AUTOMOTIVE	COMMERCIAL	INDUSTRIAL
Terminal form	J BEND	J BEND	GULL WING	GULL WING	GULL WING
Terminal pitch	1.27 mm	1.27 mm	0.8 mm	0.8 mm	0.8 mm
Terminal location	QUAD	QUAD	QUAD	QUAD	QUAD
width	16.51 mm	16.51 mm	10 mm	10 mm	10 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER	MICROCONTROLLER
Maker	NXP	NXP	NXP	-	NXP
ROM programmability	UVPROM	UVPROM	OTPROM	-	-
Base Number Matches	-	1	1	1	-
