P87C576EHLKA datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> P87C576EHLKA

Preview

P87C576EHLKA: DescriptionIC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，39 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

P87C576EHLKA Overview

IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller

P87C576EHLKA Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	WQCCJ,
Reach Compliance Code	unknown
Has ADC	YES
Other features	PROGRAMMABLE COUNTER ARRAY
Address bus width	16
bit size	8
boundary scan	NO
maximum clock frequency	16 MHz
DAC channel	NO
DMA channel	NO
External data bus width	8
Format	FIXED POINT
Integrated cache	NO
JESD-30 code	S-GQCC-J44
length	16.51 mm
low power mode	YES
Number of DMA channels
Number of external interrupt devices	2
Number of I/O lines	30
Number of serial I/Os	1
Number of terminals	44
Number of timers	3
On-chip data RAM width	8
On-chip program ROM width	8
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
PWM channel	YES
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	WQCCJ
Package shape	SQUARE
Package form	CHIP CARRIER, WINDOW
Certification status	Not Qualified
RAM (number of words)	256
rom(word)	8000
ROM programmability	UVPROM
Maximum seat height	4.83 mm
speed	16 MHz
Maximum slew rate	30 mA
Maximum supply voltage	6 V
Minimum supply voltage	4 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	J BEND
Terminal pitch	1.27 mm
Terminal location	QUAD
width	16.51 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER

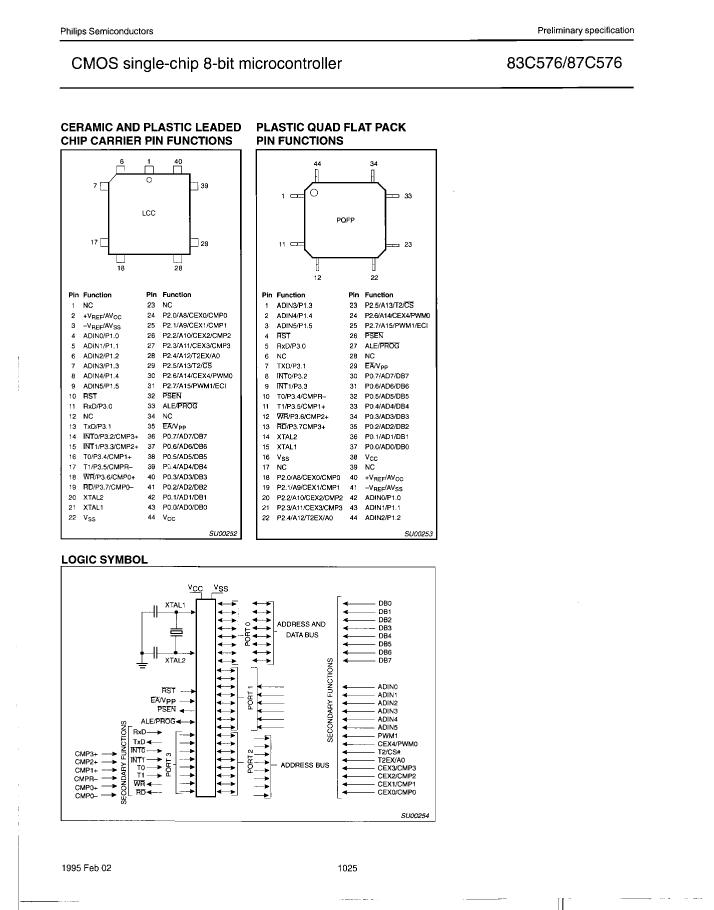

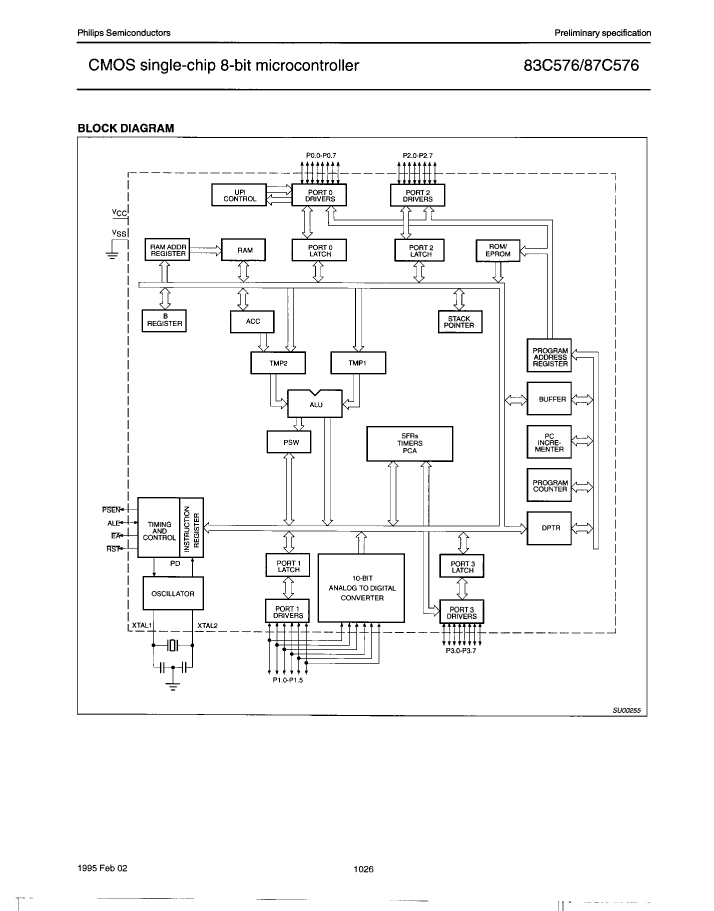

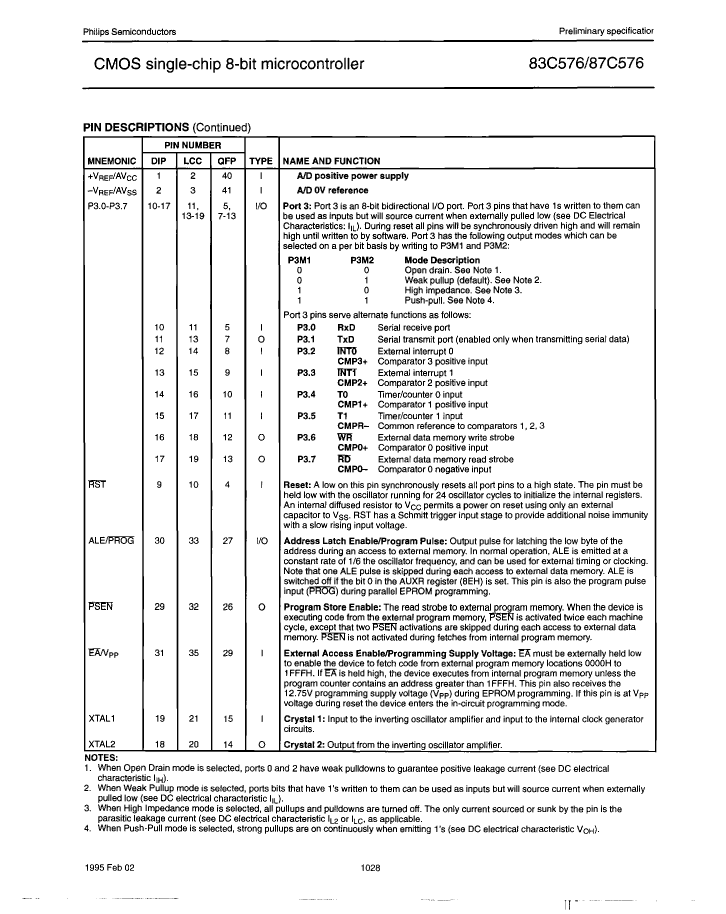

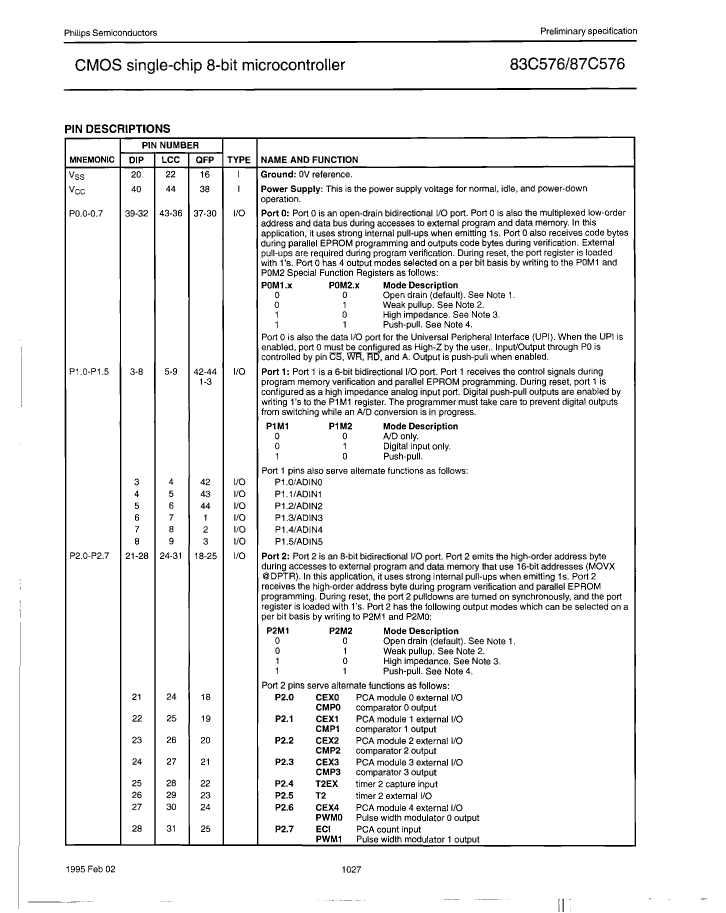

P87C576EHLKA Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

P87C576EHLKA Related Products

	P87C576EHLKA	P87C576EHFFA
Description	IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CQCC44, Microcontroller	IC 8-BIT, UVPROM, 16 MHz, MICROCONTROLLER, CDIP40, Microcontroller
Maker	NXP	NXP
package instruction	WQCCJ,	WDIP,
Reach Compliance Code	unknown	unknown
Has ADC	YES	YES
Other features	PROGRAMMABLE COUNTER ARRAY	PROGRAMMABLE COUNTER ARRAY
Address bus width	16	16
bit size	8	8
boundary scan	NO	NO
maximum clock frequency	16 MHz	16 MHz
DAC channel	NO	NO
DMA channel	NO	NO
External data bus width	8	8
Format	FIXED POINT	FIXED POINT
Integrated cache	NO	NO
JESD-30 code	S-GQCC-J44	R-GDIP-T40
length	16.51 mm	52.39 mm
low power mode	YES	YES
Number of external interrupt devices	2	2
Number of I/O lines	30	30
Number of serial I/Os	1	1
Number of terminals	44	40
Number of timers	3	3
On-chip data RAM width	8	8
On-chip program ROM width	8	8
Maximum operating temperature	125 °C	125 °C
Minimum operating temperature	-40 °C	-40 °C
PWM channel	YES	YES
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, GLASS-SEALED
encapsulated code	WQCCJ	WDIP
Package shape	SQUARE	RECTANGULAR
Package form	CHIP CARRIER, WINDOW	IN-LINE, WINDOW
Certification status	Not Qualified	Not Qualified
RAM (number of words)	256	256
rom(word)	8000	8000
ROM programmability	UVPROM	UVPROM
Maximum seat height	4.83 mm	5.72 mm
speed	16 MHz	16 MHz
Maximum slew rate	30 mA	30 mA
Maximum supply voltage	6 V	6 V
Minimum supply voltage	4 V	4 V
Nominal supply voltage	5 V	5 V
surface mount	YES	NO
technology	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE
Terminal form	J BEND	THROUGH-HOLE
Terminal pitch	1.27 mm	2.54 mm
Terminal location	QUAD	DUAL
width	16.51 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	MICROCONTROLLER	MICROCONTROLLER
