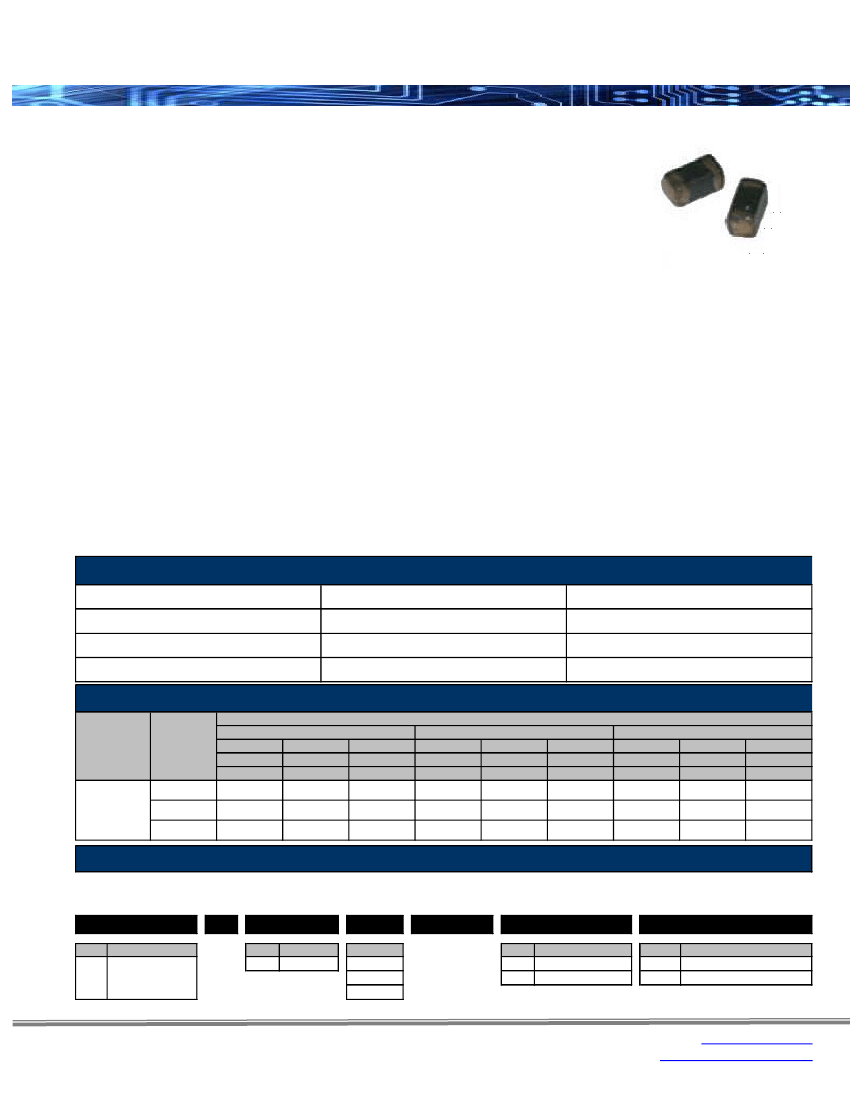

ZVX Series
Low Energy, Low Capacitance SMD Varistor
Stackpole Electronics, Inc.
Resistive Product Solutions
Description:
The ZVX Series are low-energy (0.1 joules) varistor chips, designed specifically
for the protection of I/O line drivers and other sensitive semiconductor gates from
the damaging effects of high voltage, low-energy transients such as ESD events.
Unlike other competitive low-energy varistors, the ZVX Series offers all the
protection features of standard varistor chips, and exceptionally low values of
capacitance. In these applications, as the frequency of data transfer increases,
lower capacitance is required to eliminate possible skewing of the data signals
due to capacitive loading.
In most cases, the 1KHz capacitance values of the ZVX Series are less than one half that of the competition. Further,
this series is offered in 0603, 0805 and 1206 sizes, with an expanded range of voltages from 3V to 38Vdc.
Features:
•
•
•
•
•
•
•
•
•
AC operating voltage (Vrms) from 2V to 30V
DC operating voltage (Vdc) from 3V to 38V
Bi-directional, low clamping voltages
Exceptionally low capacitance ratings
3 model sizes available 0603, 0805, 1206
+125ºC continuous operating temperature
Dimensional and weight savings on PC board
AgPd end terminations
Non-coated chips guarantee excellent
flammability rating
Applications:
•
•
•
ESD protection for components sensitive to IEC
1000-4-2, MIL-STD 883C Method 3015.7 and
other industry specifications
Excellent for I/O line protection, operating at high-
speed data transfer rates, due to very low
capacitance values
Replaces larger surface mount TVS diodes in
many applications
General Technical Data
Operating Temperature
Storage Tempertature Range
Threshold Voltage Temperture Coefficient
Response Time
-55ºC to +125ºC
-55ºC to +150ºC
<-0.05%/ºC
<1 ns
In accordance with CECC 42 000
Standard Packaging Options / Quantities
Type / Code
Voltage
Range
(Vrms)
2 - 14
ZVX
17
20 - 30
R0
180mm
7"
1,000
1,000
1,000
0603
R1
180mm
7"
4,000
3,500
3,500
R2
330mm
13"
15,000
14,000
14,000
R0
180mm
7"
1,000
1,000
1,000
Chip Size
0805
R1
180mm
7"
4,000
3,500
3,500
R2
330mm
13"
15,000
14,000
14,000
R0
180mm
7"
1,000
1,000
1,000
1206
R1
180mm
7"
4,000
2,500
2,500
R2
330mm
13"
15,000
14,000
10,000
How to Order
SEI Type
Vrms
Tolerance
Chip Size
Surge Current
(Amps)
Termination Type
Packaging
ZVX
Type
ZVX
Description
Low Energy,
Low Capacitance
SMD Varistor
4
S
Code Tolerance
S
Special
1206
Size
0603
0805
1206
400
N
Code
Type
N
Barrier Termination
-
PdAg
R0
Code
Description
R0, R1 180mm (7") Plastic Reel
R2
330mm (13") Plastic Reel
Rev Date: 06/30/2010
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
1
www.seielect.com
marketing@seielect.com
ZVX Series
Low Energy, Low Capacitance SMD Varistor
Stackpole Electronics, Inc.
Resistive Product Solutions

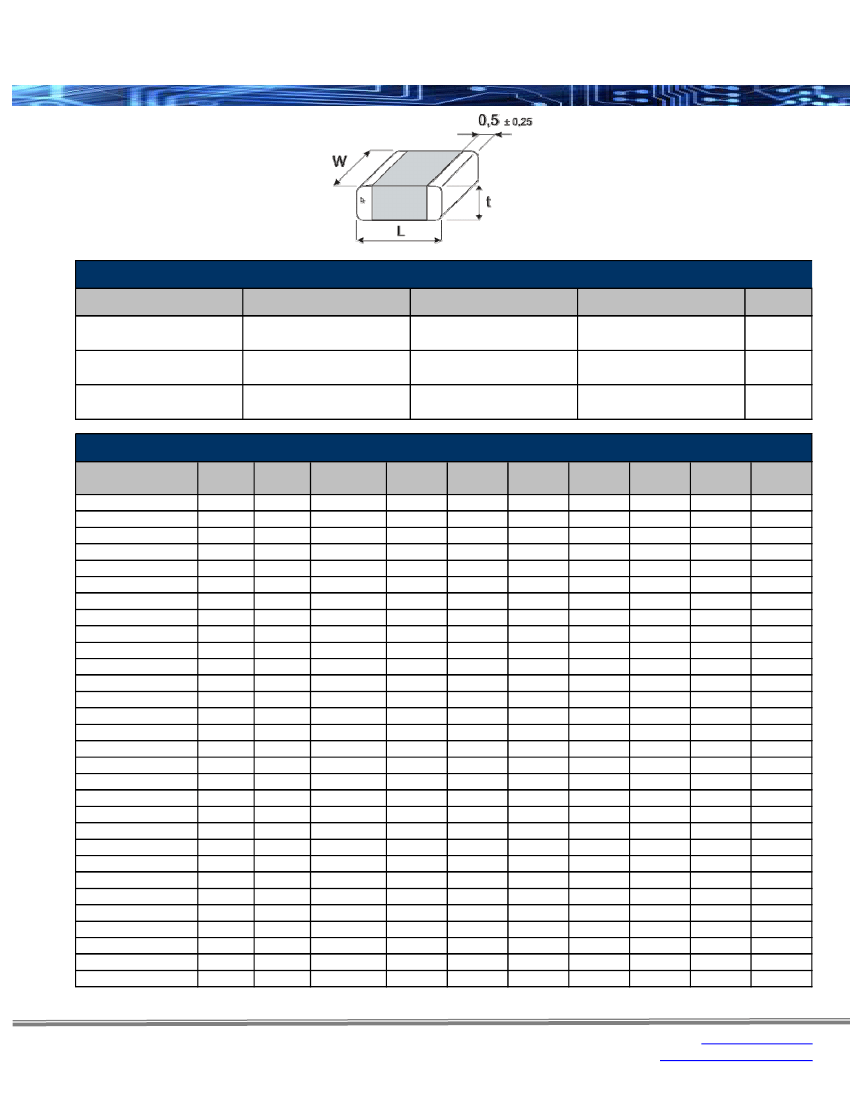

Mechanical Specifications
Type / Code
ZVX 0603
ZVX 0805
ZVX 1206
L
0.06 ± 0.008
1.60 ± 0.20
0.079 ± 0.010
2.00 ± 0.25
0.126 ± 0.012
3.20 ± 0.30
W
0.032 ± 0.004
0.80 ± 0.10
0.049 ± 0.008
1.25 ± 0.20
0.06 ± 0.008
1.60 ± 0.20
tMAX
0.035
0.9
0.039
1.0
0.039
1.0
Units
inches
mm
inches
mm
inches
mm
Device Ratings and Characteristics
Type
ZVX 2 S 0603 300
ZVX 2 S 0805 400
ZVX 2 S 1206 400
ZVX 4 S 0603 300
ZVX 4 S 0805 400
ZVX 4 S 1206 400
ZVX 6 S 0603 300
ZVX 6 S 0805 400
ZVX 6 S 1206 400
ZVX 8 S 0603 300
ZVX 8 S 0805 400
ZVX 8 S 1206 400
ZVX 11 S 0603 300
ZVX 11 S 0805 400
ZVX 11 S 1206 400
ZVX 14 S 0603 300
ZVX 14 S 0805 400
ZVX 14 S 1206 400
ZVX 17 S 0603 300
ZVX 17 S 0805 400
ZVX 17 S 1206 400
ZVX 20 S 0603 300
ZVX 20 S 0805 400
ZVX 20 S 1206 400
ZVX 25 S 0603 300
ZVX 25 S 0805 400
ZVX 25 S 1206 400
ZVX 30 S 0603 300
ZVX 30 S 0805 400
ZVX 30 S 1206 400
VRMS
(volts)
2
2
2
4
4
4
6
6
6
8
8
8
11
11
11
14
14
14
17
17
17
20
20
20
25
25
25
30
30
30
VDC
(volts)
3.3
3.3
3.3
5.6
5.6
5.6
9
9
9
12
12
12
14
14
14
18
18
18
22
22
22
26
26
26
30
30
30
38
38
38
VN
(volts)
4.1 - 6.0
4.1 - 6.0
4.1 - 6.0
7.6 - 9.3
7.6 - 9.3
7.6 - 9.3
11.0 - 14.0
11.0 - 14.0
11.0 - 14.0
14.0 - 18.3
14.0 - 18.3
14.0 - 18.3
16.5 - 20.3
16.5 - 20.3
16.5 - 20.3
22.9 - 28.0
22.9 - 28.0
22.9 - 28.0
25.2 - 31.3
25.2 - 31.3
25.2 - 31.3
31.0 - 38.0
31.0 - 38.0
31.0 - 38.0
37.0 - 46.9
37.0 - 46.9
37.0 - 46.9
42.3 - 51.7
42.3 - 51.7
42.3 - 51.7
VC
(volts)
10.0
10.0
10.0
15.5
15.5
15.5
20.0
20.0
20.0
25.0
25.0
25.0
30.0
30.0
30.0
40.0
40.0
40.0
48.0
48.0
48.0
58.0
58.0
58.0
65.0
65.0
65.0
77.0
77.0
77.0
IC
(amps)
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
WMAX
(joules)
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
0.1
PMAX
(watts)
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
0.003
0.005
0.008
IMAX
(amps)
30
40
40
30
40
40
30
40
40
30
40
40
30
40
40
30
40
40
30
40
40
30
40
40
30
40
40
30
40
40
CTYP
(pF)
200
500
840
165
340
720
145
290
620
135
275
540
120
200
500
110
165
250
100
145
210
100
140
200
90
110
180
80
100
165
LTYP
(nF)
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
1.0
1.5
1.8
Rev Date: 06/30/2010
This specification may be changed at any time without prior notice.
Please confirm technical specifications before you order and/or use.
2
www.seielect.com
marketing@seielect.com
