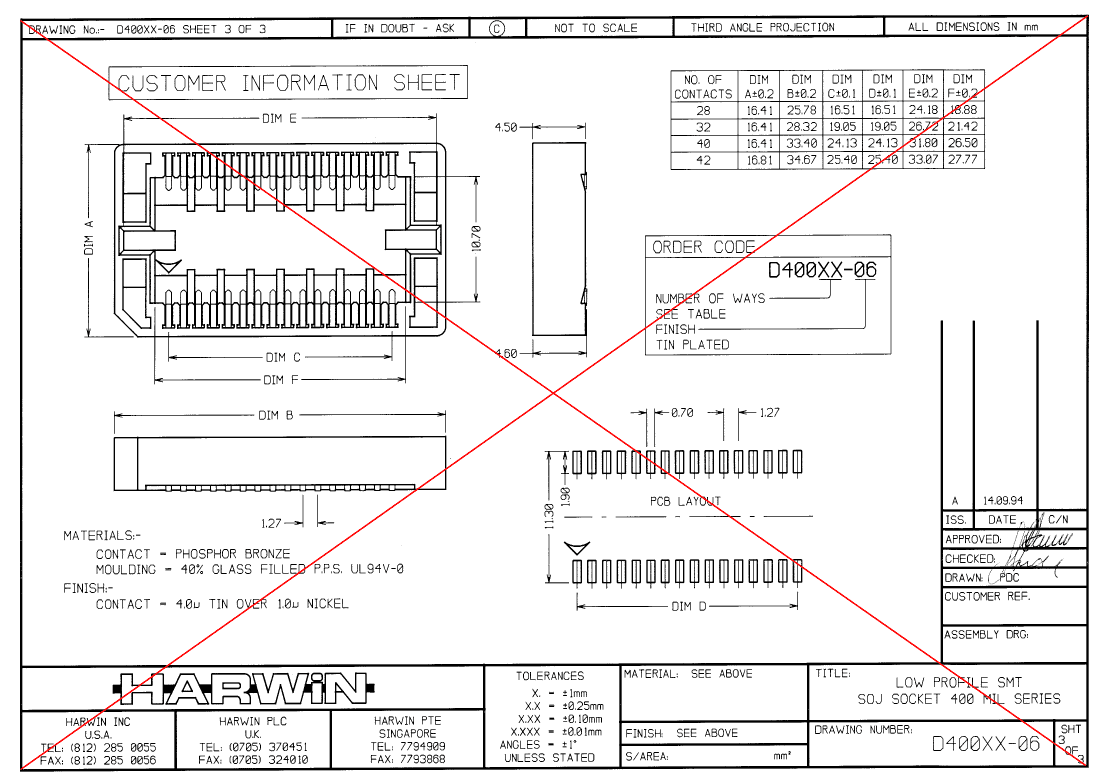

D40040-06: DescriptionIC Socket, SOJ40, 40 Contact(s), 1.27mm Term Pitch, 0.268inch Row Spacing, Surface Mount; CategoryThe connector socket; File Size223KB，1 Pages; ManufacturerHarwin; Websitehttp://www.harwin.com/

Download Datasheet Parametric Compare View All

D40040-06 Overview

IC Socket, SOJ40, 40 Contact(s), 1.27mm Term Pitch, 0.268inch Row Spacing, Surface Mount

D40040-06 Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Harwin
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	STANDARD: UL 94V-0, LOW PROFILE
body width	0.646 inch
subject depth	0.177 inch
body length	1.315 inch
Contact to complete cooperation	TIN (157) OVER NICKEL
Contact completed and terminated	TIN (157) OVER NICKEL
Contact material	P-CUSN
Contact style	BELLOWED TYPE
current rating	1 A
Device slot type	IC SOCKET
Type of equipment used	SOJ40
Dielectric withstand voltage	600VAC V
Shell material	POLYPHENYLENE SULFIDE
JESD-609 code	e3
Manufacturer's serial number	D400
Plug contact pitch	0.05 inch
Installation method	STRAIGHT
Number of contacts	40
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
PCB contact row spacing	0.268 mm
Terminal pitch	1.27 mm
Termination type	SURFACE MOUNT

Preview

Download Datasheet

View All

OBSOLETE

D40040-06 Related Products

	D40040-06	D4002806	D40028-06	D40032-06	D40042-06	D4004206	D4003206	D4004006
Description	IC Socket, SOJ40, 40 Contact(s), 1.27mm Term Pitch, 0.268inch Row Spacing, Surface Mount	SOJ28, IC SOCKET	IC Socket, SOJ28, 28 Contact(s), 1.27mm Term Pitch, 0.268inch Row Spacing, Surface Mount	IC Socket, SOJ32, 32 Contact(s), 1.27mm Term Pitch, 0.268inch Row Spacing, Surface Mount	IC Socket, SOJ42, 42 Contact(s), 1.27mm Term Pitch, 0.268inch Row Spacing, Surface Mount	SOJ42, IC SOCKET	SOJ32, IC SOCKET	SOJ40, IC SOCKET
Maker	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin	Harwin
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE	STANDARD: UL 94V-0, LOW PROFILE
Contact to complete cooperation	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL
Contact completed and terminated	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL	TIN (157) OVER NICKEL
Device slot type	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET	IC SOCKET
Type of equipment used	SOJ40	SOJ28	SOJ28	SOJ32	SOJ42	SOJ42	SOJ32	SOJ40
Shell material	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE	POLYPHENYLENE SULFIDE
JESD-609 code	e3	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	D400	D400	D400	D400	D400	D400	D400	D400
Number of contacts	40	28	28	32	42	42	32	40
