PFL3215-222MED datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> inductor> PFL3215-222MED

PFL3215-222MED: DescriptionGeneral Purpose Inductor, 2.2uH, 20%, 1209,; CategoryPassive components inductor; File Size138KB，2 Pages; ManufacturerCOILCRAFT; Websitehttp://www.coilcraft.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

PFL3215-222MED Overview

General Purpose Inductor, 2.2uH, 20%, 1209,

PFL3215-222MED Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	COILCRAFT
package instruction	1209
Reach Compliance Code	compliant
ECCN code	EAR99
uppercase and lowercase codes	1209
structure	Shielded
DC Resistance	0.114 Ω
Nominal inductance(L)	2.2 µH
Inductor type	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3
Manufacturer's serial number	PFL3215
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Package height	1.5 mm
Package length	3.2 mm
Package form	SMT
Package width	2.286 mm
method of packing	TR, 13 Inch
Maximum rated current	1.4 A
self resonant frequency	250 MHz
series	PFL3215
shield	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	20%

PFL3215-222MED Preview

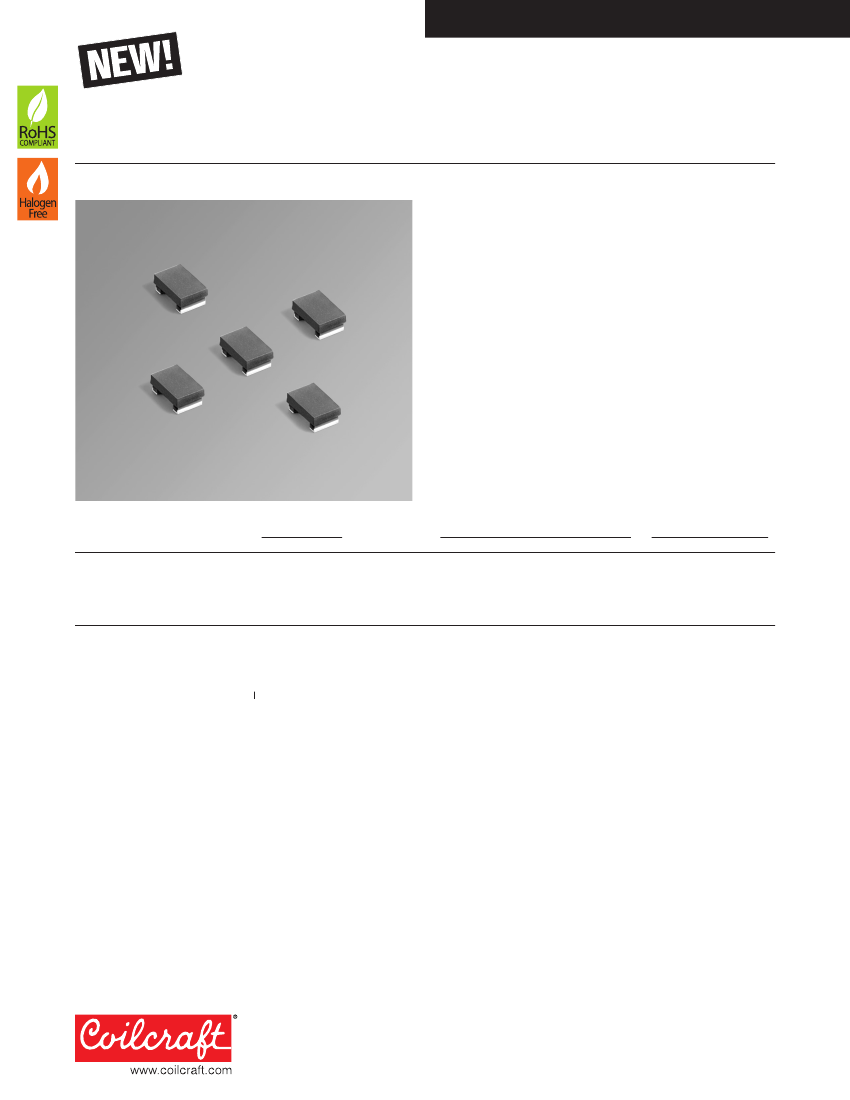

Document 895-1

Shielded Power Inductors – PFL3215

• Low cost, low profile 1206 size power inductor

• Provides the current handling of much larger inductors; up

to 2700 mA

Core material

Composite

Environmental

RoHS compliant, halogen free

Terminations

RoHS compliant matte tin over nickel over silver-plati-

num-glass frit. Other terminations available at additional cost.

Weight

31 – 39 mg

Ambient temperature

–40°C to +85°C with

Irms

current, +85°C to

+125°C with derated current

Storage temperature

Component: –40°C to +125°C.

Tape and reel packaging: –40°C to +80°C

Resistance to soldering heat

Max three 40 second reflows at

+260°C, parts cooled to room temperature between cycles

Moisture Sensitivity Level (MSL)

1 (unlimited floor life at <30°C /

85% relative humidity)

Failures in Time (FIT) / Mean Time Between Failures (MTBF)

38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332

Packaging

2000/7″ reel; 7500/13″ reel. Plastic tape: 12 mm wide,

0.23 mm thick, 4 mm pocket spacing, 1.65 mm pocket depth

PCB washing

Tested with pure water or alcohol only. For other solvents,

see Doc787_PCB_Washing.pdf.

Part number

PFL3215-681ME_

PFL3215-102ME_

PFL3215-222ME_

PFL3215-332ME_

PFL3215-472ME_

PFL3215-682ME_

PFL3215-103ME_

PFL3215-333ME_

Inductance

±20% (µH)

0.68

1.0

2.2

3.3

4.7

6.8

DCR (mOhms)

typ

max

114

175

332

640

1290

1700

130

195

372

720

1340

1920

SRF typ

(MHz)

450

375

250

190

170

155

125

13.5

10% drop

2100

1800

950

730

640

600

500

290

Isat

(mA)

20% drop

2500

2100

1200

920

810

700

550

340

30% drop

2700

2300

1400

1100

900

750

600

360

Irms

(mA)

20°C rise 40°C rise

1500

1400

1100

820

520

370

300

270

2100

1900

1400

1100

720

500

390

360

1. When ordering, please specify

packaging

codes:

PFL3215-103MEC

Packaging: C

= 7″ machine-ready reel. EIA-481 embossed plastic tape (2000 parts per full reel).

= Less than full reel. In tape, but not machine ready. To have a leader and trailer added ($25 charge), use code letter C instead.

= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked (7500 parts per full reel).

2. Inductance tested at 7.9 MHz, 0.1 Vrms using a Coilcraft SMD-A test fixture with an Agilent/HP 4286 impedance analyzer and Coilcraft-provided

correlation pieces.

3. DCR measured using a micro-ohmmeter.

4. SRF measured using an Agilent/HP 8753D network analyzer and a Coilcraft SMD-D test fixture.

5. DC current that causes the specified inductance drop from its value without current.

6. Current that causes the specified temperature rise from 25°C ambient.

7. Electrical specifications at 25°C.

Refer to Doc 362 “Soldering Surface Mount Components” before soldering.

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 895-1

Revised 01/16/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

Document 895-2

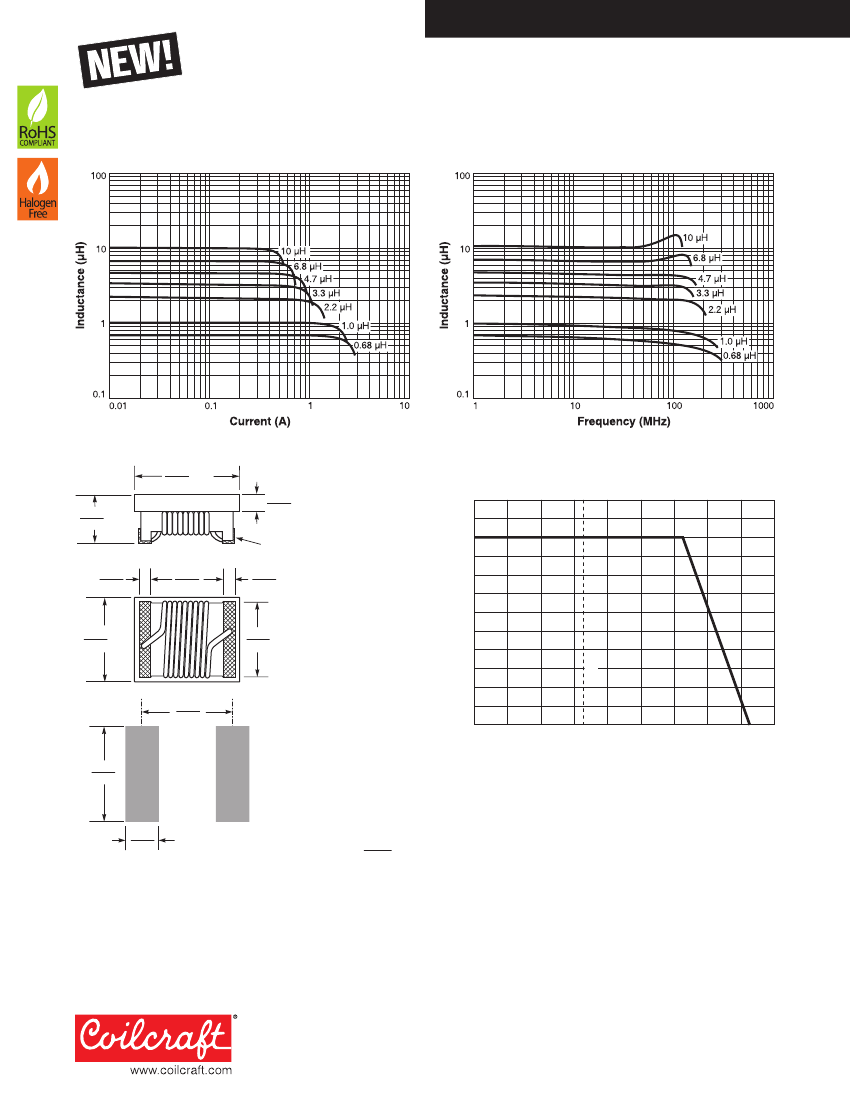

PFL3215 Shielded Power Inductors

L vs Current

L vs Frequency

0.126

max

3,20

0.059

max

1,50

0.018

0,457

Terminal wraparound:

approx 0.015/0,381 both ends

0.012

0,30

0.096

2,44

0.012

0,30

Irms Derating

120

110

100

Percent of rated

rms

0.090

max

2,286

0.080

2,03

0.108

2,74

-40

-20

100

120 140

Ambient temperature (°C)

0.10

2,54

0.035

0,89

Dimensions are in

Recommended

Land Pattern

inches

25°C

+1-847-639-6400 sales@coilcraft.com

+44-1236-730595 sales@coilcraft-europe.com

Taiwan

+886-2-2264 3646 sales@coilcraft.com.tw

China

+86-21-6218 8074 sales@coilcraft.com.cn

Singapore

+ 65-6484 8412 sales@coilcraft.com.sg

Document 895-2

Revised 01/16/13

This product may not be used in medical or high

risk applications without prior Coilcraft approval.

Specification subject to change without notice.

Please check web site for latest information.

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

PFL3215-222MED Related Products

	PFL3215-222MED	PFL3215-681MED	PFL3215-682MED	PFL3215-103MED	PFL3215-472MED	PFL3215-332MED	PFL3215-333MED
Description	General Purpose Inductor, 2.2uH, 20%, 1209,	General Purpose Inductor, 0.68uH, 20%, 1209,	General Purpose Inductor, 6.8uH, 20%, 1209,	General Purpose Inductor, 10uH, 20%, 1209,	General Purpose Inductor, 4.7uH, 20%, 1209,	General Purpose Inductor, 3.3uH, 20%, 1209,	General Purpose Inductor, 33uH, 20%, 1209
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to	conform to	conform to
Maker	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT	COILCRAFT
package instruction	1209	1209	1209	1209	1209	1209	1209
Reach Compliance Code	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
uppercase and lowercase codes	1209	1209	1209	1209	1209	1209	1209
structure	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded	Shielded
DC Resistance	0.114 Ω	0.028 Ω	0.64 Ω	1.29 Ω	0.332 Ω	0.175 Ω	1.7 Ω
Nominal inductance(L)	2.2 µH	0.68 µH	6.8 µH	10 µH	4.7 µH	3.3 µH	33 µH
Inductor type	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR	GENERAL PURPOSE INDUCTOR
JESD-609 code	e3	e3	e3	e3	e3	e3	e3
Manufacturer's serial number	PFL3215	PFL3215	PFL3215	PFL3215	PFL3215	PFL3215	PFL3215
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package height	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm	1.5 mm
Package length	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm	3.2 mm
Package form	SMT	SMT	SMT	SMT	SMT	SMT	SMT
Package width	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm	2.286 mm
method of packing	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch	TR, 13 Inch
Maximum rated current	1.4 A	2.7 A	0.75 A	0.6 A	0.9 A	1.1 A	0.36 A
self resonant frequency	250 MHz	450 MHz	155 MHz	125 MHz	170 MHz	190 MHz	13.5 MHz
series	PFL3215	PFL3215	PFL3215	PFL3215	PFL3215	PFL3215	PFL3215
shield	YES	YES	YES	YES	YES	YES	YES
Terminal surface	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier	Matte Tin (Sn) - with Nickel (Ni) barrier
Tolerance	20%	20%	20%	20%	20%	20%	20%
