DB157GS datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> DB157GS

Preview

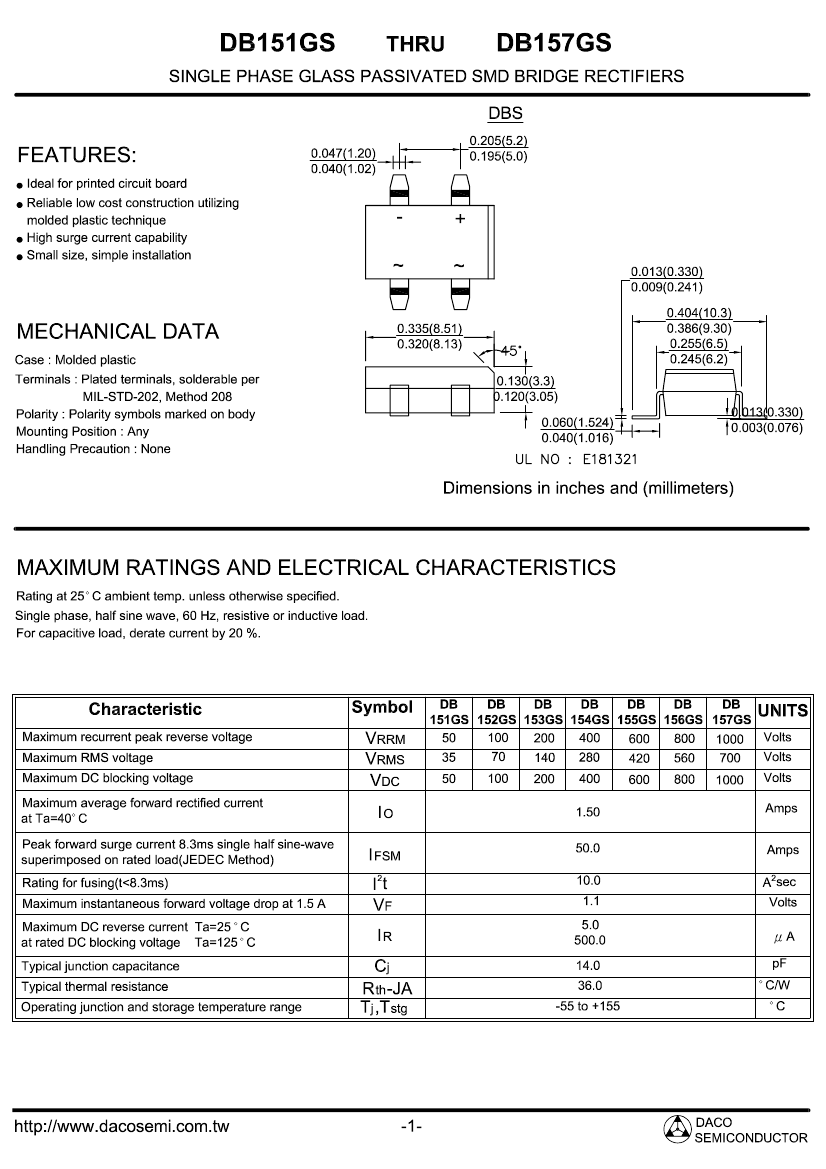

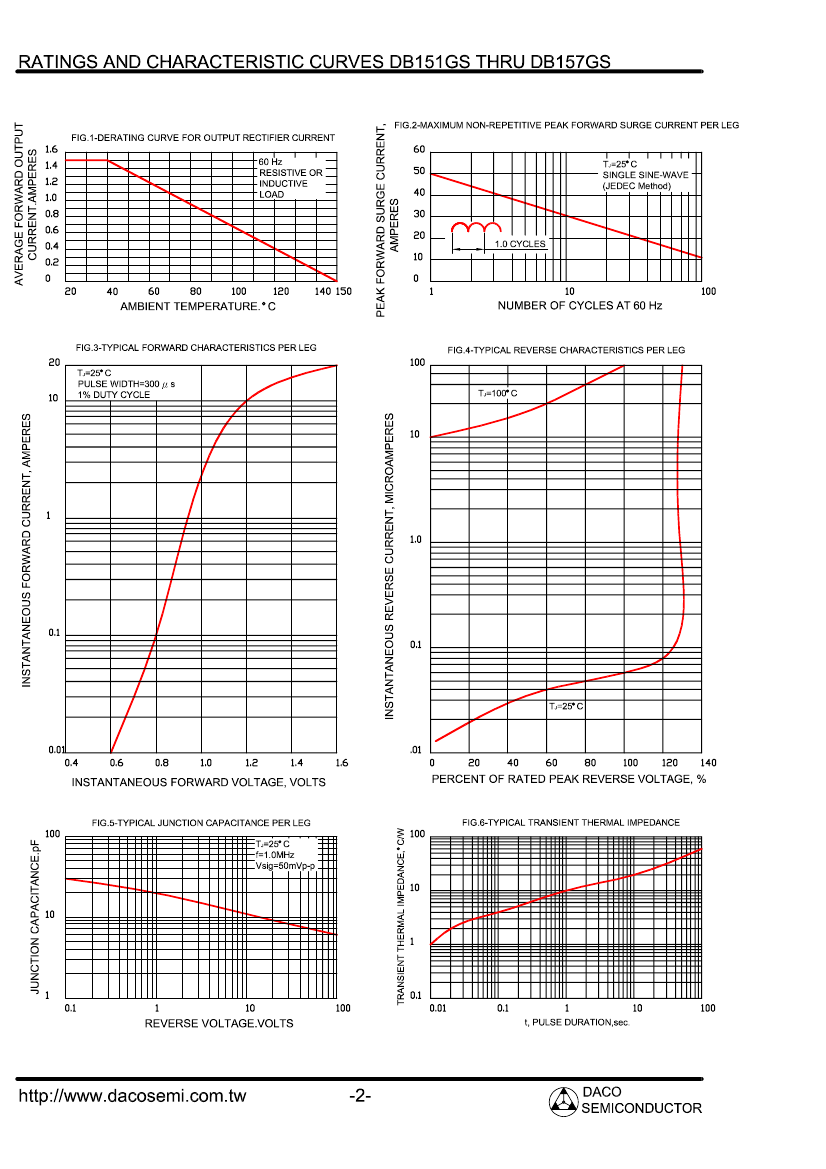

DB157GS: DescriptionBridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon, PLASTIC, DBS, 4 PIN; CategoryDiscrete semiconductor diode; File Size467KB，2 Pages; ManufacturerDaco Semiconductor Co., Ltd.

Download Datasheet Parametric Compare View All

DB157GS Overview

Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon, PLASTIC, DBS, 4 PIN

DB157GS Parametric

Parameter Name	Attribute value
Maker	Daco Semiconductor Co., Ltd.
package instruction	R-PDSO-G4
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	UL RECOGNIZED
Minimum breakdown voltage	1000 V
Configuration	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON
Diode type	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PDSO-G4
Maximum non-repetitive peak forward current	50 A
Number of components	4
Phase	1
Number of terminals	4
Maximum operating temperature	155 °C
Minimum operating temperature	-55 °C
Maximum output current	1.5 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Maximum repetitive peak reverse voltage	1000 V
surface mount	YES
Terminal form	GULL WING
Terminal location	DUAL

Preview

Download Datasheet

View All

DB157GS Related Products

	DB157GS	DB151GS	DB152GS	DB156GS	DB153GS	DB154GS	DB155GS
Description	Bridge Rectifier Diode, 1 Phase, 1.5A, 1000V V(RRM), Silicon, PLASTIC, DBS, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 50V V(RRM), Silicon, PLASTIC, DBS, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 100V V(RRM), Silicon, PLASTIC, DBS, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 800V V(RRM), Silicon, PLASTIC, DBS, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 200V V(RRM), Silicon, PLASTIC, DBS, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 400V V(RRM), Silicon, PLASTIC, DBS, 4 PIN	Bridge Rectifier Diode, 1 Phase, 1.5A, 600V V(RRM), Silicon, PLASTIC, DBS, 4 PIN
package instruction	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED	UL RECOGNIZED
Minimum breakdown voltage	1000 V	50 V	100 V	800 V	200 V	400 V	600 V
Configuration	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS	BRIDGE, 4 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE	BRIDGE RECTIFIER DIODE
JESD-30 code	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4	R-PDSO-G4
Maximum non-repetitive peak forward current	50 A	50 A	50 A	50 A	50 A	50 A	50 A
Number of components	4	4	4	4	4	4	4
Phase	1	1	1	1	1	1	1
Number of terminals	4	4	4	4	4	4	4
Maximum operating temperature	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C	155 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
Maximum output current	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A	1.5 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE
Maximum repetitive peak reverse voltage	1000 V	50 V	100 V	800 V	200 V	400 V	600 V
surface mount	YES	YES	YES	YES	YES	YES	YES
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
Maker	Daco Semiconductor Co., Ltd.	-	-	-	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.	Daco Semiconductor Co., Ltd.
