Part Number

Search

DB3CB1AA

Description
Snap Acting/Limit Switch, SPDT, Momentary, 0.1A, 80VDC, 1.6mm, Quick Connect Terminal, Spherical Head Type Actuator, Panel Mount, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size252KB,1 Pages
ManufacturerThe Cherry Corporation
Environmental Compliance
Download Datasheet Parametric View All

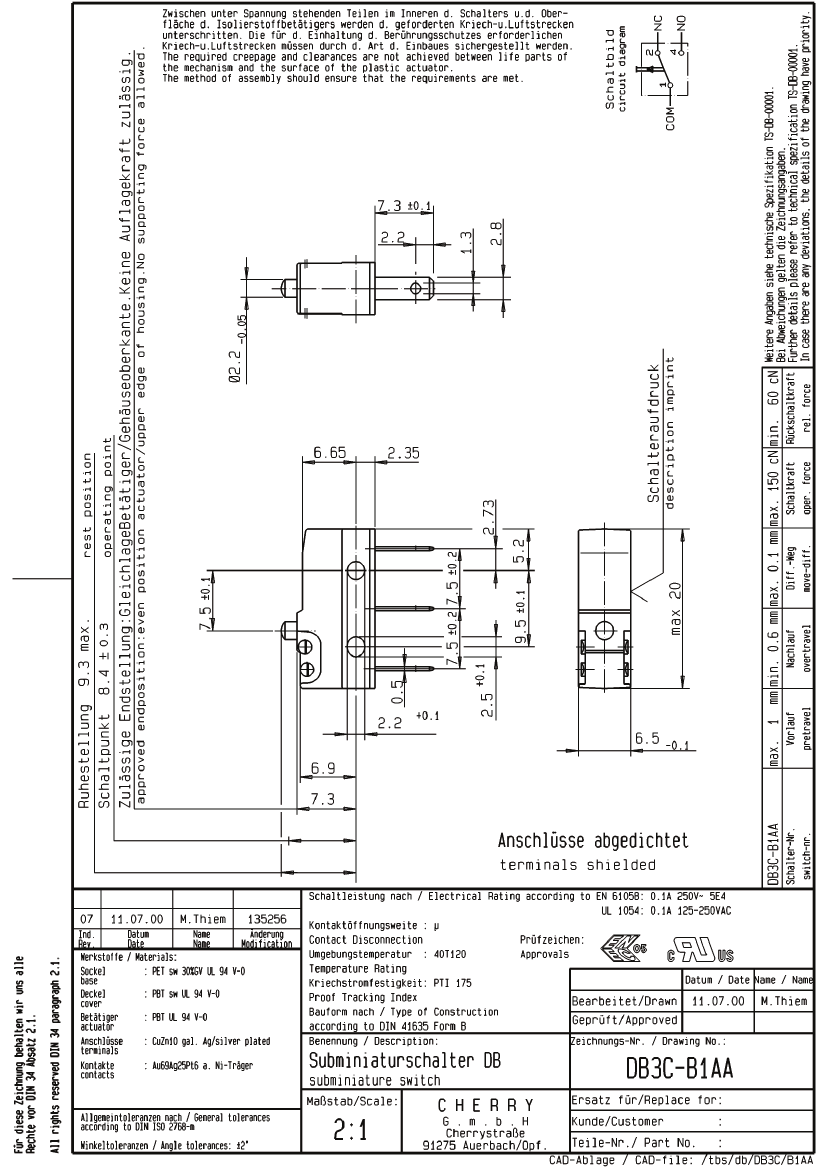

DB3CB1AA Overview

Snap Acting/Limit Switch, SPDT, Momentary, 0.1A, 80VDC, 1.6mm, Quick Connect Terminal, Spherical Head Type Actuator, Panel Mount, ROHS COMPLIANT

DB3CB1AA Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerThe Cherry Corporation
package instructionROHS COMPLIANT
Reach Compliance Codecompliant
ECCN codeEAR99
Actuator length0.087 inch
Actuator stroke1.6 mm
Actuator typeSPHERICAL HEAD TYPE
Other featuresELECTRICAL LIFE AND ELECTRICAL RATING FOR EN ALSO AVAILABLE
body width6.45 mm
body height9.65 mm
Body length or diameter20 mm
Contact (AC) maximum rated R load10.1A@250VAC
Maximum contact current (AC)10.1 A
Maximum contact current (DC)0.1 A
Contact (DC) maximum rated R load0.1A@80VDC
Maximum contact voltage (AC)250 V
Maximum contact voltage (DC)80 V
Electrical life100000 Cycle(s)
JESD-609 codee4
Manufacturer's serial numberDB
Installation featuresPANEL MOUNT
Maximum operating force1.5 N
Maximum operating temperature120 °C
Minimum operating temperature-40 °C
Maximum pre-travel1 mm
sealIP50
surface mountNO
Switch actionMOMENTARY
switch functionSPDT
Switch typeSNAP ACTING/LIMIT SWITCH
Terminal surfaceSilver (Ag)
Terminal length0.287 inch
Terminal materialBRASS
Termination typeQUICK CONNECT
