GVXO-43H/WB30.0MHZ datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> GVXO-43H/WB30.0MHZ

GVXO-43H/WB30.0MHZ: DescriptionHCMOS/LSTTL Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT,DIP-8/4; CategoryPassive components oscillator; File Size128KB，1 Pages; ManufacturerGolledge Electronics; Websitehttp://www.golledge.com/; Environmental Compliance

Download Datasheet Parametric View All

GVXO-43H/WB30.0MHZ Overview

HCMOS/LSTTL Output Clock Oscillator, 30MHz Nom, ROHS COMPLIANT,DIP-8/4

GVXO-43H/WB30.0MHZ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Golledge Electronics
Reach Compliance Code	compliant
Maximum control voltage	3.3 V
Minimum control voltage
maximum descent time	5 ns
Frequency Adjustment - Mechanical	NO
Frequency offset/pull rate	150 ppm
frequency stability	50%
linearity	10%
Manufacturer's serial number	GVXO-43
Installation features	THROUGH HOLE MOUNT
Nominal operating frequency	30 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
Oscillator type	HCMOS/LSTTL
Output load	5 LS TTL, 30 pF
physical size	13.08mm x 13.08mm x 5.7mm
longest rise time	5 ns
Maximum supply voltage	3.465 V
Minimum supply voltage	3.135 V
Nominal supply voltage	3.3 V
surface mount	NO
maximum symmetry	60/40 %

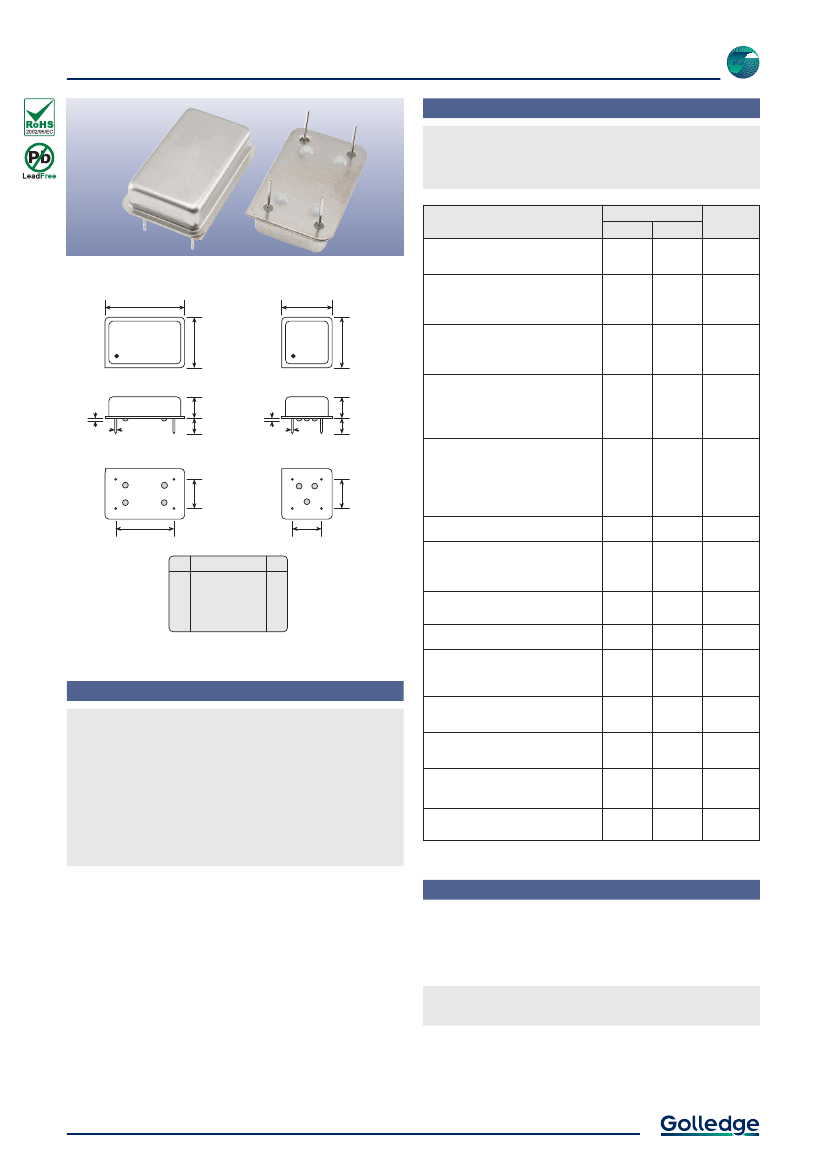

Preview

Download Datasheet

View All

3.3V VCXO

Specifications

GVXO-43F: Full size (14 pin DIL)

GVXO-43H: Half size (8 pin DIL)

GVXO-43

Parameters

Package:

14 pin DIL (full size)

8 pin DIL (half size)

1.544 ~ 33.0MHz

1.544 ~ 30.0MHz

13.08

(max)

Variant











































Option

Codes

20.80

(max)

13.08

(max)

Frequency range:

13.08

(max)

Voltage control:

+1.65V ±1.65V, 10% linearity

> 100kΩ input impedance

Frequency pullability (min):

±50ppm

±100ppm

±150ppm

Frequency stability:

±100ppm

±50ppm

±25ppm

±20ppm

±15ppm

0.80

0.46Ø

5.70

(max)

4.00

(min)

0.80

0.46Ø

5.70

(max)

4.00

(min)

7.62

15.24

CONNECTION

Control voltage

Ground

Output

Supply

7.62

Ageing:

±5.0ppm max per year

Operating temperature range:

-10 to +70°C

-40 to +85°C

Storage temperature range:

-55 to +125°C

Supply voltage (V

+3.3V (±5%)

Features

Supply current:

10mA max (<20.0MHz)

15mA max (20.0 ~ 33.0MHz)

Driving ability:

30pF HCMOS

5 LSTTL



3.3V supply

Logic levels:

Low cost for volume applications

Choice of pullability & stability

Express deliveries for non-standard items

Industrial temperature range option

‘0’ level = +0.4V max

‘1’ level = 90%V

min

Waveform symmetry @ 50%V

40:60 max

Rise / fall time:

5ns max (0.4V ~ 90%V

min)



Standard.



Optional - Please specify required code(s) when ordering

Ordering Information

Product + variant + option codes + frequency

eg:

GVXO-43F/SC 27.0MHz

±100ppm pullability, ±25ppm stability

Option codes must be included to specify a model

completely.

Option code X (eg GVXO-43F/X) denotes a custom spec.



±15ppm and ±20ppm stability may not be available over -40+85°C,

depending on frequency. Check with our sales office.

Tel:

+44 1460 256 100

12 Jul 2001

Fax:

+44 1460 256 101

E-mail:

sales@golledge.com

Web:

www.golledge.com
