21PCS170TR3-5V datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 21PCS170TR3-5V

21PCS170TR3-5V: DescriptionSingle Color LED Array, Red, Diffused, T-1, 3mm,; CategoryLED optoelectronic/LED photoelectric; File Size78KB，1 Pages; ManufacturerLEDtronics; Websitehttp://ledtronics.com.my

Download Datasheet Parametric Compare View All

21PCS170TR3-5V Overview

Single Color LED Array, Red, Diffused, T-1, 3mm,

21PCS170TR3-5V Parametric

Parameter Name	Attribute value
Reach Compliance Code	unknow
Other features	IC COMPATIBLE
color	RED
color@wavelength	Red
Configuration	SEPARATE, 2 ELEMENTS
Maximum forward current	0.01 A
Maximum forward voltage	7.5 V
Lens type	DIFFUSED
minimum luminous intensity	0.004 cd
Nominal luminous intensity	4.0 mcd
Installation features	RADIAL MOUNT
Number of functions	2
Number of LEDs in the array	2
Number of terminals	4
Optoelectronic device types	SINGLE COLOR LED ARRAY
total height	9.65 mm
method of packing	BULK
peak wavelength	635 nm
shape	ROUND
size	3 mm
surface mount	NO
T code	T-1
Terminal pitch	2.54 mm
perspective	60 deg
Base Number Matches	1

Preview

Download Datasheet

View All



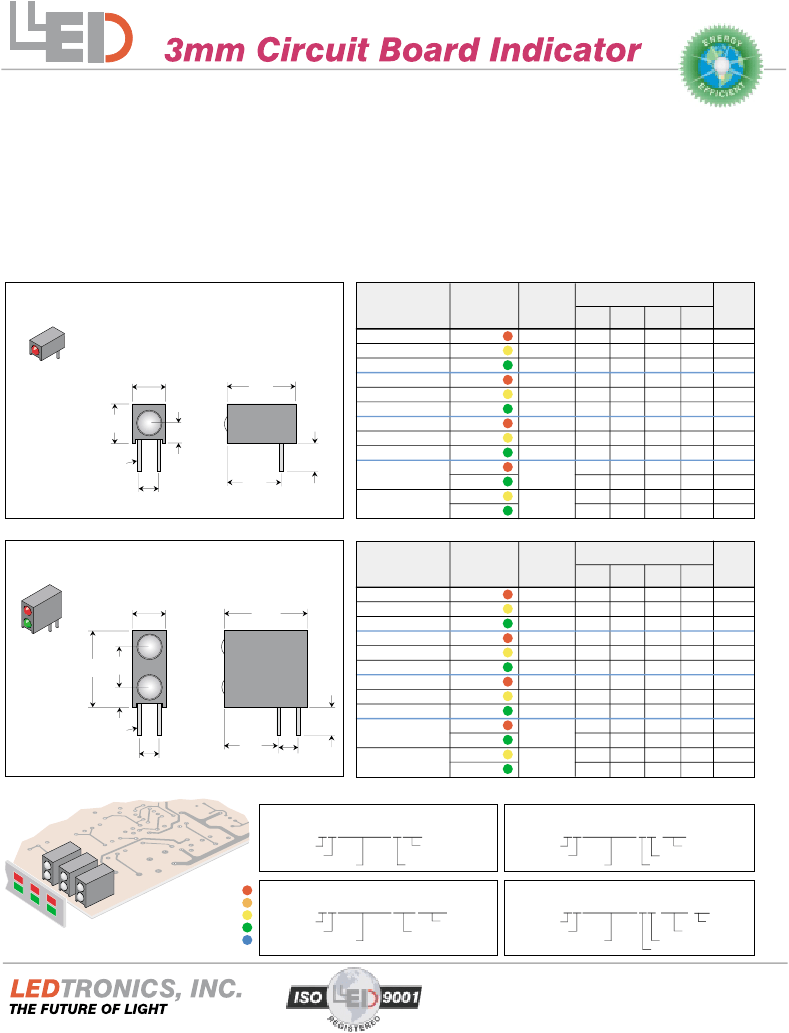

Single-level and Bi-level for Backlighting

Features

3mm Circuit Board Indicator

Options

•

Diffused lens standard

Clear illuminator optional

•

Extended housing eliminates bleed

•

Housing material meets UL94V-0

•

Narrow viewing angle

•

Fast turn on/off time I.C. compatible

•

Available in standard and special

colors

Single-level Indicator LEDs

PCS170TR4

•

Solid-State, high shock/vibration

resistant

•

Sunlight Visible Ultrabrights

•

Low current (2mA)LEDs

•

Special colors: Orange,

Cool White, Pure Green

•

Single color or Bicolor configurations

•

Long life / 100,000+ hours (10 years)

•

Infrareds 840nm, 880nm,

940nm

Part Number

PCS170TR5

PCS170TY5

PCS170TG5

.170

[4.32]

.34

[8.64]

LED Color

RED

YELLOW

GREEN

RED

YELLOW

GREEN

RED

YELLOW

GREEN

RED

GREEN

YELLOW

GREEN

Lens Type/

Color

DIFFUSED

CLEAR

DIFFUSED

MILKY

WHITE

MILKY

WHITE

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA Iv mcd

typ

Vf = V

typ/max

λP

Full

Viewing

Angle

50˚

25˚

60˚

120˚

100

110

4.0

6.0

7.0

6.0

1.8/2.4

2.0/2.8

2.1/2.8

2.2/3.0

5/7.5

2.0/2.8

2.1/2.8

635

585

565

635

585

565

635

585

565

635

568

585

568

PCS170CR5

PCS170CY5

PCS170CG5

PCS170TR3-5V

.135

[3.43]

.200

[5.08]

.100

[2.54]

PCS170TY3-5V

PCS170TG3-5V

PCS170TWRG4

PCS170TWYG4

ANODE

(+)

.100

[254]

.270

[6.86]

Bi-level Indicator LEDs

21PCS170TRG4

Part Number

21PCS170TR5

.170

[4.32]

.415

[10.54]

LED Color

RED

YELLOW

GREEN

RED

YELLOW

GREEN

RED

YELLOW

GREEN

RED

GREEN

YELLOW

GREEN

Lens Type/

Color

DIFFUSED

CLEAR

DIFFUSED

MILKY

WHITE

MILKY

WHITE

Electrical-Optical

Characteristics (Ta = 25˚C)

If = mA

typ

Iv mcd Vf = V

typ

typ/max

λP

Full

Viewing

Angle

50˚

25˚

60˚

120˚

21PCS170TY5

21PCS170TG5

21PCS170CR5

21PCS170CY5

21PCS170CG5

21PCS170TR3-5V

21PCS170TY3-5V

21PCS170TG3-5V

21PCS170TWRG4

21PCS170TWYG4

100

110

4.0

6.0

7.0

6.0

1.8/2.4

2.0/2.8

2.1/2.8

2.2/3.0

5/7.5

2.0/2.8

2.1/2.8

635

585

565

635

585

565

635

585

565

635

568

585

568

LED 1

.200

.380

[9.65] [5.08]

.100

[2.54]

LED 2

ANODE

(+)

.100

[254]

.135

[3.43]

.270

[6.86]

.1.00

[2.54]

Examples of part number ordering code

All LEDs same color

Mixed colors same type LED

21PCS170TG5

No. of LEDs high

No. of LEDs across

Body style

LED color

Lens type: T = diffused

21PCS170T5-Y/G

No. of LEDs high

No. of LEDs across

Body style

LED (1),(2) color

Brightness code

Lens type: T = diffused

Typical Application

R = Red

O = Orange

Y = Yellow

G = Green

B = Blue

All LEDs same Bi-color

Mixed colors, 5V/12V Resistor LEDs

21PCS170TWYG4

No. of LEDs high

No. of LEDs across

Body style

LED color

Lens type:

TW = Milky White

21PCS170T3-R/G-5V

No. of LEDs high

No. of LEDs across

Body style

Resistor value

LED (1),(2) color

Brightness code

Lens type: T = diffused



23105 Kashiwa Court, Torrance, CA 90505

Phone: (800) 579-4875 or (310) 534-1505 Fax: (310) 534-1424

E-mail: webmaster@ledtronics.com

Website: http://www.ledtronics.com

Log # 002A Rev 2-99
