50PX0R47MEFCKC5X11

Description
Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
CategoryPassive components    capacitor
File Size580KB，2 Pages
Manufacturerrubycon
Websitehttp://www.rubycon.co.jp/cn/
Environmental Compliance
Download Datasheet Parametric Compare View All

50PX0R47MEFCKC5X11 Overview

Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT

50PX0R47MEFCKC5X11 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
Makerrubycon
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance0.47 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter5 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current0.003 mA
length11 mm
Manufacturer's serial numberPX
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formRadial
method of packingBulk
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)50 V
ripple current7 mA
seriesPX
surface mountNO
Delta tangent0.12
Terminal surfaceTin (Sn)
Terminal pitch5 mm
Terminal shapeWIRE

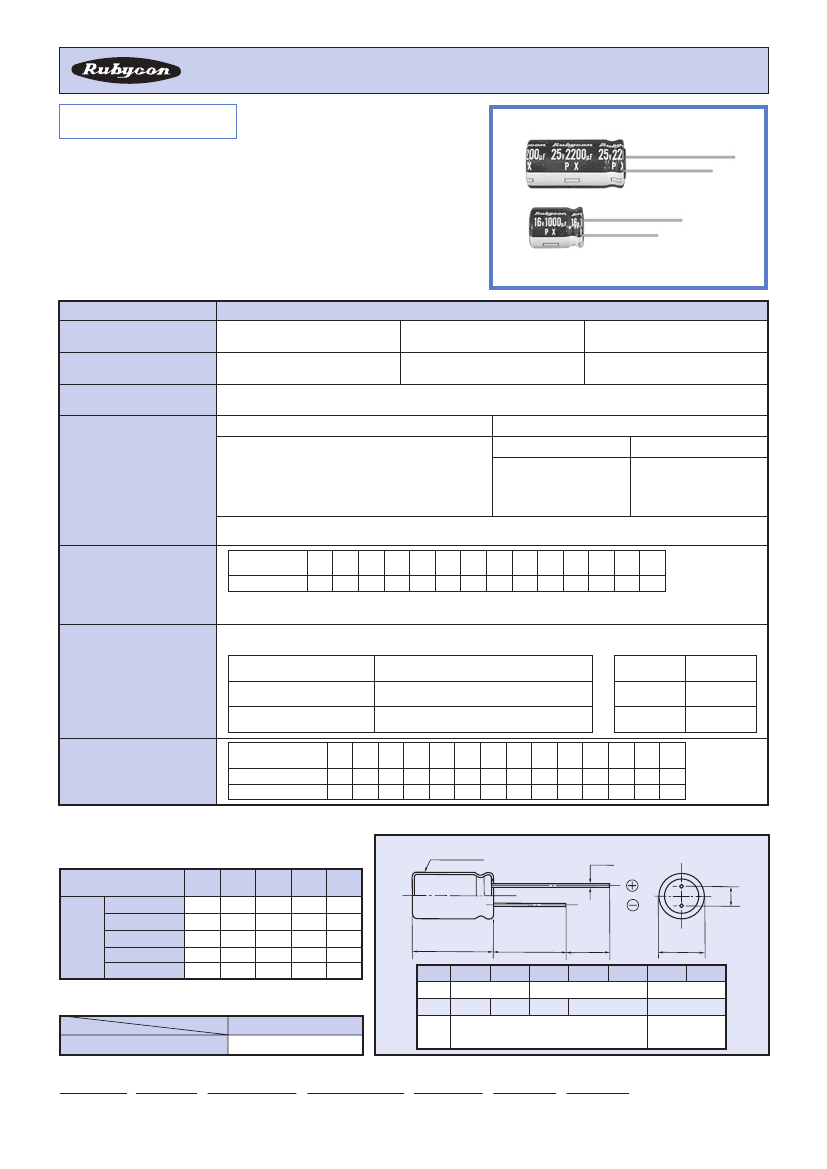

50PX0R47MEFCKC5X11 Preview

小型铝电解电容器
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
PX
PX
系列
SERIES
105℃
标准品
105℃ Standard
•
◆特　长／
FEATURES
RoHS指令对应品。
RoHS compliance.
◆规格表／
SPECIFICATIONS
项　目
Items
特　　　性
－55½＋105℃
6.3½100V.DC
Characteristics
工 ½ 温 度 范 围
Category Temperature Range
－40½＋105℃
160½400V.DC
±20%(20℃,
120Hz)
－25½＋105℃
450V.DC
额 定 电 压 范 围
Rated Voltage Range
静 电 容 量 允 许 差
Capacitance Tolerance
6.3½100V.DC
小于I＝0.01CV和3µA中的较大值
160½450V.DC
CV≤1000
CV＞1000
漏
电
流
Leakage Current(MAX)
I
=0.1CV＋40µA以下(1分钟值)
I
=0.04CV＋100µA以下(1分钟值)
I
=0.1CV＋40
µ
A (1minute)
I
=0.04CV＋100
µ
A (1minute)
(½加额定电压2分钟后)
I
=0.03CV＋15µA以下(5分钟值)
I
=0.02CV＋25µA以下(5分钟值)
(After 2 minutes application of rated voltage)
I
=0.03CV＋15
µ
A (5minutes)
I
=0.02CV＋25
µ
A (5minutes)
I
＝漏电流
(µA)
　
C＝额定静电容量 (µF)
　V＝额定电压
(V)
I
＝0.01CV
or 3µA whichever is greater.
Leakage Current
Rated Capacitance
　Rated
Voltage
额定电压
(V)
6.3 10 16 25 35 50 63 100 160 200 250 350 400 450
Rated Voltage
tanδ
0.28 0.24 0.20 0.16 0.14 0.12 0.10 0.08 0.20 0.20 0.20 0.25 0.25 0.25
(20℃, 120Hz)
损失角正切值
(tan
δ
)
Dissipation Factor(MAX)
对于额定静电容量超过1000µF的产品，其静电容量每增加1000µF，则损失角正切值在上表值的基础上加上0.02。
When rated capacitance is over 1000µF, tanδ shall be added 0.02 to the listed value with increase of every 1000µF.
105℃环境中，不超过额定电压的范围内叠加额定纹波电流，连续加½½右表时间后，满足以下各项要求。
耐
Endurance
久
性
After life test with rated ripple current at conditions stated in the table below, the capacitors shall meet the following requirements.
初期值的±25%以内
静 电 容 量 变 化 率
铝壳尺寸
时间
(hrs)
Within
±25%
of the initial value.
Capacitance Change
Case Size
Life Time
规格值的200%以下
损 失 角 正 切 值
φ
D≤8
1000
Not more than 200% of the specified value.
Dissipation Factor
规格值以下
漏
电
流
φ
D≥10
2000
Not more than the specified value.
Leakage Current
额定电压
(V)
Rated Voltage
Z(－25℃)/Z(20℃)
Z(－40℃)/Z(20℃)
6.3
5
10
10
4
8
16
3
6
25
2
4
35
2
3
50
2
3
63
2
3
100 160 200 250 350 400 450
2
3
3
4
3
4
4
8
6
8
6
10
7
－
½
温
特
性
(120Hz)
Low Temperature Stability
(阻
抗 比)
Impedance Ratio(MAX)
◆纹波电流补正系数／
MULTIPLIER FOR RIPPLE CURRENT
频率系数
Frequency Coefficient
60 (50) 120
0.50
0.65
0.80
0.80
0.80
1.00
1.00
1.00
1.00
1.00
500
1.20
1.20
1.20
1.10
1.05
1k
1.30
1.30
1.30
1.15
1.10
10k≤
1.50
1.50
1.50
1.20
1.15
频率
(Hz)
Frequency
◆尺寸图／
DIMENSIONS
套管
SLEEVE(PET)
(mm)
φ
d
0.47½1µF
2.2½4.7µF
系 数
Coefficient
10½47µF
100½1000µF
2200½33000µF
L＋α MAX
15MIN
4MIN
φ
D＋0.5MAX
◆副记号／
OPTION
记号
Code
PET套管　
PET Sleeve
□□□
额定电压
Rated Voltage
φ
D
φ
d
F
α
5
0.5
6.3
8
10
0.6
12.5
16
0.8
7.5
2.0
18
EFC
□□□□□
额定静电容量
Rated Capacitance
2.0
2.5
3.5
5.0
100V以下 WV≤100:1.5
160V以上 WV≥160:2.0
◆产品型号½系／
PART NUMBER
PX
系列名称
Series
M
静电容量允许差
Capacitance Tolerance
□□□
副记号
Option
□□
引线加工记号
Lead Forming
D×L
铝壳尺寸
Case Size
F
± 0.5
小型铝电解电容器
MINIATURE ALUMINUM ELECTROLYTIC CAPACITORS
PX
◆标准品一览表／
STANDARD SIZE
额定电压
额定
WV(V.DC)
静电容量
Cap(µF)
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
680
1000
2200
3300
4700
6800
10000
15000
22000
33000
5×11
5×11
6.3×11
6.3×11
6.3×11
8×11.5
1 0×16
1 0×20
12. 5×20
12. 5×25
1 6×25
16×31.5
18×31.5
18×40
96
160
210
275
285
460
775
985
5×1 1
5×1 1
6. 3×1 1
6. 3×1 1
8×11.5
8×11.5
1 0×1 6
1 0×2 0
105
165
235
295
430
500
860
5×1 1
5×1 1
6. 3×1 1
6. 3×1 1
8× 11.5
8× 11.5
1 0× 12.5
1 0×2 0
80
130
220
270
375
480
640
Size
φ
D×L(mm), Ripple Current (mA r.m.s./105℃, 120Hz)
16
(1C)
25
(1E)
Ripple
Size
Ripple
35
(1V)
Size
Ripple
50
(1H)
Size
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
6. 3×1 1
8×11.5
8×11.5
1 0×12.5
1 0×1 6
69
84
135
240
335
440
630
740
1090
1500
1800
1910
2050
5×1 1
5×1 1
6. 3×1 1
8× 11.5
1 0× 12.5
1 0× 12.5
1 0×1 6
1 0×2 0
1 6×2 5
1 6×2 5
1 6× 35.5
1 8× 35.5
64
77
100
170
300
400
525
760
865
1370
1680
1870
1920
5×1 1
5×1 1
6. 3×1 1
8× 11.5
1 0× 12.5
1 0×1 6
1 0×2 0
12. 5×2 0
12. 5×2 5
1 6× 31.5
1 8× 35.5
6.3
(0J)
Size
Ripple
10
(1A)
Size
Ripple
63
(1J)
Ripple
7
13
20
25
32
47
70
94
115
200
360
470
600
980
1060
5×1 1
5×1 1
6. 3×1 1
6. 3×1 1
8× 11.5
1 0×1 6
1 0×2 0
12. 5×2 0
12. 5×2 5
1 6×2 5
48
80
100
140
230
390
540
700
800
1200
1400
Size
Size
Ripple
1050 12. 5×2 0
1300
1650
1 6×2 5
1 6×2 5
1600 1 8× 31.5
1780
1100 12. 5×2 0
1350 12. 5×2 5
1700
1 6×2 5
1150 12. 5×2 0
1480
1700
1 6×2 5
1 6×2 5
1900 1 6×35.5
1950 1 8×35.5
2070
1950 1 6× 31.5
2090 1 8× 35.5
2180
2090 1 6×35.5
2280 1 8×35.5
2350
额定电压
额定
WV(V.DC)
静电容量
Cap(µF)
0.47
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
680
1000
100
(2A)
Size
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
5×1 1
6. 3×1 1
8× 11.5
8× 11.5
1 0×1 6
12. 5×2 0
12. 5×2 5
1 6×2 5
1 6× 31.5
1 8× 35.5
160
(2C)
Ripple
8
15
21
30
35
60
98
140
185
290
560
690
880
900
985
6. 3×1 1
8×11.5
1 0×12.5
1 0×1 6
1 0×2 0
12. 5×2 5
1 6×31.5
1 8×31.5
1 8×4 0
43
77
92
125
150
320
410
570
855
200
(2D)
Ripple
Size
Ripple
250
(2E)
Size
6. 3×1 1
6. 3×1 1
6. 3×1 1
350
(2V)
Ripple
8
16
30
30
45
90
105
140
190
310
485
400
(2G)
Ripple
8
16
25
30
45
95
175
220
260
370
6. 3×11
8×11.5
8×11.5
1 0×12.5
1 0×16
12. 5×20
1 6×25
1 6×25
1 8×35.5
16
31
34
42
64
140
170
200
310
450
(2W)
Ripple
Size
Ripple
Size
Size
6. 3×1 1
6. 3×1 1
6. 3×1 1
8×11.5
8×11.5
1 0×1 6
12. 5×2 0
12. 5×2 5
1 6×2 5
1 8×31.5
Size
6. 3×1 1
8×11.5
1 0×12.5
1 0×12.5
1 0×2 0
12. 5×2 5
1 6×2 5
1 6×31.5
1 8×4 0
15
20
33
35
37
100
125
155
200
6. 3×1 1
6. 3×1 1
8×11.5
1 0×1 6
1 0×2 0
1 0×2 0
1 6×2 5
1 6×35.5
1 8×4 0
36
40
57
105
140
195
340
580
675
6. 3×1 1
8×11.5
1 0×12.5
1 0×1 6
1 0×2 0
12. 5×2 0
1 6×2 5
1 8×35.5
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

50PX0R47MEFCKC5X11 Related Products

50PX0R47MEFCKC5X11 50PX0R47MEFCCA5X11 50PX0R47MEFCCC5X11 50PX0R47MEFCFA5X11 50PX0R47MEFCCE5X11 100PX0R47MEFCCA5X11 100PX0R47MEFCCC5X11 100PX0R47MEFCCE5X11 100PX0R47MEFCFA5X11 100PX0R47MEFCKC5X11
Description Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 50V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT Aluminum Electrolytic Capacitor, Polarized, Aluminum (wet), 100V, 20% +Tol, 20% -Tol, 0.47uF, Through Hole Mount, RADIAL LEADED, ROHS COMPLIANT
Is it Rohs certified? conform to conform to conform to conform to conform to conform to conform to conform to conform to conform to
Maker rubycon rubycon rubycon rubycon rubycon rubycon rubycon rubycon rubycon rubycon
Reach Compliance Code compliant compliant compliant compliant compliant compliant compliant compliant compliant compliant
ECCN code EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99 EAR99
capacitance 0.47 µF 0.47 µF 0.47 µF 0.47 µF 0.47 µF 0.47 µF 0.47 µF 0.47 µF 0.47 µF 0.47 µF
Capacitor type ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR ALUMINUM ELECTROLYTIC CAPACITOR
diameter 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm 5 mm
dielectric materials ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET) ALUMINUM (WET)
JESD-609 code e3 e3 e3 e3 e3 e3 e3 e3 e3 e3
leakage current 0.003 mA 0.003 mA 0.003 mA 0.003 mA 0.003 mA 0.003 mA 0.003 mA 0.003 mA 0.003 mA 0.003 mA
length 11 mm 11 mm 11 mm 11 mm 11 mm 11 mm 11 mm 11 mm 11 mm 11 mm
Manufacturer's serial number PX PX PX PX PX PX PX PX PX PX
Installation features THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT THROUGH HOLE MOUNT
negative tolerance 20% 20% 20% 20% 20% 20% 20% 20% 20% 20%
Number of terminals 2 2 2 2 2 2 2 2 2 2
Maximum operating temperature 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C 105 °C
Minimum operating temperature -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C -55 °C
Package shape CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE CYLINDRICAL PACKAGE
Package form Radial Radial Radial Radial Radial Radial Radial Radial Radial Radial
method of packing Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk Bulk
polarity POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED POLARIZED
positive tolerance 20% 20% 20% 20% 20% 20% 20% 20% 20% 20%
Rated (DC) voltage (URdc) 50 V 50 V 50 V 50 V 50 V 100 V 100 V 100 V 100 V 100 V
ripple current 7 mA 7 mA 7 mA 7 mA 7 mA 8 mA 8 mA 8 mA 8 mA 8 mA
series PX PX PX PX PX PX PX PX PX PX
surface mount NO NO NO NO NO NO NO NO NO NO
Delta tangent 0.12 0.12 0.12 0.12 0.12 0.08 0.08 0.08 0.08 0.08
Terminal surface Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn) Tin (Sn)
Terminal pitch 5 mm 2 mm 2 mm 5 mm 2 mm 2 mm 2 mm 2 mm 5 mm 5 mm
Terminal shape WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE WIRE

Recommended Resources

Three-speed motor stator winding 2△-Y-△ connection method

Bridge rectifier capacitor filter circuit

SPT1141/1151 multi-function switch controller circuit diagram

5V, 10V, 10AVMOS switching power supply

Analysis of multi-purpose remote control alarm controller

High output voltage integrated regulated power supply composed of CW137

Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. S-1323B24NB-N8J-TF
  2. LLST-10
  3. 805-009-BB6NF8-4ND-72
  4. XM-1T-019.44M50/10/-2070/20
  5. T493B475M020BH6420C-7280
  6. FMXMB3360JIA-27.000000M-LT
  7. M5264-120006-10KPC
  8. TB3.3/50M2LFTR
  9. 1.5KE160CA_AY_10001
  10. BAS40A-AU_LX_00001
  11. BZX84C3V3-AU_R1_000A1
  12. QR1206J3K60P05Z

Popular Articles

  1. How can electric cars be charged as quickly as refueling?
  2. ZDS2022 Oscilloscope 100 Practical Videos 66: How to measure the frequency of abnormal glitches
  3. PID control principle block diagram of frequency converter_The function of PID of frequency converter
  4. Lingsheng Technology welcomes new strategic investors and joins hands with Xiaomi to empower industrial development
  5. Jiangsu's integrated circuit manufacturing added value increased by more than 24% year-on-year in the first half of the year
  6. Omdia: Only five foundries can drive production for HV 40 and 28nm AMOLED
  7. Engineer's Electronic Production Story: DIY Design of Electron Tube Tester
  8. SylixOS BSP development example S3C2416 [Preface] Common software introduction
  9. DSP filtering technology for waveform reconstruction in oscilloscopes
  10. Keysight Technologies and McGill University Demonstrate Record-Breaking 1.6 Tbps O-Band Coherent Transmission Over 10 km

Technical ResourceMore

  1. Analysis and simulation of the implementation principle of SPWM combined BOOSTDC-AC inverter
  2. Analysis of small signal model of closed-loop flyback switching power supply
  3. Relationship between DC side APF main circuit parameters and compensation performance
  4. AG9320 latest Chinese manual
  5. 20-year veteran engineer explains op amps Huang Feng
  6. Chassis electronic control system
  7. Diansai source code three-phase electronic multi-function energy meter
  8. SDC Analysis and Setup
  9. Altium-Common 3D Package Library (Step) [Common SMD] SOT-89.rar
  10. RT-Thread Programming Guide

ForumMore

  1. Don't enter to earn points..
  2. Design of S-band voltage-controlled oscillator using ADS and Serenade
  3. Car light mobile work light wide voltage 10-80V input step-down constant current drive solution QX6103
  4. The most incomprehensible chips
  5. What is the TG value?
  6. 9B96 ALE address latch
  7. [TI Video] TI Automotive Technology
  8. 【First Gift】Take the "Switching Power Supply Component Selection" course and forward to win a gift!
  9. Let's have fun together with EEWORLD in February! (Fully sponsored by NXP)
  10. Program FAQ

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 1086  2391  411  600  1076  22  49  9  13  36
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
