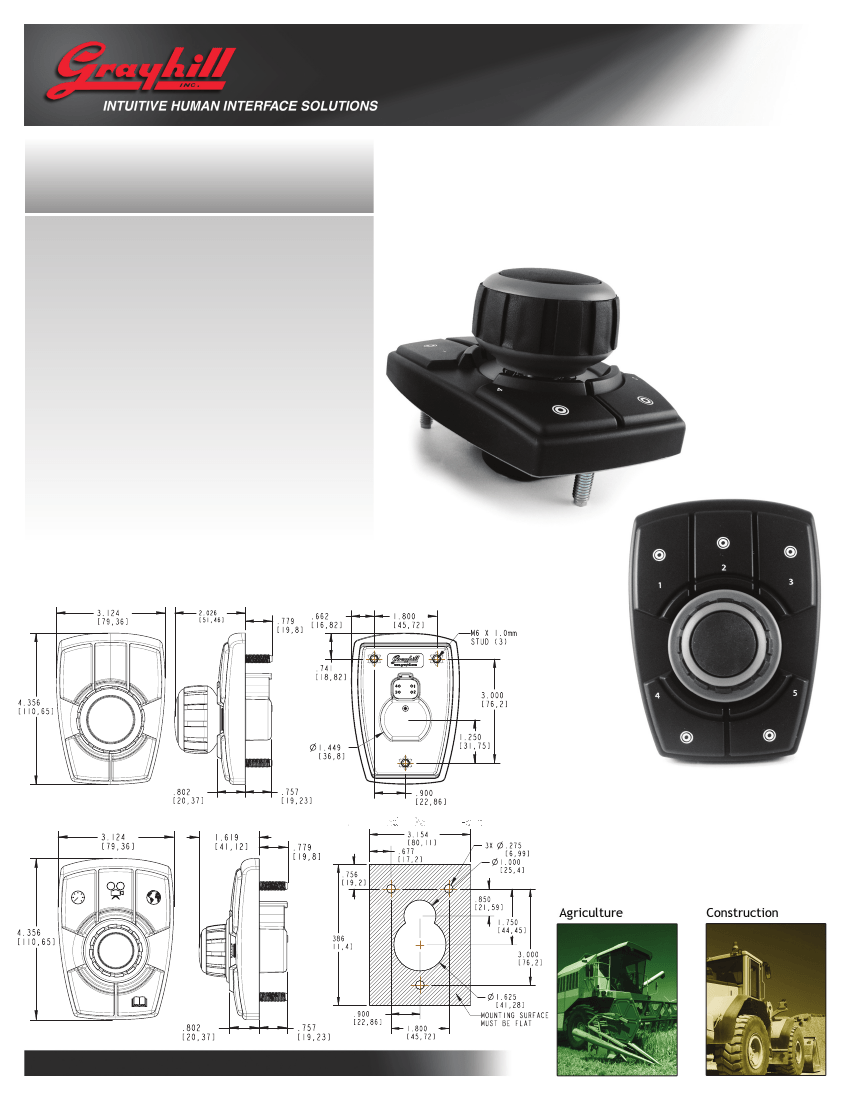

Vehicle Display
Controller
• Three Configurations
- Optical Rotary Encoder
- Encoder with Pushbutton
- Joysticking Encoder with Pushbutton
• J1939 and CANopen versions
• Dimmable LED indicators and legends
• Sealed to IP67
• Vibration and impact resistant
• Operating Temp: -40
o
C to +85
o
C
• Long Life: 500,000 cycles
• Support for multiple key combinations
• Designed for 12/24 volt systems
• Custom legends and configurations
DIMENSIONS
in inches (and millimeters)
Blank keys shown below
Put display functions within reach
- 5 hot keys for rapid navigation
- Scroll with rotary encoder
- Select with pushbutton
- Navigate with joystick
Joysticking Encoder
version
Rotary Encoder version
with Target Legends
ISO Symbols shown below
Recommended Panel Cut-out
Your Experts in Cab Controls
Grayhill specializes in the design, development and
production of human interface controls, including:
- Cab user interface design
- Customized control panels
- CAN-bus interface devices
Esc
www.grayhill.com
ENVIRONMENTAL SPECIFICATIONS
Operating temperature
Storage Temperature
Thermal Shock
Altitude (Barometric Pressure)
Sand and Dust
Solar Radiation
ANSI/ASAE EP455 5.1.1
Level 2
ANSI/ASAE EP455 5.1.2
Level 2
ANSI/ASAE EP455 5.1.3
ANSI/ASAE EP455 5.2
ANSI/ASAE EP455 5.3
ANSI/ASAE EP455 5.4
-40°C for 4 hours to
+85°C for 11 hours
-40°C 4 hours to
+85°C 4 hours
-40°C to 70°C at a rate of 4°C/
min (1 hour at extremes)
101.3kPa to 18.6kPa
24 hours with 0.88g/m3
43 to 75W/m2 UV Radiation
(280 to 400nm wavelength)
for 300h
375 kPa and 8.3 L/min for 10
minutes @15°C Water temp
1 meter submersion for 30
minutes
96% Humidity at 35°C for 240
hours.
5% aqueous solution of NaCl
@ 35°C and a pH between 6.5
and 7.2 for 48 hours
MECHANICAL PERFORMANCE
Vibration, Random
ANSI/ASAE EP455 5.15.1
2 hours each axis @ 52.4 m/s2
RMS overall acceleration and
spectral power density of 2m2/s3
from 50Hz to 2000Hz
A logarithmic sweep from 10Hz to
2000Hz to 10Hz over a period of
20 minutes for 4 hours in each of
3 orthogonal axes with amplitude
of 1.5mm from 10Hz to 40Hz and
a constant acceleration of 35m/s2
RMS from 40Hz to 2000Hz.
A single 11ms half sine pulse of
490 m/s2 in 3 perpendicular axes.
Drop component 400 mm onto a
hardwood benchtop on all
practical edges.
Vibration, Sinusoidal
ANSI/ASAE EP455 5.15.2
Shock / Crash Safety
Drop
ANSI/ASAE EP455 5.14
ANSI/ASAE EP455 5.14.2
Level 1
International Safe Transit
Agency procedure 3A
Wash Down
Ingress Protection
Humidity
Salt Fog
ANSI/ASAE EP455 5.6 Level 2
IP67
ANSI/ASAE EP455 5.13
ANSI/ASAE EP455 5.9
Shipping integrity
ELECTRICAL PERFORMANCE SPECIFICATIONS
Maximum load
Jump start forward voltage
ANSI/ASAE EP455 5.1.1
Level 2
ISO 16750-2
ISO 16750-2
ISO 16750-2
ISO 16750-2
ISO 16750-2
ANSI/ASAE EP455 5.11.3
Level 2
ISO 7637-2 Test Pulse 5b
ISO 7637-2 Test Pulse 3a
ISO 7637-2 Test Pulse 3b
ISO 7637-2 Test Pulse 2a
and 2b
ANSI/ASAE EP455 5.11.4
ANSI/ASAE EP455 5.11.6
Level 2
ANSI/ASAE EP455 5.11.2
-40°C 4 hours +85°C for 11 hours
max load applied
36V for 60 minutes
-36V for 60 minutes
All outputs to ground for 60s
28V for 60s
Class A
Apply 6+12.6sin(2*pi*f*t) f is
swept from 500Hz to 1.5kHz 5min
Class A
Class A
Class A
Class A
14-300e^(-t/.001)V 1Hz for 300
cycles
14+200e^(-t/14x10^-6)V 1Hz for
300 cycles
Class A
Chemical resistance (Resis-
tance to Solvents)
Thermal Cycling (Change of
Temperature)
ISO 16750-5 EP 455 (5.8.2)
ISO 16750-4
-40° to 85°C 2 hours at
extremes change rate = 1°C/
min (8 hours) repeat for 30
cycles.
Jump start reverse voltage
Short circuit protection
Reverse polarity protection
Starting profile
Battery-less operation
Load dump
Switching spikes – negative
Switching spikes – positive
Wire harness inductance
+/- inductive load pulse
+/- mutual coupling
Alternator field decay
ELECTROMAGNETIC COMPATIBILITY SPECIFICATIONS
ESD
Radiated Immunity
Conducted Emissions
Broadband Radiated Emissions
ANSI/ASAE EP455 5.12
ISO14982 6.6
SAE J1113-41
ISO14982 6.4
+/- 25kV for 10 pulses, 5 of
each polarity
10MHz-1000MHz Range 48mA
Bulk Current Injection 100V/m
Class 3
64dB to 54dB, 30MHz-75MHz
(linearly decreases) 54dB to
65dB, 75MHz-400MHz (linearly
increases) 65dB, 400MHz-
1000MHz
ESA
ESA
CE COMPLIANCE
Agriculture and Forestry
Machinery EMC
Construction Machinery EMC
ISO 14982
EN 13309:2000
ORDERING INFORMATION
CONNECTION
Series Code
Keypad Symbols
3JXXX5-200N
Protocol
Blank = J1939
N = CANopen
4 pin Deutsch DT
Connector. Power
with 8V to 32V
vehicle type inputs.
0 = Blank
1 = ISO Symbols
(as shown in dimensional drawing)
2 = Targets
Custom Designation
200 = Default
Pin
Signal
1
Power
2
Gnd
3
CAN_H
4
CAN_L
Input Type
0 = Encoder
1 = Joystick Encoder
Configuration
5 = Default
Center Pushbutton
MOUNTING INFO
0 = No pushbutton
1 = Pushbutton
(joystick always has pushbutton)
Use M6 Nut (1mm pitch)
Max Torque 25 in-lbs
Grayhill, Inc.
561 Hillgrove Avenue
LaGrange, Illinois 60525
phone: (708) 354-1040
fax: (708) 354-2820
Custom options available
Bulletin 1124
Rev 04/12
www.grayhill.com
Contact Grayhill or your local
Grayhill sales representative
for more information.
