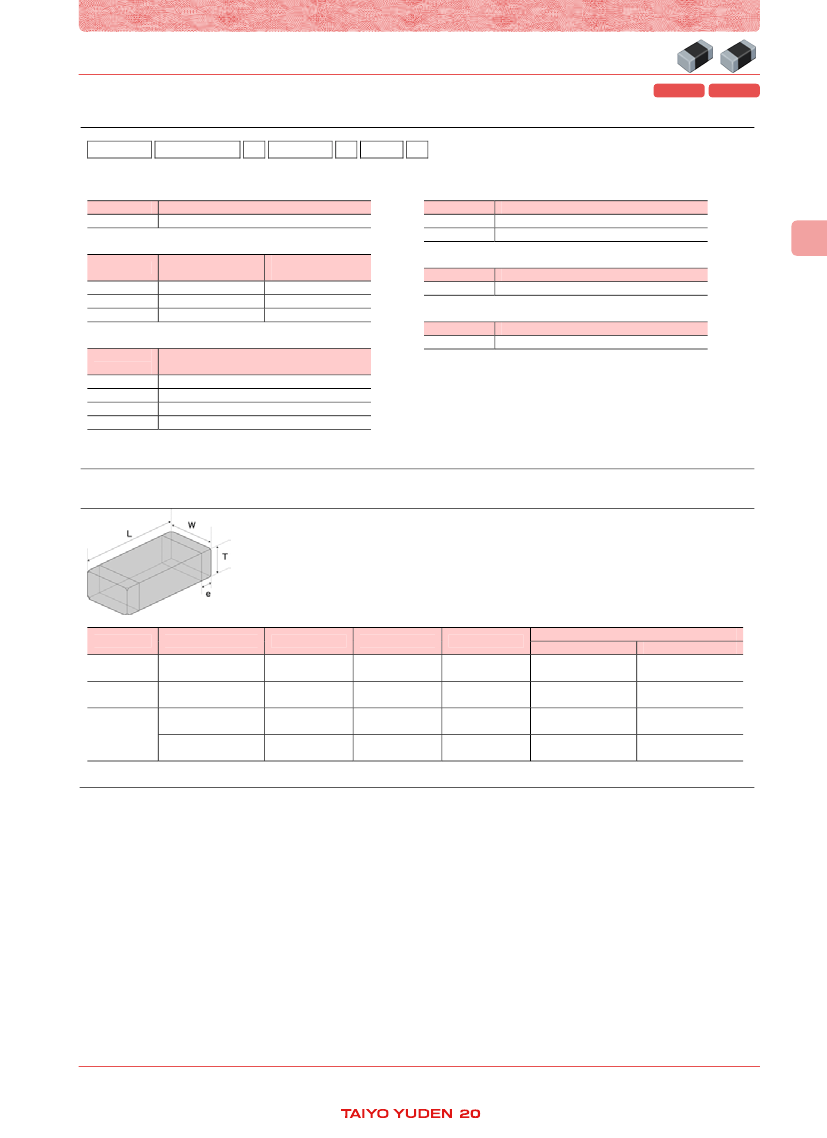

MULTILAYER CHIP INDUCTORS(LK SERIES)
MULTILAYER CHIP INDUCTORS (LK SERIES)
■PARTS
NUMBER
*Operating Temp. : -40½+85℃
WAVE＊
REFLOW
＊Except for LK1005
L
K △
①
1
6
②
0
8
△
R
1 0
③
M － T
④
⑤
△
⑥
△＝Blank space
①Series name
Code
LK△
②Dimensions（L×W）
Code
1005
1608
2125
③Nominal inductance
Code
（example）
47N
R10
1R0
100
※R＝Decimal point
※N＝0.0（nH type）
Series name
Multilayer chip inductor
④Inductance tolerance
Code
K
M
⑤Packaging
Code
－T
⑥Internal code
Code
△
Inductance tolerance
±10％
±20％
Type（inch）
1005（0402）
1608（0603）
2125（0805）
Dimensions
（L×W）［mm½
1.0×0.5
1.6×0.8
2.0×1.25
INDUCTORS STANDARD INDUCTORS
Packaging
Taping
Internal code
Standard
Nominal inductance［μH½
0.047
0.1
1.0
10
／
■STANDARD
EXTERNAL DIMENSIONS / STANDARD QUANTITY
Type
LK 1005
（0402）
LK 1608
（0603）
LK 2125
（0805）
L
1.00±0.05
（0.039±0.002）
1.6±0.15
（0.063±0.006）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
2.0＋0.3/－0.1
（0.079＋0.012/－0.004）
W
0.50±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
1.25±0.2
（0.049±0.008）
1.25±0.2
（0.049±0.008）
T
0.50±0.05
（0.020±0.002）
0.8±0.15
（0.031±0.006）
0.85±0.2
（0.033±0.008）
1.25±0.2
（0.049±0.008）
e
0.25±0.10
（0.010±0.004）
0.3±0.2
（0.012±0.008）
0.5±0.3
（0.020±0.012）
0.5±0.3
（0.020±0.012）
Standard quantity [pcs]
Paper tape
Embossed tape
10000
4000
4000
－
－
－
－
2000
Unit：mm（inch）
i_mlci_LK_e-E02R01
▶
This catalog contains the typical specification only due to the limitation of space. When you consider the purchase of our products, please check our specification.
