Vertical Cavity Surface Emitting
Laser in T-1 Package
OPV330
•
•
•
•
•
850nm VCSEL technology
High thermal stability
Low drive current
High output power
Flat lens package

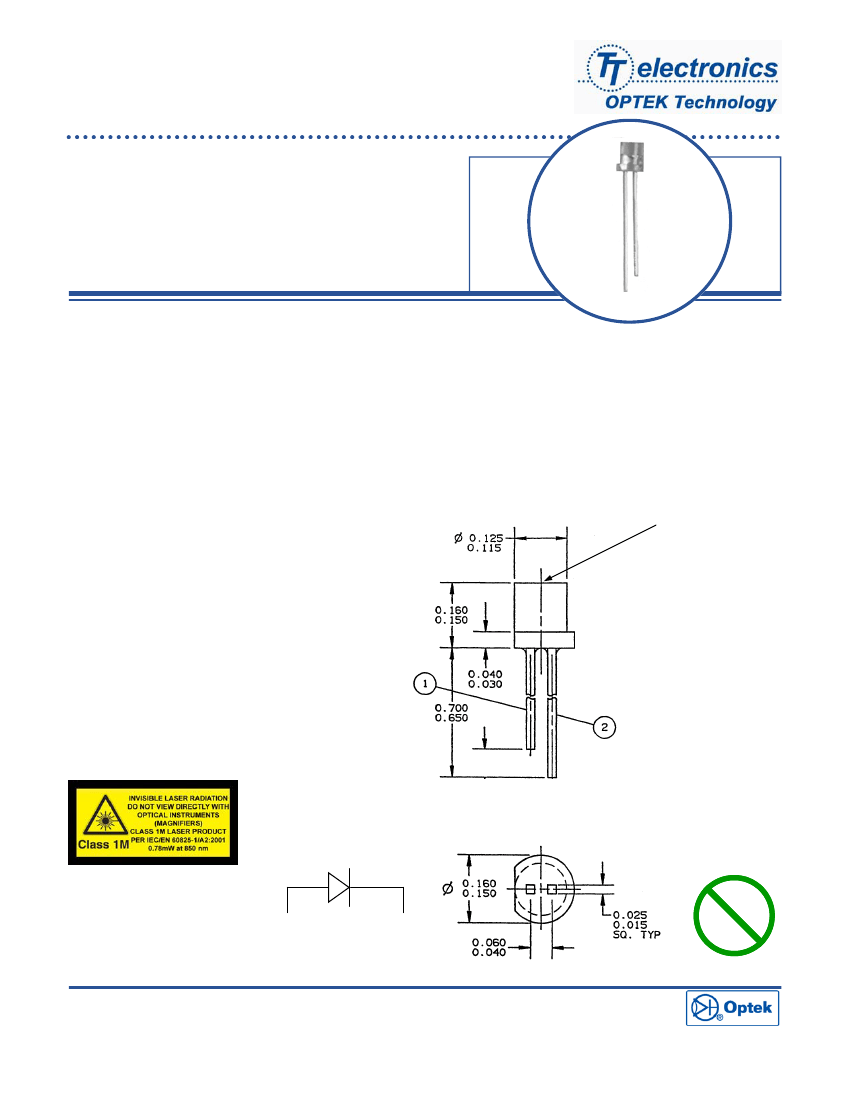

The OPV330 is a Vertical Cavity Surface Emitting Laser (VCSEL) packaged in a flat lens lateral package.
VCSELs offer many advantages in sensing applications when compared to infrared LEDs. These devices require
substantially lower drive currents to obtain the same amount of output power as LEDs. This feature allows
VCSELs to be used in low power consumption applications such as battery operated equipment.
The flat lens packaging allows the device to be used with secondary optics to create custom beam profiles. The
OPV330 is optically and spectrally compatible with Optek’s standard detector products such as the OP550 series
phototransistors, OP530 series photodarlingtons and the OP900 series photodiodes.
Applications
•
•
•
•
Non-contact position sensing
Photoelectric sensors
Optical encoders
Light curtains
Emission
Surface
VCSEL
Additional laser safety information
can be found on the Optek website.
See application bulletin #221.
Classification is not marked on the
device due to space limitations. See
package outline for centerline of
optical radiance. Operating devices
beyond maximum rating may result
in hazardous radiation exposure.
1
2
Pb
RoHS
A subsidiary of
TT electronics plc
Optek reserves the right to make changes at any time in order to improve design and to supply the best product possible.
OPTEK Technology Inc.—
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (800) 341-4747 FAX: (972) 323– 2396 sensors@optekinc.com www.optekinc.com
VCSEL in Flat Lens T-1 Package
OPV330
Absolute Maximum Ratings
T
A
= 25
o
C unless otherwise noted
Storage Temperature Range
Operating Temperature Range
Lead Soldering Temperature [1/16 inch (1.6mm) from case for 5 sec with soldering iron]
Maximum Forward Peak Current, Continuous
Maximum Reverse Voltage
Maximum Forward Current, pulsed (1µs, P.W., 10% D.C.)
-40°
to
+100° C
0°
to
+85° C
260° C
(1)
12 mA
5V
48 mA
Electrical Characteristics
(T
A
= 25°C unless otherwise noted)
SYMBOL
P
OT
I
TH
V
F
I
R
R
S
η
λ
Δλ
θ
Δη/ΔT
Δλ/ΔT
Δl
TH
ΔV
F
/ΔT
PARAMETER
Total Power Out
Threshold Current
Forward Voltage
Reverse Current
Series Resistance
Slope Efficiency
Wavelength
Optical Bandwidth
Beam Divergence
Temp Coefficient of Slope Efficiency
Temp Coefficient of Wavelength
Temp Variance of Threshold Current
Temp Coefficient for Forward Voltage
MIN
1.5
TYP
MAX
UNITS
mW
CONDITIONS
I
F
= 7 mA
Note 2
I
F
= 7 mA
V
R
= 5 V
Note 3
Note 4
3.0
2.2
100
20
0.28
840
860
0.85
20
-0.50
0.06
±1.0
-2.5
55
mA
V
nA
ohms
mW/mA
nm
nm
Degrees
%/°C
nm/°C
mA
mV/°C
FWHM
(0° - 70°C), Note 4
(0° - 70°C)
(0° - 70°C), Note 2
(0° - 70°C)
NOTES:
(1) RMA flux is recommended. Solder dwell time can be increased to 10 seconds when flow soldering.
(2) Threshold Current is based on the two line intersection method specified in Telcordia GR-468-Core. Line 1 from 4 mA to 6 mA. Line 2 from 0 mA to 0.5 mA.
(3) Series Resistance is the slope of the Voltage-Current line from 5 to 8 mA.
(4) Slope efficiency, is the slope of the best fit LI line from 5 mA to 8 mA with 0.25mA test intervals.

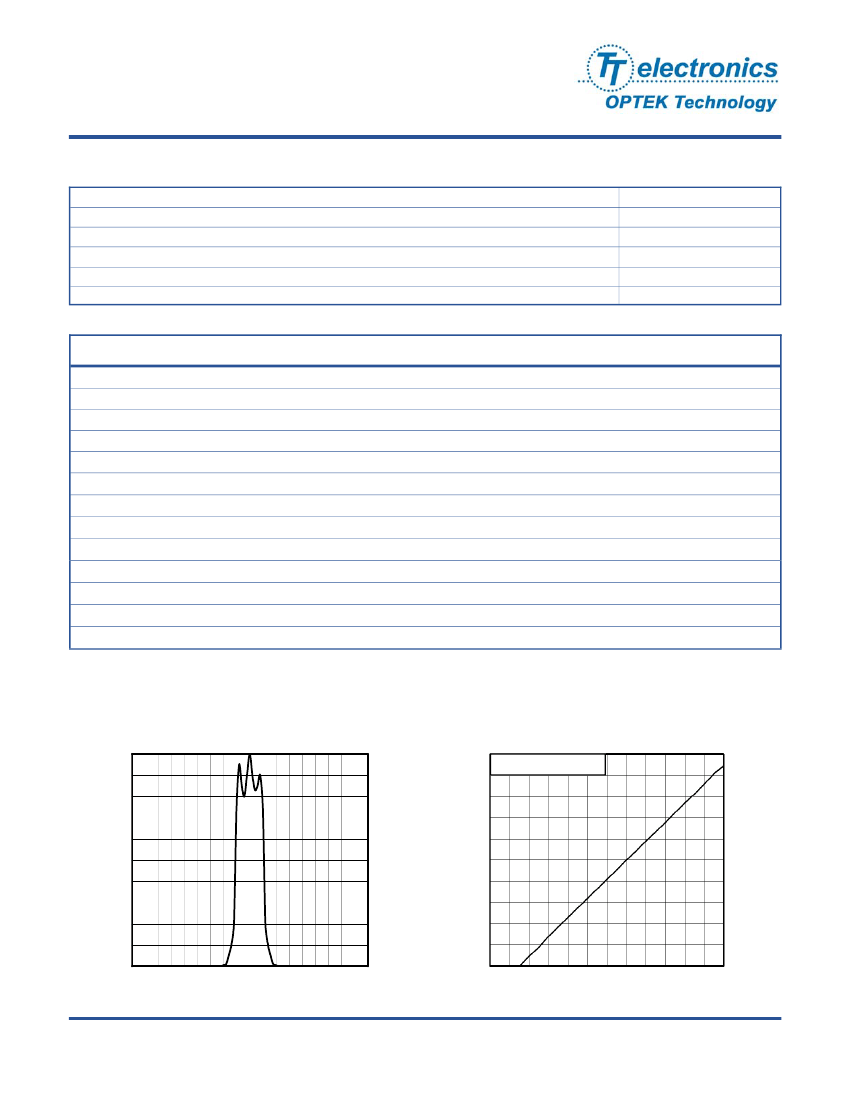

Typical Angular Output
100%
200%
Normalized Output Power vs.
Forward Current
Normalized at 7mA, 25°C
60%
Normalized Output Power
-60
-30
0
30
60
90
80%
Relative Output
100%
40%
20%
0%
-90
0%
0
2
4
6
8
10
12
Angular Displacement—Degrees
OPTEK Technology Inc.—
1645 Wallace Drive, Carrollton, Texas 75006
Phone: (800) 341-4747 FAX: (972) 323– 2396 sensors@optekinc.com www.optekinc.com
Forward Current—mA
Issue 1.2 09.09
Page 2 of 2
