PCA82C200TD datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The embedded processor and controller> Microcontrollers and processors> PCA82C200TD

PCA82C200TD: DescriptionIC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDSO28, Serial IO/Communication Controller; CategoryThe embedded processor and controller Microcontrollers and processors; File Size1MB，36 Pages; ManufacturerNXP; Websitehttps://www.nxp.com

Download Datasheet Parametric Compare View All

PCA82C200TD Overview

IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDSO28, Serial IO/Communication Controller

PCA82C200TD Parametric

Parameter Name	Attribute value
Maker	NXP
package instruction	SOP,
Reach Compliance Code	unknown
Other features	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS
Address bus width	8
boundary scan	NO
maximum clock frequency	16 MHz
Data encoding/decoding methods	NRZ
Maximum data transfer rate	0.125 MBps
External data bus width	8
JESD-30 code	R-PDSO-G28
length	17.9 mm
low power mode	YES
Number of DMA channels
Number of I/O lines
Number of serial I/Os	2
Number of terminals	28
On-chip data RAM width
Maximum operating temperature	125 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Certification status	Not Qualified
RAM (number of words)	0
Maximum seat height	2.65 mm
Maximum slew rate	15 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	CMOS
Temperature level	AUTOMOTIVE
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
width	7.5 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN

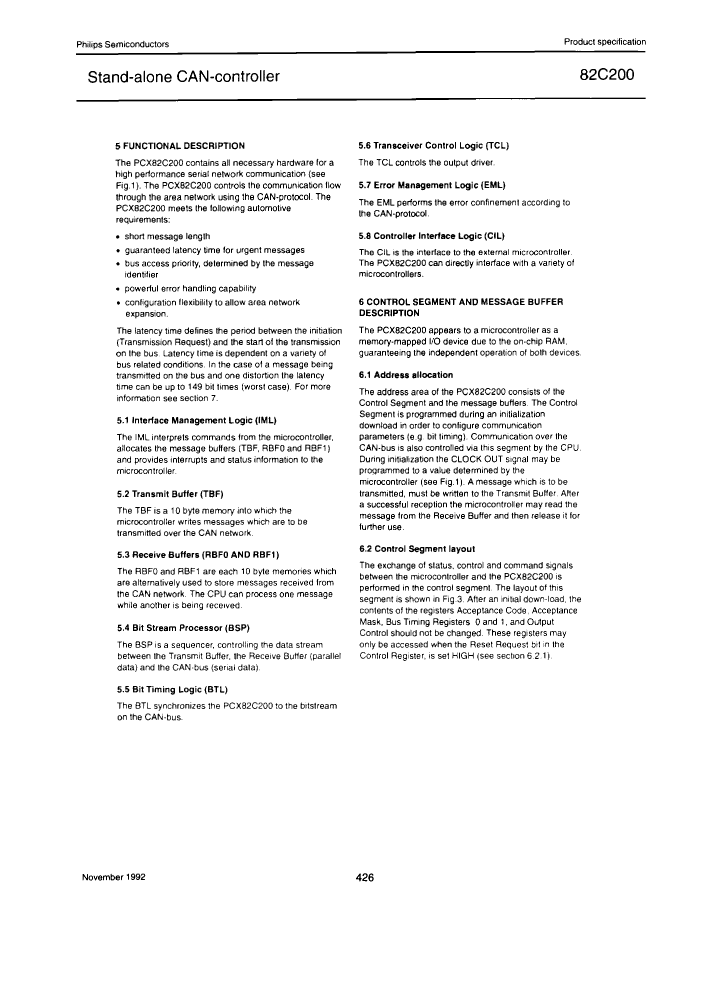

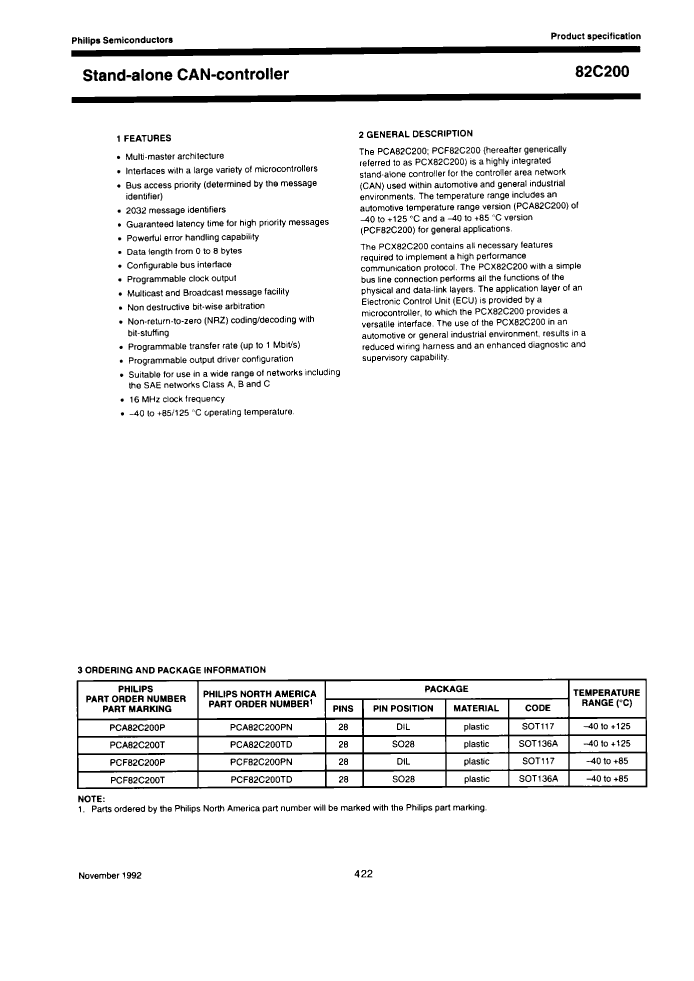

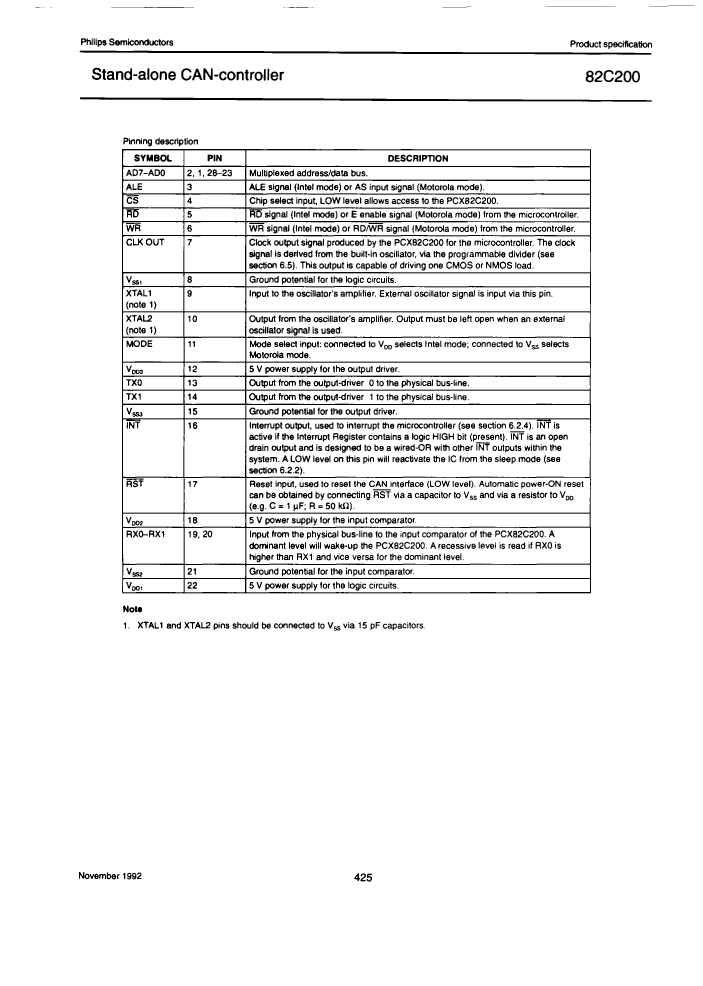

Preview

Download Datasheet

View All

PCA82C200TD Related Products

	PCA82C200TD	PCA82C200P	PCA82C200PN	PCA82C200T	PCF82C200TD	PCF82C200P	PCF82C200PN	PCF82C200T
Description	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDSO28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDIP28, 0.600 INCH, PLASTIC, MO-015AH, SOT-117-1, DIP-28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDIP28, 0.600 INCH, PLASTIC, MO-015AH, SOT-117-1, DIP-28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDSO28, 7.50 MM, PLASTIC, MS-013AE, SOT-136A-1, SOP-28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDSO28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDIP28, 0.600 INCH, PLASTIC, MO-015AH, SOT-117-1, DIP-28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDIP28, 0.600 INCH, PLASTIC, MO-015AH, SOT-117-1, DIP-28, Serial IO/Communication Controller	IC 2 CHANNEL(S), 1M bps, LOCAL AREA NETWORK CONTROLLER, PDSO28, 7.50 MM, PLASTIC, MS-013AE, SOT-136A-1, SOP-28, Serial IO/Communication Controller
package instruction	SOP,	DIP,	DIP,	SOP,	SOP,	DIP,	DIP,	SOP,
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Other features	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS	MULTI-MASTER ARCHITECTURE; 10 BYTE MEMORY OF TRANSMIT BUFFER; 20 BYTE MEMORY OF RECEIVER BUFFERS
Address bus width	8	8	8	8	8	8	8	8
boundary scan	NO	NO	NO	NO	NO	NO	NO	NO
maximum clock frequency	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz	16 MHz
Data encoding/decoding methods	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ	NRZ
Maximum data transfer rate	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps	0.125 MBps
External data bus width	8	8	8	8	8	8	8	8
JESD-30 code	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28	R-PDSO-G28	R-PDIP-T28	R-PDIP-T28	R-PDSO-G28
length	17.9 mm	35.5 mm	35.5 mm	17.9 mm	17.9 mm	35.5 mm	35.5 mm	17.9 mm
low power mode	YES	YES	YES	YES	YES	YES	YES	YES
Number of serial I/Os	2	2	2	2	2	2	2	2
Number of terminals	28	28	28	28	28	28	28	28
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	SOP	DIP	DIP	SOP	SOP	DIP	DIP	SOP
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	2.65 mm	5.08 mm	5.08 mm	2.65 mm	2.65 mm	5.08 mm	5.08 mm	2.65 mm
Maximum slew rate	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA	15 mA
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	NO	NO	YES
technology	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS	CMOS
Temperature level	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	AUTOMOTIVE	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL	INDUSTRIAL
Terminal form	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING
Terminal pitch	1.27 mm	2.54 mm	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm	1.27 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL	DUAL
width	7.5 mm	15.24 mm	15.24 mm	7.5 mm	7.5 mm	15.24 mm	15.24 mm	7.5 mm
uPs/uCs/peripheral integrated circuit type	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN	SERIAL IO/COMMUNICATION CONTROLLER, LAN
Maker	NXP	-	-	-	NXP	NXP	NXP	NXP
Parts packaging code	-	DIP	DIP	SOIC	-	DIP	DIP	SOIC
Contacts	-	28	28	28	-	28	28	28
