21PCT170TY4-140

Description
Single Color LED Array, Yellow, Diffused, T-1, 3mm, 2 PIN
CategoryLED optoelectronic/LED    photoelectric
File Size90KB，1 Pages
ManufacturerLEDtronics
Websitehttp://ledtronics.com.my
Download Datasheet Parametric View All

21PCT170TY4-140 Overview

Single Color LED Array, Yellow, Diffused, T-1, 3mm, 2 PIN

21PCT170TY4-140 Parametric

Parameter NameAttribute value
Is it lead-free?Contains lead
Is it Rohs certified?incompatible
package instruction2 PIN
Reach Compliance Codeunknow
colorYELLOW
ConfigurationSEPARATE, 2 ELEMENTS
Maximum forward current0.02 A
JESD-609 codee0
Lens typeDIFFUSED
Nominal luminous intensity24.0 mcd
Installation featuresRADIAL MOUNT
Number of functions2
Number of terminals4
Optoelectronic device typesSINGLE COLOR LED ARRAY
total height10.9 mm
method of packingBULK
peak wavelength585 nm
shapeROUND
size3 mm
surface mountNO
T codeT-1
Terminal surfaceTin/Lead (Sn/Pb)
Terminal pitch2.54 mm
perspective45 deg
Base Number Matches1

Preview

Download Datasheet

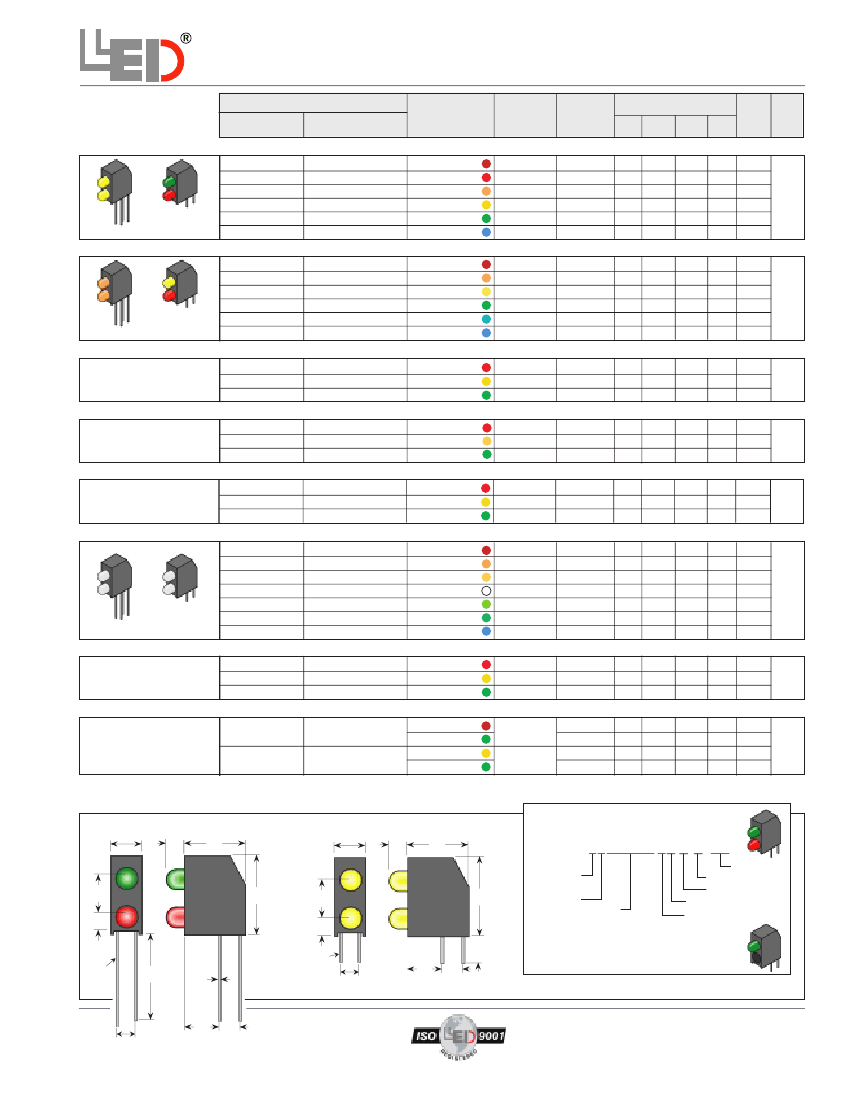

T1 (3mm) Right-Angled Bi-Level PCB LEDs
Part Number
Long Lead
(0.500" Min.)
Short Lead
(0.140")
Emitted Color
Lens Color/
Type
Projection
Type
Electrical-Optical
Characteristics (Ta = 25
°
C)
λ
p
If
I
V
(mcd) Vf (V)
(mA)
typ
typ/max (nm)
View
Angle Figure
2θ
1
/
2
T1 (3mm) Bi-Level, Same or Mix Color, High-Efficiency (Diffused) LEDs
21PCT170TR6
21PCT170TR4 (5)
21PCT170TO4 (5)
21PCT170TY4 (5)
Mix Color
Same Color
(See Fig.1 Part
Number Example)
21PCT170TR6-140
21PCT170TR4-140
21PCT170TO4-140
21PCT170TY4-140
21PCT170TG4-140
21PCT170TUB5-140
ULTRA RED
HE RED
ORANGE
YELLOW
HE GREEN
ULTRA BLUE
RED Diffused
RED Diffused
ORN Diffused
YEL Diffused
GRN Diffused
BLU Diffused
Standard
Standard
Standard
Standard
Standard
Standard
20
20
20
20
20
20
150
30
14
24
12
30
1.7/2.6 660
2.0/2.8 635
2.1/2.8
2.1/2.8
610
585
45°
45°
45°
45°
45°
45°
1
21PCT170TG4 (5)
21PCT170TUB5
2.1/2.8 565
3.8/5.0 430
T1 (3mm) Bi-Level, Same or Mix Color, Sunlight-Visible (Diffused) LEDs
21PCT170T-0UR
21PCT170T-0UO
21PCT170T-0UY
Mix Color
Same Color
21PCT170T-0UG
21PCT170T-1AG
21PCT170T-1PB
21PCT170T-0R-140
21PCT170T-0O-140
21PCT170T-0Y-140
21PCT170T-0G-140
21PCT170T-1AG-140
21PCT170T-1PB-140
ULTRA RED
ORANGE
YELLOW
LIME GREEN
AQUA GREEN
PURE BLUE
RED Diffused
ORN Diffused
YEL Diffused
GRN Diffused
GRN Diffused
BLU Diffused
Standard
Standard
Standard
Standard
Standard
Standard
20
20
20
20
20
20
700
1000
480
300
300
120
2.0/2.6 660
2.0/2.6 610
2.0/2.6 592
2.0/2.6 570
3.5/4.0 523
3.6/4.0 470
45°
45°
45°
45°
45°
45°
1
(See Fig.1 Part
Number Example)
T1 (3mm) Bi-Level, Same or Mix Color, 2mA Low-Current (Diffused) LEDs
21PCT170TR5N-LC 21PCT170TR5N-140/LC HE RED
See above
21PCT170TY5N-LC 21PCT170TY5N-140/LC YELLOW
21PCT170TG5N-LC 21PCT170TG5N-140/LC HE GREEN
RED Diffused
YEL Diffused
GRN Diffused
Standard
Standard
Standard
2
2
2
2.2
2.3
2.2
1.8/2.2
1.9/2.7
1.8/2.2
635
585
568
45°
45°
45°
1
T1 (3mm) Bi-Level, Same or Mix Color,High-Efficiency (Tinted-Clear) LEDs
21PCT170CR5N
See above
21PCT170CY5N
21PCT170CG5N
21PCT170CR4-140
21PCT170Y4-140
21PCT170CG4-140
HE RED
YELLOW
HE GREEN
RED Clear
YEL Clear
GRN Clear
Standard
Standard
Standard
20
20
20
100
90
110
2.0/2.6
2.1/2.6
2.1/2.6
635
585
565
30°
30°
30°
1
T1 (3mm) Bi-Level, Same or Mix Color, 5V Integrated Resistor (Diffused) LEDs
21PCT170TR3-5V
See above
21PCT170TY3-5V
21PCT170TR3-5V-140
21PCT170TY3-5V-140
HE RED
YELLOW
HE GREEN
RED Diffused
YEL Diffused
GRN Diffused
Standard
Standard
Standard
20
20
20
4
4
3.5
5V
5V
5V
635
585
565
30°
30°
30°
1
21PCT170TG3-5V 21PCT170TG3-5V-140
T1 (3mm) Bi-Level, Same or Mix Color, Sunlight-Visible (Water-Clear) LEDs
21PCT170-0UR
21PCT170-0UO
21PCT170-0UY
21PCT170-1CW
21PCT170-0UG
Same Color
(See Fig.1 Part
Number Example)
21PCT170CW-0R-140
21PCT170CW-0O-140
21PCT170CW-0Y-140
21PCT170CW-1CW-140
21PCT170CW-0G-140
ULTRA RED
ORANGE
YELLOW
COOL WHITE
LIME GREEN
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Water-Clear
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
Standard
20
20
20
20
20
20
20
20
20
20
800
600
700
250
600
600
400
100
90
110
2.0/2.6 660
2.0/2.6 620
2.0/2.6 595
3.6/4.0 592
2.0/2.6 570
3.5/4.0 525
3.6/4.0 470
2.0/2.6 635
2.1/2.6 585
2.1/2.6 568
30°
30°
30°
30°
30°
30°
30°
30°
30°
30°
1
1
Mix Color
21PCT170-1AG
21PCT170-1PB
21PCT170CW-1AG-140 AQUA GREEN
21PCT170CW-1PB-140 PURE BLUE
HE RED
YELLOW
T1 (3mm) Bi-Level, Same or Mix Color, High-Efficiency (Water-Clear) LEDs
21PCT170CWR5N 21PCT170CWR5N-140
See above
21PCT170CWY5N 21PCT170CWY5N-140
21PCT170CWG5N 21PCT170CWG5N-140 HE GREEN
T1 (3mm) Bi-Level, Same or Mix Color, Bicolor (Diffused) LEDs, 2-Leaded
21PCT170TWRG4B 21PCT170TWRG4B-140
See above
21PCT170TWYG4B 21PCT170TWYG4B-140
HE RED
HE GREEN
YELLOW
HE GREEN
WHT Diffused
WHT Diffused
Standard
Standard
Standard
Standard
20
20
20
20
30
30
15
30
2.0/2.6 630
2.2/2.6 568
2.1/2.6 585
2.2/2.8 568
50°
50°
50°
50°
1
Custom Options:
OEM large quantity requirements
Figure 1. Long Lead & Short Lead Type, Bi-Level LEDs
.17
[4.32]
.095
[2.41]
.330
[8.38]
.17
[4.32]
.095
[2.41]
.330
[8.38]
Part Number Example: Mix Color
21PCT170T4-G/R (Green top, Red bottom)
21PCT170T4-G/R-140
Short Lead
No. of LEDs
High
Bottom Color
Top Color
Brightness Code
Lens Type:
T= Diffused
.140
[3.56]
.100
[2.54]
.100
[2.54]
ANODE
(+)
ANODE
(+)
.50
[12.7]
.02
[0.5]
Square
Part Number Example: 1 Blank Space
21PCT170T4-G/x (Green top, Blank bottom)
.100
[2.54]
.175
[4.45]
.100
[2.54]
.100
[2.54]
.175
[4.45]
.100
[2.54]
12
23105 Kashiwa Court, Torrance, CA 90505
Phone: (800) 579-4875 or (310) 534-1505
Fax: (310) 534-1424
E-mail: webmaster@ledtronics.com
Website: www.ledtronics.com
Log # 125M pg1 Rev 07-2001
.200
[5.08]
.430
[10.9]
.200
[5.08]
.430
[10.9]
No. of LEDs
Across
Body Style
