ECA1HFG100

Description
CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED
CategoryPassive components    capacitor
File Size346KB,9 Pages
ManufacturerPanasonic
Websitehttp://www.panasonic.co.jp/semicon/e-index.html
Environmental Compliance
Download Datasheet Parametric View All

ECA1HFG100 Overview

CAPACITOR, ALUMINUM ELECTROLYTIC, NON SOLID, POLARIZED, 50V, 10uF, THROUGH HOLE MOUNT, RADIAL LEADED

ECA1HFG100 Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerPanasonic
package instruction,
Reach Compliance Codecompliant
ECCN codeEAR99
capacitance10 µF
Capacitor typeALUMINUM ELECTROLYTIC CAPACITOR
diameter5 mm
dielectric materialsALUMINUM (WET)
JESD-609 codee3
leakage current0.005 mA
length11 mm
Manufacturer's serial numberHFG
Installation featuresTHROUGH HOLE MOUNT
negative tolerance20%
Number of terminals2
Maximum operating temperature105 °C
Minimum operating temperature-55 °C
Package shapeCYLINDRICAL PACKAGE
Package formRadial
polarityPOLARIZED
positive tolerance20%
Rated (DC) voltage (URdc)50 V
ripple current125 mA
seriesECA(50 VOLT,FG)
surface mountNO
Delta tangent0.1
Terminal surfaceTin (Sn)
Terminal pitch2 mm
Terminal shapeWIRE

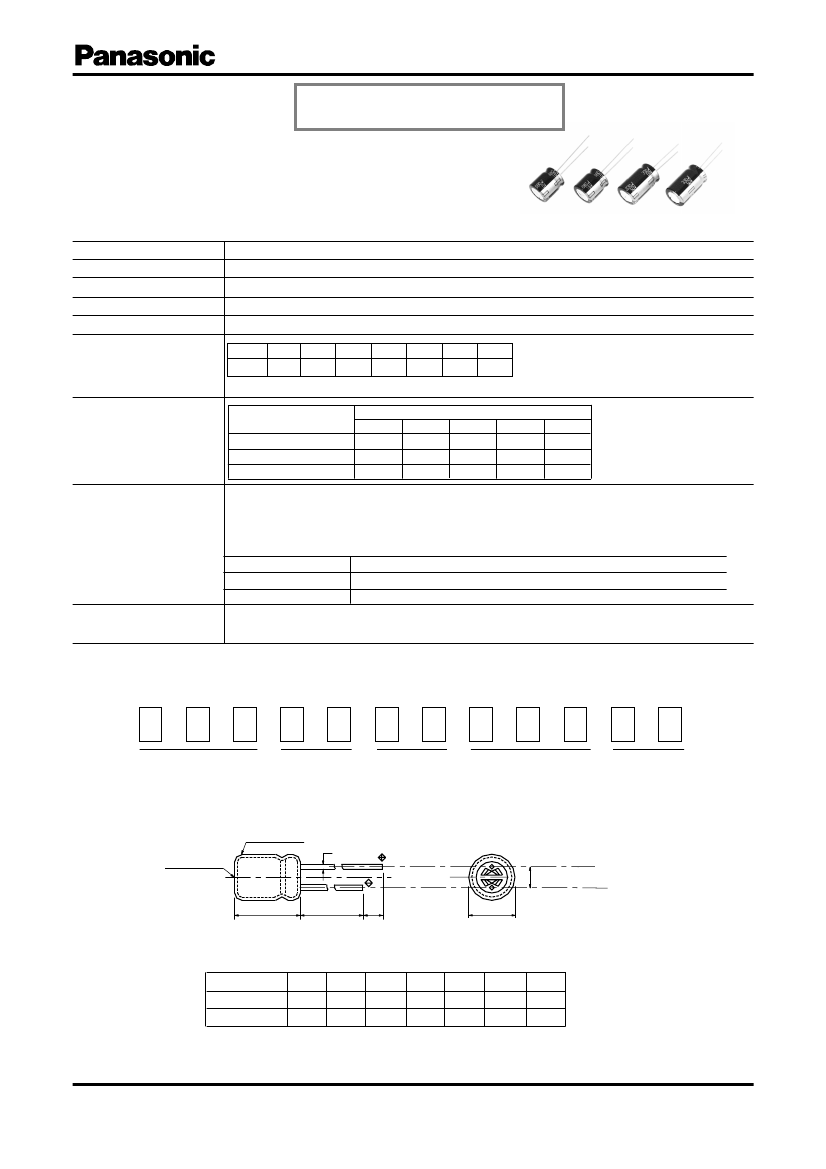

ECA1HFG100 Preview

Aluminium Electrolytic Capacitors/HFG
( Radial Lead Type)
Series:
HFG
Type :
A
Discontinued
s
Features
Life time:105°C 1000 ~ 5000 h
sSpecifications
Operating Temp. Range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
Leakage Current
Dissipation Factor
W.V.
D.F.
-55 to + 105°C
6.3 to 63 V .DC
0.1 to 15000 µ F
±20 % (120Hz/+20°C)
I
<
0.01 CV or 3(µ A) after 2 minutes
6.3
10
16
25
35
50 63
0.22 0.19 0.16 0.14 0.12 0.10 0.08
(max.) (120Hz /+20°C)
For capacitance value > 1000 µF, add 0.02 per every 1000 µF
Capacitance
(µF)
Ripple Current Correction
factor for Frequency
Frequency(Hz)
0.1 to 330
470 to 3300
4700 to
50/60
0.55
0.75
0.80
120
0.65
0.80
0.85
1k
0.85
0.90
0.95
10k
0.90
0.95
1.00
100k
1.00
1.00
1.00
Endurance
After following life test with DC voltage and +105±2°C ripple current value applied (The sum of DC and
ripple peak voltage shall not exceed the rated working voltage), the capacitors shall meet the limits
specified below.
Duration : 1000 hours (φ5,φ6.3 ) , 2000 hours (φ8 ) , 3000 hours (φ10 ), 5000 hours (φ12 ~
φ18
)
Post test requirements at +20°C
Capacitance change
tan
δ
DC leakage current
±20% of initial measured value
<200%
of initial specified value
<
lnitial specified value
Shelf Line
After storage for 1000 hours at +105°C with no voltage applied and then being stabilized at +20°C,
capacitor shall meet the limits specified in “Endurance”.
s
Explanation of Part Numbers
E
C
Common code
A
W.V. code
F
G
Capacitance code
Suffix
Series code
s
Dimensions in mm (not to scale)
vinyl sleeve
Vent
(> 6.3 mm dia.)
φd±
0.05
P
±
0.5
L
L
<16:L+1.0
max
L
>20:L+2.0
max
Body Dia.
φD
Lead Dia.
φd
Lead space P
5
0.5
2.0
6.3
0.5
2.5
14 min
3
min
φD+0.5
max
8
0.6
3.5
10
0.6
5
12.5
0.6
5
16
0.8
7.5
18
0.8
7.5
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and /or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
– EE15 –
Aluminium Electrolytic Capacitors/HFG
s
Standard Products
W.V(V.DC)
Cap.(µF)
0.1
(0R1)
0.22 (R22)
0.33 (R33)
0.47 (R47)
1
2.2
3.3
4.7
10
22
33
47
100
220
330
470
1000
2200
3300
4700
6800
10000
15000
(010)
(2R2)
(3R3)
(4R7)
(100)
(220)
(330)
(470)
(101)
(221)
(331)
(471)
(102)
(222)
(332)
(472)
(682)
(103)
(153)
5
x 11
5
8
8
10
x 11
x 11.2
x 11.5
x 16
6.3 x 11.2
6.3 x 11.2
8
10
x 11.5
x 12.5
6.3 x 11.2
5
8
8
10
10
16
16
18
x 11
x 11.2
x 11.5
x 12.5
x 20
x 25
x 31.5
x 35.5
5
8
10
10
16
16
18
x 11
x 11.5
x 12.5
x 16
x 25
x 31.5
x 35.5
6.3 x 11.2
6.3 x 11.2
5
8
10
10
10
16
18
x 11
x 11.5
x 12.5
x 16
x 20
x 31.5
x 35.5
6.3 x 11.2
6.3(0j)
Discontinued
10(1A)
16(1c)
25(1E)
35(1V)
50(1H)
5
5
5
5
5
5
5
5
5
5
x 11
x 11
x 11
x 11
x 11
x 11
x 11
x 11
x 11
x 11
5 x 11
6.3 x 11.2
6.3 x 11.2
8
10
10
x 11.5
x 12.5
x 20
63(1J)
6.3 x 11.2
6.3 x 11.2
8
10
10
16
18
x 11.5
x 16
x 20
x 25
x 35.5
12.5 x 20
12.5 x 25
16
x 31.5
12.5 x 20
12.5 x 20
12.5 x 25
12.5 x 20
12.5 x 20
16
16
16
18
x 25
x 25
x 35.5
12.5 x 20
12.5 x 25
16
16
x 25
x 31.5
x 35.5
12.5 x 25
x 31.5 18
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
– EE16 –
Aluminum Electrolytic Capacitor
Application Guidelines
1. Circuit Design
E n s u r e t h a t operational and mounting conditions
follw the specified conditions detailed in the catalog
and specification sheets.
1.2 Operating Temperature and Life Expectancy
(1) Expected life is affected by operating temperature.
Generally, each 10°C reduction in temperature
will double the expected life. Use capacitors at
the lowest possible temperature below the
maximum guaranteed temperature.
(2) I f o p e ra t i n g c o n d i t i o n s ex c e e d t h e m a x i m u m
guaranteed limit, rapid eIectrical parameter
deterioration will occur, and irreversible damage
will result.
Check for maximum capacitor operating tempera-
tures including ambient temperature, inter nal
capacitor temperature rise caused by ripple current,
a n d t h e e f fe c t s o f r a d i a t e d h e a t f r o m p ow e r
transistors, IC?s or resistors.
Avoid placing components which could conduct
heat to the capacitor from the back side of the circuit
board.
(3)The formula for calculating expected Iife at lower
operating temperatures is as fllows;
L
2
= L
1
x 2
T
1
-
T
2
10
1.1 Operating Temperature and Frequency
E l e c t r o l y t i c c a p a c i t o r e l e c t r i c a l p a ra m e t e r s a r e
normally specified at 20°C temperature and 120Hz
frequency. These parameter s var y with changes in
t e m p e r a t u r e a n d f r e q u e n c y. C i r c u i t d e s i g n e r s
should take these changes into consideration.
(1) Effects of o p e ra t i n g t e m p e ra t u r e on electrical
parameters
a ) A t h i g h e r t e m p e ra t u r e s, l e a k a g e c u r r e n t a n d
c a p a c i t a n c e i n c r e a s e while equivalent series
resistance(ESR) decreases.
b)At l o w e r t e m p e r a t u r e s , l e a k a g e c u r r e n t a n d
c a p a c i t a n c e decrease while equivalent series
resistance(ESR) increases.
(2) Effects of fr e q u e n c y on e l e c t r i c a l p a r a m e t e r s
a)At higher frequencies, capacitance and
impedance decrease while tan
δ
increases.
b)At lower frequencies, r ipple current generated
heat will ri s e d u e t o a n increase in equivalent
series resistance (ESR).
where,
L
1
: Guaranteed life (h) at temperature, T
1
°
C
L
2
: Expected life (h) at temperature,T
2
°C
T
1
: Maximum operating temperature (°C)
T
2
: Actual operating temperature, ambient
temperature + temperature rise due to
ripple currentheating(°C)
A quick eference capacitor guide for estimating
exected life is included for your reference.
s
Expected Life Estimate Quick Reference Guide
Capacitor Ambient Temperature
120
110
100
90
80
70
60
50
40
s
Failure rate curve
2
1
3
4
1. 85°C2000h
2.105°C1000h
3.105°C2000h
4.105°C5000h
Initial failure period
Random failure period
Wear failure period
Failure rate
Life Time
24h
(h)
2000
5000
10,000
1
3
20,000
2
6
3
10
50,000 100,000 200,000
4 5
7
30
20
operat-
Years
ion
Time
8h/d
Years
15 20
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
EE16
Aluminum Electrolytic Capacitor
s
Typical failure modes and their factors
Faliure mode
Faliure mechanism (internal phenomenon)
Production factor
Application factor
Overvoltage applied
Vent operates
Increase in
internal pressure
Increase in inter-
nal temperature
Capacitance
reduction
tan
d
increase
Reduced cathode
foil capacitance
Reduced anode foil
capacitance
Excessive ripple current
Reverse voltage applied
Severe charging-discharging
AC voltage applied
Deterioration of
oxide film
Leakage current
increase
Electrolyte evapora-
tion
Short circuit
Insulation breakdown of film
or electrolytic paper
Burr(s) on foil leads
Metal particles
in capacitor
Stress applied to leads
Insufficient
electrolyte
Used for a long period of time
Defect of oxide film
Used for a high temperature
Leads improperly
connected
Leads improperly connected
Mechanical stress
Open
Use of Halogenated solvent
Corrosion
Infiltration of Cl
Use of adhesive
Use of coating material
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
EE17
Aluminum Electrolytic Capacitor
1.3 Common Application Conditions to Avoid
The following misapplication load conditions will
cause rapid deter ioration to capacitor electr ical
p a r a m e t e r s. l n a d d i t i o n , ra p i d h e a t i n g a n d g a s
generation within the capacitor can occur causing
the pressure relief vent to operate and resuItant
leakage of electrolyte. Under extreme conditions,
explosion and fire could result. Leakinq electrolyte
is combustible and electrically conductive.
The vinyl sleeve of the capacitor can be damaged
i f s o l d e r p a s s e s t h r o u g h a l e a d h o l e for
subsequently processed parts. Special care when
locating hole positions in proximity to capacitors is
recommended.
(3) Circuit Board Hole Spacing
The circuit board holes spacing should match the
capacitor lead wire spacing within the specified
tolerances. Incorrect spacing can cause excessive
lead wire stress during the insertion process. This
may resuIt in premature capacitor failure due to
short or open circuit, increased leakage current,
or electrolyte leakage.
(1) Reverse Voltaqe
DC capacitors have polarity. Verify correct polarity
before inser tion. For circuits with changing or
uncertain polarity,use DC bipolar capacitors. DC
bipolar capacitors are not suitable for use in AC
circuits.
(4)Land/Pad Pattern
The circuit board land/pad pattern size for chip
capacitors is specified in the following table.
(2) Charqe/Discharqe Applications
Standard capacitors are not suitable for use in
repeating charge/discharge applications. For
charqe/discharqe applications consult us and advise
actual conditions.
[ Table of Board Land Size vs. Capacitor Size ]
(3) Overvoltage
Do not appIy voltaqes exceeding the maximum
specified rated voltages. Voltage up to the surge
voltage rating are acceptable for short periods of
time. Ensure that the sum of the DC voltage and
the superimposed AC ripple vo l t a g e does not
exceed the rated voltage.
c
b
a
b
Board land part
(mm)
c
1.5
1.6
1.6
1.6
1.6
2.0
2.0
(4) Ripple Current
Do not apply ripple currents exceeding the maximum
specified value. For high ripple current applications,
use a capacitor designed for high rippIe currents
or contact us with your requirements.
Ensure that allowable ripple currents superimposed
on low DC bias voltages do not cause reverse voltage
conditions.
Size
A(φ3)
B(φ4)
C(φ5)
D(φ6.3)
E(φ8 x 6.2L)
F(φ8 x 10.2L)
G(φ10 x 10.2L)
a
0.6
1.0
1.5
1.8
2.2
3.1
4.6
b
2.2
2.5.
2.8
3.2
4.0
4.0
4.1
1.4 Using Two or More Capacitors in Series
or Parallel
(1) Capacitors Connected in Parallel
The circuit resistance can closely approximate the
ser ies resistance of the capacitor causing an
imbalance of ripple current loads w i t h in the
capacitors. Careful design of wiring methods can
minimize the possibility of excessive ripple currents
applied to a capacitor.
Among others, when the size a is wide , back fillet can
not be made, decreasing fitting strength.
h
Decide considering mounting condition, solderability
and fitting strength, etc. based on the design
standards of your company.
(2) Capacitors Connected in Series
Normal DC leakage current differences among
capacitors can cause voltage imbalances. The use
of voltage divider shunt resistors with consideration
to leakage currents, can prevent capacitor voltage
imbaIances.
1.5 Capacitor Mounting Considerations
(1) DoubIe - Sided Circuit Boards
Avoid wiring Pattern runs which pass between
the mounted capacitor and the circuit board. When
dipping into a solder bath, excess solder may collect
u n d e r t h e c a p a c i t o r by c a p i l l a r y a c t i o n a n d
shortcircuit the anode and cathode terminals.
(2) Circuit Board Hole Positioning
Design, Specifications are subject to change without notice. Ask factory for technical specifications before purchase and/or use.
Whenever a doubt about safety arises from this product, please inform us immediately for technical consulation without fail.
EE18
Brothers, I am working on VC C++ and want to transition to embedded system. How should I learn?
I have a good foundation in C and C++. It would be best if you could tell me a step-by-step approach, such as what book to read in the first step and what book to read in the second step, and share yo...
czttranslator Embedded System
[You ask me, I answer] Ask a common sense question about multimeter
What does the “three and a half digits” mentioned in describing a multimeter mean? Where does the half digit come from?...
7mofnahq Analog electronics
Lead and Lag Oscillators
[Ask if you don't understand] [1] Why can each RC link in the topology of Figure 5-2 make the signal of the fo frequency lead by 60 degrees, while Figure 5-3 actually makes it lag by 60 degrees? [2] I...
shaorc Analog electronics
Consider self-resonant frequency when selecting components
[size=4] When designing a simple DCDC circuit, after preliminary calculation, you can start selecting the inductor based on the parameters of the inductor DC resistance (DCR), capacitor rated ripple c...
qwqwqw2088 Analogue and Mixed Signal
Let me ask you all: What type of infiltration does the subway and bus card system belong to?
I hope everyone can give me a sincere answer. Thank you very much....
zhqx0502 Embedded System
MSP430
MSP430 Free Information...
扫把鑫 Microcontroller MCU

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

Index Files: 1688  997  2702  1480  2416  34  21  55  30  49
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
