22-21USRC/S530-A2/TR8 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> 22-21USRC/S530-A2/TR8

22-21USRC/S530-A2/TR8: DescriptionSingle Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN; CategoryLED optoelectronic/LED photoelectric; File Size166KB，9 Pages; ManufacturerEVERLIGHT; Websitehttp://www.everlight.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

22-21USRC/S530-A2/TR8 Overview

Single Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN

22-21USRC/S530-A2/TR8 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli
color	DARK RED
Configuration	SINGLE
Maximum forward current	0.025 A
Lens type	WATER CLEAR
Nominal luminous intensity	28.5 mcd
Installation features	SURFACE MOUNT
Number of functions	1
Number of terminals	2
Maximum operating temperature	85 °C
Minimum operating temperature	-40 °C
Optoelectronic device types	SINGLE COLOR LED
total height	1.3 mm
method of packing	TAPE AND REEL 7"
peak wavelength	639 nm
shape	RECTANGULAR
size	2 mm
surface mount	YES
Terminal pitch	2.7 mm
perspective	130 deg
Base Number Matches	1

Preview

Download Datasheet

View All

EVERLIGHT ELECTRONICS CO.,LTD.

Technical Data Sheet

Chip LEDs with Right Angle Lens

22-21USRC/S530-XX/TR8

Features

․Package

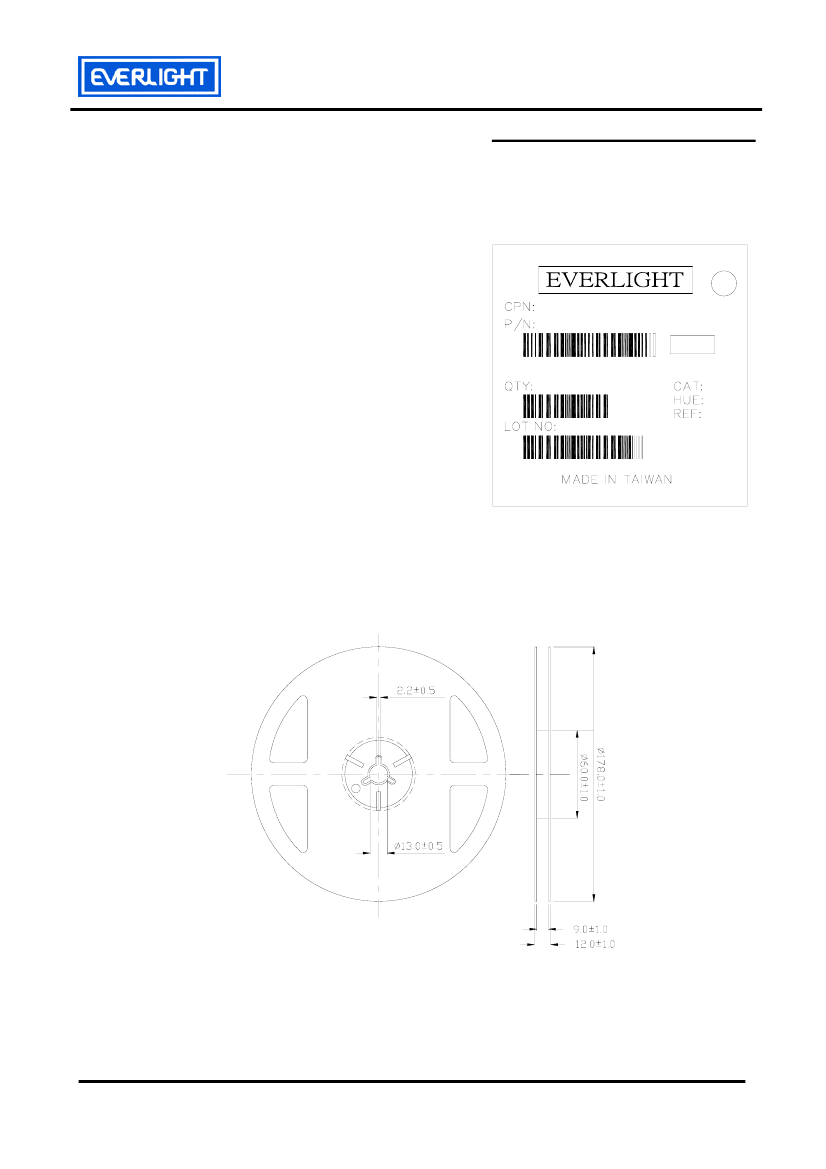

in 8mm tape on 7〞diameter reel.

․Compatible

with automatic placement equipment.

․Compatible

with infrared and vapor phase reflow

solder process.

․Mono-color

type.

․Pb-free.

․The

product itself will remain within RoHS complaint

Version.

Descriptions

․The

22-21 SMD Taping is much smaller

than lead frame type components, thus

enable smaller board size, higher packing

density, reduced storage space and finally

smaller equipment to be obtained.

․Besides,

lightweight makes them ideal for

miniature applications. etc.

Applications

․Automotive:

backlighting in dashboard and switch.

․Telecommunication:

indicator and backlighting in

telephone and fax.

․Flat

backlight for LCD, switch and symbol.

․General

use.

Device Selection Guide

Part No.

22-21USRC/S530-XX/TR8

Chip

Material

AlGaInP

Emitted Color

Dark- Red

Lens Color

Water Clear

Everlight Electronics Co., Ltd.

Device No:SZDSE-221-007

http://www.everlight.com

Prepared date:19-Aug-2005

Rev.1

Page: 1 of 9

Prepared by:Wang Zhiyong

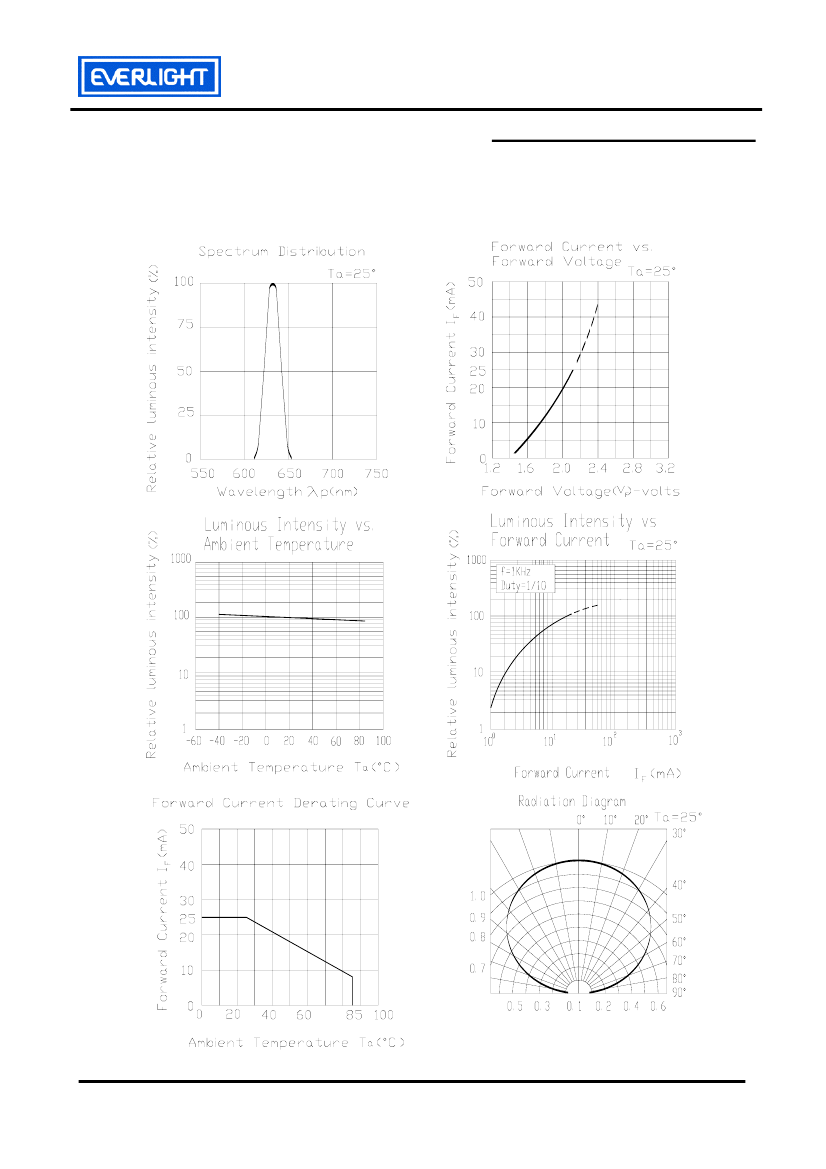

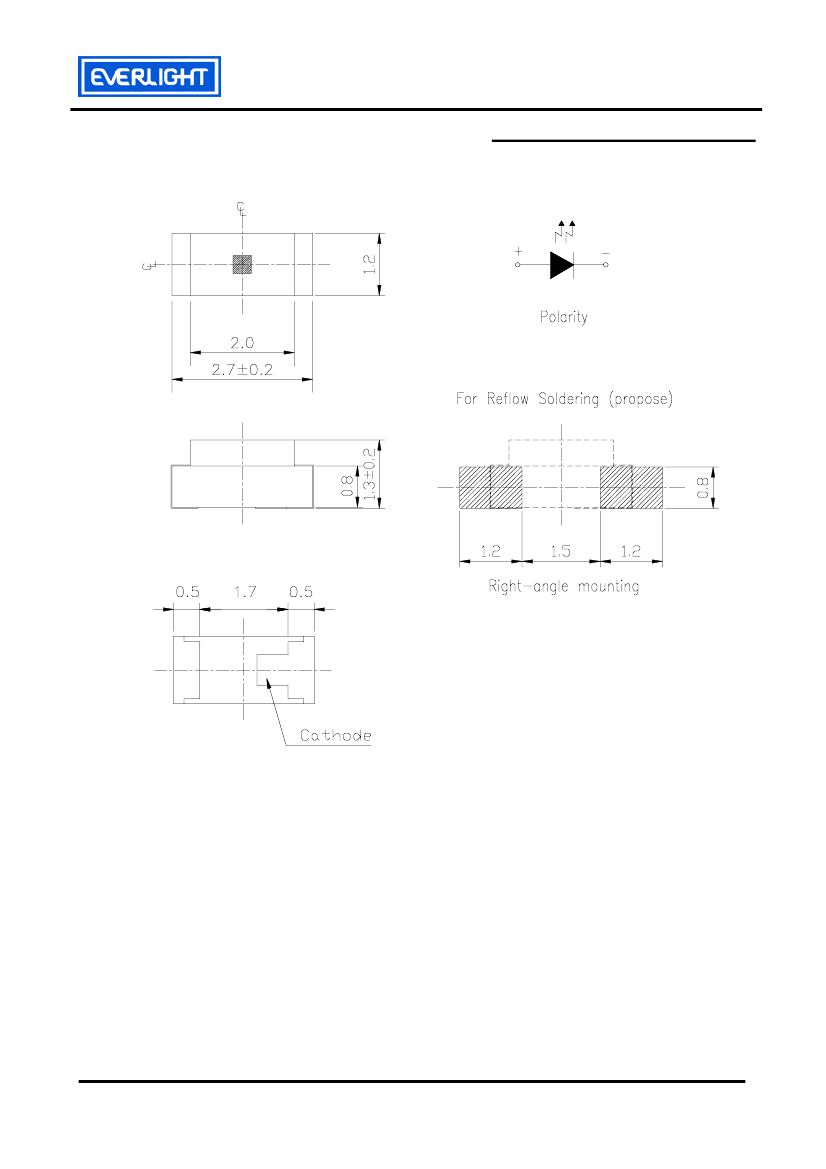

22-21USRC/S530-A2/TR8 Related Products

	22-21USRC/S530-A2/TR8	22-21USRC/S530-A6/TR8	22-21USRC/S530-A3/TR8	22-21USRC/S530-A5/TR8	22-21USRC/S530-A4/TR8
Description	Single Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN	Single Color LED, Dark Red, Water Clear, 2mm, ROHS COMPLIANT, SMD, 2 PIN
Is it lead-free?	Lead free	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to	conform to
package instruction	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN	ROHS COMPLIANT, SMD, 2 PIN
Reach Compliance Code	compli	compli	compli	compli	compli
color	DARK RED	DARK RED	DARK RED	DARK RED	DARK RED
Configuration	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maximum forward current	0.025 A	0.025 A	0.025 A	0.025 A	0.025 A
Lens type	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR	WATER CLEAR
Nominal luminous intensity	28.5 mcd	62.0 mcd	35.2 mcd	53.6 mcd	43.0 mcd
Installation features	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT	SURFACE MOUNT
Number of functions	1	1	1	1	1
Number of terminals	2	2	2	2	2
Maximum operating temperature	85 °C	85 °C	85 °C	85 °C	85 °C
Minimum operating temperature	-40 °C	-40 °C	-40 °C	-40 °C	-40 °C
Optoelectronic device types	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED	SINGLE COLOR LED
total height	1.3 mm	1.3 mm	1.3 mm	1.3 mm	1.3 mm
method of packing	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"	TAPE AND REEL 7"
peak wavelength	639 nm	639 nm	639 nm	639 nm	639 nm
shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
size	2 mm	2 mm	2 mm	2 mm	2 mm
surface mount	YES	YES	YES	YES	YES
Terminal pitch	2.7 mm	2.7 mm	2.7 mm	2.7 mm	2.7 mm
perspective	130 deg	130 deg	130 deg	130 deg	130 deg
Base Number Matches	1	1	1	1	1
