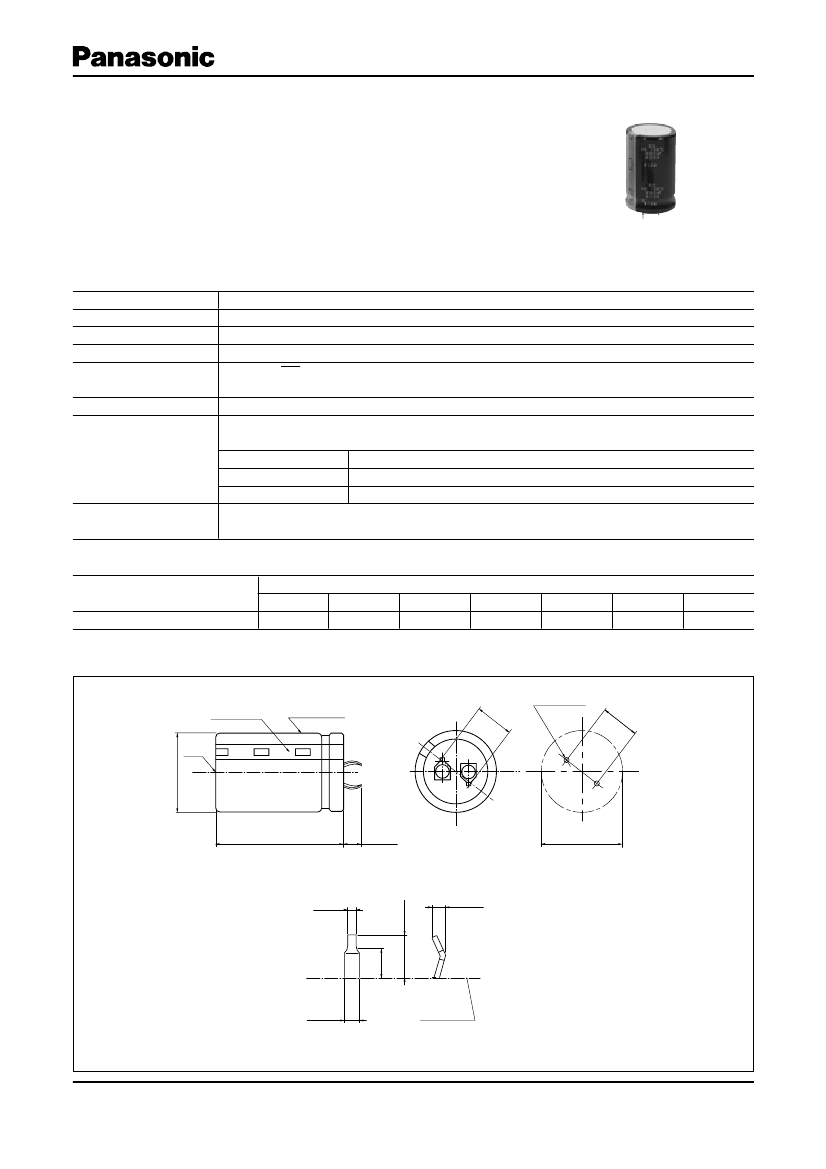

Aluminum Electrolytic Capacitors/ HD
Snap-in Type
Series:
HD
Type:
TS
■
Features
●
Endurance : 105 °C 3000 h
●
30 % smaller than series TS-HC
●
RoHS directive compliant
■
Specifications
Category Temp. Range
Rated W.V. Range
Nominal Cap. Range
Capacitance Tolerance
DC Leakage Current
tan
d
–25 °C to +105 °C
400 V.DC to 450 V.DC
120 μF to 680 μF
±20 % (120 Hz/+20 °C)
3√ CV (μA) max. After 5 minutes application of rated working voltage at +20 °C.
C : Capacitance (μF) V: W.V. (V.DC)
Please see the attached standard products list
After 3000 hours application of DC voltage with specified ripple current (
<
rated DC working voltage)
at +105 °C, the capacitors shall meet the following limits.
Endurance
Capacitance change
<
±20 % of initial measured value
tan
d
<
200 % of initial specified value
DC leakage current
<
initial specified value
After storage for 1000 hours at +105 °C±20 °C within no voltage applied and then being stabilized
at +20 °C, capacitors shall meet the limits specified in Endurance. (With voltage treatment)
Shelf Life
■
Frequency correction factor for ripple current
50
0.75
60
0.80
100
0.95
Frequency (Hz)
120
1.00
500
1.20
1k
1.25
10 k to
1.40
Correction factor
■
Dimensions in mm (not to scale)
Polarity bar
P.E.T. Sleeve
(1
0.0
)
(Unit : mm)
2-02.0±0.1
10
.0±
0.1
0D+1.0
max.
Vent
L+2.0 max.
Rated voltage etc. indicate to sleeve.
4.0±0.5
(0D)
Recommended PWB piercing plan
4.0±0.5
0.8
–0.1
+0.2
2.0 max.
Terminal
(t=0.8)
(3.5)
1.5±0.2
Top of spin
Standard terminal type does not require
terminal trimming peocess.
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Sep. 2013
– EEE-148 –
Aluminum Electrolytic Capacitors/ HD
■
Standard Products
Case size
W.V.
Cap.
(120 Hz)
(±20 %)
(μF)
120
180
220
270
330
400
390
470
560
680
120
150
180
220
Dia.
(mm)
22
25
22
25
25
30
22
25
35
25
35
25
30
35
30
35
30
35
22
22
25
22
25
22
25
22
25
30
35
25
30
25
30
35
30
35
30
35
22
25
22
25
22
25
30
22
25
30
35
25
30
30
35
30
35
30
35
Length
(mm)
25
25
35
30
35
25
50
40
25
45
25
50
35
30
40
35
50
40
25
30
25
35
30
40
35
50
40
30
25
45
35
50
40
30
45
35
50
40
30
25
35
30
45
35
25
50
40
30
25
45
35
40
30
45
35
50
40
Part No.
PET sleeve
Terminal Length
4.0 mm
(Without Top Plate)
EETHD2G121HJ
EETHD2G181JJ
EETHD2G221HJ
EETHD2G221JJ
EETHD2G271JJ
EETHD2G271KJ
EETHD2G331HJ
EETHD2G331JJ
EETHD2G331LJ
EETHD2G391JJ
EETHD2G391LJ
EETHD2G471JJ
EETHD2G471KJ
EETHD2G471LJ
EETHD2G561KJ
EETHD2G561LJ
EETHD2G681KJ
EETHD2G681LJ
EETHD2S121HJ
EETHD2S151HJ
EETHD2S151JJ
EETHD2S181HJ
EETHD2S181JJ
EETHD2S221HJ
EETHD2S221JJ
EETHD2S271HJ
EETHD2S271JJ
EETHD2S271KJ
EETHD2S271LJ
EETHD2S331JJ
EETHD2S331KJ
EETHD2S391JJ
EETHD2S391KJ
EETHD2S391LJ
EETHD2S471KJ
EETHD2S471LJ
EETHD2S561KJ
EETHD2S561LJ
EETHD2W121HJ
EETHD2W121JJ
EETHD2W181HJ
EETHD2W181JJ
EETHD2W221HJ
EETHD2W221JJ
EETHD2W221KJ
EETHD2W271HJ
EETHD2W271JJ
EETHD2W271KJ
EETHD2W271LJ
EETHD2W331JJ
EETHD2W331KJ
EETHD2W391KJ
EETHD2W391LJ
EETHD2W471KJ
EETHD2W471LJ
EETHD2W561KJ
EETHD2W561LJ
Specification
Ripple
tan
d
Current
(120 Hz)
(120 Hz)
(+20 °C)
(+105 °C)
max.
(A r.m.s.)
0.75
0.15
0.95
0.15
1.10
0.15
1.10
0.15
1.22
0.15
1.22
0.15
1.44
0.15
1.44
0.15
1.44
0.15
1.55
0.15
1.55
0.15
1.68
0.15
1.68
0.15
1.68
0.15
1.90
0.15
1.90
0.15
2.12
0.15
2.12
0.15
0.74
0.15
0.84
0.15
0.84
0.15
0.91
0.15
0.91
0.15
1.05
0.15
1.05
0.15
1.20
0.15
1.20
0.15
1.20
0.15
1.20
0.15
1.42
0.15
1.42
0.15
1.55
0.15
1.55
0.15
1.55
0.15
1.71
0.15
1.71
0.15
1.90
0.15
1.90
0.15
0.72
0.20
0.72
0.20
0.87
0.20
0.87
0.20
1.00
0.20
1.00
0.20
1.00
0.20
1.19
0.20
1.19
0.20
1.19
0.20
1.19
0.20
1.38
0.20
1.38
0.20
1.55
0.20
1.55
0.20
1.74
0.20
1.74
0.20
1.90
0.20
1.90
0.20
Endurance : 105 °C 3000 h
Min. Packaging Q'ty
(V. DC)
270
420
330
390
470
560
120
180
220
450
270
330
390
470
560
(pcs)
200
200
200
200
200
100
200
200
100
200
100
200
100
100
100
100
100
100
200
200
200
200
200
200
200
200
200
100
100
200
100
200
100
100
100
100
100
100
200
200
200
200
200
200
100
200
200
100
100
200
100
100
100
100
100
100
100
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Sep. 2013
– EEE-149 –
