HY1A112DC: DescriptionHigh Capacity Relay HY; File Size190KB，2 Pages; ManufacturerETC2

Download Datasheet View All

HY1A112DC Overview

High Capacity Relay HY

Preview

Download Datasheet

View All

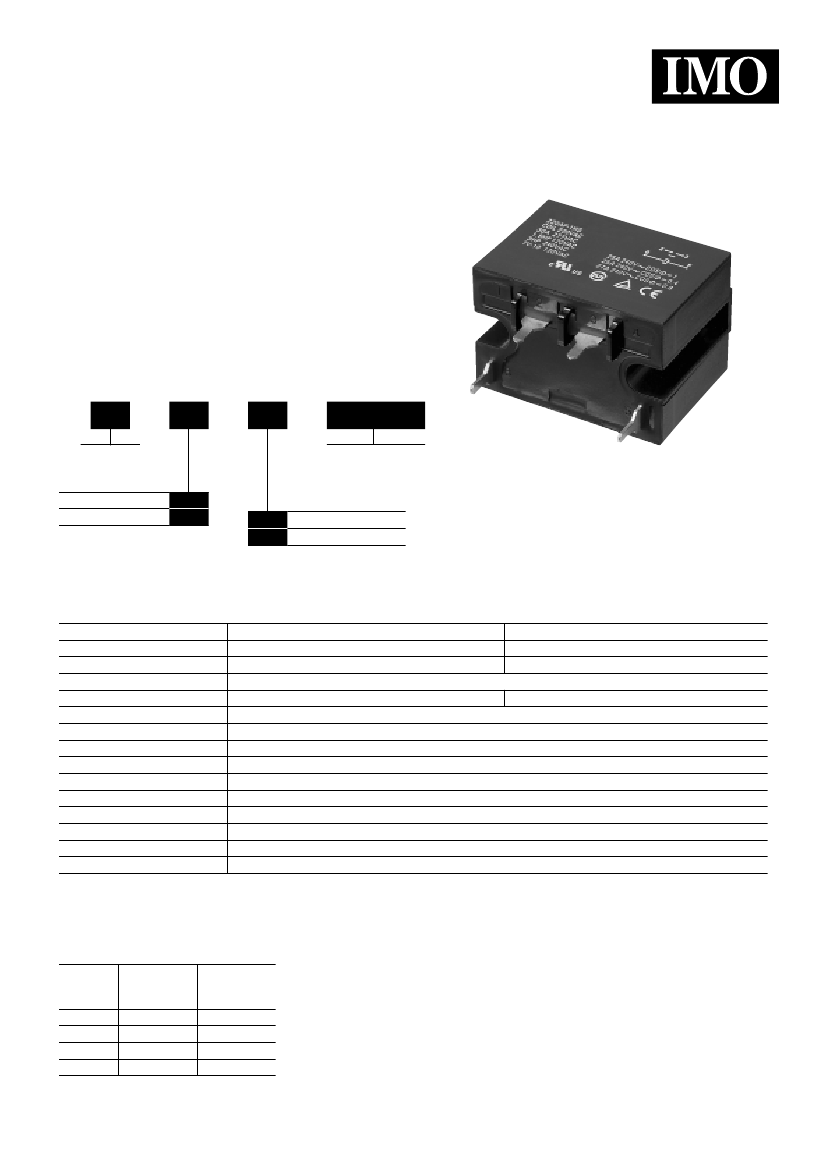

High Capacity Relay HY

❚

3mm contact gap as standard

❚

30A high capacity relay able to withstand

momentary voltage drops to 50% rated

❚

Class F insulation

❚

Heavy load up to 7500VA

❚

UL/cUL approved

Options and ordering codes

Power Relay

200/240VAC

For coil voltage

see table

Single pole double make

Double pole double make

Solder Lug/push-on

PCB (2A version only)

Specification

Type

Rated load

Rated current

Maximum switching voltage

Maximum switching capacity

Operate time

Release time

Dielectric strength

Ambient operating temperature

Mechanical service life

Electrical service life

Contact material

Voltage range

Power consumption

Weight

HY1A

Res. 30A, 250VAC/Ind. 25A,. 250VAC COS Ø0.4

30A

277VAC

7500VA

30ms max

4000V, 50/60Hz for 1 min (coil to contact)

-55~+70C (no freezing)

10,000,000 operations min

100,000 operations min

AgSnO

AC80~110%, DC75~110%

Approx. 1.7VA~2.7VA/1.9W

Approx. 120g

6250VA

HY2A

Res. 25A, 250VAC/Ind. 25A, 250VAC COS Ø0.4

25A

Coil Data

Rated

Volatge

100/120

200/240

AC Coils.

Coil resistance

Ω

300

5200

208000

DC Coils.

Coil resistance

Ω

300

6300

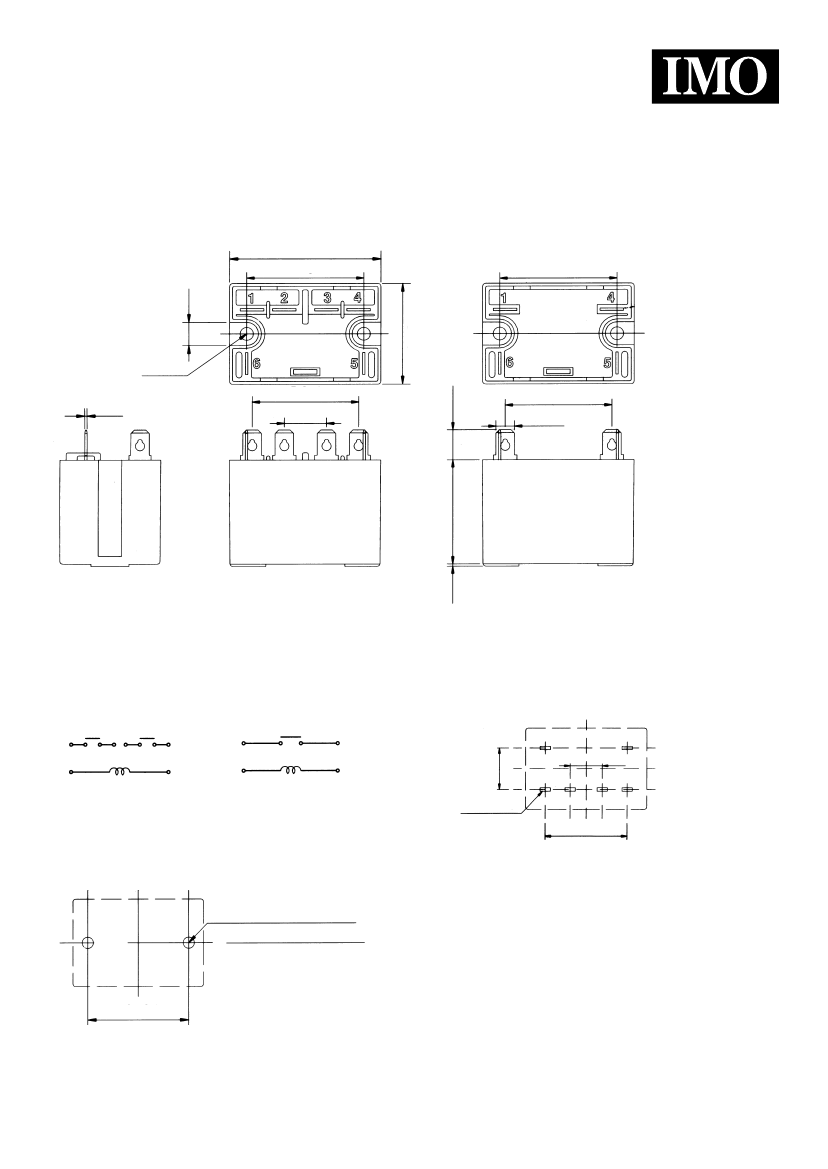

HY/02/05
