OV8830
8-megapixel
product brief
lead free
available in
a lead-free
package
High Performance, Ultra Compact 8-Megapixel CMOS Image
Sensor Based on OmniBSI-2™ Delivers Low Power HD
Mobile Imaging Solution for Next Generation Smart Phones
The OV8830 is OmniVision's first sensor built on the company's second
generation OmniBSI-2™ backside illumination (BSI) pixel architecture.
It delivers optimized power consumption and best-in-class pixel
performance that enable enhanced image capture and high frame rate
1080p and 720p high-definition (HD) video recording. Manufactured
combining a copper process on 300 mm wafers using 65 nm design rules,
the 1/3.2-inch OV8830 is highly optimized for the next generation smart
phone market.
Benefits of OmniBSI-2 technology found in the OV8830 include
optimized die size, a bigger collection region in the photodiode enabled
by custom design rules, a significant reduction in power consumption,
and 1.14 ~ 1.32V digital core. Key improvements over the first
generation OmniBSI architecture include a 20 percent improvement in
peak quantum efficiency in all color channels, 35 percent improvement
in low-light sensitivity, and 45 percent increase in full well capacity.
OmniBSI-2's custom pixel design rules also enable better pixel layout,
better isolation, and significantly reduced crosstalk. Each of these
advances represent additional performance improvements over the first
generation OmniBSI technology resulting in better image quality,
enhanced color reproduction, and improved overall camera performance.
In full 8-megapixel (3264 x 2448) resolution, the OV8830 operates at
24 frames per second (fps) in a 4:3 format and in 6-megapixel
(3264 x 1836) resolution at 30 fps in a 16:9 format. These higher frame
rates enable a number of key benefits, including: no image lag for
shutter-less designs, continuous shooting, minimized rolling shutter
effect, real-time image capture with no lag between resolutions, and
full HD at 30 or 60 fps.
The OV8830 is a RAW sensor designed for 2-chip solutions that involve
the sensor working in conjunction with a baseband or an application
processor with integrated image signal processing. Additional
integrated features of the OV8830 include an integrated scaler,
2x2 binning, re-sampling filter, alternate row high dynamic range
timing support, context switching, temperature sensing, 4 Kbits of
one-time programmable memory, lens shading correction, and defect
pixel correction. The OV8830 fits into the industry standard module size
of 8.5 x 8.5 x 6 mm, and a high-speed, 4-lane mobile industry processor
interface (MIPI) facilitates the required high data transfer rate.
Find out more at www.ovt.com.
Applications
¬ Cellular and Mobile Phones
¬ Digital Still Cameras (DSC)
¬ Digital Video Camcorders (DVC)
¬ PC Multimedia
OV8830
Ordering Information
¬
OV08830-G04A
(color, chip probing, 200 µm backgrinding, reconstructed wafer with good die)
¬ supports horizontal and
vertical subsampling
¬ supports images sizes: 8MP, 6MP,
EIS1080p, 1080p, EIS720p,
EISQ 1080p, Q1080p, EISVGA, VGA,
QVGA, etc.
¬ standard serial SCCB interface
¬ two on-chip phase lock loop (PLL)
¬ programmable I/O drive capability
¬ built-in 1.2V regulator for core
¬ built-in temperature sensor
¬
OV08830-G20A
(color, chip probing, no backgrinding, no die-saw, whole wafer)
Product Features
¬ 1.4 µm OmniBSI-2™ technology
¬ 2/4-lane MIPI serial output interface
¬ support scalar, 2x2 binning,
re-sampling filter
¬ supports alternate row HDR timing
¬ embedded 4K bits one-time
programmable (OTP) memory
¬ context switching
¬ image quality controls: 2D-DPC
and lens shading correction
¬ automatic black level calibration (ABLC)
¬ programmable controls for frame rate,
mirror and flip, cropping, windowing,
and scaling
Product Specifications
¬
lens size:
1/3.2"
¬
output formats:
10-bit RAW RGB
¬
standard module size:
8.5 x 8.5 x 6 mm
¬
maximum image transfer rate:
- 8MP:
24 fps
- EIS1080p:
30 fps
- EIS720p:
60 fps
¬
power supply:
- core:
1.14 ~ 1.32V for up to
700 Mbps/lane or 1.27 ~ 1.32V
for up to 1 Gbps/lane MIPI
(internal regulator optional)
- analog:
2.6 ~ 3.0V
- I/O:
1.7 ~ 3.0V
¬
power requirements:
- active:
155 mA (291 mW*)
- standby:
300 µA
- XSHUTDOWN:
10 µA
¬
active array size:
3264 x 2448
¬
lens chief ray angle:
27° non-linear
¬
temperature range:
- operating:
-30°C to 85°C junction
temperature
- stable image:
0°C to 60°C junction
temperature
¬
input clock frequency:
6 ~ 27 MHz
¬
sensitivity:
824 mV/lux-sec**
¬
scan mode:
progressive
¬
pixel size:
1.4 µm x 1.4 µm
¬
image area:
4592 µm x 3450 µm
¬
die dimensions:
6410 µm x 5940 µm
* If the internal regulator is used, a higher power consumption of 339 mW with DOVDD = 1.8V is achieved.
** Pixel performance shown is a target value. This value is subject to change based on real measurements.

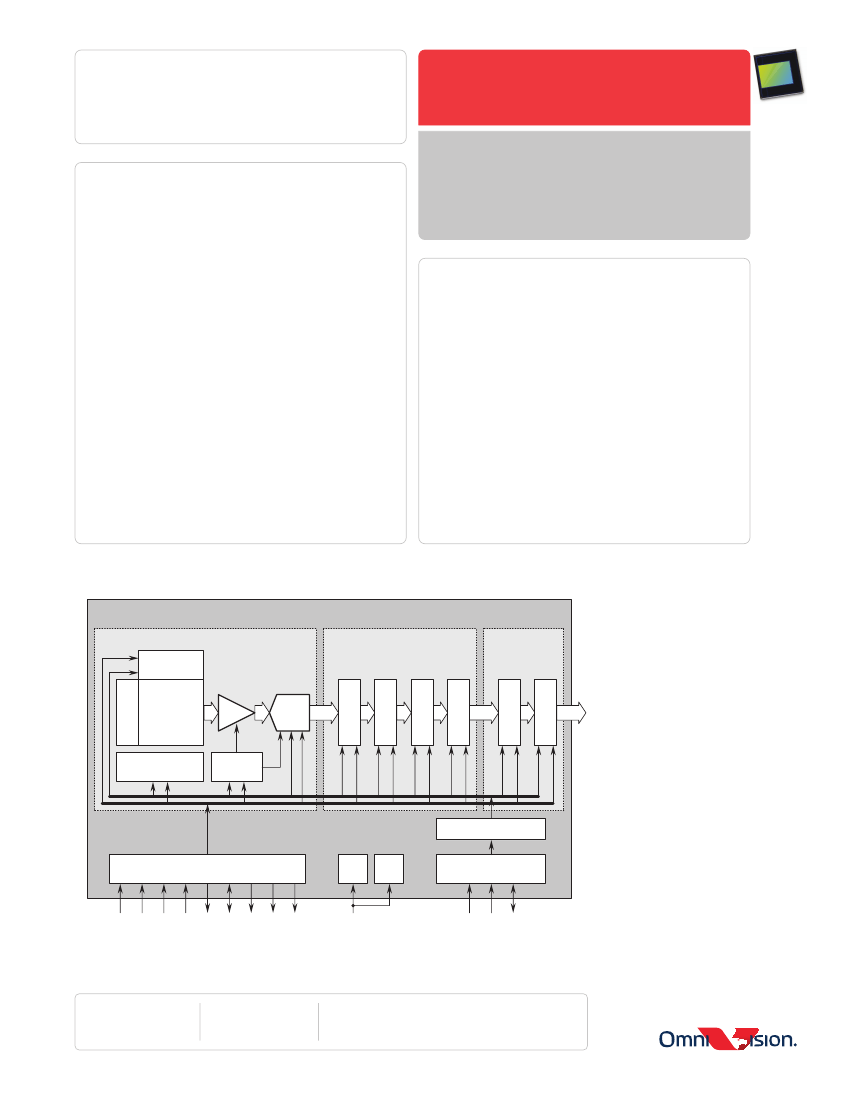

Functional Block Diagram
OV8830
image sensor core
column
sample/hold
row select
array
LENC
10-bit
ADC
image sensor
processor
image output
interface
scalar
MWB
AMP
MCP/N
MDP/N[3:0]
FIFO
SIOD
SIOC
temperature
sensor
gain
control
control register bank
timing generator
and system control logic
PLL
PLLs
SCCB interface
FSO/VSYNC
XSHUTDOWN
GPIO[2:0]
TM
STROBE
PWDNB
IL_PWM
FREX
FSIN
