Spec Sheet
LW Reversal Decoupling Capacitors (LWDC™)
AWK107BJ106MV-T
Features
Item Summary
10uF±20%, 4V,
X5R, 0306/0816 (EIA/JIS)
Lifecycle Stage
Mass Production
Standard packaging quantity (minimum)
Taping Embossed 4000pcs
Products characteristics table
Capacitance
Case Size (EIA/JIS)
Rated Voltage
tanδ (max)
Temperature Characteristic (EIA)
Operating Temp. Range (EIA)
High Temperature Loading
(% Rated Voltage)
Insulation Resistance (min)
RoHS2 Compliance (10 subst.)
REACH Compliance (181 subst.)
Halogen Free
Soldering
100 MΩ·μF
Yes
Yes
Yes
Reflow
10 uF ± 20 %
0306/0816
4V
10 %
X5R
-55 to +85 ℃
150 %

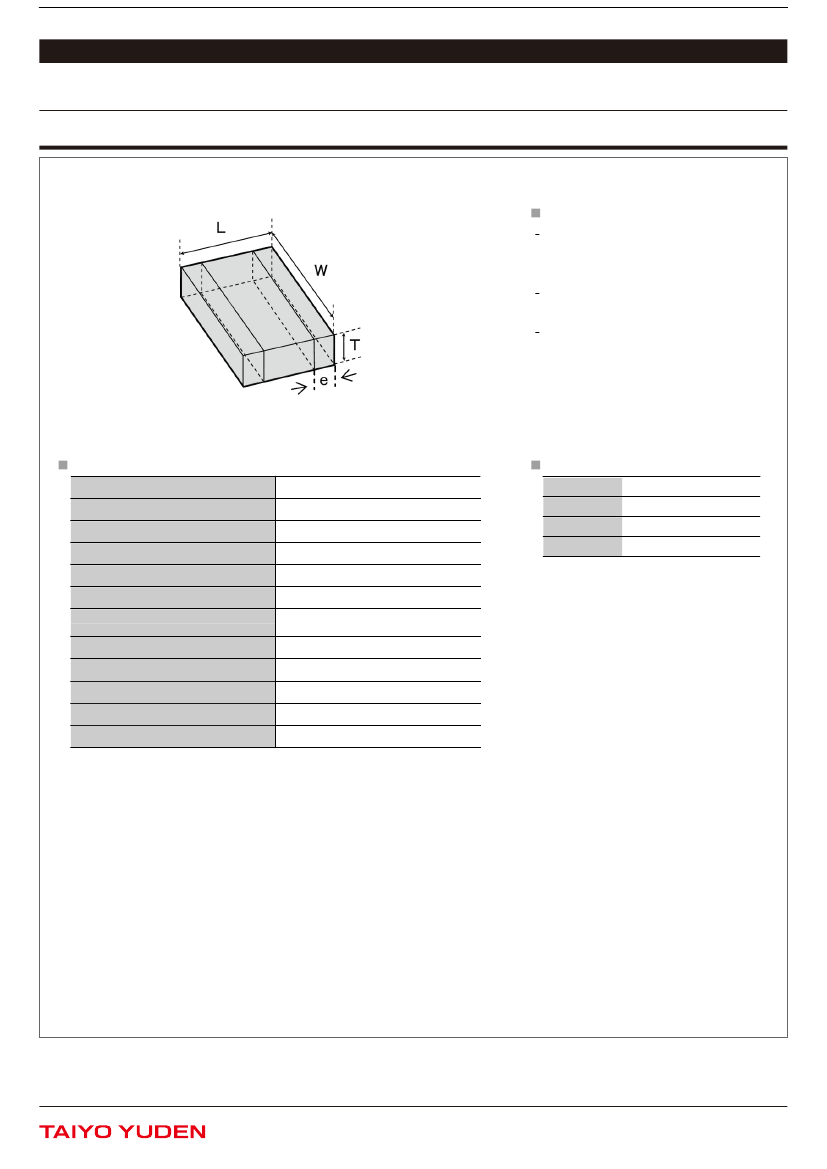

External Dimensions
Dimension L
Dimension W
Dimension T
Dimension e
0.8 ±0.10 mm
1.6 ±0.10 mm
0.5 ±0.05 mm
0.25 ±0.15 mm
2018.11.08
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
http://www.ty-top.com
Powered by TCPDF (www.tcpdf.org)
Multi Layer Ceramic Capacitor
○AWK107BJ106MV
4V 0816 X5R 10uF +/- 20% t=0.55mmMAX
4V 0306 X5R 10uF +/- 20% t=0.022inchMAX

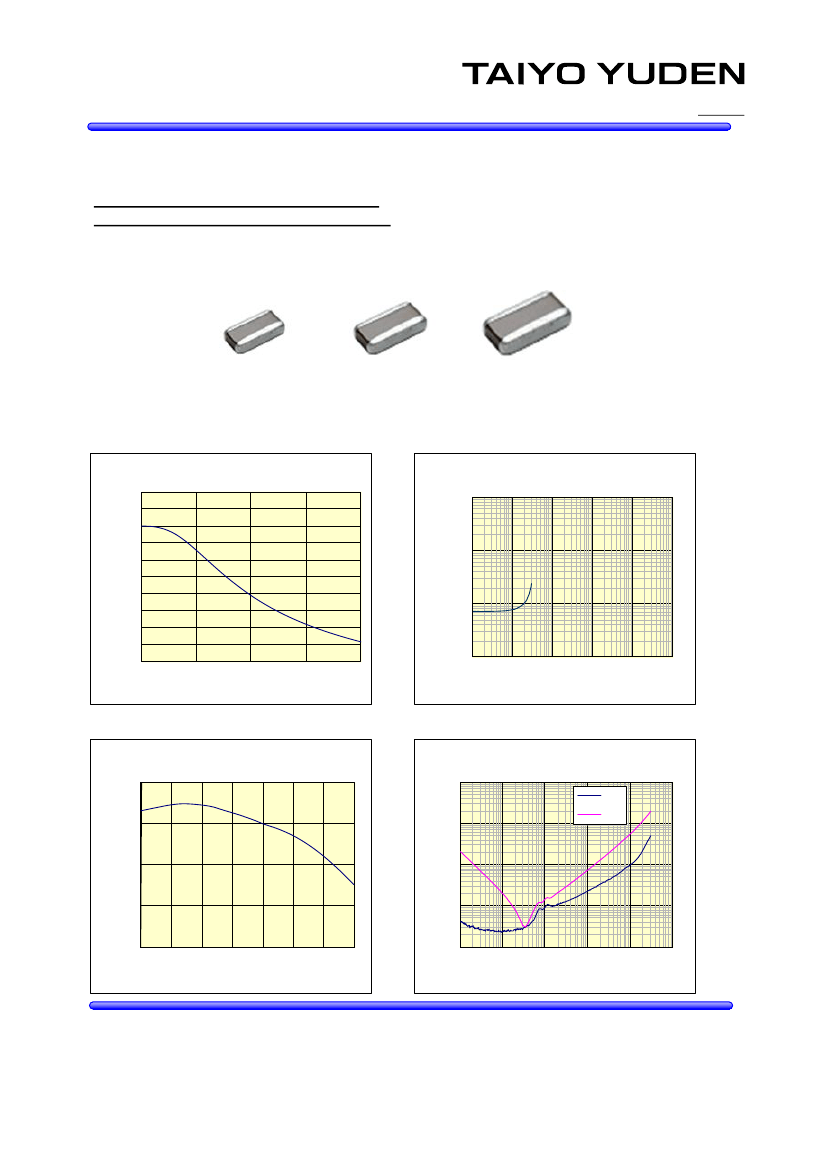

-Electrical Characteristics Data-
17SC01
RoHS compliance product
20
10
0
-10
-20
-30
-40
-50
-60
-70
-80
0
1
AWK107BJ106MV
DC Bias Char.
1000
AWK107BJ106MV
Capacitance Freq.
Capacitance[uF]
100
dC/C[%]
10
1
2
3
DC Bias Voltage[V]
4
0.1
1
10
100
1000
10000
Frequency[MHz]
AWK107BJ106MV
Capacitance Temp.
10
10
AWK107BJ106MV
Impedance,ESR Freq.
ESR
0
1
Z
-10
Z,ESR[OHM]
-55
-35
-15
5
25
45
Temperature[degreeC]
65
85
dC/C[%]
0.1
-20
0.01
-30
0.001
0.1
1
10
100
1000
Frequency[MHz]
10000
部品特性は設½環境、測定条件等により変化する場合があります。本データをご½用される際は実際の½品特性に対する参考
データとしてご活用ください。また、本データは予告無く½加½削除及び変更を行う場合があります。ご注文の際は、納入仕様書の
ご確認をお願いします。
The data is reference only. Electrical characteristics vary depending on environment or measurement condition.
TAIYO YUDEN reserves the right to make change to the data at any time without notice.
Before making final selection, please check product specification.
■
