UPD27C1001AD-12 datasheet, PDF

UPD27C1001AD-12: DescriptionIC,EPROM,128KX8,CMOS,DIP,32PIN,CERAMIC; Categorystorage storage; File Size205KB，12 Pages; ManufacturerRenesas Electronics Corporation; Websitehttps://www.renesas.com/

Download Datasheet Parametric Compare View All

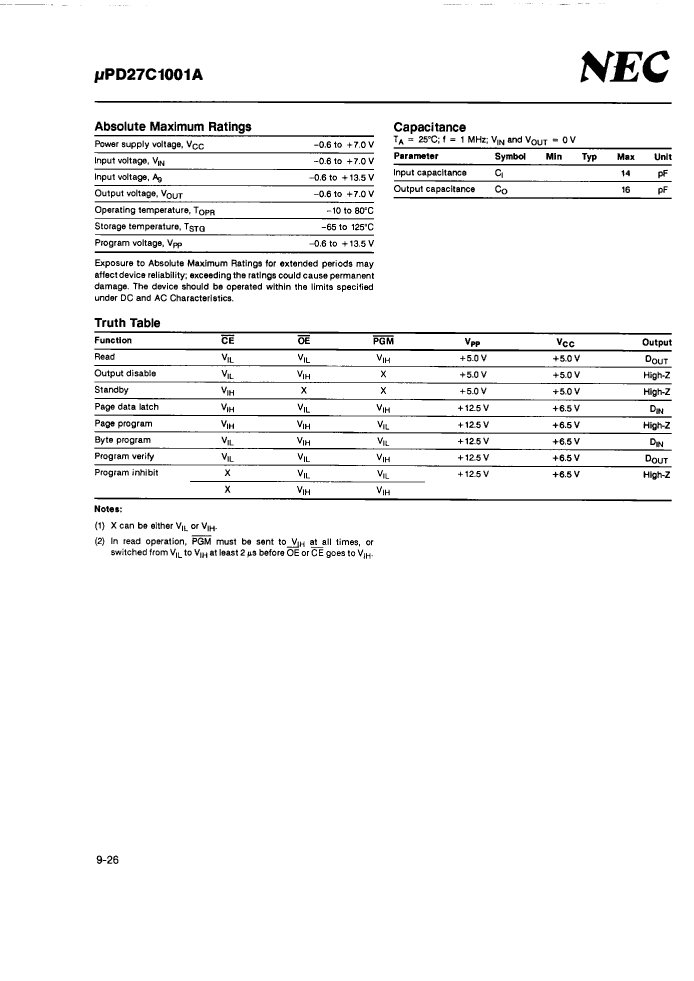

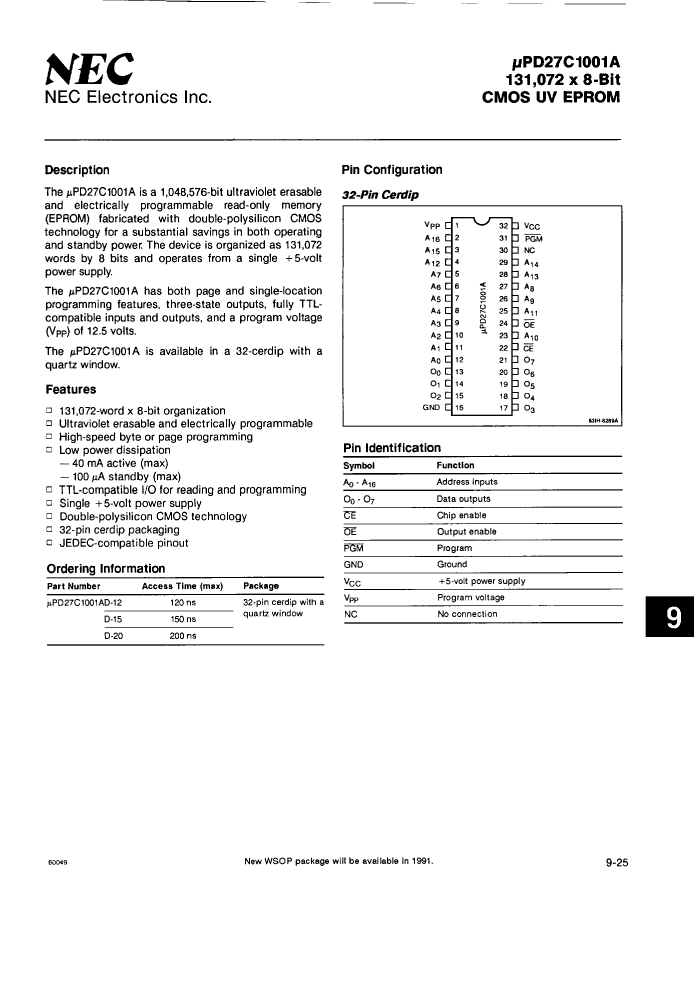

UPD27C1001AD-12 Overview

IC,EPROM,128KX8,CMOS,DIP,32PIN,CERAMIC

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Renesas Electronics Corporation
Parts packaging code	DIP
Contacts	32
Reach Compliance Code	unknown
ECCN code	EAR99

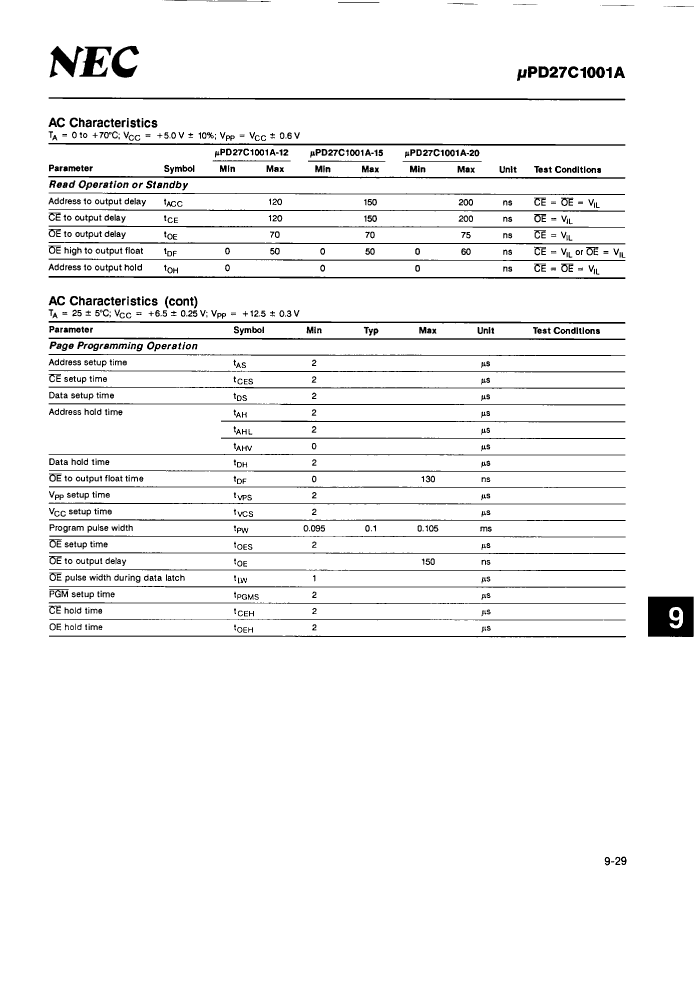

Maximum access time	120 ns
I/O type	COMMON
JESD-30 code	R-XDIP-T32
memory density	1048576 bit
memory width	8
Number of terminals	32
word count	131072 words
character code	128000
Maximum operating temperature	70 °C
Minimum operating temperature
organize	128KX8
Output characteristics	3-STATE
Package body material	CERAMIC
encapsulated code	DIP
Encapsulate equivalent code	DIP32,.6
Package shape	RECTANGULAR
Package form	IN-LINE

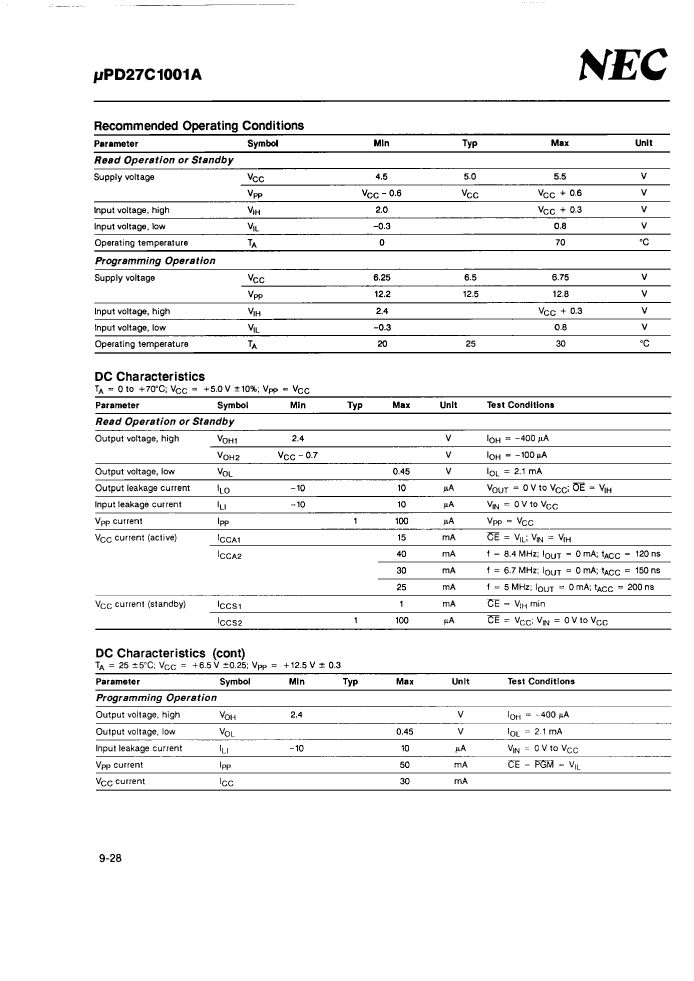

power supply	5 V
Certification status	Not Qualified
Maximum standby current	0.0001 A
Maximum slew rate	0.04 mA
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL

	UPD27C1001AD-12	UPD27C1001AD-15	UPD27C1001AD-20
Description	IC,EPROM,128KX8,CMOS,DIP,32PIN,CERAMIC	128KX8 UVPROM, 150ns, CDIP32, WINDOWED, CERDIP-32	128KX8 UVPROM, 200ns, CDIP32, WINDOWED, CERDIP-32
Is it lead-free?	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible
Maker	Renesas Electronics Corporation	Renesas Electronics Corporation	Renesas Electronics Corporation
Parts packaging code	DIP	DIP	DIP
Contacts	32	32	32
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
Maximum access time	120 ns	150 ns	200 ns
I/O type	COMMON	COMMON	COMMON
JESD-30 code	R-XDIP-T32	R-XDIP-T32	R-XDIP-T32
memory density	1048576 bit	1048576 bit	1048576 bit
memory width	8	8	8
Number of terminals	32	32	32
word count	131072 words	131072 words	131072 words
character code	128000	128000	128000
Maximum operating temperature	70 °C	70 °C	70 °C
organize	128KX8	128KX8	128KX8
Output characteristics	3-STATE	3-STATE	3-STATE
Package body material	CERAMIC	CERAMIC	CERAMIC
encapsulated code	DIP	DIP	DIP
Encapsulate equivalent code	DIP32,.6	DIP32,.6	DIP32,.6
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE	IN-LINE
power supply	5 V	5 V	5 V
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum standby current	0.0001 A	0.0001 A	0.0001 A
Maximum slew rate	0.04 mA	0.04 mA	0.04 mA
Nominal supply voltage (Vsup)	5 V	5 V	5 V
surface mount	NO	NO	NO
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	THROUGH-HOLE	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL
