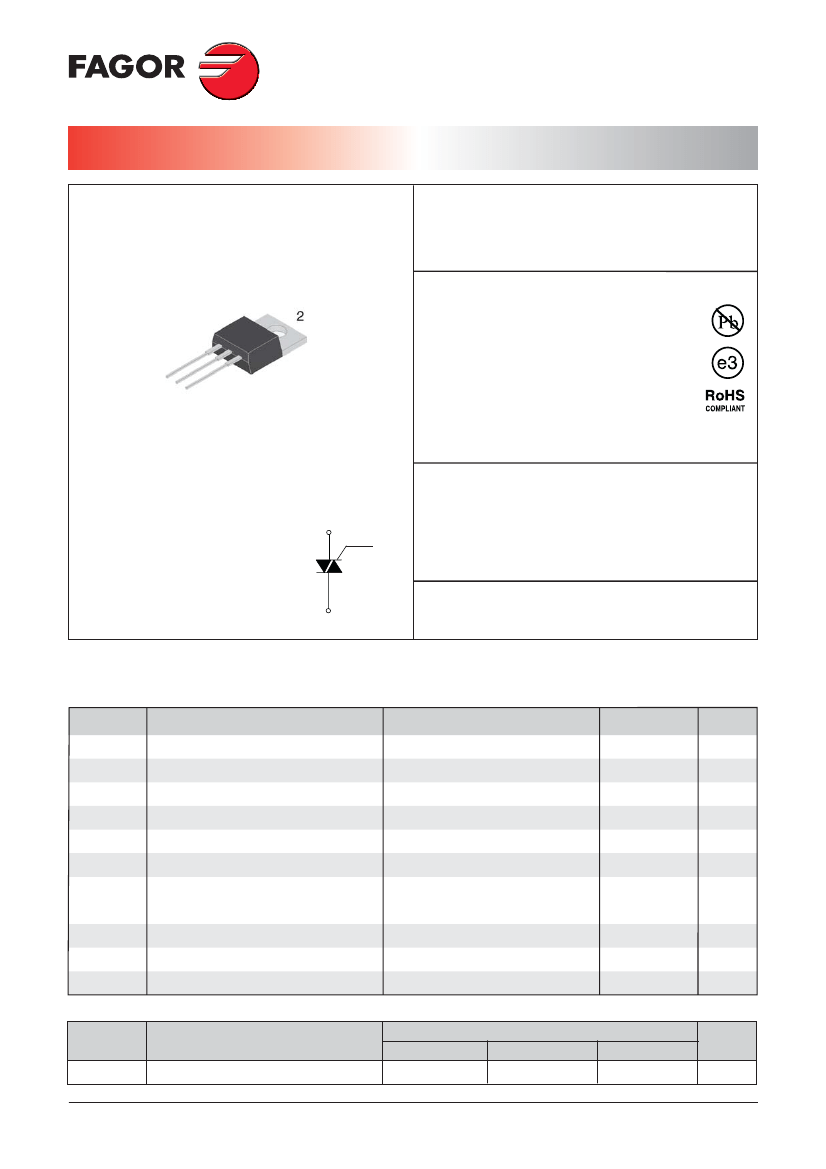

FT12...H
HIGH COMMUTATION TRIAC
TO-220AB
On-State Current
12 Amp
Gate Trigger Current
£
50 mA
Off-State Voltage
400 V ÷ 800 V
2
FEATURES
Glass/passivated die junctions
Medium current Triac
Low thermal resistance
High commutation
High surge current capability
Low forward voltage drop
Solder dip 260ºC, 10s
Component in accordance to RoHS 2011/65/EU
and WEEE 2002/96/EC
Meets MSL level 3, per J-STD-020, LF maximum
peak of 260º C
MECHANICAL DATA
Case
:
TO-220AB. Epoxy meets UL 94V-0 flammability
rating.
Polarity
:
As marked on the body.
Terminals
:
Matte tin plated leads, solderable per
MIL-STD-750 Method 2026, J-STD-002 and JESD22-B102.
Consumer grade, meets JESD 201 class 1A whisker test.
TYPICAL APPLICATIONS
Used on inductive loads, thanks to their high commutation
performances.
1
23
MT1 (1)
G (3)
MT2 (2)
Maximun Ratings and Electrical Characteristics at 25°C
SYMBOL
PARAMETER
RMS On-state Current (full sine wave)
Non-repetitive On-State Current
Non-repetitive On-State Current
Fusing Current
Peak Gate Current
Average Gate Power Dissipation
Critical rate of rise of on-state current
Operating Temperature
Storage Temperature
Soldering Temperature
10s max
VOLTAGE
D
400
Revision: 2
CONDITIONS
All Conduction Angle, T
c
= 105 °C
Full Cycle, 60 Hz (t = 16.7 ms)
Full Cycle, 50 Hz (t = 20 ms)
tp = 10 ms, Half Cycle
20 µs max.
Tj = 125 °C
I
G
= 2x I
GT
, tr
£100ns
f = 120 Hz, Tj = 125 °C
Tj = 125 °C
Value
12
110
100
50
4
1
50
(-40 +125)
(-40 +150)
260
Unit
A
A
A
A
2
s
A
W
A/µs
°C
°C
°C
I
T(RMS)
I
TSM
I
TSM
I
2
t
I
GM
P
G(AV)
dI/dt
T
j
T
stg
T
sld
SYMBOL
PARAMETER
Repetitive Peak Off State Voltage
V
DRM
/V
RRM
M
600
N
800
Unit
V
www.fagorelectronica.com
Document Name: ft12hhc
Version: Jul-13
Page Number: 1/6
FT12...H
HIGH COMMUTATION TRIAC
Electrical Characteristics at Tamb = 25 °C
SYMBOL
I
GT (1)
V
GT
V
GD
I
H (2)
I
L
dV/dt
(2)
(dI/dt)c
(2)
PARAMETER
Gate Trigger Current
Gate Trigger Voltage
Gate Non Trigger Voltage
Holding Current
Latching Current
Critical Rate of Voltage Rise
CONDITIONS
Quadrant
SENSITIVITY
11
25
14
35
1.3
0.2
25
40
50
35
50
60
50
70
80
16
50
Unit
mA
V
V
mA
mA
mA
V
D
= 12 V
DC
, R
L
= 33W, T
j
= 25 °C Q1÷Q3 MAX
V
D
= 12 V
DC
, R
L
= 33W, T
j
= 25 °C Q1÷Q3 MAX
V
D
= V
DRM
, R
L
= 3.3 KW, T
j
= 125 °C Q1÷Q3 MIN
I
T
=100 mA,Gate open, T
j
= 25 °C
I
G
= 1.2 I
GT
, T
j
= 25 °C
V
D
= 0.67 x V
DRM
, Gate open
Q2
MAX
Q1,Q3 MAX
MAX
MIN
MIN
MIN
MIN
MAX
MAX
MAX
200 500 1000 V/µs
-
-
5.3
-
-
6.5
1.55
0.85
35
1
5
1.4
60
-
-
12
V
V
mW
mA
µA
°C/W
°C/W
A/ms
T
j
= 125 °C
Critical Rate of Current Rise
(dv/dt)c
= 0.1 V/µs
T
j
= 125 °C
T
j
= 125 °C
T
j
= 125 °C
(dv/dt)c
= 10 V/µs
without snubber
V
TM (2)
V
t (o) (2)
r
d (2)
On-state Voltage
Threshold Voltage
Dynamic resistance
T
j
= 125 °C
T
j
= 125 °C
V
D
= V
DRM
,
V
R
= V
RRM
,
R
th(j-c)
R
th(j-a)
Thermal Resistance
Junction-Case
Thermal Resistance
Junction-Ambient
(1) Minimum I
GT
is guaranted at 5% of I
GT
max.
(2) For either polarity of electrode MT2 voltage with reference to electrode MT1.
I
T
= 17 Amp, tp = 380 µs,T
j
= 25 °C
I
DRM
/I
RRM
Off-State Leakage Current
T
j
= 125 °C
T
j
= 25 °C
MAX
MAX
for AC 360° conduction angle
Part Number Information
F
FAGOR
TRIAC
CURRENT
CASE
VOLTAGE
SENSITIVITY
T
12
11
D
H
00 TU
PACKAGING
FORMING
www.fagorelectronica.com
Document Name: ft12hhc
Revision: 2
Version: Jul-13
Page Number: 2/5
FT12...H
HIGH COMMUTATION TRIAC
Ordering information
PREFERRED P/N
FT1216DH 00TU
PACKAGE CODE
TU
DELIVERY MODE
TUBE
BASE QUANTITY
1000
UNIT WEIGHT (g)
2.30
Package Outline Dimensions: (mm)
TO-220AB
ø
P
Q
D
D1
Test sort name
Week code
A
E
A1
REF.
H1
A
A1
A2
b
b2
c
D
D1
E
e
e1
H1
L
L1
P
Q
DIMENSIONS
Milimeters
Min.
Max.
4.67
4.47
1.37
1.17
2.82
2.52
0.91
0.71
1.37
1.17
0.53
0.31
15.35
14.65
8.90
8.50
10.36
10.01
2.57
2.51
5.18
4.98
6.45
6.15
13.96
13.40
3.96
3.56
3.735
3.935
2.59
2.89
MC
XXXH
WWY
Marking code
Format type
Year code
L1
L
b2
b
e
e1
A2
c
Mounting Torque
0.8 N.m
www.fagorelectronica.com
Document Name: ft12hhc
Revision: 2
Version: Jul-13
Page Number: 3/6
FT12...H
HIGH COMMUTATION TRIAC
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)

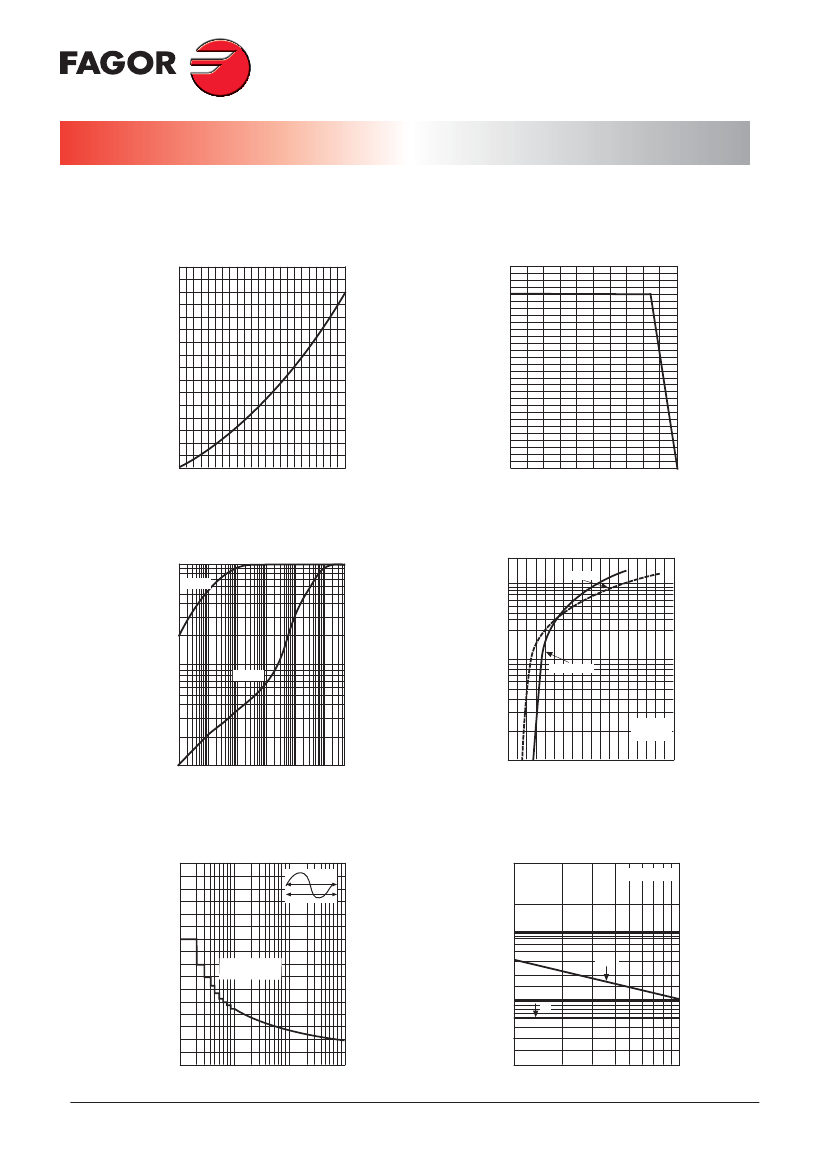

Fig. 1: Maximum power dissipation versus
RMS on-state current (full cycle)
P (W)
16
14
12
10
8
6
4
2
0
0 1 2 3 4 5 6 7 8 9 10 11 12
Fig. 2: RMS on-state current versus case
temperature (full cycle)
IT(RMS)(A)
14
13
12
11
10
9
8
7
6
5
4
3
2
1
0
0
IT(RMS)(A)
25
50
75
100
125
Tc (ºC)
Fig. 3: : Relative variation of thermal
impedance versus pulse duration
K=[Zth / Rth]
1E+0
Zth(j-c)
Fig. 4: On-state characteristics (maximum
values)
200
100
ITM (A)
Tj max
1E-1
10
Zth(j-a)
Tj = 25 ºC
Tj max
Vto = 0.85 V
Rd = 35m
W
1E-2
1E-3
1E-2
1E-1 1E+0
1E+1
1E+2 5E+2
tp (s)
1
0.5 1.0 1.5 2.0 2.5 3.0 3.5 4.0 4.5
VTM (V)
Fig. 5: Surge peak on-state current versus
number of cycles
I TSM
160
140
120
100
80
60
40
20
0
1
10
100
1000
Non repetitive
Tj initial = 25 ºC
t = 20ms
One cycle
Fig. 6: Non repetitive surge peak on-state
current for a sinusoidal pulse with width:
tp < 10 ms, and corresponding value of I
2
t.
ITSM(A). I
2
t (A
2
s)
Tj initial = 25 ºC
1000
ITSM
100
I
2
t
Number of cycles
10
1
10
tp(ms)
www.fagorelectronica.com
Document Name: ft12hhc
Revision: 2
Version: Jul-13
Page Number: 4/6
FT12...H
HIGH COMMUTATION TRIAC
Ratings and Characteristics
(Ta 25 ºC unless otherwise noted)
Fig. 7: Relative variation of gate trigger
current, holding current and latching versus
junction temperature (typical values)
2.5
2.0
1.5
1.0
0.5
Tj(°C)
0
-40 -20 0 20 40 60 80 100120140
I
H
&I
L
Fig. 8: Relative variation of critical rate of
decrease of main current versus junction
temperature
6
5
IGT,IH,IL[Tj]/IGT,IH,IL.[Tj=25°C]
(dI/dt)c [Tj]/(dI/dc)c [Tj specified]
I
GT
4
3
2
1
0
Tj(°C)
0
25
50
75
100
125
www.fagorelectronica.com
Document Name: ft12hhc
Revision: 2
Version: Jul-13
Page Number: 5/6
