BZX84C13_NL

Description
Zener Diode, 13V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN
CategoryDiscrete semiconductor    diode
File Size57KB，4 Pages
ManufacturerFairchild
Websitehttp://www.fairchildsemi.com/
Environmental Compliance
Download Datasheet Parametric View All

BZX84C13_NL Overview

Zener Diode, 13V V(Z), 5%, 0.35W, Silicon, Unidirectional, 49, 3 PIN

BZX84C13_NL Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
MakerFairchild
package instructionR-PDSO-G3
Contacts3
Reach Compliance Codecompliant
ECCN codeEAR99
ConfigurationSINGLE
Diode component materialsSILICON
Diode typeZENER DIODE
Maximum dynamic impedance30 Ω
JESD-30 codeR-PDSO-G3
JESD-609 codee3
Humidity sensitivity level1
Number of components1
Number of terminals3
Maximum operating temperature150 °C
Package body materialPLASTIC/EPOXY
Package shapeRECTANGULAR
Package formSMALL OUTLINE
Peak Reflow Temperature (Celsius)260
polarityUNIDIRECTIONAL
Maximum power dissipation0.35 W
Certification statusNot Qualified
Nominal reference voltage13 V
surface mountYES
technologyZENER
Terminal surfaceMatte Tin (Sn)
Terminal formGULL WING
Terminal locationDUAL
Maximum time at peak reflow temperatureNOT SPECIFIED
Maximum voltage tolerance5%
Working test current5 mA

BZX84C13_NL Preview

Zeners (BZX84C 3V3 - BZX84C 33)
Zeners
BZX84C 3V3 - BZX84C 33
Tolerance: C = 5%
Absolute Maximum Ratings*
Symbol
I
FRM
I
ZRM
P
D
T
STG
T
J
T
A
= 25°C unless otherwise noted
Parameter
Repetitive Peak Forward Current (I
FRM
)
Repetitive Peak Working Current (I
ZRM
)
Power Dissipation
Storage Temperature Range
Operating Junction Temperate
Value
250
250
350
-55 to +150
-55 to +150
Units
mA
mA
mW
°C
°C
3
2
1
SOT-23
CONNECTION
DIAGRAM
3
*
These ratings are limiting values above which the serviceability of the diode may be impaired.
NOTES:
1)
These ratings are based on a maximum junction temperature of 150 degrees C.
2)
These are steady state limits. The factory should be consulted on applications involving pulsed
or low duty cycle operations.
1
2 NC
Electrical Characteristics
Device
BZX84C 3V3
BZX84C 3V6
BZX84C 3V9
BZX84C 4V3
BZX84C 4V7
BZX84C 5V1
BZX84C 5V6
BZX84C 6V2
BZX84C 6V8
BZX84C 7V5
BZX84C 8V2
BZX84C 9V1
BZX84C 10
BZX84C 11
BZX84C 12
BZX84C 13
BZX84C 15
BZX84C 16
BZX84C 18
BZX84C 20
BZX84C 22
BZX84C 24
T
A
= 25°C unless otherwise noted
I
Z
= 5.0 mA
I
Z
= 1.0 mA
Ω
Z
Z
(Ω)
MIN
95
90
90
90
80
60
40
10
15
15
15
15
20
20
25
30
30
40
45
55
55
70
2.3
2.7
2.9
3.3
3.7
4.2
4.8
5.6
6.3
6.9
7.6
8.4
9.3
10.2
11.2
12.3
13.7
15.2
16.7
18.7
20.7
22.7
I
Z
= 20 mA
Mark
MIN
Z14
Z15
Z16
Z17
Z1
Z2
Z3
Z4
Z5
Z6
Z7
Z8
Z9
Y1
Y2
Y3
Y4
Y5
Y6
Y7
Y8
Y9
3.1
3.4
3.7
4.0
4.4
4.8
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.4
13.8
15.3
16.8
18.8
20.8
22.8
V
Z
(V)
MAX
3.5
3.8
4.1
4.6
5.0
5.4
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.1
15.6
17.1
19.1
21.2
23.3
25.6
V
Z
(V)
MAX
2.9
3.3
3.5
4.0
4.7
5.3
6.0
6.6
7.2
7.9
8.7
9.6
10.6
11.6
12.7
14.0
15.5
17
19
21.1
23.2
25.5
Z
Z
(Ω)
Ω
MIN
600
600
600
600
500
480
400
150
80
80
80
100
150
150
150
170
200
200
225
225
250
250
3.6
3.9
4.1
4.4
4.5
5.0
5.2
5.8
6.4
7.0
7.7
8.5
9.4
10.4
11.4
12.5
13.9
15.4
16.9
18.9
20.9
22.9
V
Z
(V)
MAX
4.2
4.5
4.7
5.1
5.4
5.9
6.3
6.8
7.4
8.0
8.8
9.7
10.7
11.8
12.9
14.2
15.7
17.2
19.2
21.4
23.4
25.7
Z
Z
(Ω)
Ω
40
40
30
30
15
15
10
6
6
6
6
8
10
10
10
15
20
20
20
20
25
25
2001
Fairchild Semiconductor Corporation
BZX84 Series Rev. C
Zeners (BZX84C 3V3 - BZX84C 33)
Zeners (BZX84C 3V3 - BZX84C 33)
(continued)
Electrical Characteristics
Device
BZX84C 27
BZX84C 30
BZX84C 33
(continued)
TA = 25°C unless otherwise noted
I
Z
= 2.0 mA
I
Z
= 100
µ
A
I
Z
= 10 mA
Mark
Y10
Y11
Y12
V
Z
(V)
MIN
25.1
28
31
MAX
28.9
32
35
Z
Z
(Ω)
Ω
80
80
80
V
Z
(V)
MIN
25
27.8
30.8
MAX
28.9
32
35
Z
Z
(Ω)
Ω
300
300
325
V
Z
(V)
MIN
25.2
28.1
31.1
MAX
29.3
32.4
35.4
Z
Z
(Ω)
Ω
45
50
55
V
F
Foward Voltage = 0.9 V Maximum @ I
F
= 10 mA for all BZX 84 series
Device
BZX84C 3V3
BZX84C 3V6
BZX84C 3V9
BZX84C 4V3
BZX84C 4V7
BZX84C 5V1
BZX84C 5V6
BZX84C 6V2
BZX84C 6V8
BZX84C 7V5
BZX84C 8V2
BZX84C 9V1
BZX84C 10
BZX84C 11
BZX84C 12
BZX84C 13
BZX84C 15
BZX84C 16
BZX84C 18
BZX84C 20
BZX84C 22
BZX84C 24
BZX84C 27
BZX84C 30
BZX84C 33
V
R
(V)
1.0
1.0
1.0
1.0
2.0
2.0
2.0
4.0
4.0
5.0
5.0
6.0
7.0
8.0
8.0
8.0
10.5
11.2
12.6
14
15.4
16.8
18.9
21
23.1
(µA)
µ
5.0
5.0
5.0
5.0
3
2
1
3
2
1
0.7
0.5
0.2
0.1
0.1
0.1
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
0.05
I
R
CAP*
(pF)
450
450
450
450
260
225
200
185
155
140
135
130
130
130
130
120
110
105
100
85
85
80
70
70
70
D
VZ
/ D
t
@
5.0 mA
(mV/k)
MIN
- 3.5
- 3.5
- 3.5
- 3.5
- 3.5
- 2.7
- 2.0
+ 0.4
+ 1.2
+ 2.5
+ 3.2
+ 3.8
+ 4.5
+ 5.4
+ 6.0
+ 7.0
+ 9.2
+ 10.4
+ 12.4
+ 14.4
+ 16.4
+ 18.4
+ 21.4
+ 24.4
+ 27.4
MAX
0.0
0.0
0.0
0.0
+ 0.2
+ 1.2
+ 2.5
+ 3.7
+ 4.5
+ 5.3
+ 6.2
+ 7.0
+ 8.0
+ 9.0
+ 10
+ 11
+ 13
+ 14
+ 16
+ 18
+ 20
+ 22
+ 25.3
+ 29.4
+ 33.4
*
Capacitance @ VR = 0.0 volts; Frequency = 1.0 megahertz.
BZX84 Series Rev. C
Zeners (BZX84C 3V3 - BZX84C 33)
Zeners (BZX84C 3V3 - BZX84C 33)
(continued)

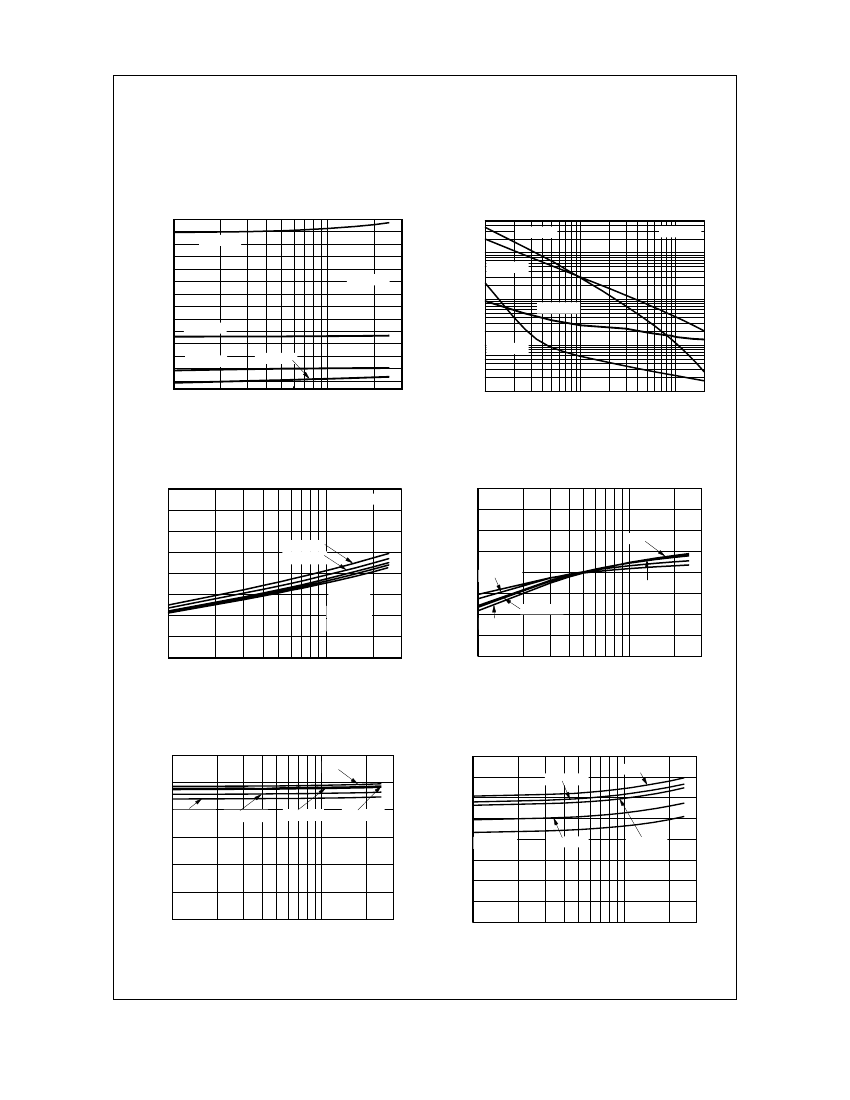

Typical Characteristics
35
5000
V
Z
= 33.0V
V
Z
- ZENER VOLTAGE (V)
25
20
15
10
5
1
V
Z
= 5.1V
V
Z
= 3.3V
T
A
= 25
º
C
Z
Z
- IMPEDANCE (ohms)
30
2000
1000
500
V
Z
= 3.3V
200
100
50
V
Z
= 5.1V
T
A
= 25
º
C
V
Z
= 33.0V
V
Z
= 12.0V
20
10
V
Z
= 12.0V
5
2
1
0.1
2
5
10
I
Z
- ZENER CURRENT (mA)
20
30
0.2
0.5
1
2
5
I
Z
- ZENER CURRENT (mA)
10
20
Zener Current vs. Zener Voltage
Zener Current vs. Zener Impedence
5
6
V
Z
= 3.3V
V
Z
= 5.1V
V
Z
- ZENER VOLTAGE (V)
V
Z
- ZENER VOLTAGE (V)
4
T
A
= -25
º
C
T
A
= 25
º
C
5.5
T
A
= 125
º
C
3
T
A
= 85
º
C
5
T
A
= 100
º
C
T
A
= 25
º
C
T
A
= -25
º
C
T
A
= 85
º
C
2
T
A
= 100
º
C
T
A
= 125
º
C
4.5
1
4
1
2
5
10
I
Z
- ZENER CURRENT (mA)
20
30
1
2
5
10
I
Z
- ZENER CURRENT (mA)
20
30
3.3 Zener Voltage vs. Temperature
5.1 Zener Voltage vs. Temperature
15
V
Z
= 12.0V
40
T
A
= 125
º
C
V
Z
= 33.0V
T
A
= 100
º
C
T
A
= 125
º
C
V
Z
- ZENER VOLTAGE (V)
V
Z
- ZENER VOLTAGE (V)
35
10
T = -25
º
C
A
T
A
= 25
º
C
T
A
= 85
º
C
T
A
= 100
º
C
30
T
A
= -25
º
C
T
A
= 25
º
C
T
A
= 85
º
C
5
25
0
1
2
5
10
I
Z
- ZENER CURRENT (mA)
20
30
20
1
2
5
10
I
Z
- ZENER CURRENT (mA)
20
30
12 Zener Voltage vs. Zener Temperature
33 Zener Voltage vs. Zener Temperature
BZX84 Series Rev. C
TRADEMARKS
The following are registered and unregistered trademarks Fairchild Semiconductor owns or is authorized to use and is
not intended to be an exhaustive list of all such trademarks.
ACEx™
Bottomless™
CoolFET™
CROSSVOLT™
DenseTrench™
DOME™
EcoSPARK™
E
2
CMOS
TM
EnSigna
TM
FACT™
FACT Quiet Series™
DISCLAIMER
FAST
®
FASTr™
FRFET™
GlobalOptoisolator™
GTO™
HiSeC™
ISOPLANAR™
LittleFET™
MicroFET™
MicroPak™
MICROWIRE™
OPTOLOGIC™
OPTOPLANAR™
PACMAN™
POP™
Power247™
PowerTrench
®
QFET™
QS™
QT Optoelectronics™
Quiet Series™
SILENT SWITCHER
®
SMART START™
STAR*POWER™
Stealth™
SuperSOT™-3
SuperSOT™-6
SuperSOT™-8
SyncFET™
TinyLogic™
TruTranslation™
UHC™
UltraFET
®
VCX™
STAR*POWER is used under license
FAIRCHILD SEMICONDUCTOR RESERVES THE RIGHT TO MAKE CHANGES WITHOUT FURTHER
NOTICE TO ANY PRODUCTS HEREIN TO IMPROVE RELIABILITY, FUNCTION OR DESIGN. FAIRCHILD
DOES NOT ASSUME ANY LIABILITY ARISING OUT OF THE APPLICATION OR USE OF ANY PRODUCT
OR CIRCUIT DESCRIBED HEREIN; NEITHER DOES IT CONVEY ANY LICENSE UNDER ITS PATENT
RIGHTS, NOR THE RIGHTS OF OTHERS.
LIFE SUPPORT POLICY
FAIRCHILD’S PRODUCTS ARE NOT AUTHORIZED FOR USE AS CRITICAL COMPONENTS IN LIFE SUPPORT
DEVICES OR SYSTEMS WITHOUT THE EXPRESS WRITTEN APPROVAL OF FAIRCHILD SEMICONDUCTOR CORPORATION.
As used herein:
1. Life support devices or systems are devices or
2. A critical component is any component of a life
systems which, (a) are intended for surgical implant into
support device or system whose failure to perform can
the body, or (b) support or sustain life, or (c) whose
be reasonably expected to cause the failure of the life
failure to perform when properly used in accordance
support device or system, or to affect its safety or
with instructions for use provided in the labeling, can be
effectiveness.
reasonably expected to result in significant injury to the
user.
PRODUCT STATUS DEFINITIONS
Definition of Terms
Datasheet Identification
Advance Information
Product Status
Formative or
In Design
Definition
This datasheet contains the design specifications for
product development. Specifications may change in
any manner without notice.
This datasheet contains preliminary data, and
supplementary data will be published at a later date.
Fairchild Semiconductor reserves the right to make
changes at any time without notice in order to improve
design.
This datasheet contains final specifications. Fairchild
Semiconductor reserves the right to make changes at
any time without notice in order to improve design.
Preliminary
First Production
No Identification Needed
Full Production
Obsolete
Not In Production
This datasheet contains specifications on a product
that has been discontinued by Fairchild semiconductor.
The datasheet is printed for reference information only.
Rev. H4
More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

Recommended Resources

LS7538/TT6061/4KA514 touch step dimming desk lamp circuit diagram

Capacitive Neutral Leakage Protection Circuit

RF Tuned Amplifier Circuit Diagram B

Touch switch circuit diagram D

Extend the life of incandescent lamp circuit

Changhong N2918 power supply

PLC Programming Software
I just started to learn PLC programming. Can anyone send me some PLC programming software? Thanks!!! My email address is [email=luckydechun@yahoo.cn]luckydechun@yahoo.cn[/email]...
haibian826 MCU
Request 100-240v to dc24v3.5a power supply design
[i=s] This post was last edited by Heishitou1981 on 2018-5-24 23:46 [/i] I want a 100-240v to dc24v3.5a power supply design. The simpler the better. The board is only 80mm*85mm. The input voltage is 1...
黑石头1981 Power technology
Qingyuefeng function introduction - absolute eccentric pad processing function
[size=10.5pt][font=宋体][size=4]The processing of eccentric pads is actually a very practical technology. In high-end PCB software design, there is a function of eccentric processing. However, some comm...
tsingyue PCB Design
Please advise on the periodic execution of tasks (the period is less than the system stick)
If the system stick is 10ms, what should I do if a task needs to ensure a 4.8ms execution cycle? Thank you in advance....
hyw322 Embedded System
Text editor issues
I copied the project code to a mobile hard disk, and then took it out from the mobile hard disk. I want to select variables, but every time the text editor selects 1 line, it selects the spaces. I wou...
不足论 Embedded System
About the problem of designing triggers with two statements in Verilog
This question started when I first came into contact with Verilog. When using the always statement to design a D flip-flop, the existing flip-flop will be directly called during synthesis. What will h...
htrong8899 FPGA/CPLD
Shortcut:   00 01 02 03 04 05 06 07 08 09 0A 0C 0F 0J 0L 0M 0R 0S 0T 0Z 10 11 12 13 14 15 16 17 18 19 1A 1B 1C 1D 1E 1F 1H 1K 1M 1N 1P 1S 1T 1V 1X 1Z 20 21 22 23 24 25 26 27 28 29 2A 2B 2C 2D 2E 2F 2G 2K 2M 2N 2P 2Q 2R 2S 2T 2W 2Z 30 31 32 33 34 35 36 37 38 39 3A 3B 3C 3D 3E 3F 3G 3H 3J 3K 3L 3M 3N 3P 3R 3S 3T 3V 40 41 42 43 44 45 46 47 48 49 4A 4B 4C 4D 4M 4N 4P 4S 4T 50 51 52 53 54 55 56 57 58 59 5A 5B 5C 5E 5G 5H 5K 5M 5N 5P 5S 5T 5V 60 61 62 63 64 65 66 67 68 69 6A 6C 6E 6F 6M 6N 6P 6R 6S 6T 70 71 72 73 74 75 76 77 78 79 7A 7B 7C 7M 7N 7P 7Q 7V 7W 7X 80 81 82 83 84 85 86 87 88 89 8A 8D 8E 8L 8N 8P 8S 8T 8W 8Y 8Z 90 91 92 93 94 95 96 97 98 99 9A 9B 9C 9D 9F 9G 9H 9L 9S 9T 9W

Popular Components

  1. MC12U016HDVB-0QC00
  2. MMA0204501000FBLK
  3. FDLDA102V333HNLDM0
  4. PTN0603E3881BBWS
  5. 2200CA3G0IPA3FA
  6. ATS-18G-173-C2-R0
  7. RK73H2ELTDB9310D
  8. GUS-TS0ALF-00-1473-DG
  9. AME8501BEFVAE28
  10. AME8501CEETBA27
  11. 2SA1317T
  12. GQZJ24

Popular Articles

  1. Tracking the Industrialization of Silicon Anode
  2. High-Performance Power Semiconductor Company MPS Gains Momentum and Is Included in the S&P 500 Index
  3. Student Zone—ADALM2000 Experiment: BJT Differential Pair
  4. ATmega168 reset and interrupt handling
  5. Wireless charging detection and control circuit
  6. TI's new buffer amplifier increases signal bandwidth tenfold in data acquisition systems
  7. Redmi K50 Gaming Edition: High refresh rate straight screen + full-blooded 120W fast charging
  8. Apple is developing a hardware subscription service
  9. Sonos launches Roam SL portable AirPlay speaker
  10. Giantec Semiconductor's new official website is online

Technical ResourceMore

  1. xlinx xpe calculation tool
  2. Research on photovoltaic grid-connected power regulation system and its control
  3. Principle and Application of Supercapacitor
  4. CN201510482294-LED constant current drive circuit and control method thereof
  5. RSD pulse power supply using resonance triggering method
  6. Drawing Assistant v1[1].0 cracked version.exe
  7. Key points of logic synthesis (Design Compiler)
  8. STM32F0 cannot run user code after Leaving DFU Mode after DFU upgrade
  9. 精密數位類比轉換器
  10. Short-circuit protection with a single transistor

EEWorld
subscription
account

EEWorld
service
account

Automotive
development
circle

Robot
development
community

About Us Customer Service Contact Information Datasheet Sitemap LatestNews
Index Files: 98  93  275  409  41  2  6  9  1  15
Datasheet   0 1 2 3 4 5 6 7 8 9 A B C D E F G H I J K L M N O P Q R S T U V W X Y Z
Room 1530, 15th Floor, Building B, No. 18 Zhongguancun Street, Haidian District, Beijing Telephone: (010) 82350740 Postal Code: 100190
Copyright © 2005-2026 EEWORLD.com.cn, Inc. All rights reserved 京ICP证060456号 京ICP备10001474号-1 电信业务审批[2006]字第258号函 京公网安备 11010802033920号
