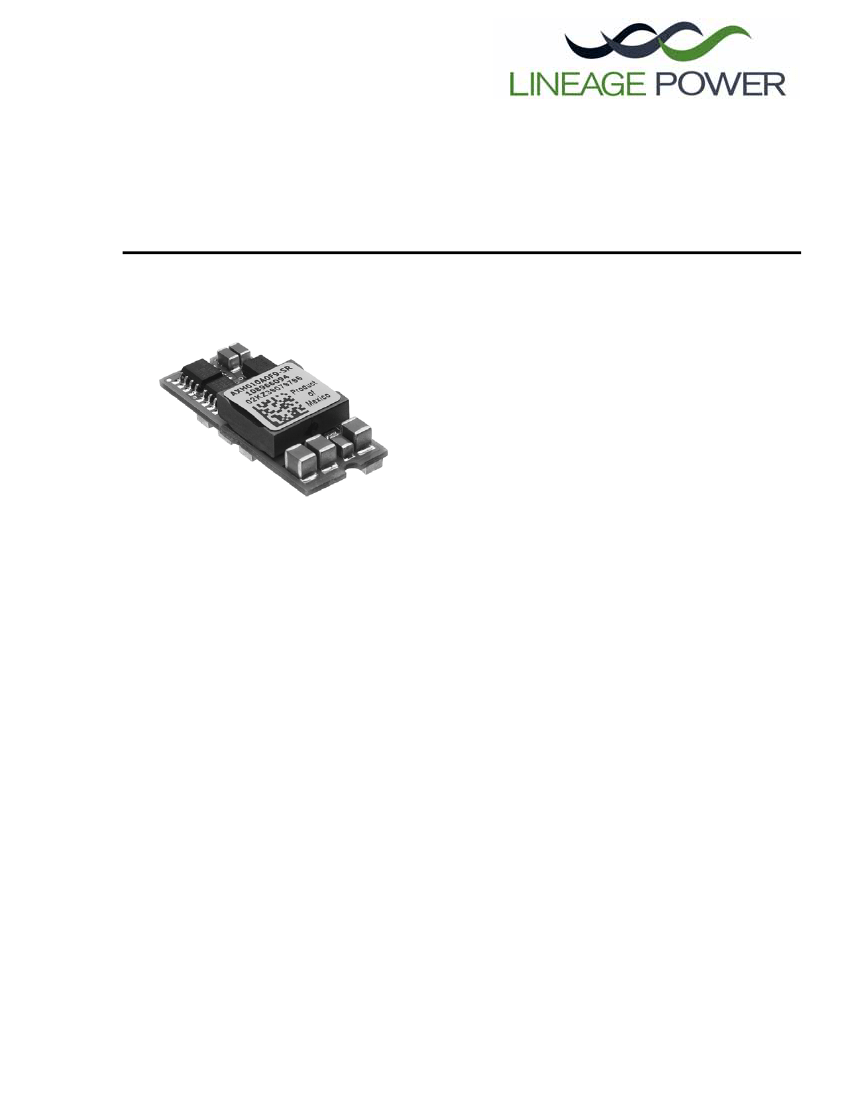

Data Sheet
March 28, 2008
Austin Lynx
TM
SMT Non-Isolated dc-dc Power Modules:
3.0 Vdc - 5.5 Vdc Input, 0.9 Vdc - 3.3 Vdc Output, 10 A
Features
RoHS Compliant
n
n
n
n
n
Compatible with RoHS EU Directive 200295/EC
Compatible in Pb- free or SnPb reflow environment
Delivers up to 10A output current
High efficiency: 95% at 3.3V full load
Small size and low profile:
33 mm x 13.5 mm x 8.30 mm
(1.3 in x 0.53 in x 0.33 in)
Light Weight 0.23 oz(6.5 g)
Cost-efficient open frame design
High reliability: MTBF > 10M hours at 25 °C
Constant switching frequency (300 KHz typical)
Output overcurrent protection with auto-restart
Overtemperature protection
Surface Mount Package,Tape and Reel
Adjustable output voltage (-5% to +10% for 0.9V output)
Remote On/Off
Wide Operating temperature range:-40 °C to +85 °C
UL*
60950 Recognized,
CSA
†
C22.2 No. 60950-00 Certi-
fied, and VDE
‡
0805 (IEC60950, 3rd edition) Licensed
n
n
n
n
n
Applications
n
n
n
n
n
n
n
n
Workstations,Servers and Desktop computers
Distributed Power Architectures
Telecommunications Equipment
LANs/WANs
Data processing Equipment
Latest generation IC’s (DSP, FPGA, ASIC) and Micropro-
cessor-powered applications.
n
n
n
n
Options
n
Remote Sense
Description
Austin Lynx™ power modules are non-isolated dc-dc converters that can deliver 10 A of output current with full load effi-
ciency of 95% at 3.3 V output. These open frame modules in surface-mount-package enable designers to develop cost-and
space efficient solutions. Standard features include remote ON/OFF, output voltage adjustment, overcurrent and overtem-
perature protection.
*
†
‡
§
**
UL
is a registered trademark of Underwriters Laboratories, Inc.
CSA
is a registered trademark of Canadian Standards Association.
VDE
is a trademark of Verband Deutscher Elektrotechniker e.V.
This product is intended for integration into end-use equipment. All the required procedures for CE marking of end-use equipment should be followed. (The CE mark is placed on selected products.)
ISO is a registered trademark of the Internation Organization of Standards
Document Name: FDS02-034EPS ver.1.6
PDF Name: Austin Lynx SMT
Data Sheet
March 28, 2008
Absolute Maximum Ratings
Austin Lynx
TM
SMT Non-Isolated dc-dc Power Modules:
3.0 Vdc - 5.5 Vdc Input, 0.9 Vdc - 3.3 Vdc Output, 10 A
Stresses in excess of the absolute maximum ratings can cause permanent damage to the device. These are absolute stress
ratings only, functional operation of the device is not implied at these or any other conditions in excess of those given in the
operations sections of the data sheet. Exposure to absolute maximum ratings for extended periods can adversely affect the
device reliabiltiy.
Parameter
Input Voltage:Continuous
Operating Ambient Temperature
(See Thermal Considerations section)
Storage Temperature
Device
All
All
All
Symbol
VIN
TA
Tstg
Min
0
–40
–55
Max
6.5
85
125
Unit
Vdc
°C
°C
Electrical Specifications
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions.
Parameter
Operating Input Voltage
Device
AXH010A0S0R9-SR
AXH010A0S1R0-SR
AXH010A0P-SR
AXH010A0M-SR
AXH010A0Y-SR
AXH010A0D-SR
AXH010A0G-SR
AXH010A0F-SR
Symbol
VIN
VIN
VIN
VIN
VIN
VIN
VIN
VIN
II, max
Min
3.0
3.0
3.0
3.0
3.0
3.0
3.0
4.5
Typ
Max
5.5
5.5
5.5
5.5
5.5
5.5
5.5
5.5
9.5
Unit
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Adc
mAp-p
Maximum Input Current
(VI = 0 V to 75 V; IO = IO, max)
Input Reflected Ripple Current, peak-peak
(5 Hz to 20 MHz, 1µH source impedance
T
A
=
25 °C;C
IN
=200
µF)
Input Ripple Rejection (120 Hz)
All
II
30
All
40
dB
CAUTION: This power module is not internally fused. An input line fuse must always be used.
To preserve maximum flexibility, internal fusing is not included; however, to achieve maximum safety and
system protection, always use an input line fuse. The safety agencies require a time-delay fuse with a maximum rating of 20A.
Lineage Power
2
Data Sheet
March 28, 2008
Electrical Specifications
(continued)
Parameter
Output Voltage Set Point
(VI =5 Vdc; IO = IO, max, TA = 25 °C)
Austin Lynx
TM
SMT Non-Isolated dc-dc Power Modules:
3.0 Vdc - 5.5 Vdc Input, 0.9 Vdc - 3.3 Vdc Output, 10 A
Device
AXH010A0S0R9-SR
AXH010A0S1R0-SR
AXH010A0P-SR
AXH010A0M-SR
AXH010A0Y-SR
AXH010A0D-SR
AXH010A0G-SR
AXH010A0F-SR
AXH010A0S0R9-SR
AXH010A0S1R0-SR
AXH010A0P-SR
AXH010A0M-SR
AXH010A0Y-SR
AXH010A0D-SR
AXH010A0G-SR
AXH010A0F-SR
All
All
All
Symbol
VO,set
VO,set
VO,set
VO,set
VO,set
VO,set
VO,set
VO,set
VO
VO
VO
VO
VO
VO
VO
VO
—
—
—
Min
0.886
0.985
1.182
1.47
1.764
1.97
2.45
3.234
0.873
0.970
1.164
1.455
1.746
1.94
2.425
3.2
—
—
—
Typ
0.9
1.0
1.2
1.5
1.8
2.0
2.5
3.3
—
—
—
—
—
—
—
—
0.2
0.4
0.5
Max
0.914
1.015
1.218
1.53
1.836
2.03
2.55
3.366
0.927
1.03
1.236
1.545
1.854
2.06
2.575
3.4
Unit
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
Vdc
%, VO, set
%, VO, set
%, VO, set
Output Voltage
(Over all operating input voltage, resistive load, and
temperature conditions at steady state until end of life.)
Output Regulation:
Line (VI = VI, min to VI, max)
Load (IO = IO, min to IO, max)
Temperature (TA = TA, min to TA, max)
Output Ripple and Noise
Measured across 10 µF Tantalum, 1µF Ceramic,,
RMS (5 Hz to 20 MHz bandwidth)
Peak-to-peak (5 Hz to 20 MHz bandwidth)
Output Current
Output Current-limit Inception
(VO = 90% of VO, set)
Output Short-circuit Current (Average)
Efficiency
(VI = VIN, nom; IO = IO, max), TA = 25 °C
All
All
All
All
All
AXH010A0S0R9-SR
AXH010A0S1R0-SR
AXH010A0P-SR
AXH010A0M-SR
AXH010A0Y-SR
AXH010A0D-SR
AXH010A0G-SR
AXH010A0F-SR
All
IO
IO, lim
IO, s/c
η
η
η
η
η
η
η
η
f
SW
—
—
0
7
25
—
17
15
30
10
—
—
—
—
—
—
—
—
—
—
—
mVrms
mVp-p
Adc
Adc
Adc
%
%
%
%
%
%
%
%
kHz
—
—
—
—
—
—
—
—
—
—
3
83
85
86
88
90
91
92
95
300
Switching Frequency
General Specifications
Parameter
Calculated MTBF (IO = 80% of IO, max TA = 25 °C)
Lineage
RIN (Reliability Infomation Notebook) Method
Weight
—
Min
Typ
10,240,000
5.5(0.19)
6.5(0.23)
Max
Unit
Hours
g (oz.)
Lineage Power
3
Data Sheet
March 28, 2008
Feature Specifications
Austin Lynx
TM
SMT Non-Isolated dc-dc Power Modules:
3.0 Vdc - 5.5 Vdc Input, 0.9 Vdc - 3.3 Vdc Output, 10 A
Unless otherwise indicated, specifications apply over all operating input voltage, resistive load, and temperature conditions.
See Feature Descriptions for additional information
.
Parameter
Remote On/Off Signal Interface
(VI = VI,min to VI, max; open collector npn or Compatible, Von/off
signal referenced to GND. See Figure 20 and Feature
Descriptions section)
Logic High (ON/OFF pin open—Module On)
Ion/off = 0.0 µA
Von/off = VI -0.4
Logic Low (VON/OFF < 0.3 V)—Module Off
Ion/off = 0.5 mA
Von/off = 0.3 V
Turn-on time
(IO = 80% of IO, max; VO within ±1% of steady state; see
Figure 12)
Output voltage set-point adjustment range (TRIM)
Overtemperature Protection (shutdown)
Input Undervoltage Lockout
Turn-on Threshold
Turn-off Threshold
Device
Symbol
Min
Typ
Max
Unit
All
Von/off
Ion/off
6.5
10
V
µA
All
All
All
AXH010A0S0R9-SR
All others
All
All
All
Von/off
Ion/off
—
V
trim
V
trim
T
Q1
/T
Q2
-5
-10
—
2.63
2.47
0.3
1
5
+10
+10
110
2.8
2.7
—
2.95
2.9
V
mA
ms
%VO, set
%VO, set
°C
V
V
Lineage Power
4
Data Sheet
March 28, 2008
Austin Lynx
TM
SMT Non-Isolated dc-dc Power Modules:
3.0 Vdc - 5.5 Vdc Input, 0.9 Vdc - 3.3 Vdc Output, 10 A

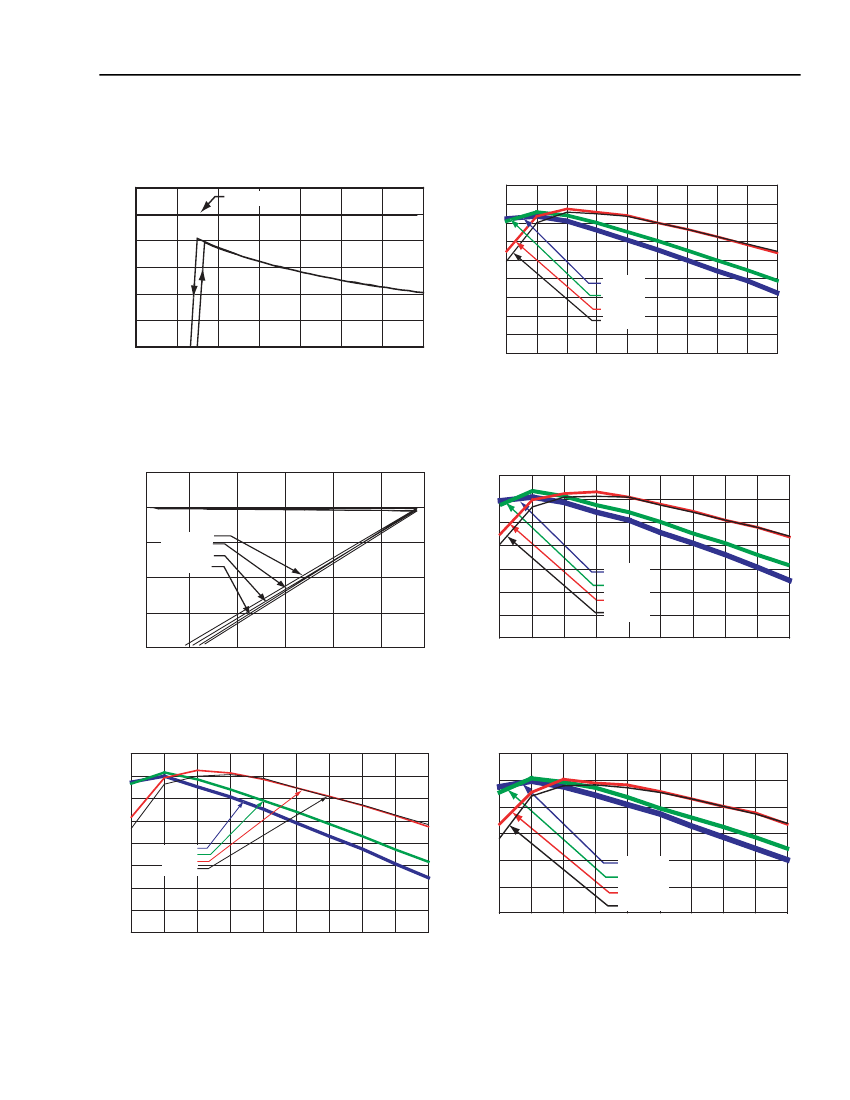

Characteristic Curves
The following figures provide typical characteristics curves at room temperature (TA = 25 °C).
12
INPUT CURRENT, I
I
(A)
92
I
I, max
= 9.5 A
EFFICIENCY,
η
(%)
90
88
86
84
82
80
78
76
V
I
= 3.0 V
V
I
= 3.3 V
V
I
= 5.0 V
V
I
= 5.5 V
10
8
6
4
2
0
2
2.5
3
3.5
4
4.5
INPUT VOLTAGE, V
I
(V)
5
5.5
74
1
2
3
4
5
6
7
OUTPUT CURRENT, I
O
(A)
8
9
10
Figure 1.
Typical Input Characteristic at 10A Output
Current.
Figure 4.
Converter Efficiency vs output current
AXH010A0S1R0-SR(1.0V Output Voltage).
92
NORMALIZED OUTPUT VOLTAGE, V
O
EFFICIENCY,
η
(%)
100%
V
I
V
I
V
I
V
I
=
=
=
=
5.5 V
5.0 V
3.3 V
3.0 V
90
88
86
84
82
80
78
1
2
3
4
V
I
= 3.0 V
V
I
= 3.3 V
V
I
= 5.0 V
V
I
= 5.5 V
5
6
7
8
9
10
75%
50%
25%
0%
0
3
6
9
12
OUTPUT CURRENT, I
O
(A)
15
18
OUTPUT CURRENT, I
O
(A)
Figure 2.
Output Voltage and current characteristics.
Figure 5.
Converter Efficiency vs output current
AXH010A0P-SR(1.2V Output Voltage).
90
94
EFFICIENCY,
η
(%)
88
92
90
88
86
84
82
1
2
3
4
V
I
= 3.0 V
V
I
= 3.3 V
V
I
= 5.0 V
V
I
= 5.5 V
5
6
7
8
9
10
OUTPUT CURRENT, I
O
(A)
86
EFFICIENCY,
η
(%)
84
82
80
V
I
= 3.0 V
V
I
= 3.3 V
V
I
= 5.0 V
V
I
= 5.5 V
78
76
74
1
2
3
4
5
6
7
8
9
10
OUTPUT CURRENT, I
O
(A)
Figure 3.
Converter Efficiency vs output current
AXH010A0S0R9-SR(0.9V Output Voltage).
Figure 6.
Converter Efficiency vs output current
AXH010A0M-SR(1.5V Output Voltage).
Lineage Power
5
