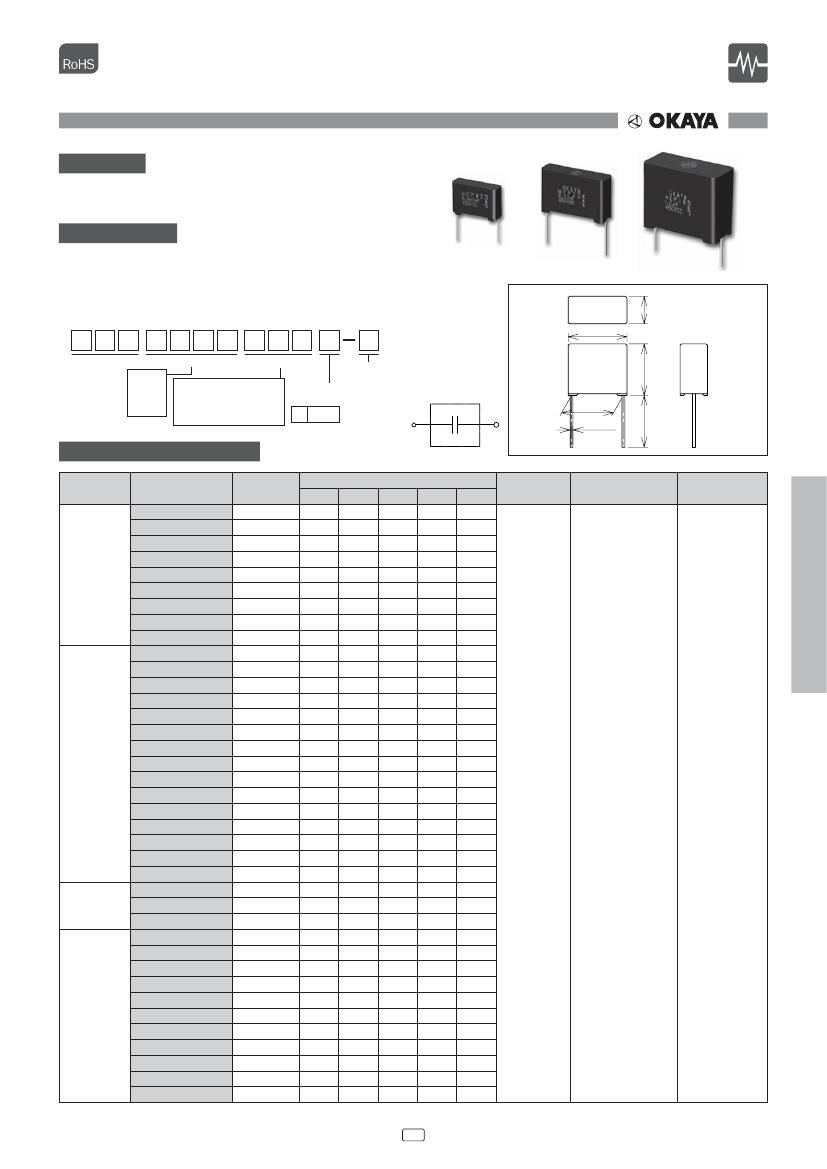

Metalized Polypropylene
Film Capacitor
HCP-S
SERIES
HIGH PULSE CAPACITOR
Features
●
Compact size and resin case.
●
Improved safety and suppressing self-heating.
Applications
●
High frequency circuit, High voltage resonant
circuit, Snubber circuit and Protection of
semiconductors such as IGBT, IPM and MOSFET.
●
Model numbering system
●
Dimensions
T±0.5
W±0.5
H C P 4 5 0 V
Series name
Rated Voltage
450WV
630WV
1,000WV
1,250WV
1 0 4
Capacitance
K
S
Standard
Type
K
φ
d±0.05
15min.
The first two digits stands
for capacitance (pF).
The third digit is for the
number of continuing zero.
Tolerance of
Capacitance
±10%
●
Circuit
F±1.0
H±0.5
Unit: mm
Electrical Specifications
Dimensions (mm)
W
H
T
F
HCP450V473K-S
5.0
12.0
17.0
15.0
HCP450V683K-S
5.5
12.5
17.0
15.0
HCP450V104K-S
6.5
13.5
17.0
15.0
HCP450V154K-S
8.0
15.0
17.0
15.0
HCP450V224K-S
16.0
6.5
450VDC
25.0
22.5
HCP450V334K-S
17.5
8.0
25.0
22.5
HCP450V474K-S
22.0 11.0
30.0
27.5
HCP450V684K-S
22.0 11.0
30.0
27.5
HCP450V105K-S
24.5 13.5
30.0
27.5
HCP630V103K-S
12.0
5.0
17.0
15.0
HCP630V153K-S
12.0
5.0
17.0
15.0
HCP630V223K-S
12.0
5.0
17.0
15.0
HCP630V333K-S
12.0
5.0
17.0
15.0
HCP630V473K-S
12.5
5.5
17.0
15.0
HCP630V683K-S
13.5
6.5
17.0
15.0
HCP630V104K-S
15.0
8.0
17.0
15.0
HCP630V154K-S
17.5
8.0
630VDC
25.0
22.5
HCP630V224K-S
17.5
8.0
25.0
22.5
HCP630V334K-S
19.5 10.0
25.0
22.5
HCP630V474K-S
22.0 11.0
30.0
27.5
HCP630V684K-S
24.5 13.5
30.0
27.5
HCP630V105K-S
28.0 16.0
30.5
27.5
HCP630V155K-S
28.0 15.5
41.0
37.5
HCP630V225K-S
32.5 17.5
41.0
37.5
HCP1000V104K-S
17.5
8.0
25.0
22.5
28.0 16.0
1000VDC HCP1000V474K-S
30.5
27.5
HCP1000V105K-S
32.5 17.5
41.0
37.5
HCP1250V103K-S
15.0
8.0
17.0
15.0
HCP1250V153K-S
16.0
6.5
25.0
22.5
HCP1250V223K-S
16.0
6.5
25.0
22.5
HCP1250V333K-S
17.5
8.0
25.0
22.5
HCP1250V473K-S
19.5
10.0
25.0
22.5
22.0
11.0
1250VDC HCP1250V683K-S
30.0
27.5
HCP1250V104K-S
24.5
13.5
30.0
27.5
HCP1250V154K-S
28.0
16.0
30.5
27.5
HCP1250V224K-S
28.0
15.5
41.0
37.5
HCP1250V334K-S
28.0
15.5
41.0
37.5
HCP1250V474K-S
32.5
17.5
41.0
37.5
It is possible to use from more than 85°C to 105°C by derating of rated voltage.
Rated
Voltage
Model Number
Capacitance
μ
F±10%
0.047
0.068
0.1
0.15
0.22
0.33
0.47
0.68
1.0
0.01
0.015
0.022
0.033
0.047
0.068
0.1
0.15
0.22
0.33
0.47
0.68
1.0
1.5
2.2
0.1
0.47
1.0
0.01
0.015
0.022
0.033
0.047
0.068
0.1
0.15
0.22
0.33
0.47
39
d
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.6
0.6
0.6
0.6
0.8
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
0.8
1.0
1.0
0.8
0.8
0.8
0.8
0.8
0.8
0.8
1.0
1.0
1.0
1.0
Dissipation
Factor
Test Voltage
Insulation
Resistance
0.001max.
(at 1k±100Hz)
Rated Voltage
×1.75VDC
(2~5sec)
C
≤
0.33μF
50
,
000MΩmin.
(at 20°C, 100VDC)
C
>
0.33μF
20
,
000Ω•Fmin.
(at 20°C, 100VDC)
Operating Temperature: -40~+85°C
HIGH PULSE CAPACITORS
Metalized Polypropylene
Film Capacitor
HCP-S
SERIES
HIGH PULSE CAPACITOR
●

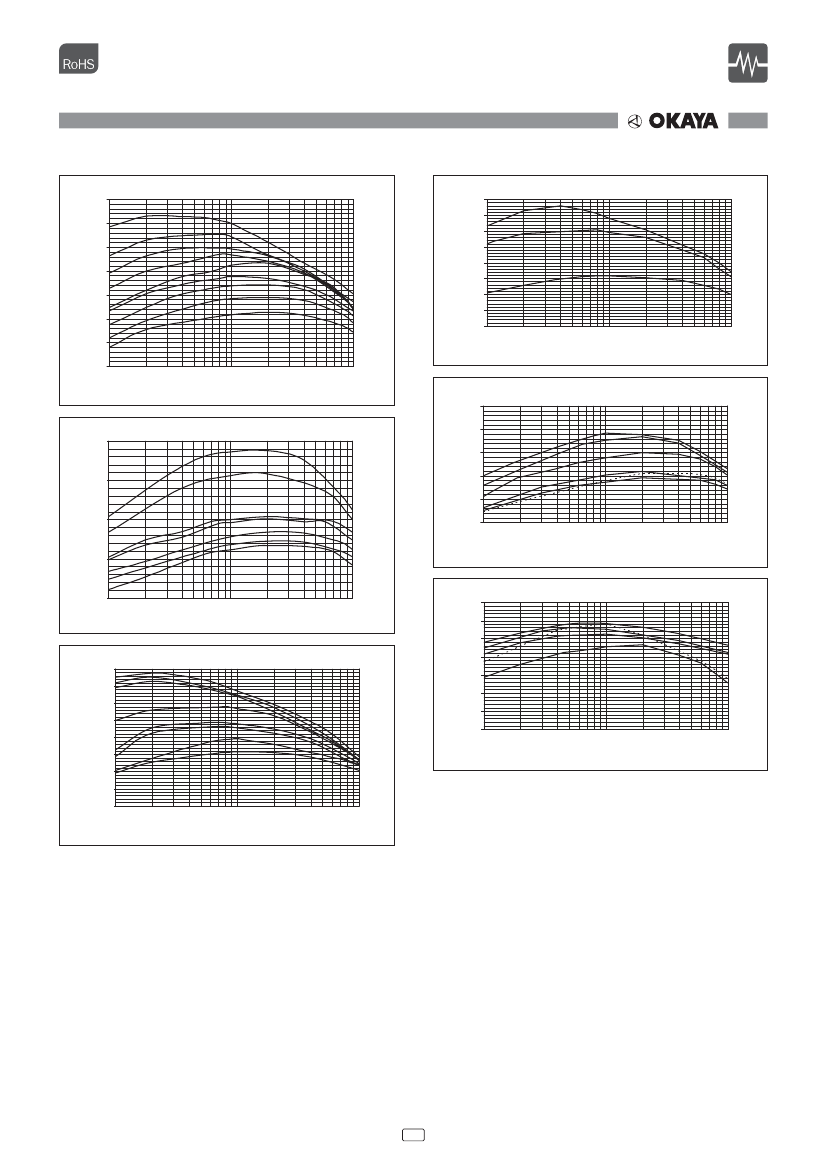

Permissible current data (r.m.s. value)
7.0
HCP450V Series
Permissible Current (Arms)
8.0
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
10
HCP1000V Series
Permissible Current (Arms)
6.0
5.0
4.0
0.68μF
0.47μF
0.33μF
1.0μF
0.1μF
0.068μF
0.047μF
1.0μF
0.47μF
0.1
μF
3.0
0.15μF
2.0
1.0
0.0
0.22μF
100
1,000
Frequency (kHz)
10
100
1,000
Frequency (kHz)
Permissible Current (Arms)
5.0
4.0
3.0
2.0
1.0
0.022
μF
0.0
0.01
μF
HCP1250V(103 - 683) Series
HCP630V(103-104) Series
4.0
Permissible Current (Arms)
3.0
0.1μF
0.068
μF
0.047
μF
0.033
μF
0.015
μF
2.0
0.068
μF
0.047
μF
0.033
μF
0.022
μF
0.015
μF
0.01μF
10
100
1,000
Frequency (kHz)
1.0
Frequency (kHz)
Permissible Current (Arms)
0.0
10
HCP1250V(104 - 474) Series
100
1,000
7.0
6.0
5.0
4.0
3.0
2.0
1.0
0.0
10
100
1,000
0.47
μF
0.33
μF
0.22
μF
0.15
μF
0.1
μF
Permissible Current (Arms)
8.0
2.2
μF
7.0
1.0
μF
1.5
μF
6.0
0.68
μF
5.0
0.47
μF
4.0
3.0
2.0
1.0
0.0
10
0.33
μF
0.22
μF
0.15
μF
HCP630V(154 - 225) Series
Frequency (kHz)
100
1,000
Frequency (kHz)
40
