39-27-0026 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > The connector> The connector> 39-27-0026

39-27-0026: DescriptionBoard Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal; CategoryThe connector The connector; File Size48KB，1 Pages; ManufacturerMolex; Websitehttps://www.molex.com/molex/home

Download Datasheet Parametric Compare View All

39-27-0026 Overview

Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal

39-27-0026 Parametric

Parameter Name	Attribute value
Maker	Molex
Reach Compliance Code	unknown
Connector type	BOARD CONNECTOR
Contact point gender	MALE
DIN compliance	NO
Filter function	NO
IEC compliance	NO
MIL compliance	NO
Manufacturer's serial number	5508
Plug information	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.5 mm
Termination type	SOLDER
Total number of contacts	2
UL Flammability Code	94V-0

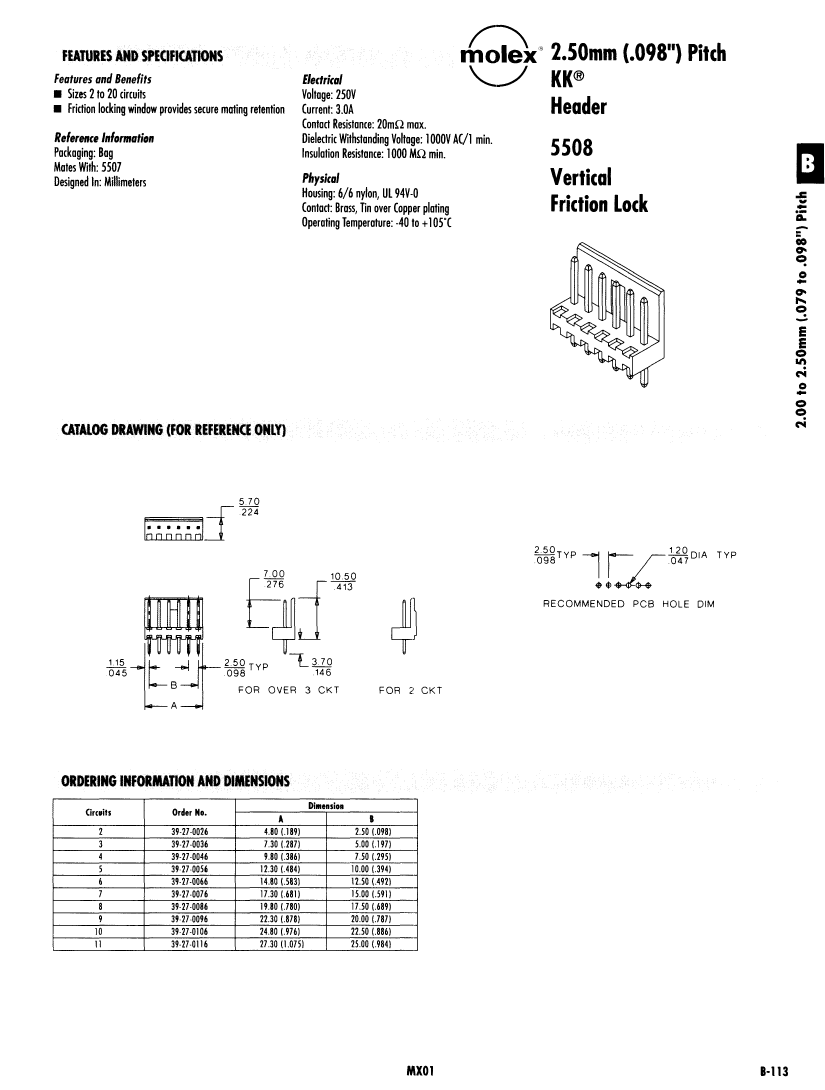

Preview

Download Datasheet

View All

39-27-0026 Related Products

	39-27-0026	39-27-0096	39-27-0086	39-27-0036	39-27-0066	39-27-0076	39-27-0046	39-27-0056	39-27-0106	39-27-0116
Description	Board Connector, 2 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 9 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 8 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 3 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 6 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 7 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 4 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 5 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 10 Contact(s), 1 Row(s), Male, Straight, Solder Terminal	Board Connector, 11 Contact(s), 1 Row(s), Male, Straight, Solder Terminal
Maker	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex	Molex
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
Connector type	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR	BOARD CONNECTOR
Contact point gender	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE	MALE
DIN compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Filter function	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
IEC compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
MIL compliance	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Manufacturer's serial number	5508	5508	5508	5508	5508	5508	5508	5508	5508	5508
Plug information	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE	MULTIPLE MATING PARTS AVAILABLE
Mixed contacts	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
Installation method	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT	STRAIGHT
Installation type	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD	BOARD
Number of rows loaded	1	1	1	1	1	1	1	1	1	1
Options	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Terminal pitch	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm	2.5 mm
Termination type	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER	SOLDER
Total number of contacts	2	9	8	3	6	7	4	5	10	11
UL Flammability Code	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0	94V-0
