PALCE29MA16H-35PC datasheet, PDF

PALCE29MA16H-35PC: DescriptionEE PLD, 36ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24; CategoryProgrammable logic devices Programmable logic; File Size701KB，22 Pages; ManufacturerAMD; Websitehttp://www.amd.com

Download Datasheet Parametric Compare View All

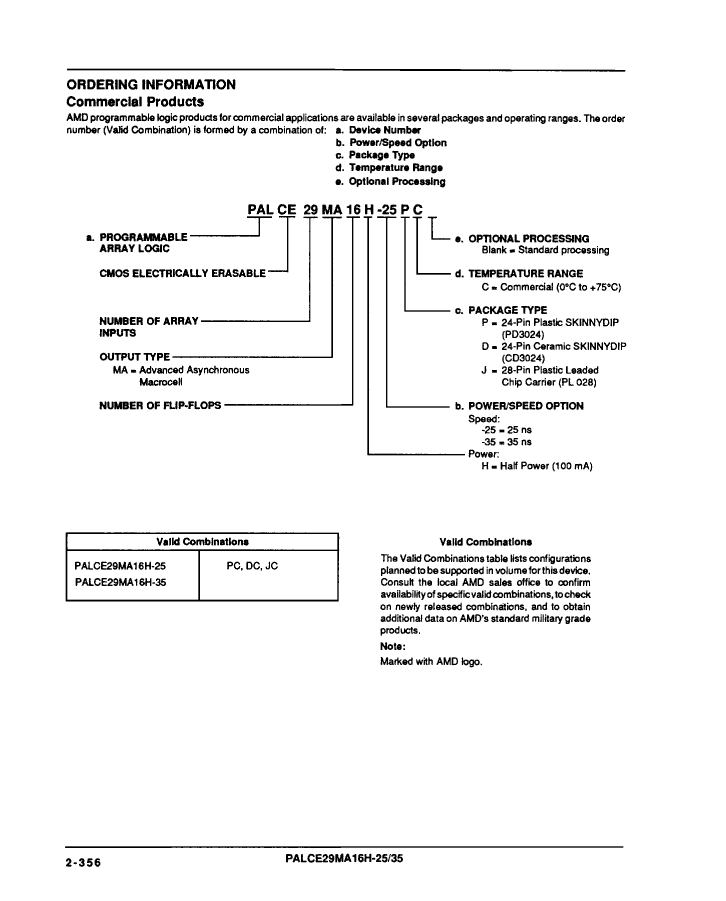

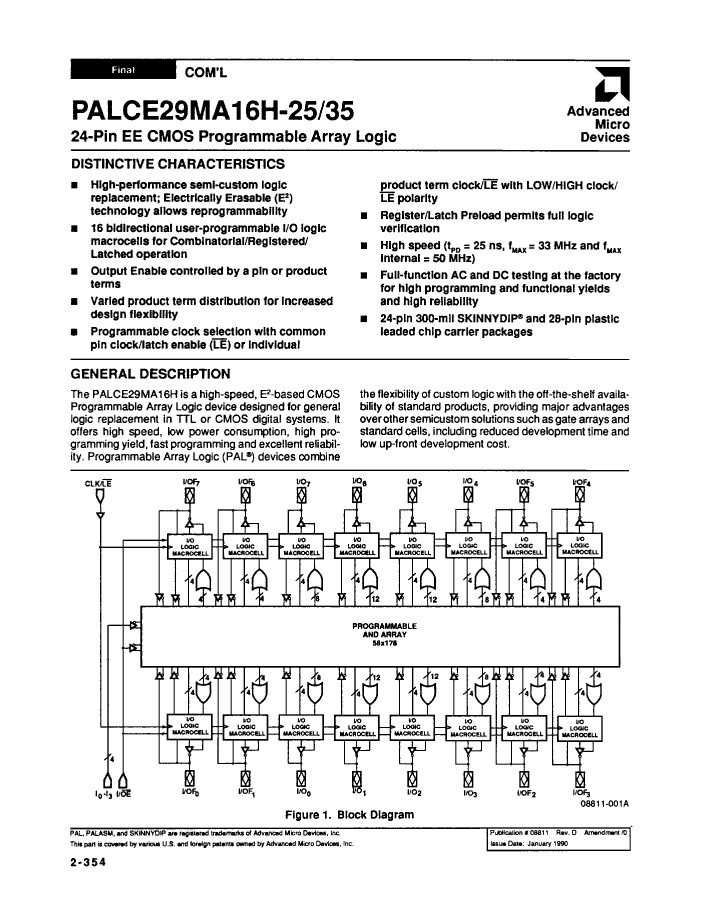

PALCE29MA16H-35PC Overview

EE PLD, 36ns, PAL-Type, CMOS, PDIP24, 0.300 INCH, SKINNY, PLASTIC, DIP-24

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	AMD

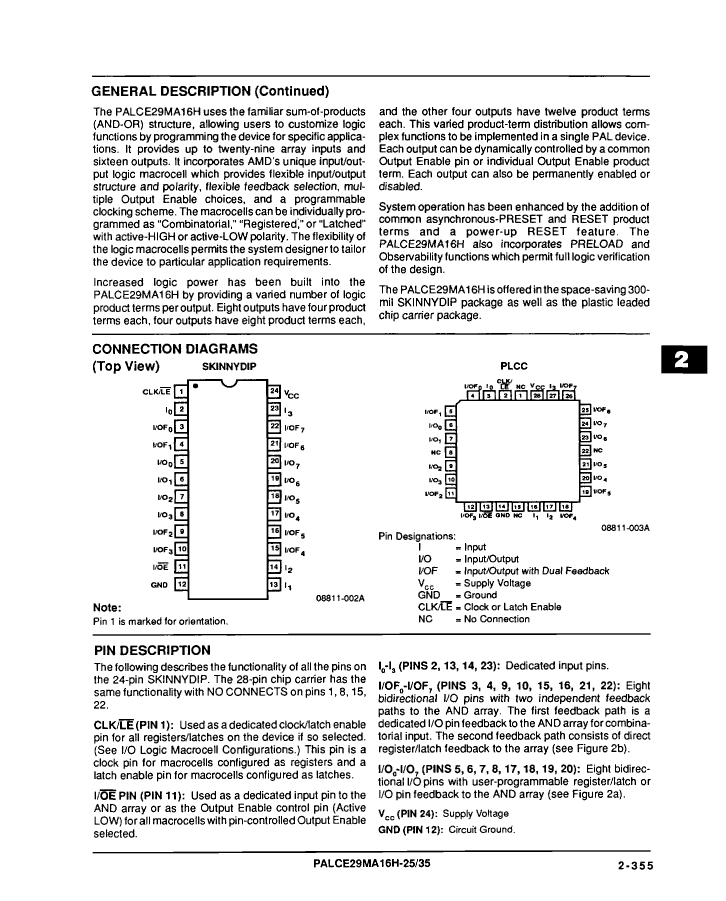

Parts packaging code	DIP
package instruction	DIP, DIP24,.3
Contacts	24
Reach Compliance Code	unknown
Architecture	PAL-TYPE
maximum clock frequency	25 MHz
JESD-30 code	R-PDIP-T24
JESD-609 code	e0
Dedicated input times	4
Number of I/O lines	16
Number of entries	21
Output times	16

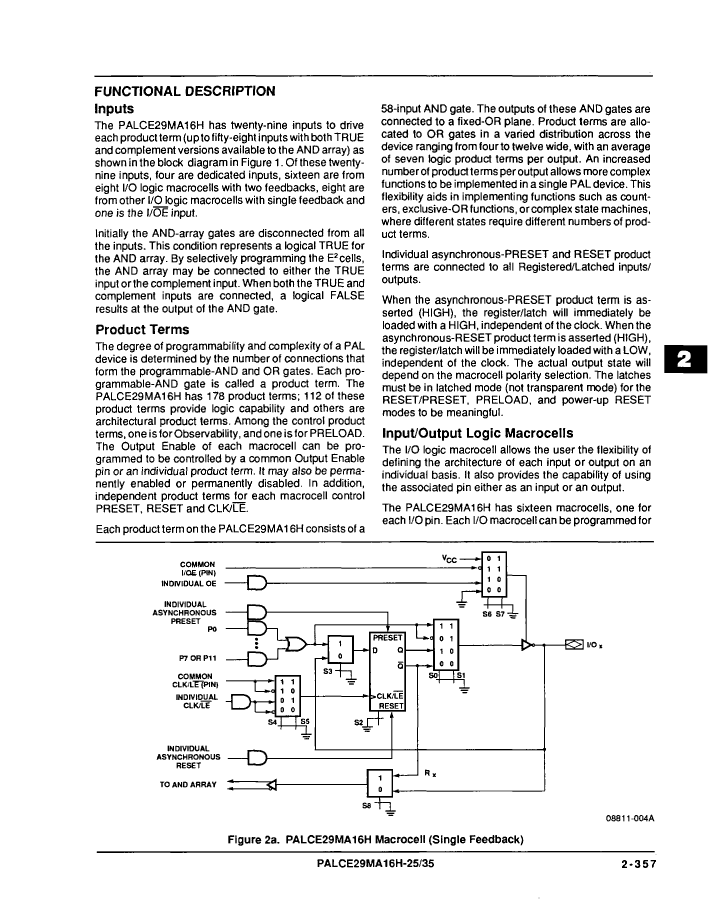

Number of product terms	178
Number of terminals	24
Maximum operating temperature	75 °C
Minimum operating temperature
organize	4 DEDICATED INPUTS, 16 I/O

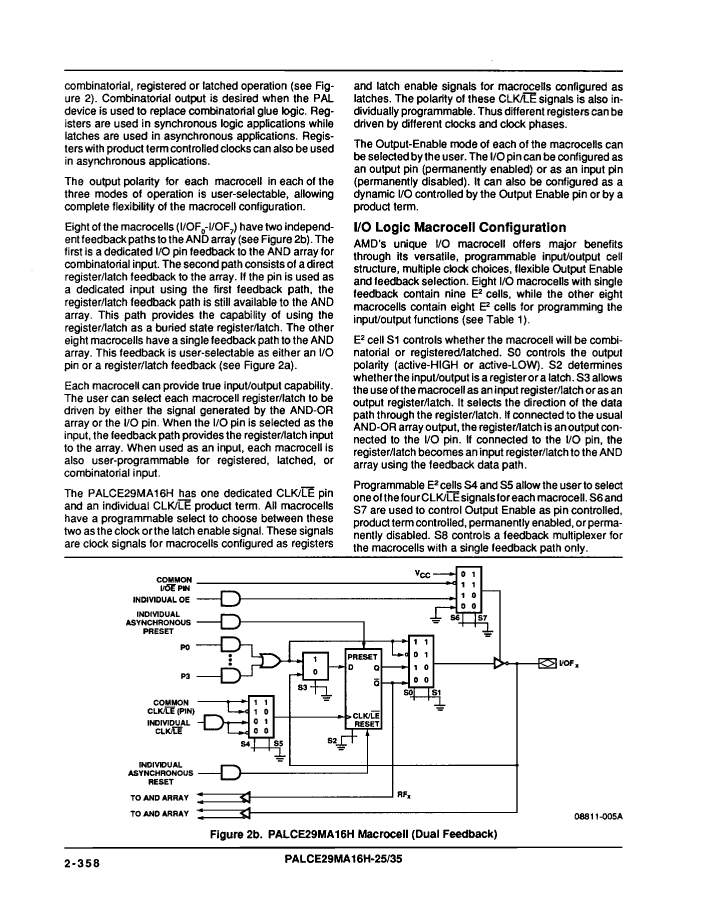

Output function	MACROCELL
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP24,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Programmable logic type	EE PLD
propagation delay	36 ns
Certification status	Not Qualified
Maximum supply voltage	5.25 V
Minimum supply voltage	4.75 V
Nominal supply voltage	5 V
surface mount	NO
technology	CMOS
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
