F10175DC datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > logic> logic> F10175DC

F10175DC: DescriptionD Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16; Categorylogic logic; File Size58KB，3 Pages; ManufacturerFairchild; Websitehttp://www.fairchildsemi.com/

Download Datasheet Parametric Compare View All

F10175DC Overview

D Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16

F10175DC Parametric

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Fairchild
Parts packaging code	DIP
package instruction	DIP, DIP16,.3
Contacts	16
Reach Compliance Code	unknown
Other features	WITH DUAL LATCH ENABLE
series	10K
JESD-30 code	R-GDIP-T16
JESD-609 code	e0
length	19.558 mm
Logic integrated circuit type	D LATCH
Number of digits	5
Number of functions	1
Number of terminals	16
Maximum operating temperature	75 °C
Minimum operating temperature
Output characteristics	OPEN-EMITTER
Output polarity	TRUE
Package body material	CERAMIC, GLASS-SEALED
encapsulated code	DIP
Encapsulate equivalent code	DIP16,.3
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	-5.2 V
Maximum supply current (ICC)	97 mA
Certification status	Not Qualified
Maximum seat height	5.08 mm
surface mount	NO
technology	ECL
Temperature level	COMMERCIAL EXTENDED
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
Trigger type	LOW LEVEL
width	7.62 mm

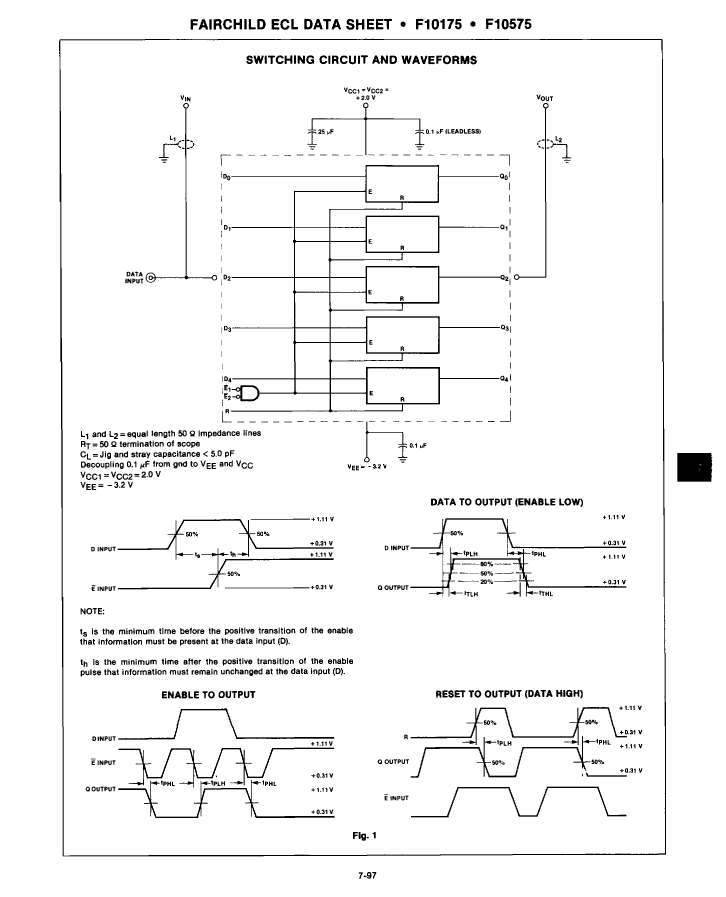

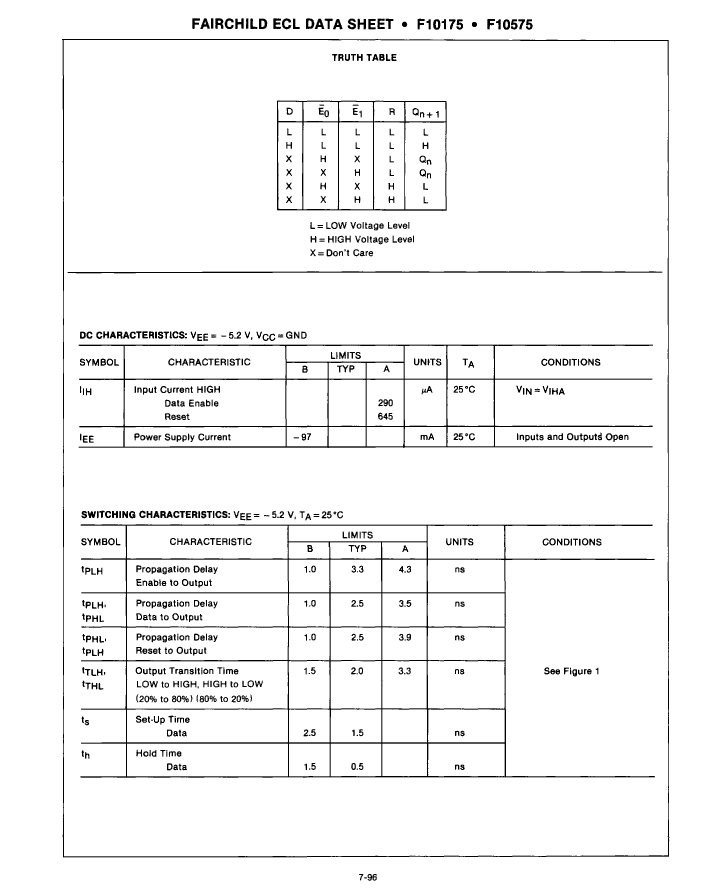

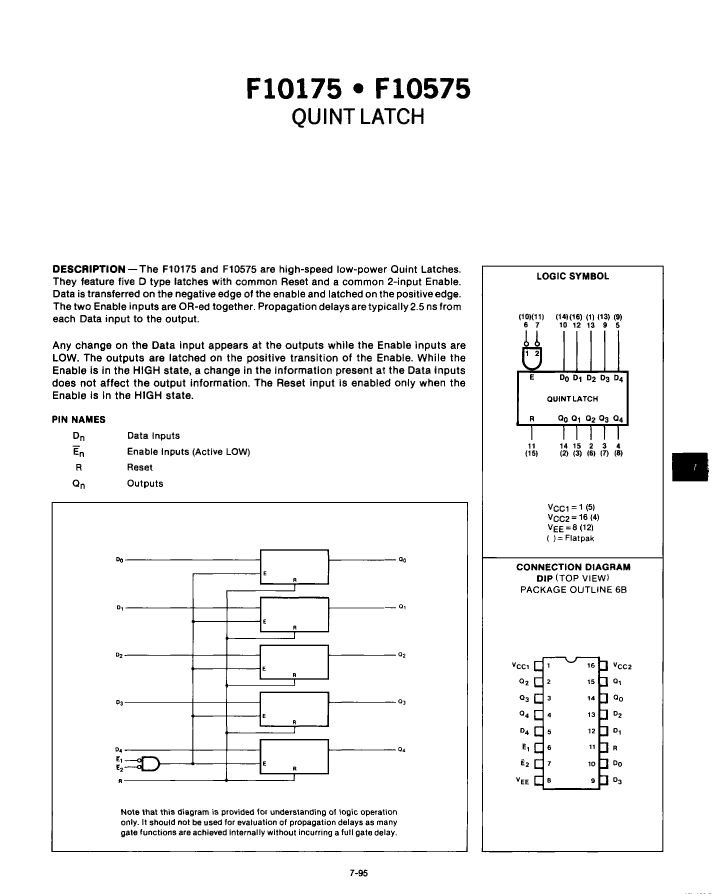

Preview

Download Datasheet

View All

F10175DC Related Products

	F10175DC	F10575FM	F10175FC	F10175PC	F10575DM
Description	D Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16	D Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, CDFP16, CERPACK-16	D Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, CDFP16, CERPACK-16	D Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, PDIP16, PLASTIC, DIP-16	D Latch, 10K Series, 1-Func, Low Level Triggered, 5-Bit, True Output, ECL, CDIP16, HERMETIC SEALED, CERAMIC, DIP-16
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible
Parts packaging code	DIP	DFP	DFP	DIP	DIP
package instruction	DIP, DIP16,.3	DFP, FL16,.3	DFP, FL16,.3	DIP, DIP16,.3	DIP, DIP16,.3
Contacts	16	16	16	16	16
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown
Other features	WITH DUAL LATCH ENABLE	WITH DUAL LATCH ENABLE	WITH DUAL LATCH ENABLE	WITH DUAL LATCH ENABLE	WITH DUAL LATCH ENABLE
series	10K	10K	10K	10K	10K
JESD-30 code	R-GDIP-T16	R-CDFP-F16	R-CDFP-F16	R-PDIP-T16	R-GDIP-T16
JESD-609 code	e0	e0	e0	e0	e0
length	19.558 mm	9.906 mm	9.906 mm	19.05 mm	19.558 mm
Logic integrated circuit type	D LATCH	D LATCH	D LATCH	D LATCH	D LATCH
Number of digits	5	5	5	5	5
Number of functions	1	1	1	1	1
Number of terminals	16	16	16	16	16
Maximum operating temperature	75 °C	125 °C	75 °C	75 °C	125 °C
Output characteristics	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER	OPEN-EMITTER
Output polarity	TRUE	TRUE	TRUE	TRUE	TRUE
Package body material	CERAMIC, GLASS-SEALED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DFP	DFP	DIP	DIP
Encapsulate equivalent code	DIP16,.3	FL16,.3	FL16,.3	DIP16,.3	DIP16,.3
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	FLATPACK	FLATPACK	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
power supply	-5.2 V	-5.2 V	-5.2 V	-5.2 V	-5.2 V
Maximum supply current (ICC)	97 mA	97 mA	97 mA	97 mA	97 mA
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	1.905 mm	1.905 mm	5.08 mm	5.08 mm
surface mount	NO	YES	YES	NO	NO
technology	ECL	ECL	ECL	ECL	ECL
Temperature level	COMMERCIAL EXTENDED	MILITARY	COMMERCIAL EXTENDED	COMMERCIAL EXTENDED	MILITARY
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	FLAT	FLAT	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	1.27 mm	1.27 mm	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED	NOT SPECIFIED
Trigger type	LOW LEVEL	LOW LEVEL	LOW LEVEL	LOW LEVEL	LOW LEVEL
width	7.62 mm	6.731 mm	6.731 mm	7.62 mm	7.62 mm
Maker	Fairchild	Fairchild	-	Fairchild	Fairchild
