QP82188 datasheet, PDF - EEWORLD Datasheet

QP82188: DescriptionControl/Command Signal Generator, 8MHz, HMOS, PDIP28, PLASTIC, DIP-28; CategoryThe embedded processor and controller Microcontrollers and processors; File Size521KB，17 Pages; ManufacturerIntel; Websitehttp://www.intel.com/

Download Datasheet Parametric Compare View All

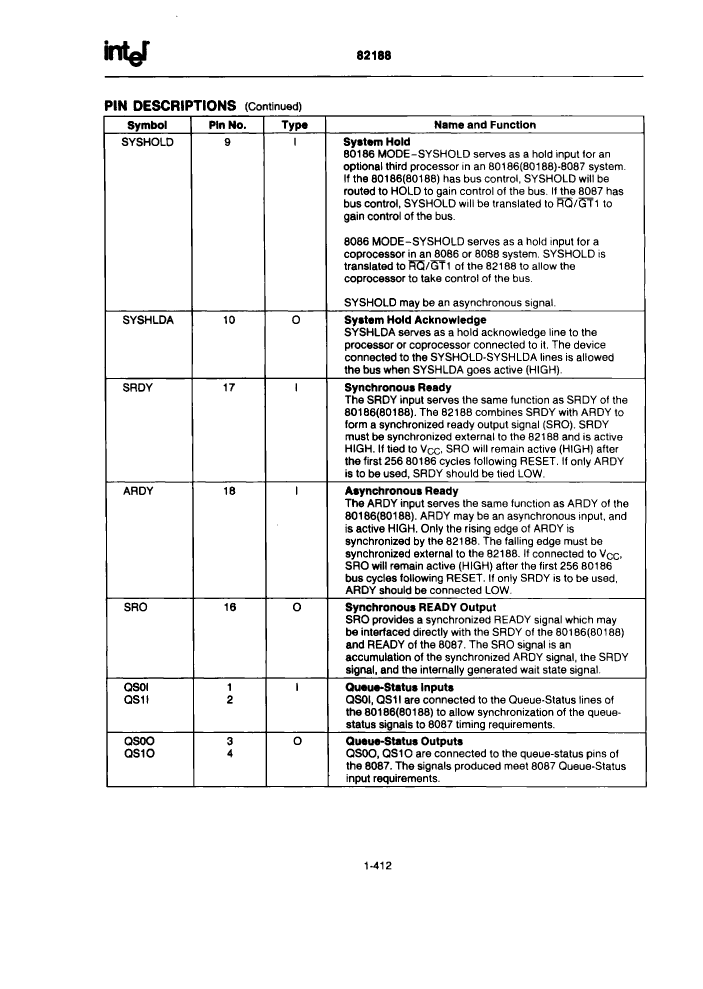

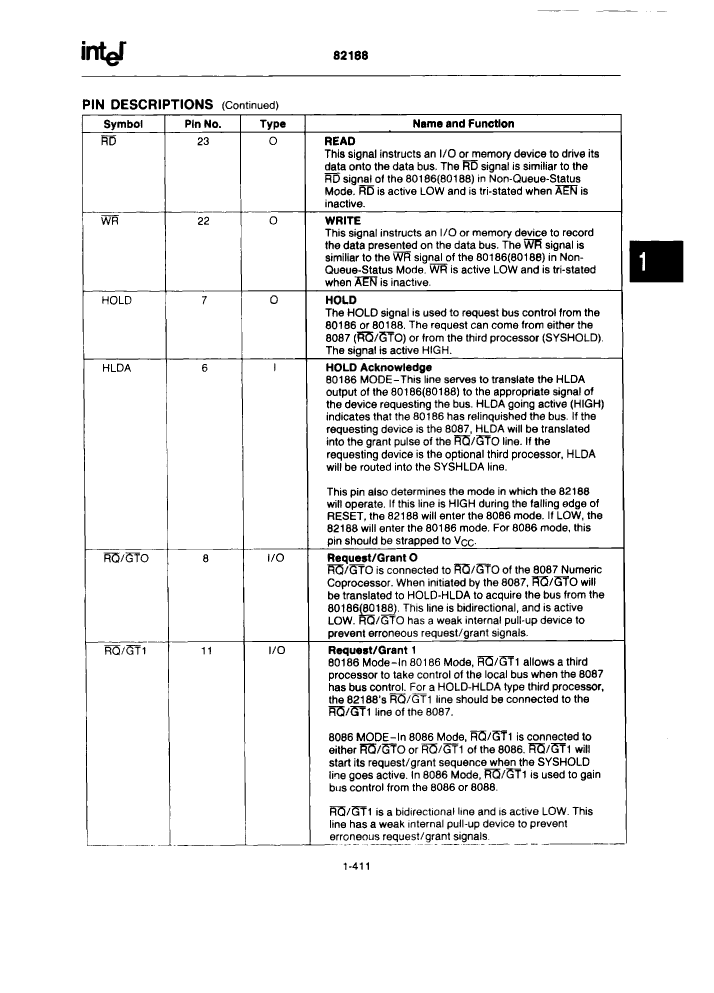

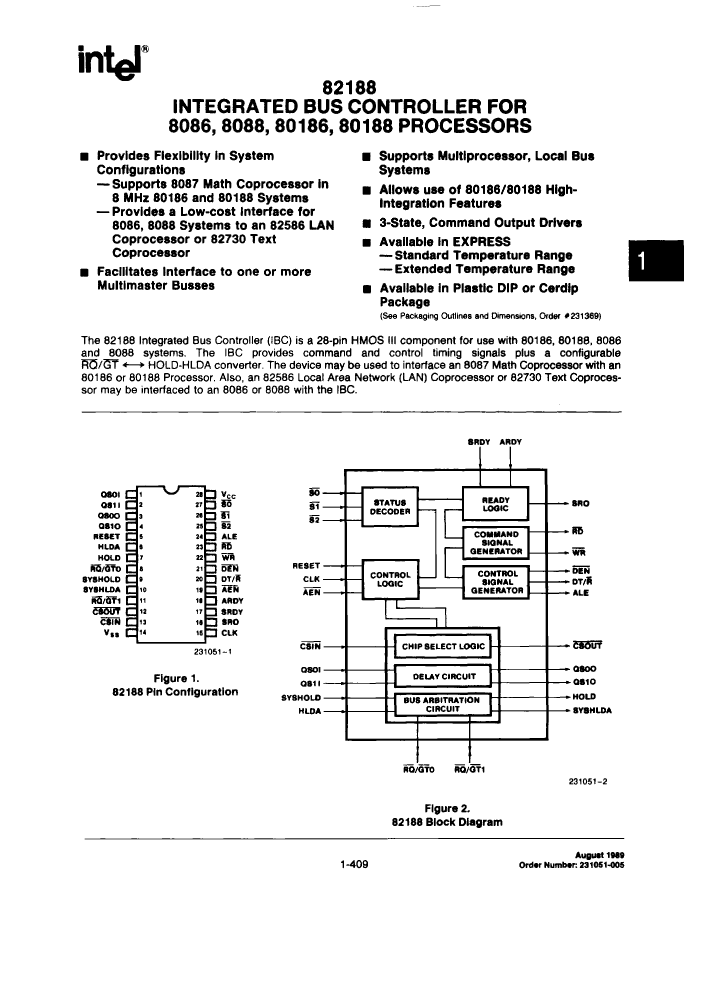

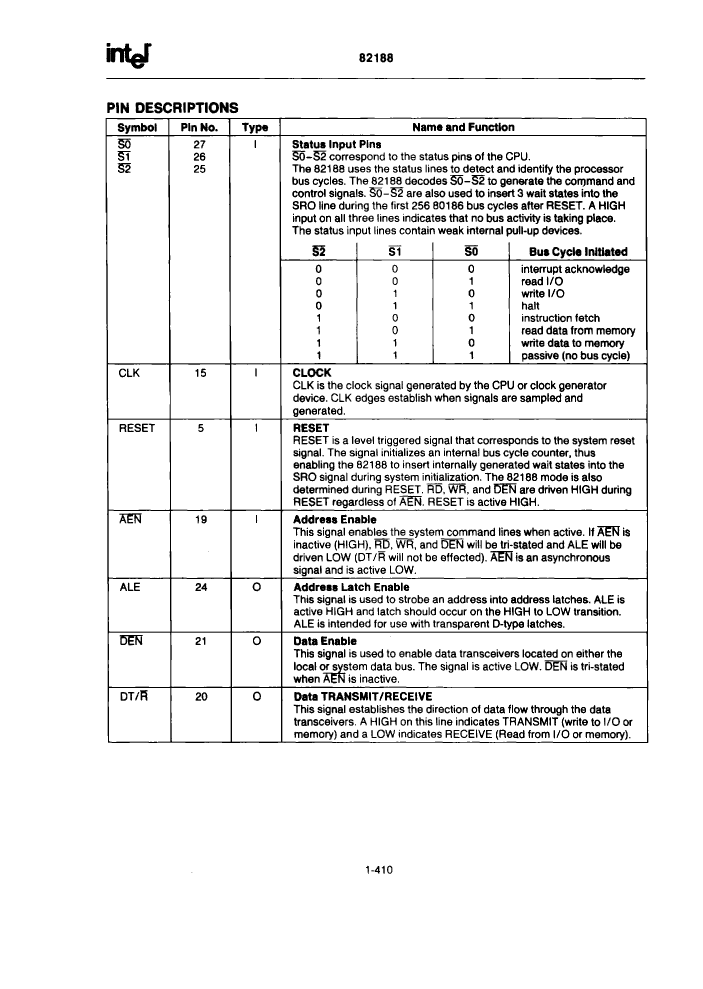

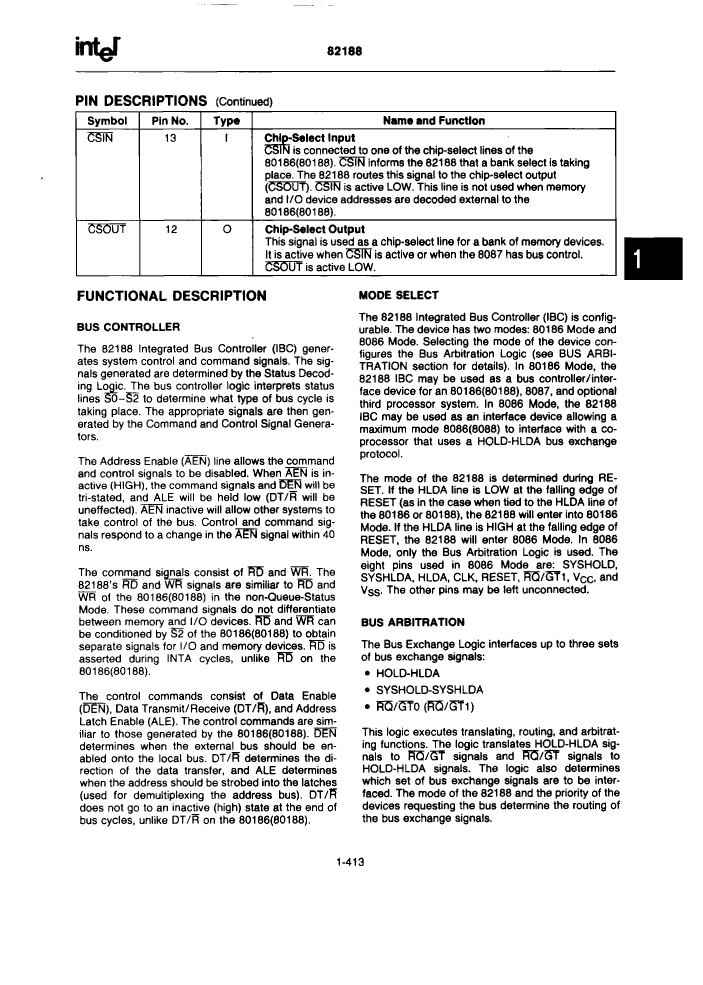

QP82188 Overview

Control/Command Signal Generator, 8MHz, HMOS, PDIP28, PLASTIC, DIP-28

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Intel
Parts packaging code	DIP
package instruction	DIP, DIP28,.6
Contacts	28
Reach Compliance Code	unknown
Bus compatibility	80188; 80186; 8088; 8086
maximum clock frequency	8 MHz
JESD-30 code	R-PDIP-T28
JESD-609 code	e0
length	37.02 mm
Number of terminals	28
Maximum operating temperature	70 °C
Minimum operating temperature
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Encapsulate equivalent code	DIP28,.6
Package shape	RECTANGULAR
Package form	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Certification status	Not Qualified
Maximum seat height	5.08 mm
Maximum slew rate	100 mA
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	NO
technology	HMOS
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	15.24 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR

	QP82188	QD82188
Description	Control/Command Signal Generator, 8MHz, HMOS, PDIP28, PLASTIC, DIP-28	Control/Command Signal Generator, 8MHz, HMOS, CDIP28, CERDIP-28
Is it Rohs certified?	incompatible	incompatible
Maker	Intel	Intel
Parts packaging code	DIP	DIP
package instruction	DIP, DIP28,.6	DIP, DIP28,.6
Contacts	28	28
Reach Compliance Code	unknown	unknown
Bus compatibility	80188; 80186; 8088; 8086	80188; 80186; 8088; 8086
maximum clock frequency	8 MHz	8 MHz
JESD-30 code	R-PDIP-T28	R-GDIP-T28
JESD-609 code	e0	e0
length	37.02 mm	37.15 mm
Number of terminals	28	28
Maximum operating temperature	70 °C	70 °C
Package body material	PLASTIC/EPOXY	CERAMIC, GLASS-SEALED
encapsulated code	DIP	DIP
Encapsulate equivalent code	DIP28,.6	DIP28,.6
Package shape	RECTANGULAR	RECTANGULAR
Package form	IN-LINE	IN-LINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED	NOT SPECIFIED
power supply	5 V	5 V
Certification status	Not Qualified	Not Qualified
Maximum seat height	5.08 mm	5.72 mm
Maximum supply voltage	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V
surface mount	NO	NO
technology	HMOS	HMOS
Temperature level	COMMERCIAL	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	THROUGH-HOLE	THROUGH-HOLE
Terminal pitch	2.54 mm	2.54 mm
Terminal location	DUAL	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED	NOT SPECIFIED
width	15.24 mm	15.24 mm
uPs/uCs/peripheral integrated circuit type	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR	SYSTEM INTERFACE LOGIC, CONTROL AND COMMAND SIGNAL GENERATOR
